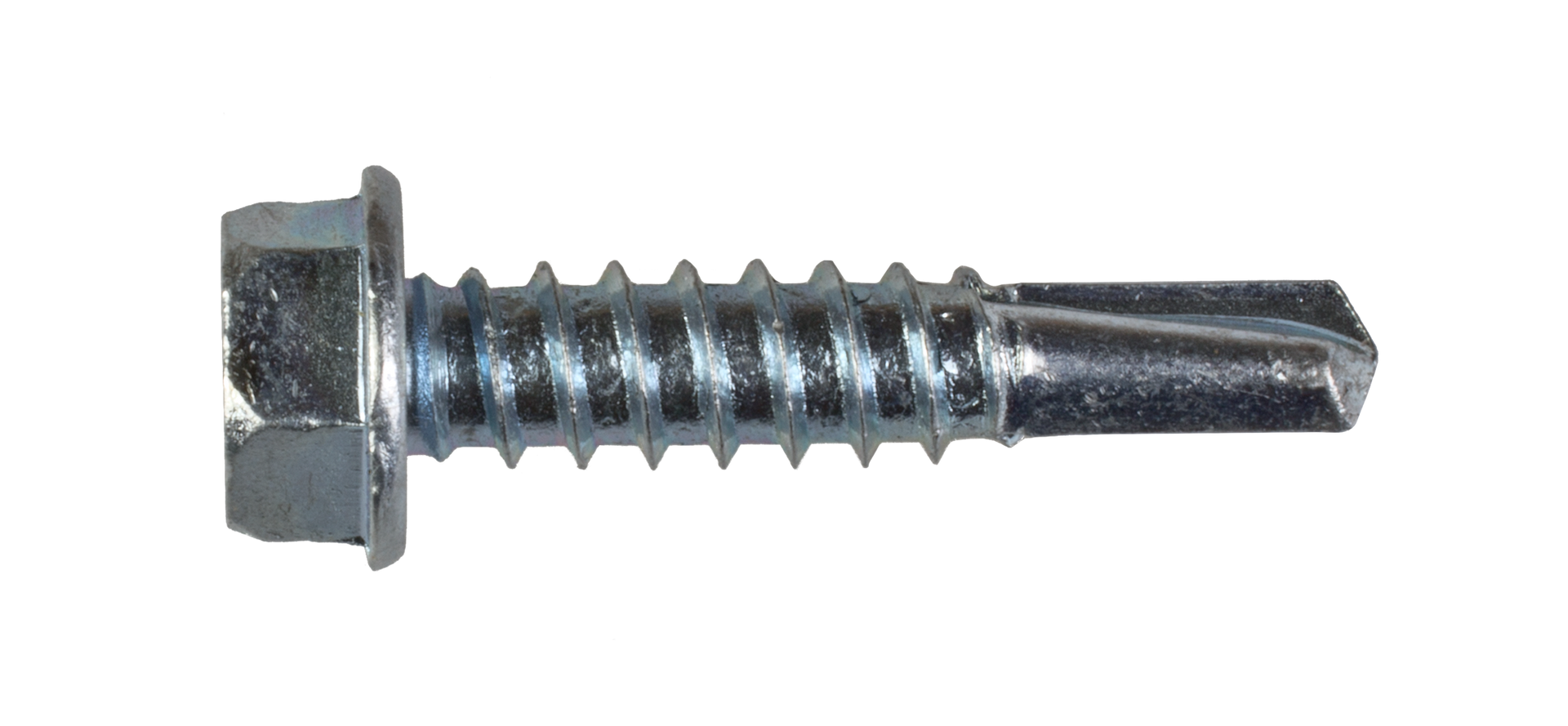

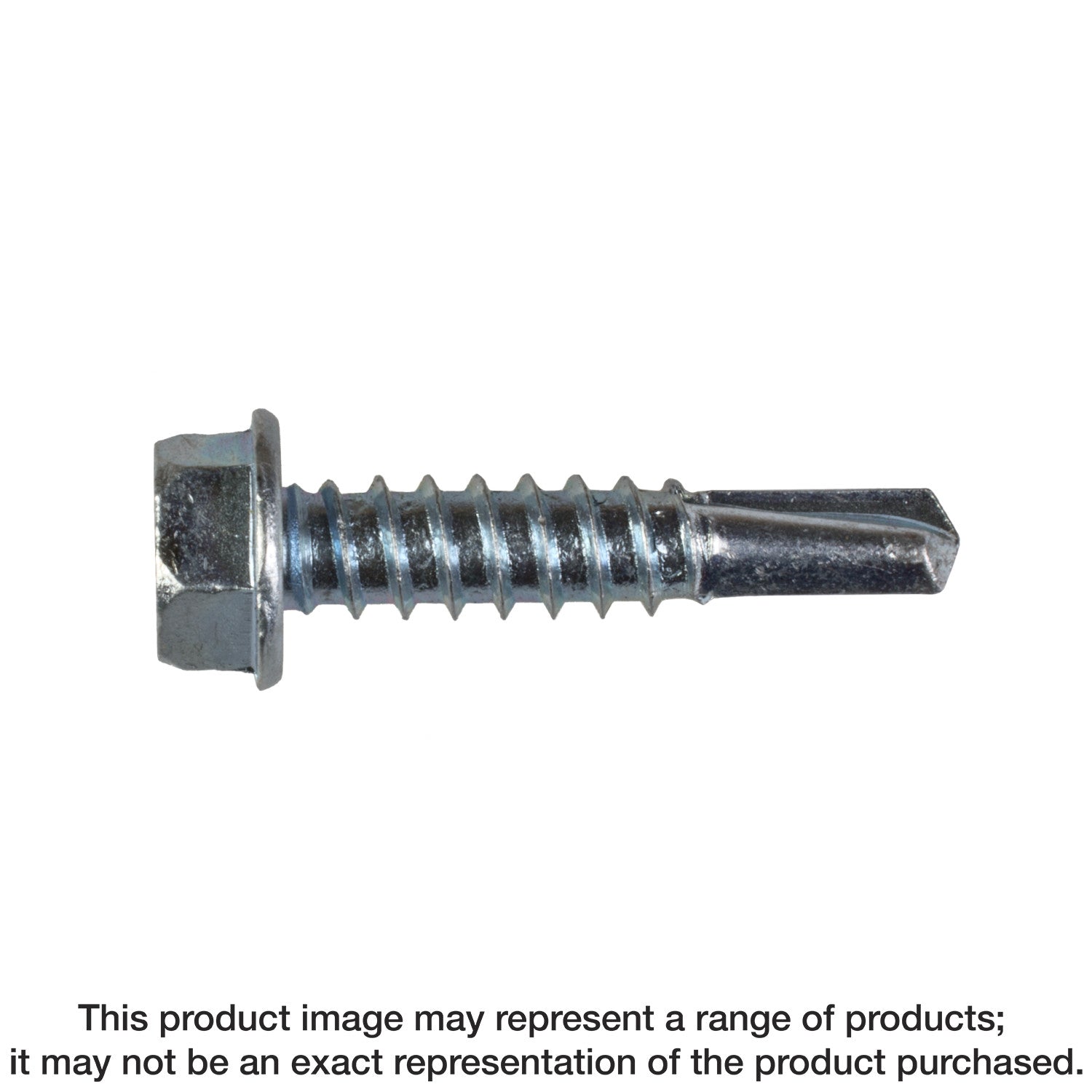

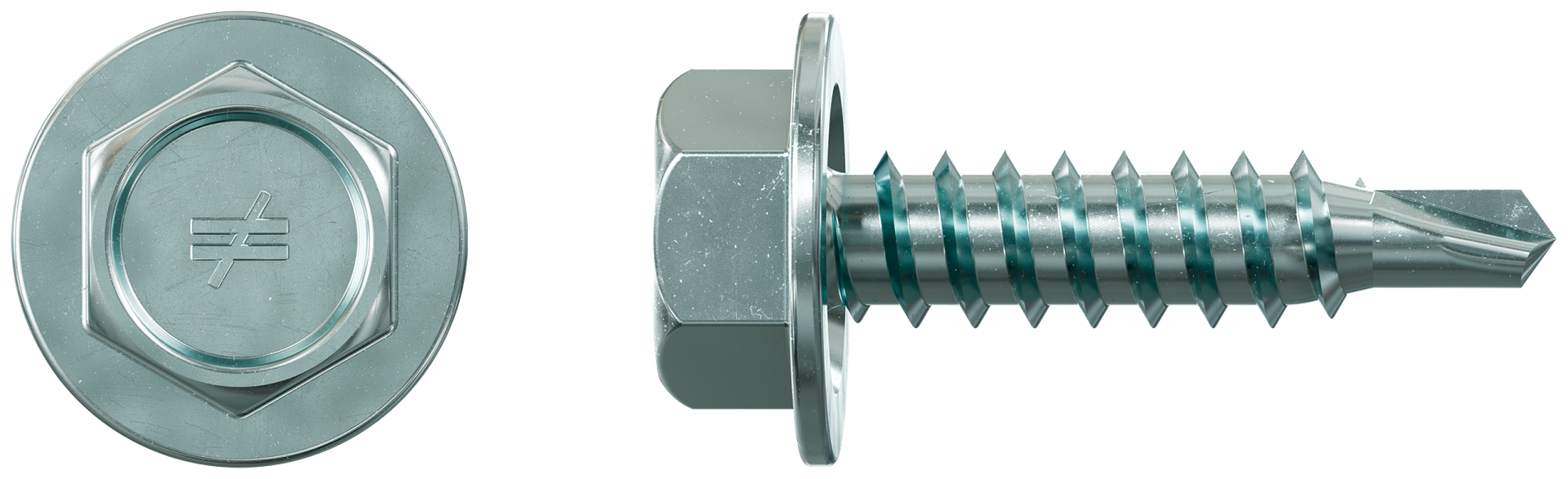

Simpson Strong-Tie XU34S1016 Strong-Drive® Self-Drilling X Metal Screw (Collated) — #10 x 3/4 in. 5/16 Hex, Clear Zinc (1500-Qty)

Simpson Strong-Tie XU34S1016 Strong-Drive® Self-Drilling X Metal Screw (Collated) — #10 x 3/4 in. 5/16 Hex, Clear Zinc (1500-Qty)

Collated metal screws provide an easy way to increase installation speed. The Simpson Strong-Tie® Strong-Drive® Self-Drilling X metal screw is ideal for securing steel decking to structural steel, steel stitching (“side-lap” stitching) and cold-formed steel (CFS) framing. These collated structural screws are compatible with Simpson Strong-Tie Quik Drive® systems and many major manufacturers’ auto-feed screw driving systems.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 5/16 in. hex head (driver bit included)
• Self-drilling point for fast installation into metal
• Hex-washer head for easy installation and secure driving
• Straight collation enables fast, consistent installation that reduces jamming in auto-feed tools
• Screw length: 3/4 in.
• Clear zinc coating provides protection in dry, interior environments
• Quantity: 1,500 per package

Application

• Decks — Deck Boards Metal
• Fastening for Cold-Formed Steel

Specifications

• ERP Part Number: XU34S1016
• UPC: 707392347088
• GTIN: 707392347088
• Feature 01: 5/16 in. hex head (driver bit included)
• Feature 02: Self-drilling point for fast installation into metal
• Feature 03: Hex-washer head for easy installation and secure driving
• Feature 04: Straight collation enables fast, consistent installation that reduces jamming in auto-feed tools
• Feature 05: Screw length: 3/4 in.
• Feature 06: Clear zinc coating provides protection in dry, interior environments
• Feature 07: Quantity: 1,500 per package
• Install With: Compatible with Simpson Strong-Tie Quik Drive PROSDX150G2 and PROPP150G2 systems and attachments
• Applications List: Decks — Deck Boards Metal
• Applications List.1: Fastening for Cold-Formed Steel
• Base Product ID: X_CScrew
• Base Product Name: Strong-Drive® Self-Drilling X Metal Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Collated Screw
• Coating: Clear Zinc Coating
• Collation Type: Straight
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: 5/16 in. Hex
• Finish: Clear Zinc Coating
• GUID: 48448497506511801871358337574465185007
• Head Diameter (in.): 0.475
• Head Type: Hex Washer Head
• Length (in.): 3/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.333
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Point Size: 1
• Point Type: Drill Point
• Product Class: Collated Screw
• Product Includes: Driver bit included
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 16
• Short Product Name: #10 X 3/4IN 5/16 HEX 16 TPI #1DP-1500/BX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_collatedmetalscrews/x_cscrew/p/strong-drive-self-drilling-x-metal-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Machine Threads
• TPI: 16
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392347083
