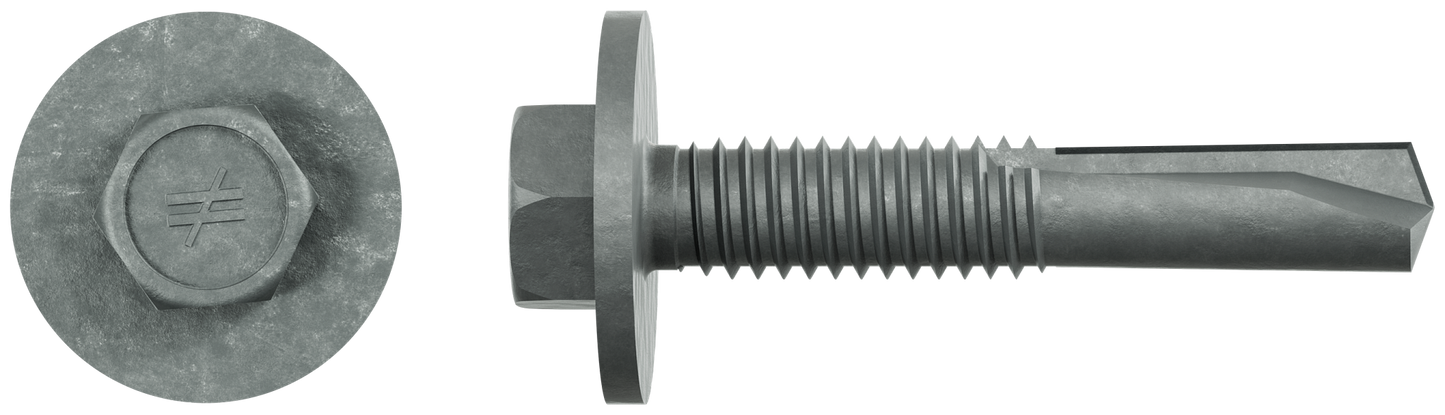

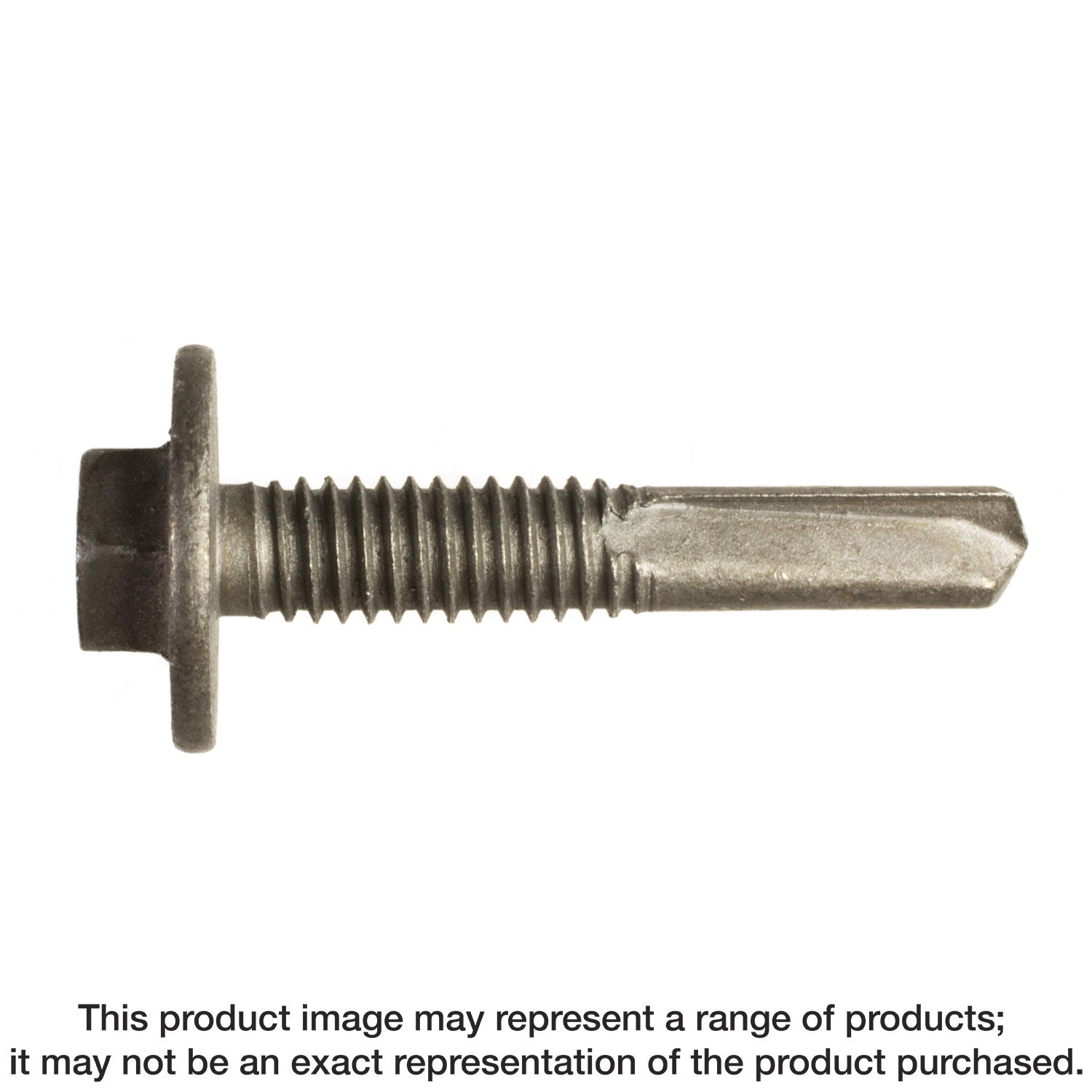

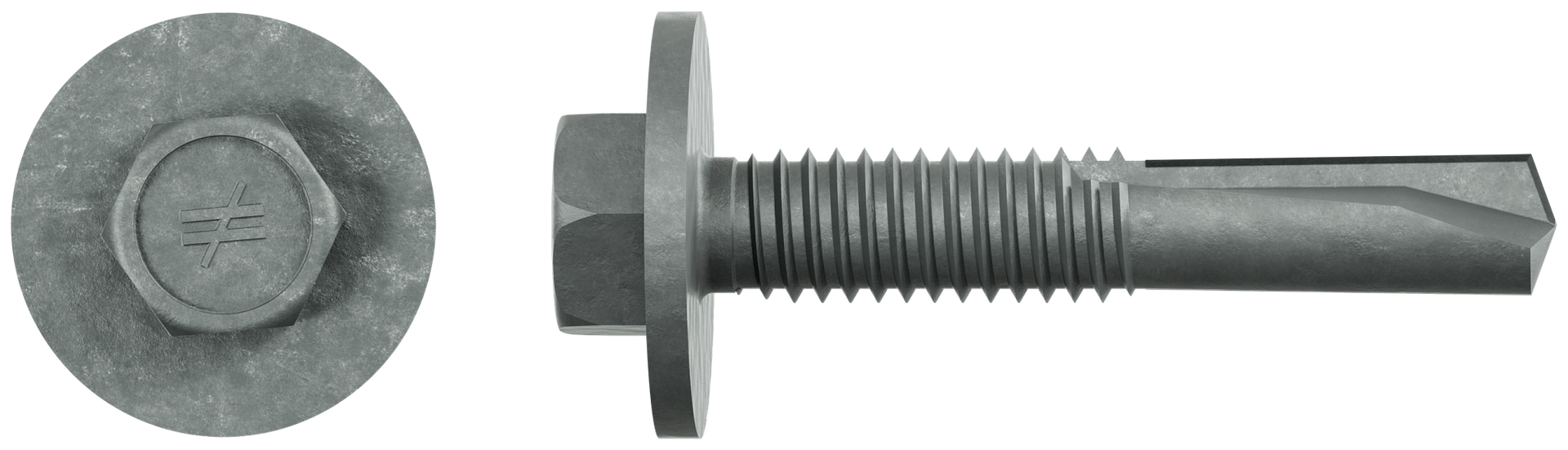

Simpson Strong-Tie XLQ114T1224 Strong-Drive® XL LARGE-HEAD METAL Screw (Collated) — #12 x 1-1/4 in. 5/16 Hex (1000-Qty)

Simpson Strong-Tie XLQ114T1224 Strong-Drive® XL LARGE-HEAD METAL Screw (Collated) — #12 x 1-1/4 in. 5/16 Hex (1000-Qty)

Strong-Drive XL Large-Head Metal screws are load-tested and code listed, allowing you to get the maximum load values for installation. These screws are the perfect choice when high shear or uplift resistance is required and can be excellent 1-for-1 replacements for pins. Applications include steel decking or other cold-formed steel framing; connectors to structural steel.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 5/16 in. hex drive (driver part #BITHEXLB516)
• #5 drill point
• 5/8 in. diameter hex washer head
• Length: 1-1/4 in.
• Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Quantity: 1,000

Application

• Cold-Formed Steel

Specifications

• ERP Part Number: XLQ114T1224
• UPC: 707392140689
• GTIN: 707392140689
• Feature 01: 5/16 in. hex drive (driver part #BITHEXLB516)
• Feature 02: #5 drill point
• Feature 03: 5/8 in. diameter hex washer head
• Feature 04: Length: 1-1/4 in.
• Feature 05: Quik Guard® coating provides corrosion resistance for exterior and certain preservative-treated wood applications
• Feature 06: Quantity: 1,000
• Install With: Installs with the Simpson Strong-Tie® Quik Drive® BSD200G2 auto-feed screw driving attachment
• Applications List: Cold-Formed Steel
• Assembled Depth - Imperial: 0.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: XL_CScrew
• Base Product Name: Strong-Drive® XL LARGE-HEAD METAL Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Collated Screw
• Coating: Quik Guard® Coating
• Collation Type: Belt
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: 5/16 in. Hex
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 256366851536098734693963186984527519538
• Head Diameter (in.): 0.625
• Head Type: Hex Washer Head
• Length (in.): 1 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.466
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1000
• Packaging Type: Box
• Point Size: 5
• Point Type: Drill Point
• Product Class: Collated Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #12
• Shipping Weight: 20
• Short Product Name: #12X1-1/4IN 5/16IN HEX LG/W #5DP 1000/BX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_collatedmetalscrews/xl_cscrew/p/strong-drive-xl-large-head-metal-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Machine Threads
• TPI: 24
• US Patents: 9,518,599
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392140684
