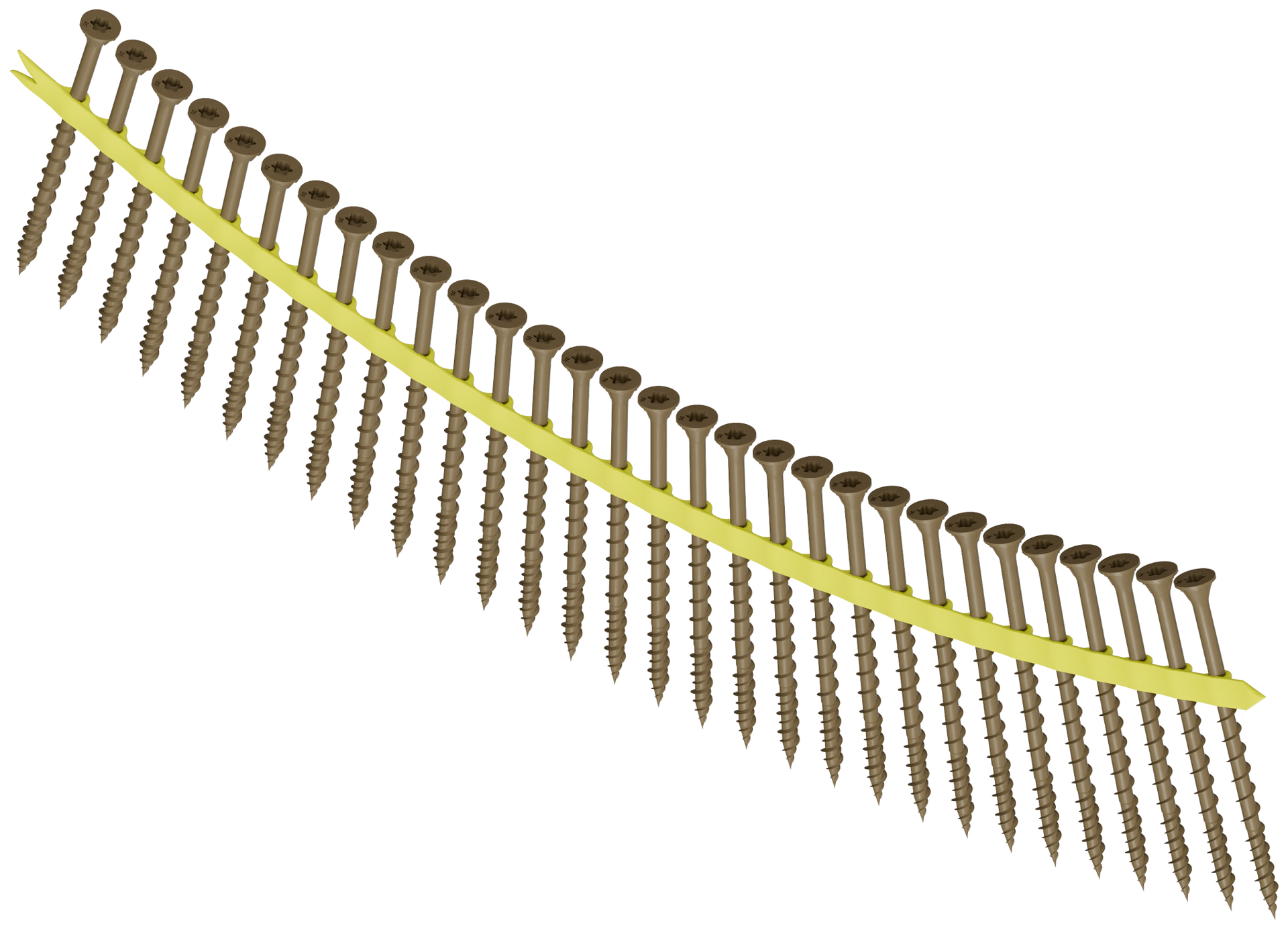

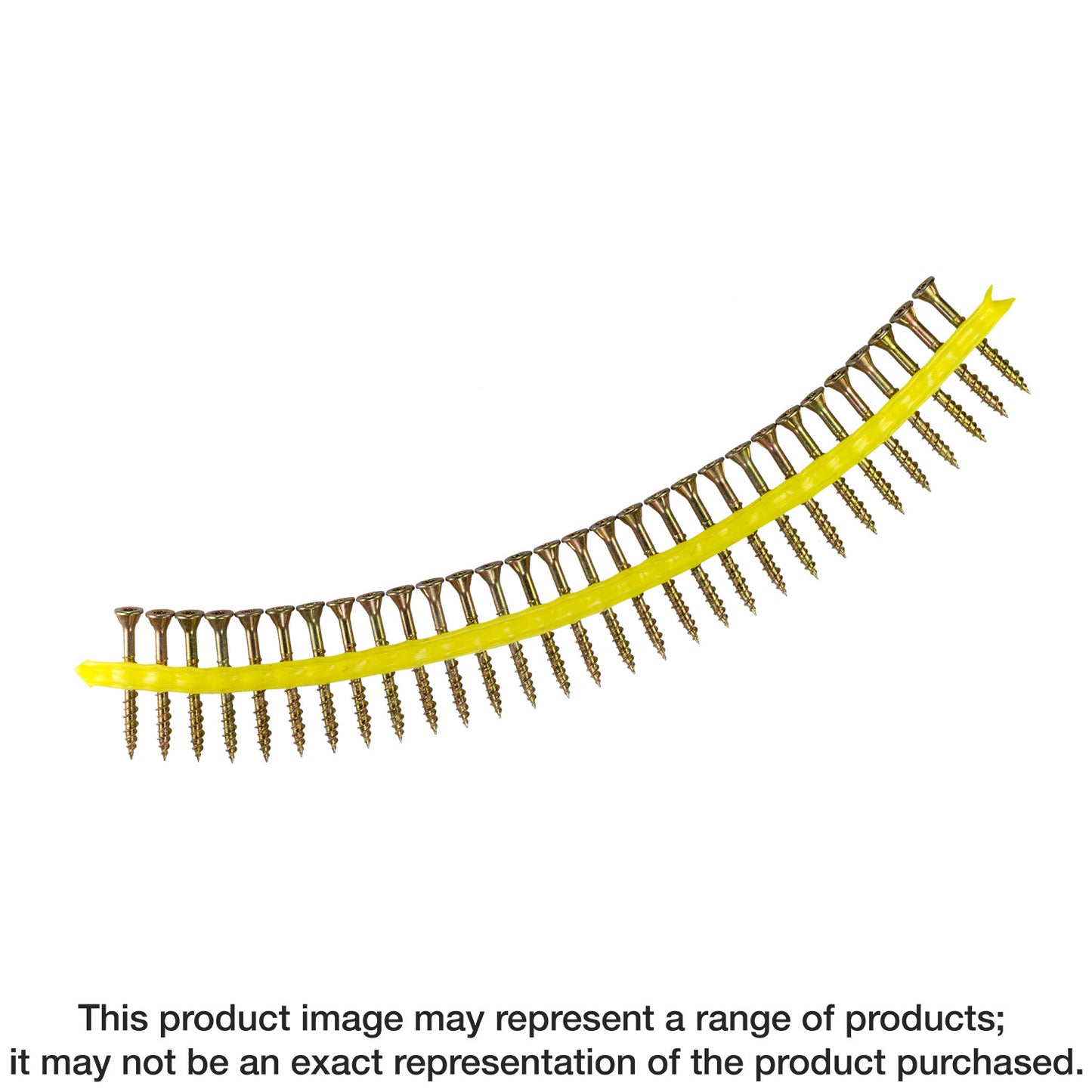

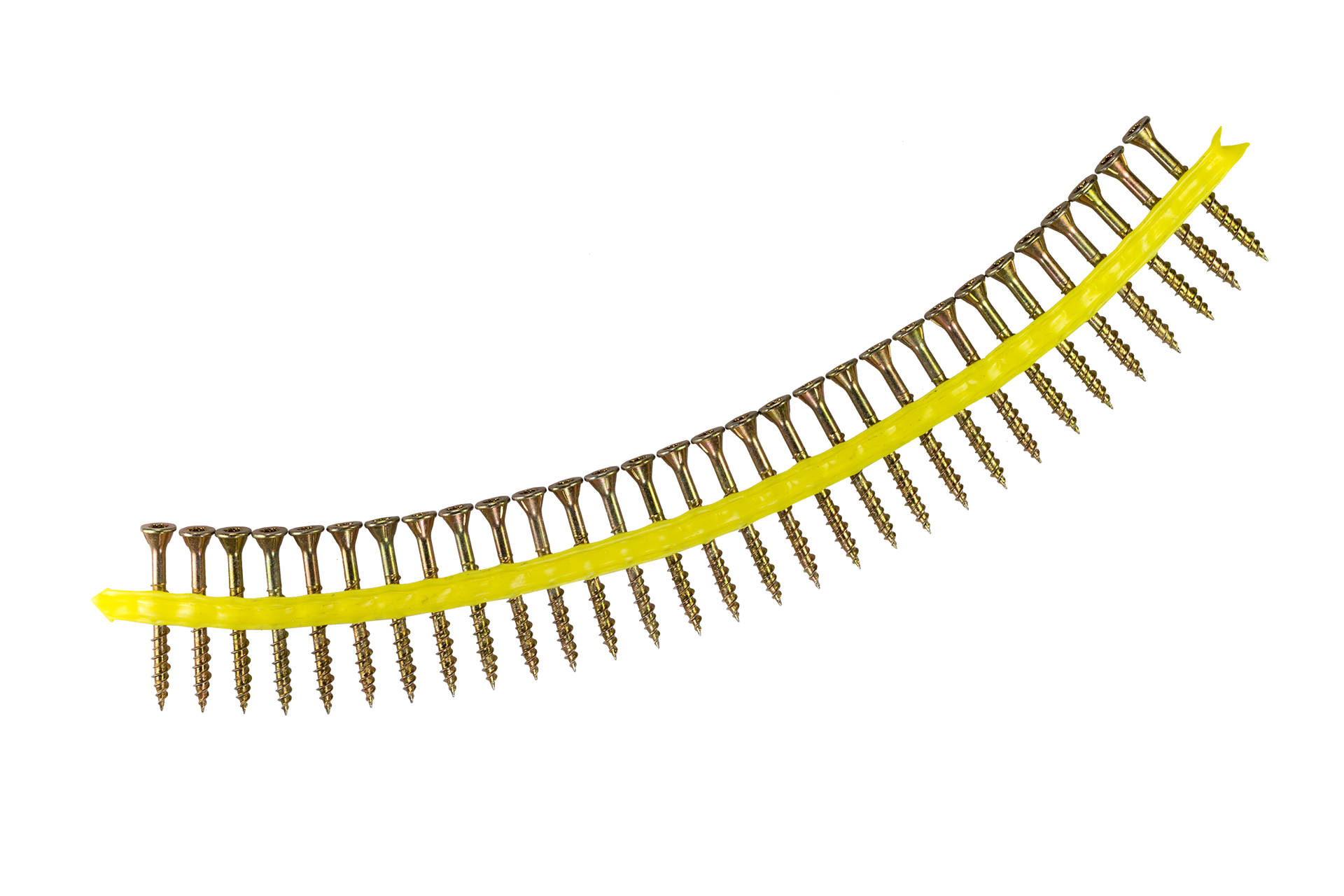

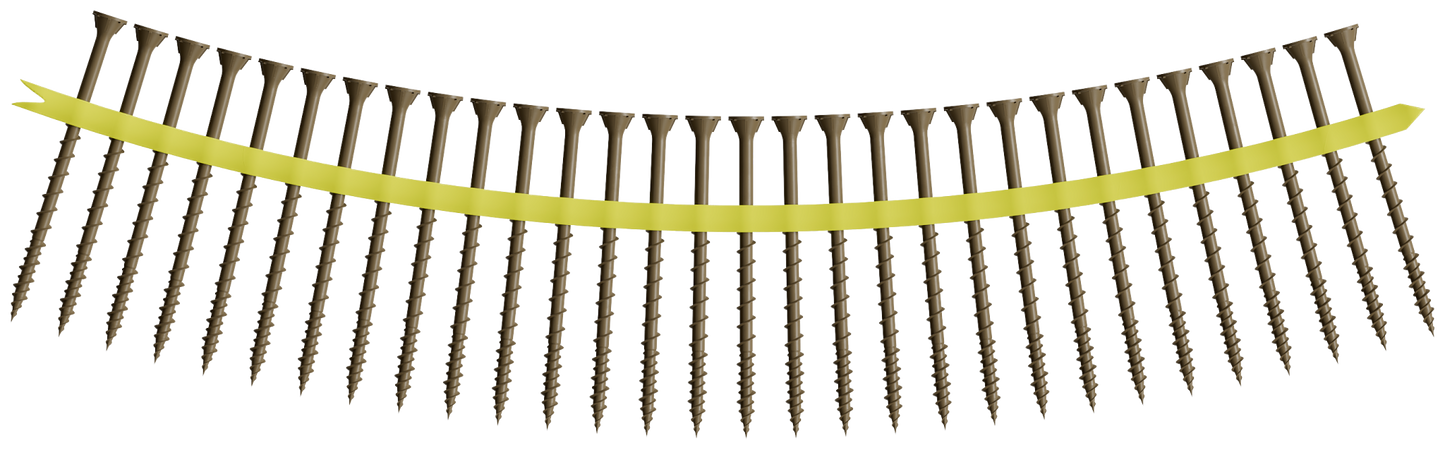

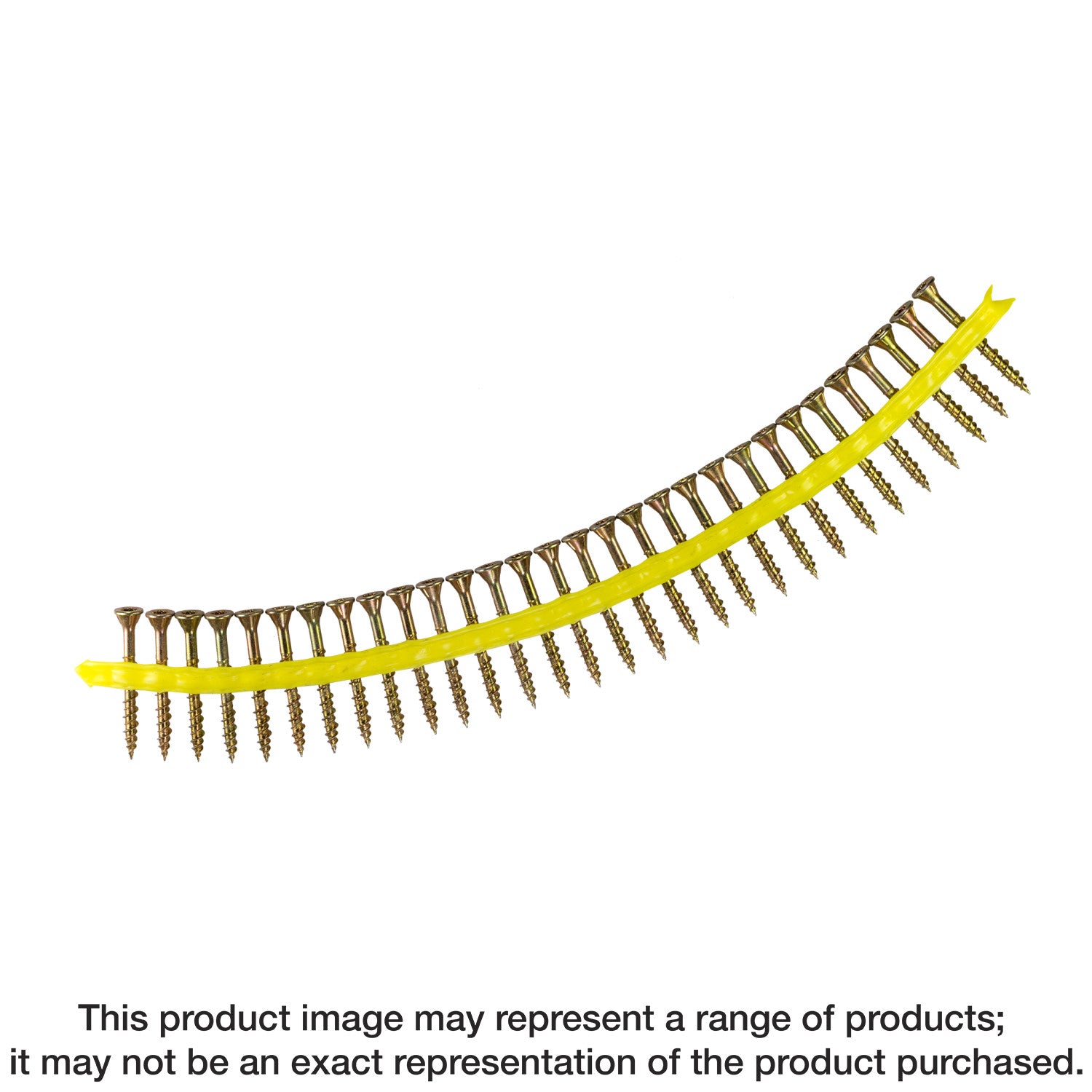

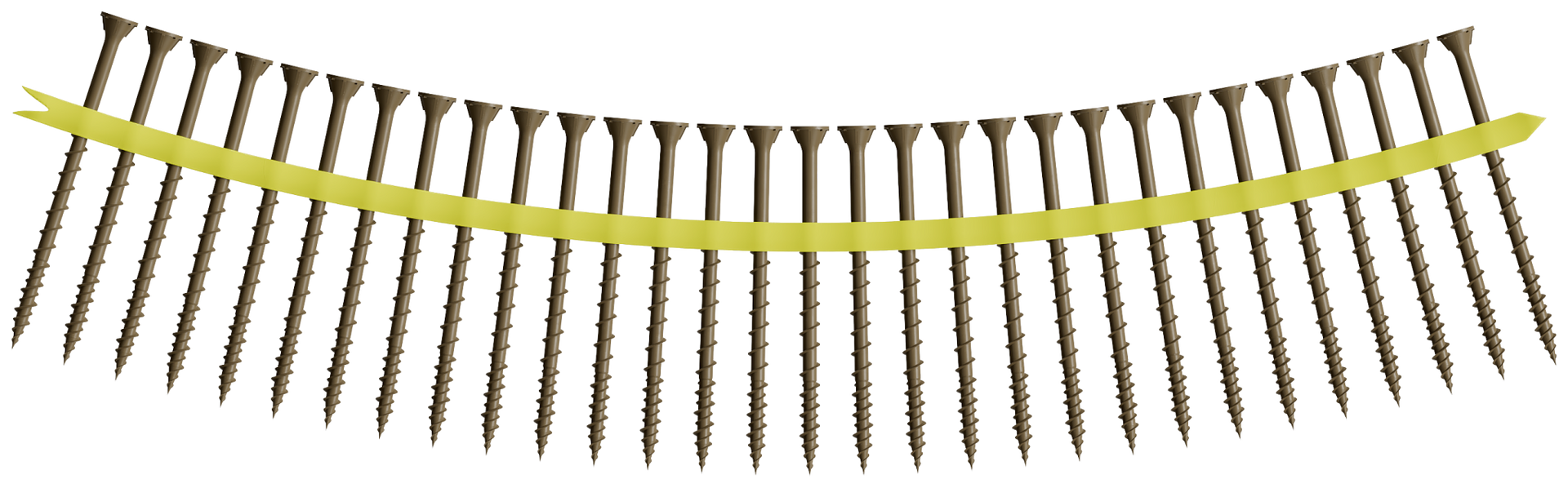

Simpson Strong-Tie WSVF3S Strong-Drive® WSVF SUBFLOOR Screw (Collated) — #9 x 3 in. T25, Gray (1000-Qty)

Simpson Strong-Tie WSVF3S Strong-Drive® WSVF SUBFLOOR Screw (Collated) — #9 x 3 in. T25, Gray (1000-Qty)

Simpson Strong-Tie® Strong-Drive structural fasteners are engineered and extensively tested to efficiently meet your most demanding wood and metal applications. The Strong-Drive family is designed to install easier than other fastening methods, which saves time and money. The WSVF Subfloor screw was developed for fastening subfloor sheathing using the Quik Drive® auto-feed screw driving system. It has been re-engineered to reduce driving force and increase installation speed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving — makes for up to 20% faster driving
• Less installation torque also means less wear on tools
• Deep 6-lobed recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
• The holding power of WSVF screws reduces the gaps between the joist and subfloor that cause floor squeaks
• WSVF screws can be easily backed out, allowing for future access to floor cavities
• 6-lobe T25 drive bit (included)
• Dual-evaluated per ICC-ES AC233 and ICC-ES AC120 for wood-frame subfloor fastening
• Length: 3 in.
• Gray Quik Guard® coating is approved for use in FRT (Fire Retardant Treated Lumber) per ICC-ES-ESR-1472
• Quantity: 1,000

Application

• Fastening Subfloor to Wood
• Fastening Wood-to-Wood
• Fastening Fire-Retardant Treated Lumber

Specifications

• ERP Part Number: WSVF3S
• UPC: 707392008897
• GTIN: 707392008897
• Feature 01: Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving — makes for up to 20% faster driving
• Feature 02: Less installation torque also means less wear on tools
• Feature 03: Deep 6-lobed recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
• Feature 04: The holding power of WSVF screws reduces the gaps between the joist and subfloor that cause floor squeaks
• Feature 05: WSVF screws can be easily backed out, allowing for future access to floor cavities
• Feature 06: 6-lobe T25 drive bit (included)
• Feature 07: Dual-evaluated per ICC-ES AC233 and ICC-ES AC120 for wood-frame subfloor fastening
• Feature 08: Length: 3 in.
• Feature 09: Gray Quik Guard® coating is approved for use in FRT (Fire Retardant Treated Lumber) per ICC-ES-ESR-1472
• Feature 10: Quantity: 1,000
• Install With: Installs with the Simpson Strong-Tie® Quik Drive® PRO300S auto-feed screw driving system or attachment
• Applications List: Fastening Subfloor to Wood
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: Fastening Fire-Retardant Treated Lumber
• Assembled Depth - Imperial: 0.333
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.333
• Assembled Width UOM - Imperial: in.
• Base Product ID: WSV_CScrew
• Base Product Name: Strong-Drive® WSV SUBFLOOR Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Collated Screw
• Coating: Quik Guard® Coating
• Collation Type: Curved
• Color: Gray
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 163261912508390520106833081079722964918
• Head Diameter (in.): 0.333
• Head Type: Rimmed Flat Head with Nibs
• Length (in.): 3
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14.13
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1000
• Packaging Type: Box
• Point Type: High-Low Threaded Point
• Product Class: Collated Screw
• Product Includes: Includes 6-lobe T25 drive bit (model BITX25)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #9
• Shank Type: 2/3-Threaded Shank
• Shipping Weight: 13.9
• Short Product Name: #9X3IN T25 FRT SUBFLOOR SCREW 1000/BX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_collatedinteriorwoodscrews/wsv_cscrew/p/strong-drive-wsv-subfloor-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Thread Type: Variable Thread Design
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392008892
