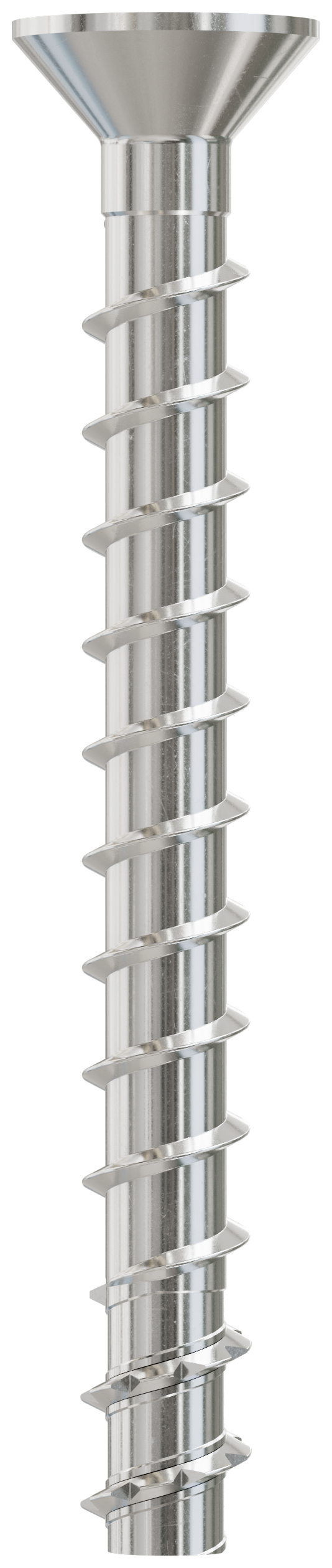

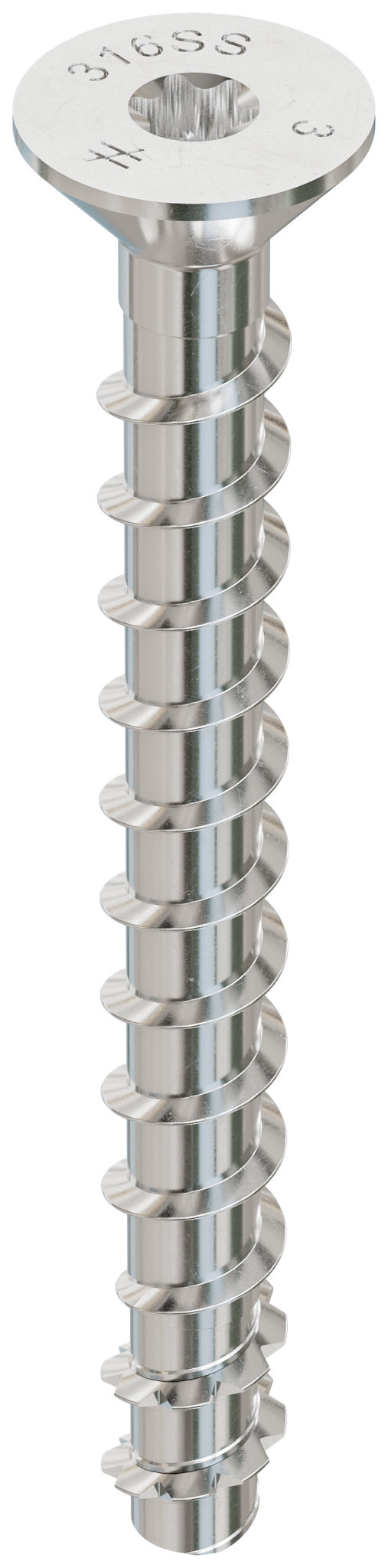

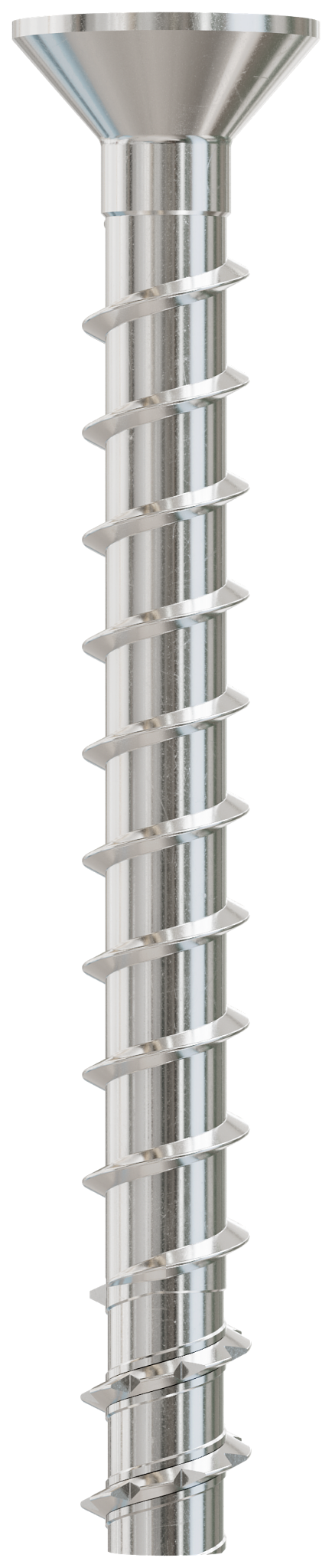

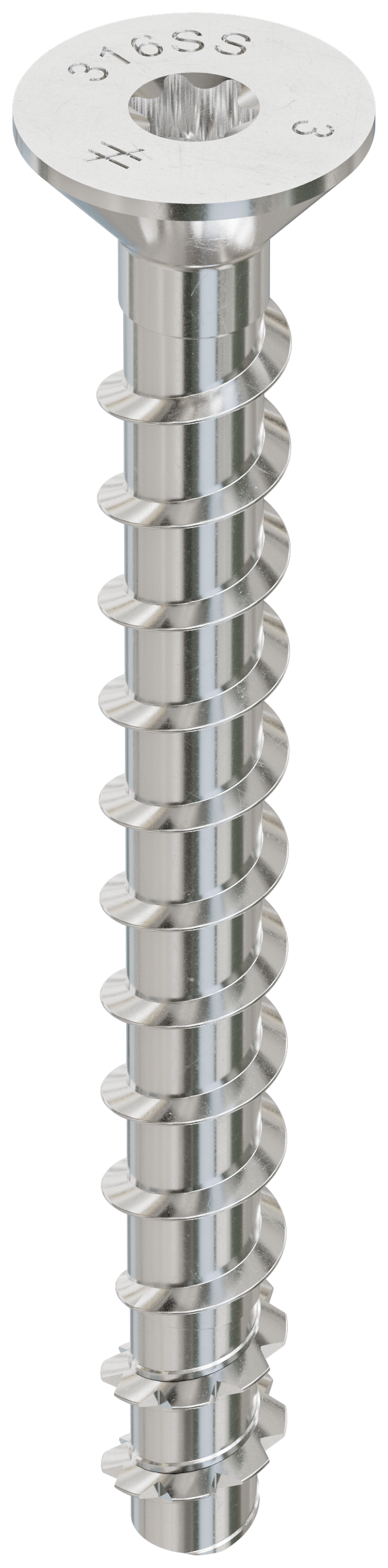

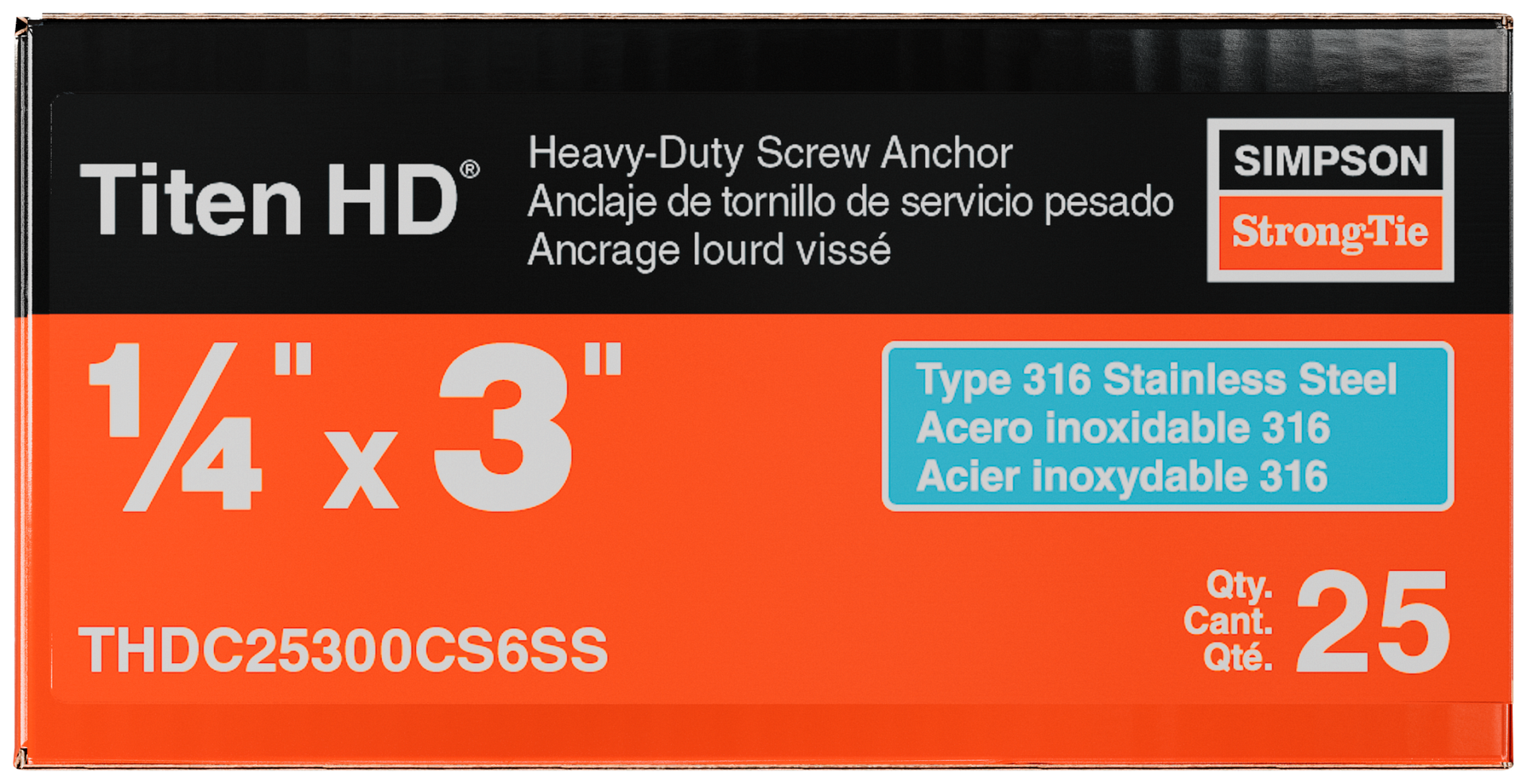

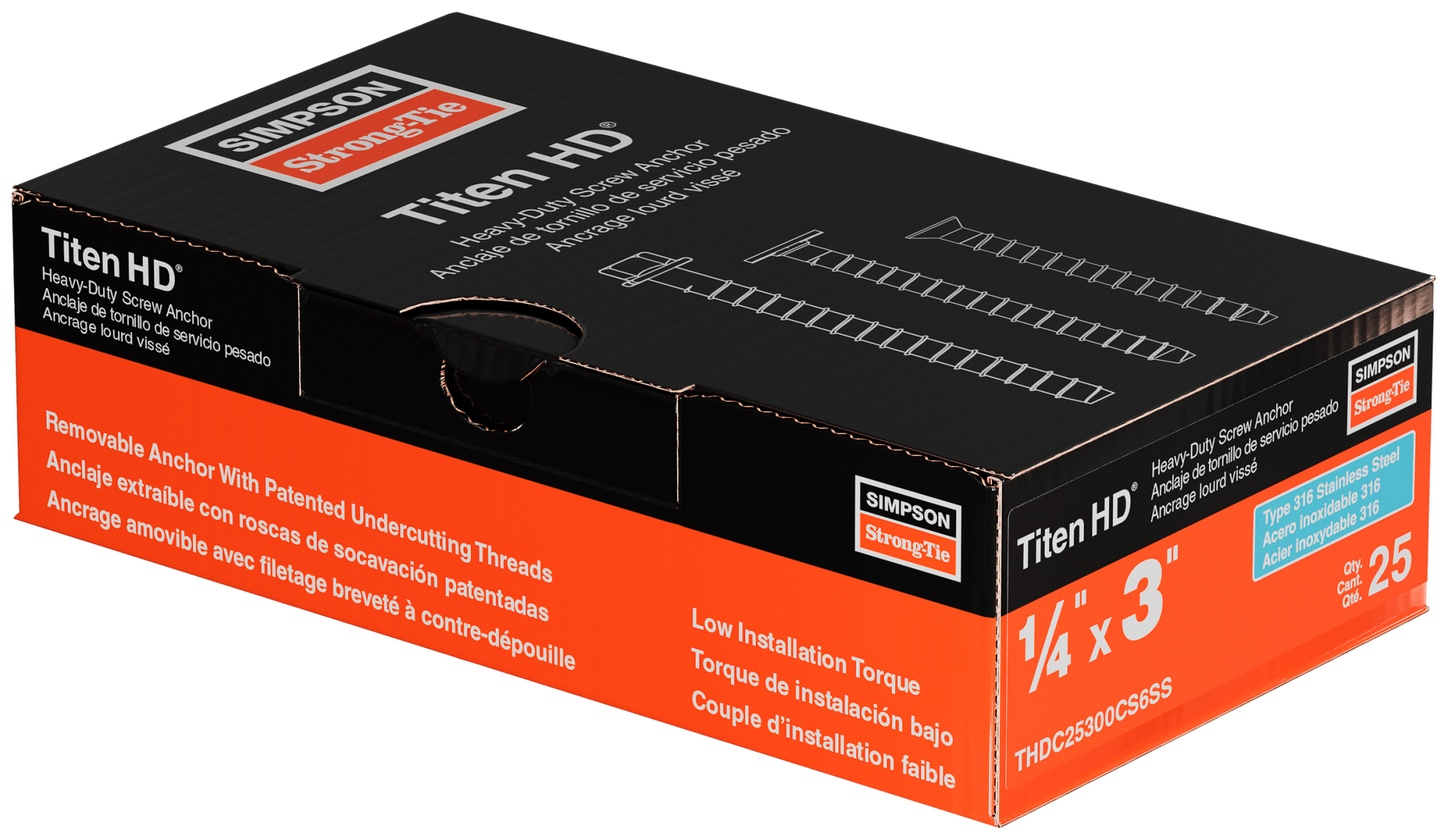

Simpson Strong-Tie THDC25300CS6SS Titen HD® 1/4 in. x 3 in. Type 316 SS Countersunk Head Heavy-Duty Screw Anchor (25-Qty) (Pack of 980)

Simpson Strong-Tie THDC25300CS6SS Titen HD® 1/4 in. x 3 in. Type 316 SS Countersunk Head Heavy-Duty Screw Anchor (25-Qty) (Pack of 980)

The Titen HD heavy-duty screw anchor family of products set the standard for high-performance anchoring and ease of installation. The Titen HD (carbon steel) is designed for use in dry, interior, noncorrosive environments or temporary outdoor applications, while the Titen HD Type 316 stainless-steel option offers you long-lasting corrosion resistance for unsurpassed peace of mind. Titen HD offers industry-leading performance even in seismic and wind-governed conditions. The countersunk head style is for applications that require a flush-mount profile. Countersinking also leaves a cleaner surface appearance for exposed through-set applications. The anchor head’s 6-lobe drive eases driving and is less prone to stripping than traditional recessed anchor heads.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Qualified for static and seismic loading conditions
• Standard fractional sizes, hole size same as anchor size
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Removable — ideal for temporary anchoring or applications where fixtures may need to be moved

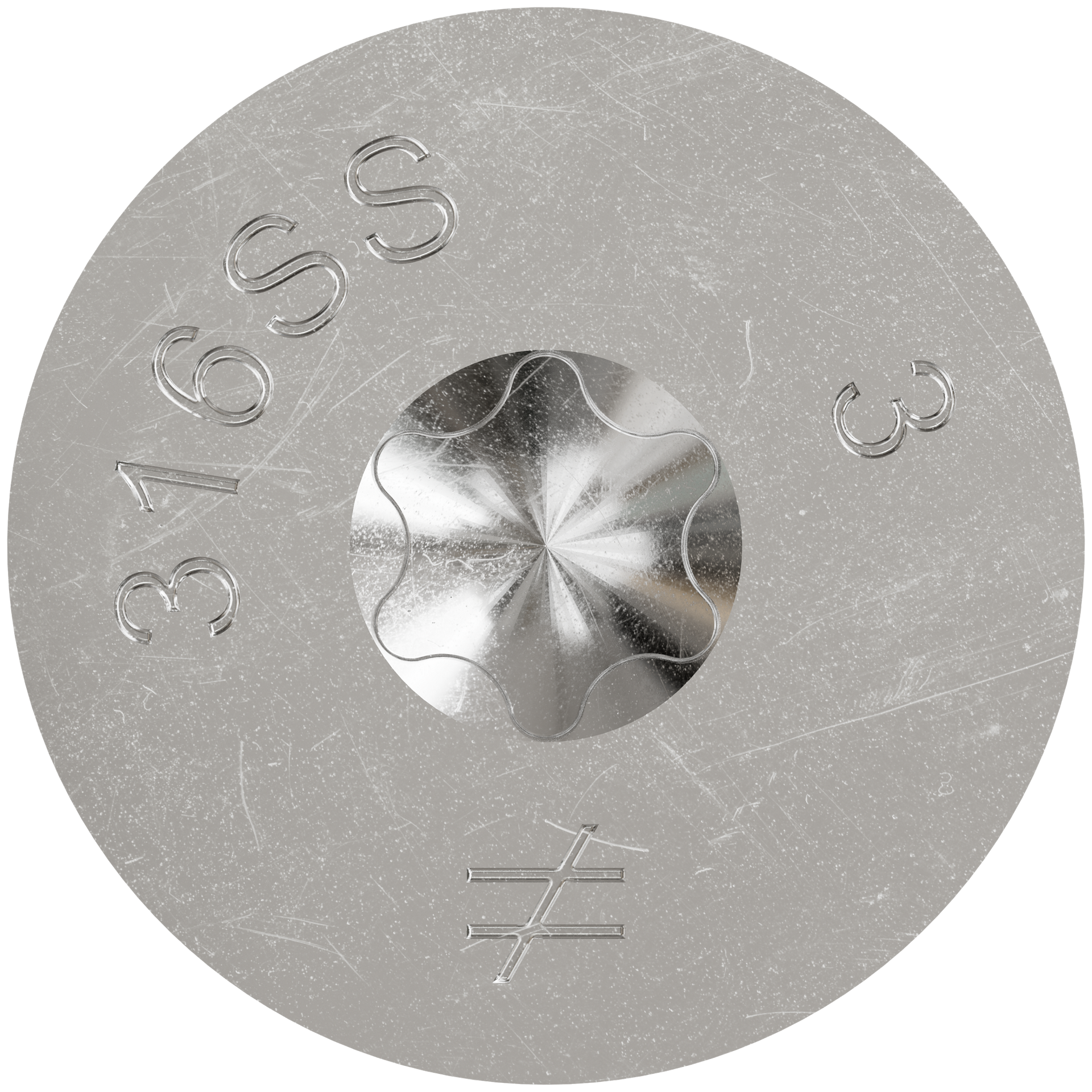

• T30 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
• Countersunk head allows for flush-mount applications that are not possible with a hex head
• Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
• Type 316 stainless steel provides severe-level corrosion resistance
• Anchor size: 1/4 in. x 3 in.
• Quantity: 25

Specifications

• ERP Part Number: THDC25300CS6SS
• UPC: 50707392008809
• GTIN: 50707392008809
• Feature 01: Qualified for static and seismic loading conditions
• Feature 02: Standard fractional sizes, hole size same as anchor size
• Feature 03: No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Feature 04: Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Feature 05: T30 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
• Feature 06: Countersunk head allows for flush-mount applications that are not possible with a hex head
• Feature 07: Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
• Feature 08: Type 316 stainless steel provides severe-level corrosion resistance
• Feature 09: Anchor size: 1/4 in. x 3 in.
• Feature 10: Quantity: 25
• Assembled Depth - Imperial: 0.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: THDCS_Anchor
• Base Product Name: Titen HD® Countersunk Head Style
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 35707307760760423108752923944371168915
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Screw Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 980
• Shipping Weight: 1771.84
• Short Product Name: THD 1/4 x 3 Countersunk 316SS-Pak 25
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thdcs_anchor/p/titen-hd-countersunk-head
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• US Patents: 8,747,042
• US Patents.1: 9,517,519
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392008808
• PAC Reference: 707392008804
