Simpson Strong-Tie THD50800WHMG Titen HD® 1/2 in. x 8 in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor (15-Qty) (Pack of 252)

Simpson Strong-Tie THD50800WHMG Titen HD® 1/2 in. x 8 in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor (15-Qty) (Pack of 252)

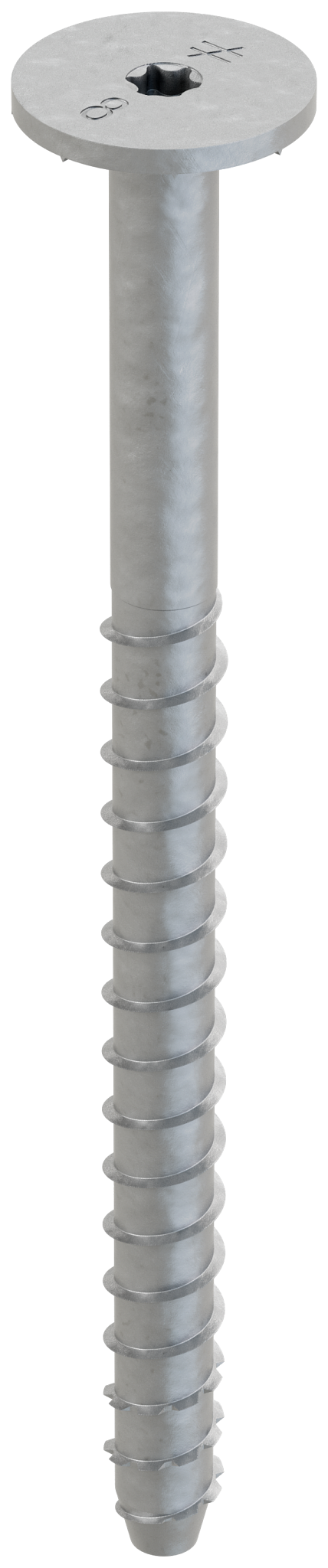

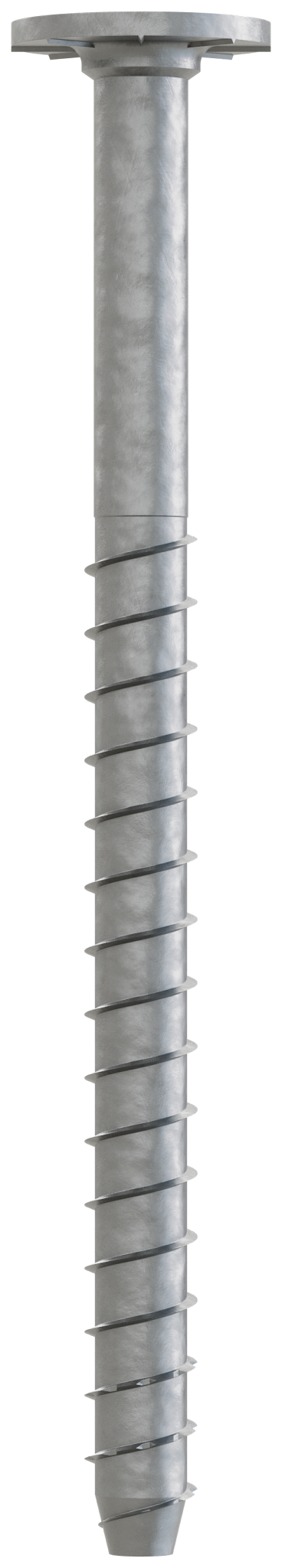

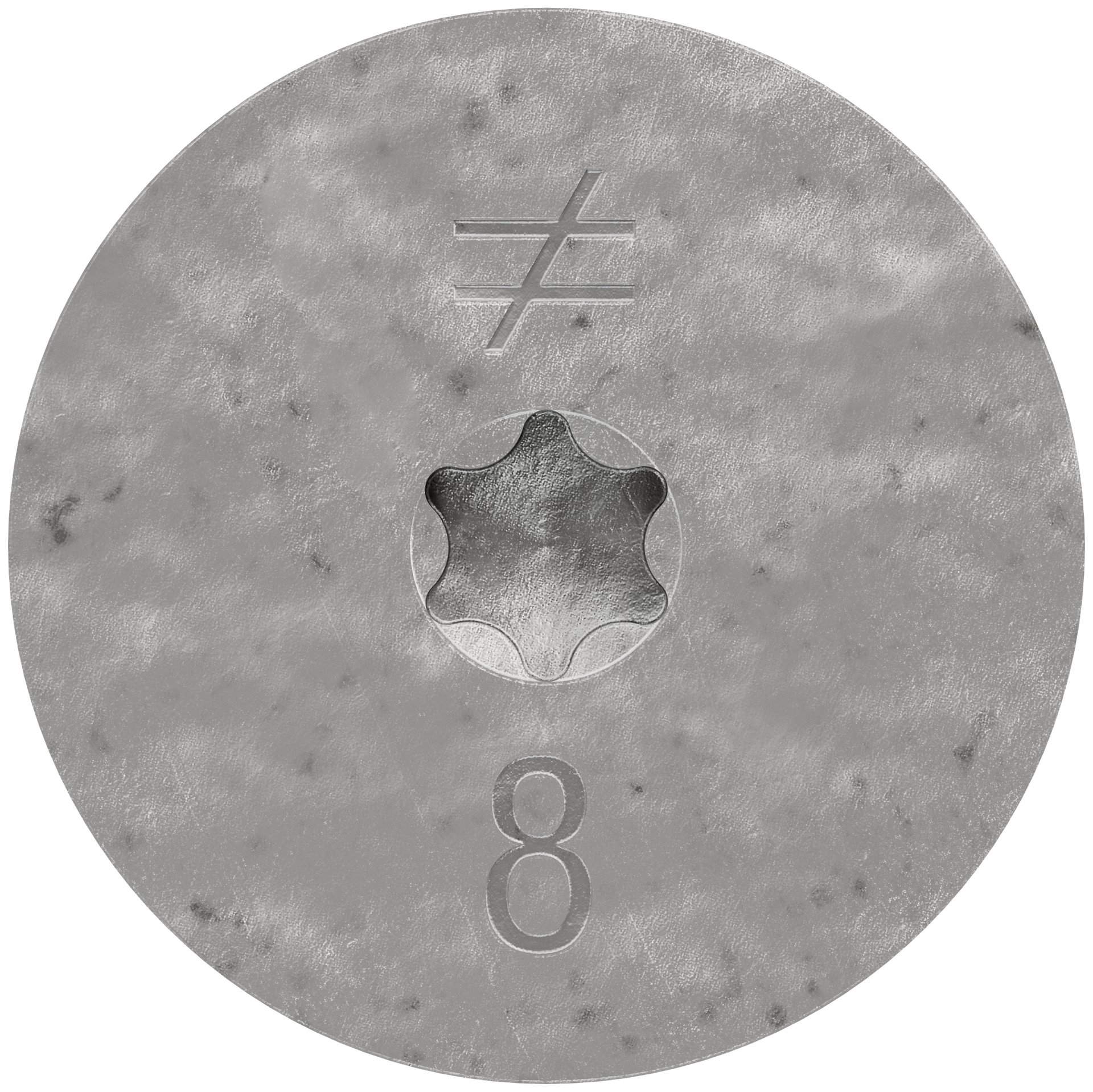

The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
• Standard fractional sizes — the hole size matches the anchor size
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
• Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Washer head allows screw anchor applications incompatible with a hex head
• Mechanically galvanized Titen HD is code listed for exterior applications
• Anchor size: 1/2 in. x 8 in.
• Quantity: 15 per package

Specifications

• ERP Part Number: THD50800WHMG
• UPC: 50707392025561
• GTIN: 50707392025561
• Feature 01: Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
• Feature 02: Standard fractional sizes — the hole size matches the anchor size
• Feature 03: No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Feature 04: For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
• Feature 05: Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Feature 06: Washer head allows screw anchor applications incompatible with a hex head
• Feature 07: Mechanically galvanized Titen HD is code listed for exterior applications
• Feature 08: Anchor size: 1/2 in. x 8 in.
• Feature 09: Quantity: 15 per package
• Assembled Depth - Imperial: 1.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: THDWH-MG_Anchor
• Base Product Name: Titen HD® Washer Head — Mechanically Galvanized
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 156921253439617011757909265581813541888
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Screw Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 252
• Shipping Weight: 2027.844
• Short Product Name: THD 1/2 x 8 Washer Head in MG- Pak 15
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thdwh-mg_anchor/p/titen-hd-washer-head--mechanically-galvanized
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392025631
• EA Reference: 707392025566
