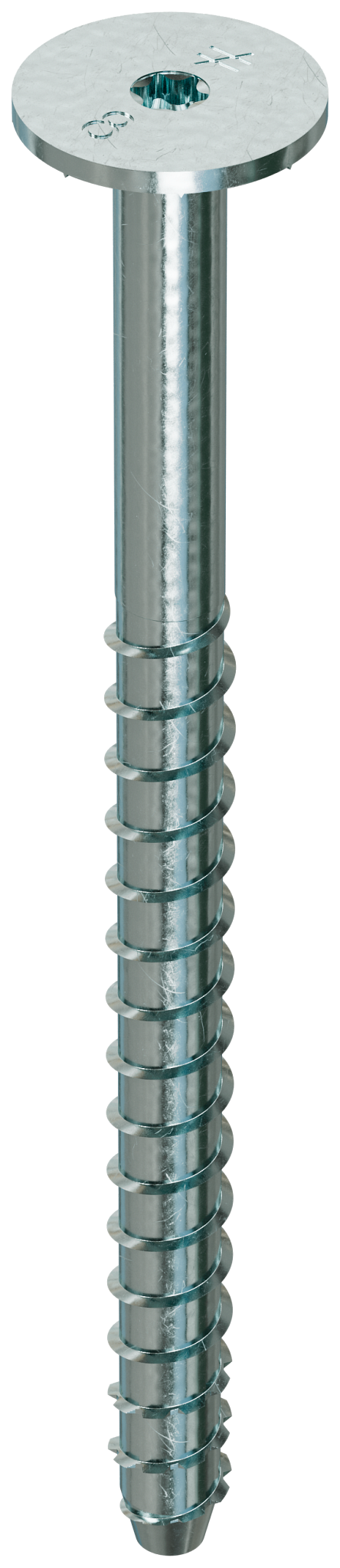

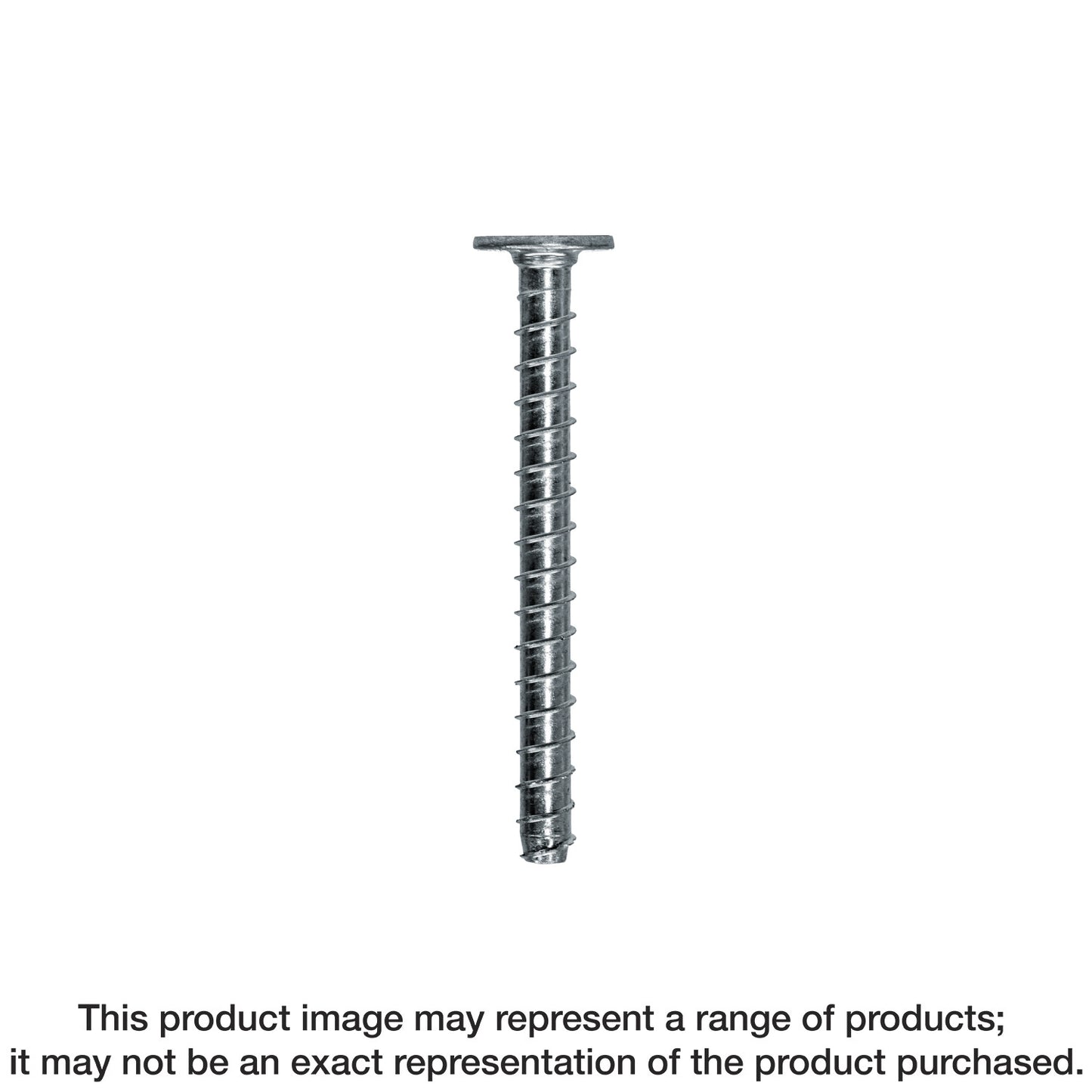

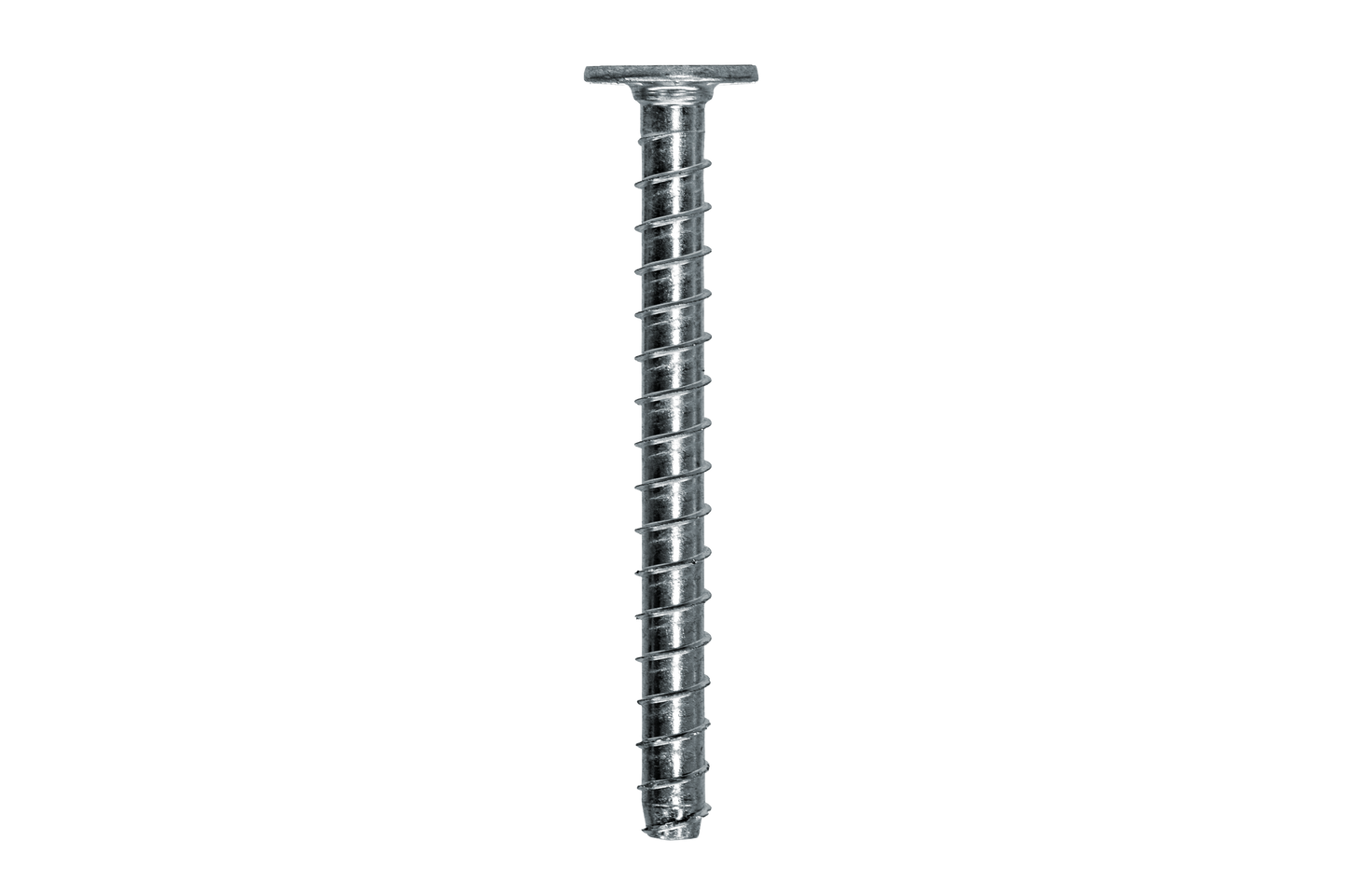

Simpson Strong-Tie THD50800WH Titen HD® 1/2 in. x 8 in. Washer-Head Heavy-Duty Screw Anchor (15-Qty)

Simpson Strong-Tie THD50800WH Titen HD® 1/2 in. x 8 in. Washer-Head Heavy-Duty Screw Anchor (15-Qty)

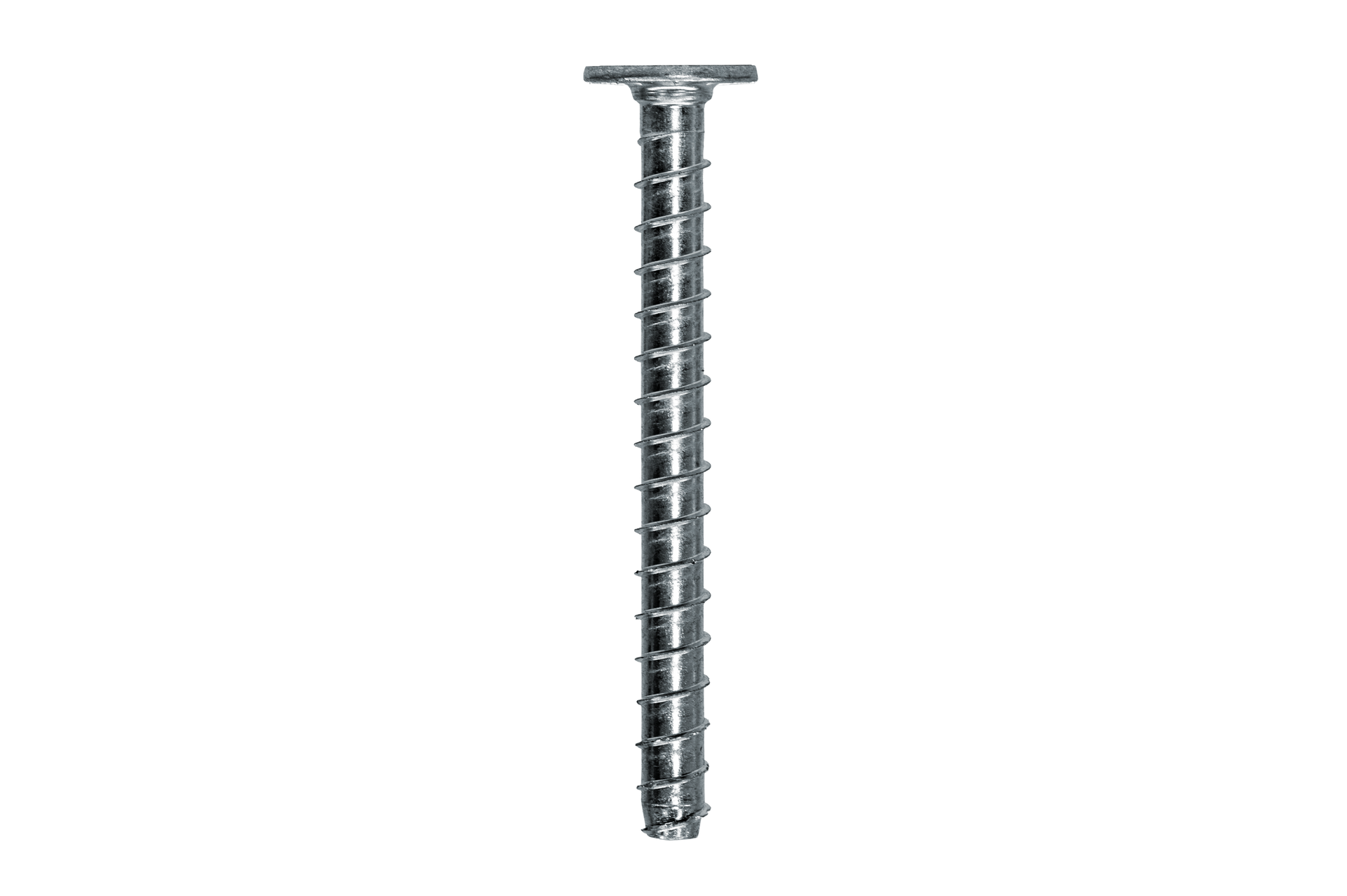

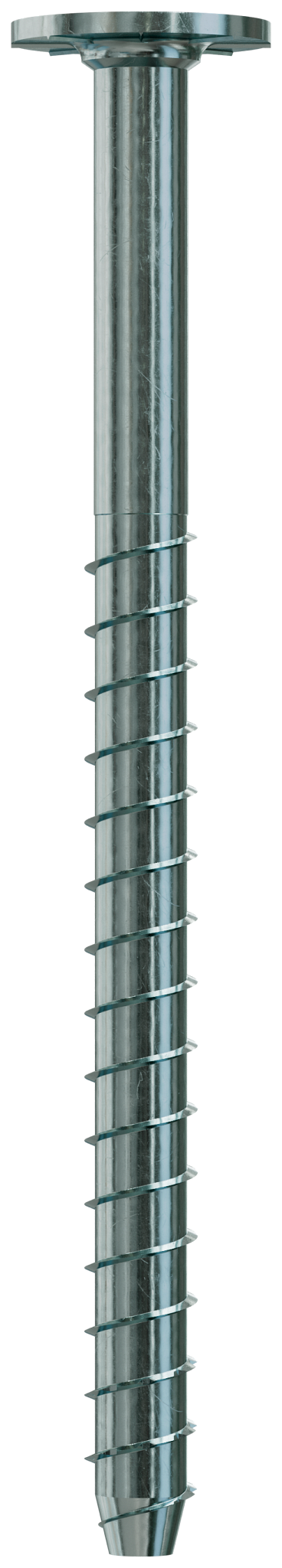

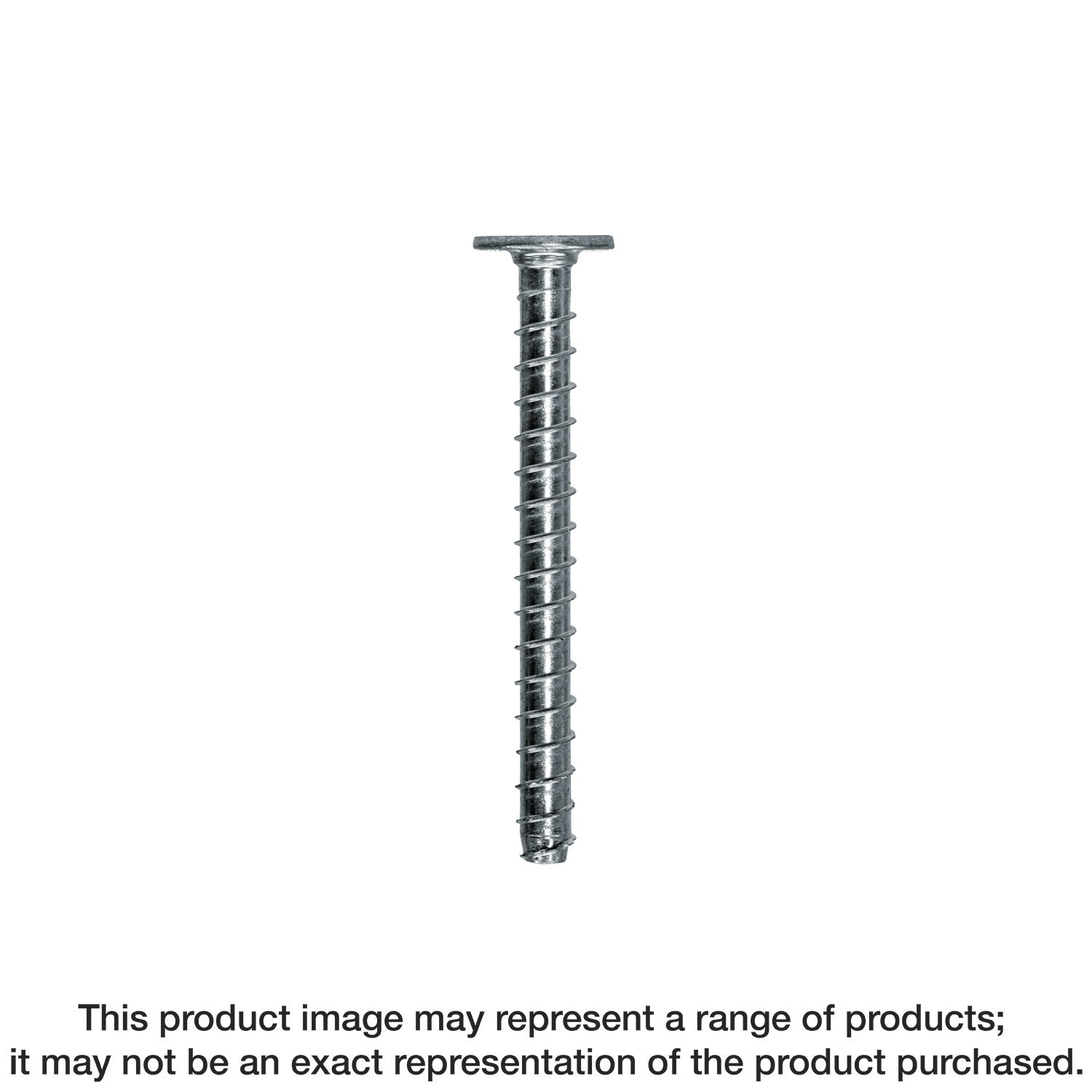

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
• Standard fractional sizes — the hole size matches the anchor size
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Washer head allows screw anchor applications incompatible with a hex head
• For added convenience, a 1/2-in. socket adapter and (2) T-drive bits are included in each box
• Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
• Zinc plated; not recommended for permanent exterior use or highly corrosive environments
• Anchor size: 1/2 in. x 8 in.
• Quantity: 15 per package

Specifications

• ERP Part Number: THD50800WH
• UPC: 707392014867
• GTIN: 707392014867
• Feature 01: Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
• Feature 02: Standard fractional sizes — the hole size matches the anchor size
• Feature 03: No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Feature 04: Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Feature 05: Washer head allows screw anchor applications incompatible with a hex head
• Feature 06: For added convenience, a 1/2-in. socket adapter and (2) T-drive bits are included in each box
• Feature 07: Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
• Feature 08: Zinc plated; not recommended for permanent exterior use or highly corrosive environments
• Feature 09: Anchor size: 1/2 in. x 8 in.
• Feature 10: Quantity: 15 per package
• Assembled Depth - Imperial: 1.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: THDWH_Anchor
• Base Product Name: Titen HD® Washer-Head Style
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
• Coating: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 1/2
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 1/2

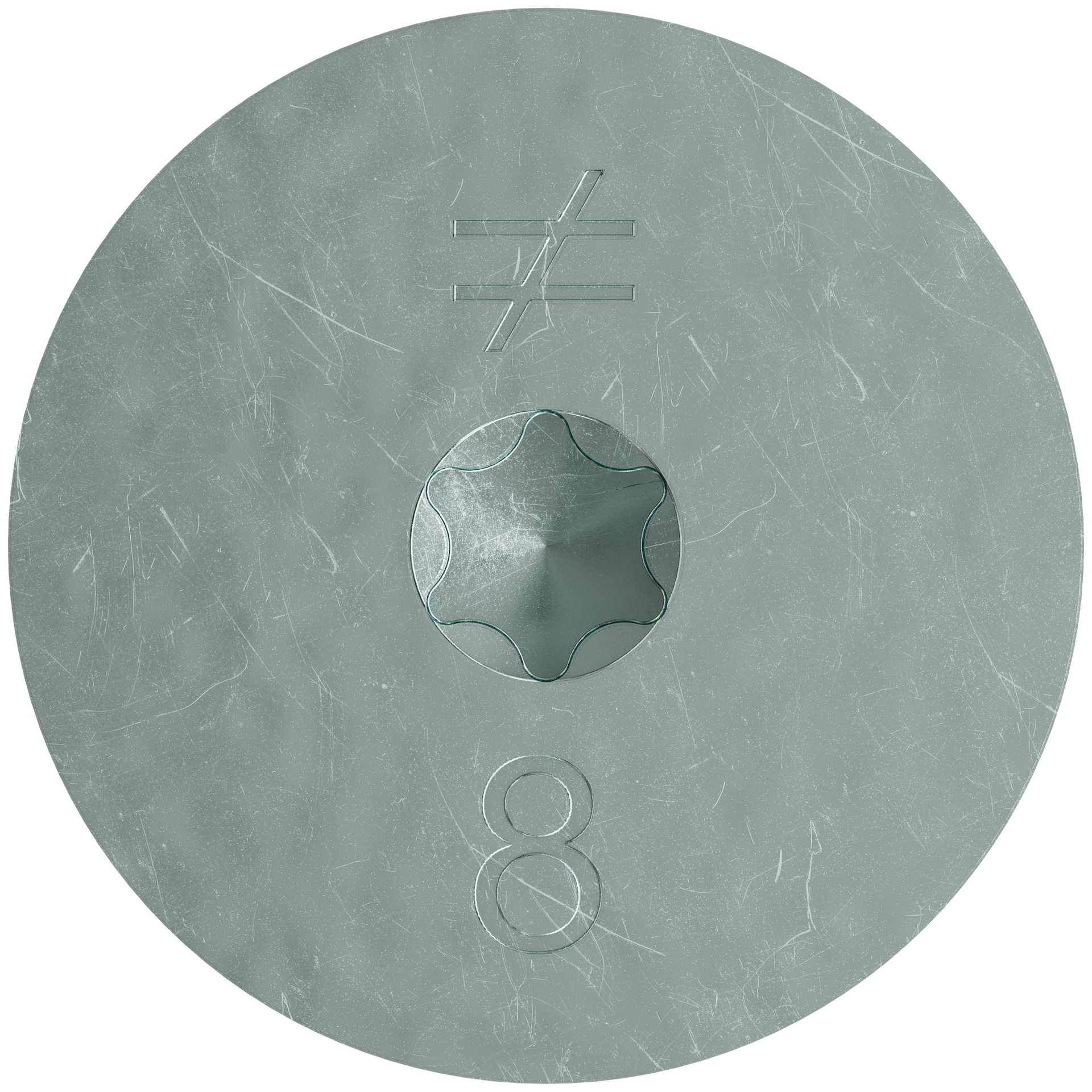

• Drive Type: T50 6-Lobe
• EAN category: UC
• Finish: Zinc Plated
• GUID: 139672868619159927350879001977318655028
• Head Diameter (in.): 1 3/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 12.625
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.54
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 15

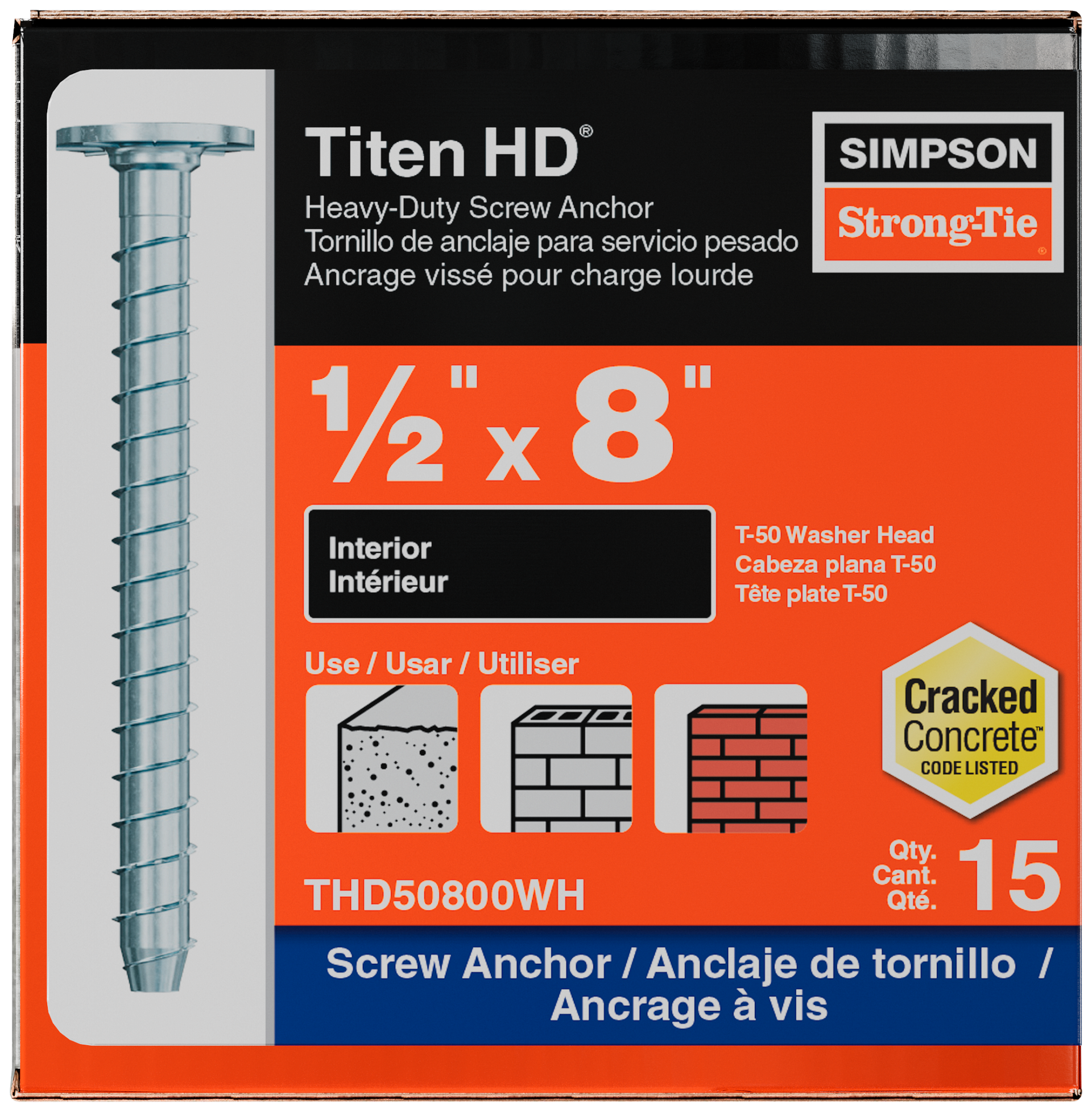

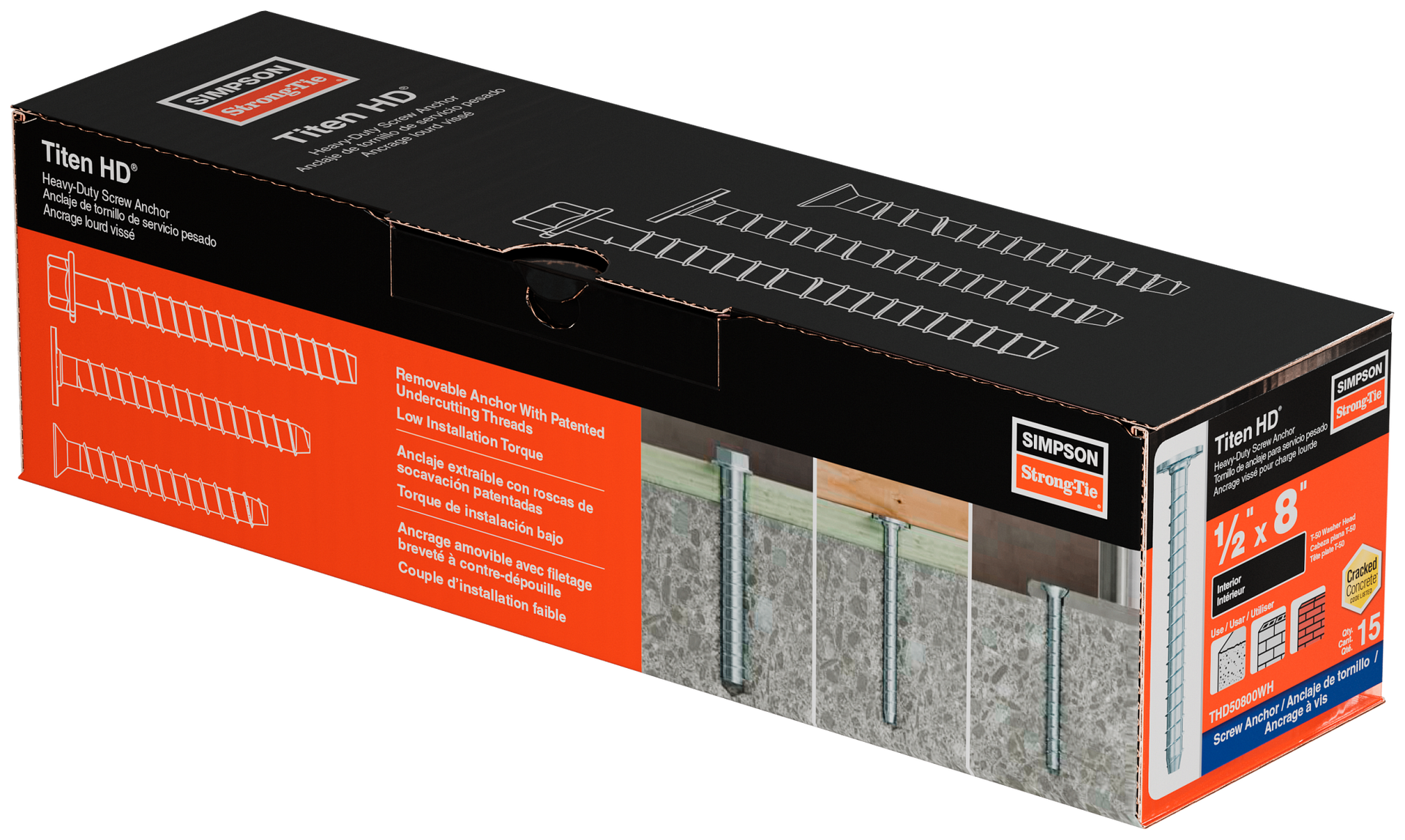

• Packaging Type: Box
• Product Class: Screw Anchor
• Product Includes: 1/2-in. socket adapter and (2) T-drive bits
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Recommended Fixture Hole Size (in.): 11/16 to 3/4
• Shipping Weight: 8.047
• Short Product Name: THD 1/2 x 8 Washer Head- Pak 15
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thdwh_anchor/p/titen-hd-washer-head-style
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• TPI: 3
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392014864
• PAL Reference: 50707392014862
