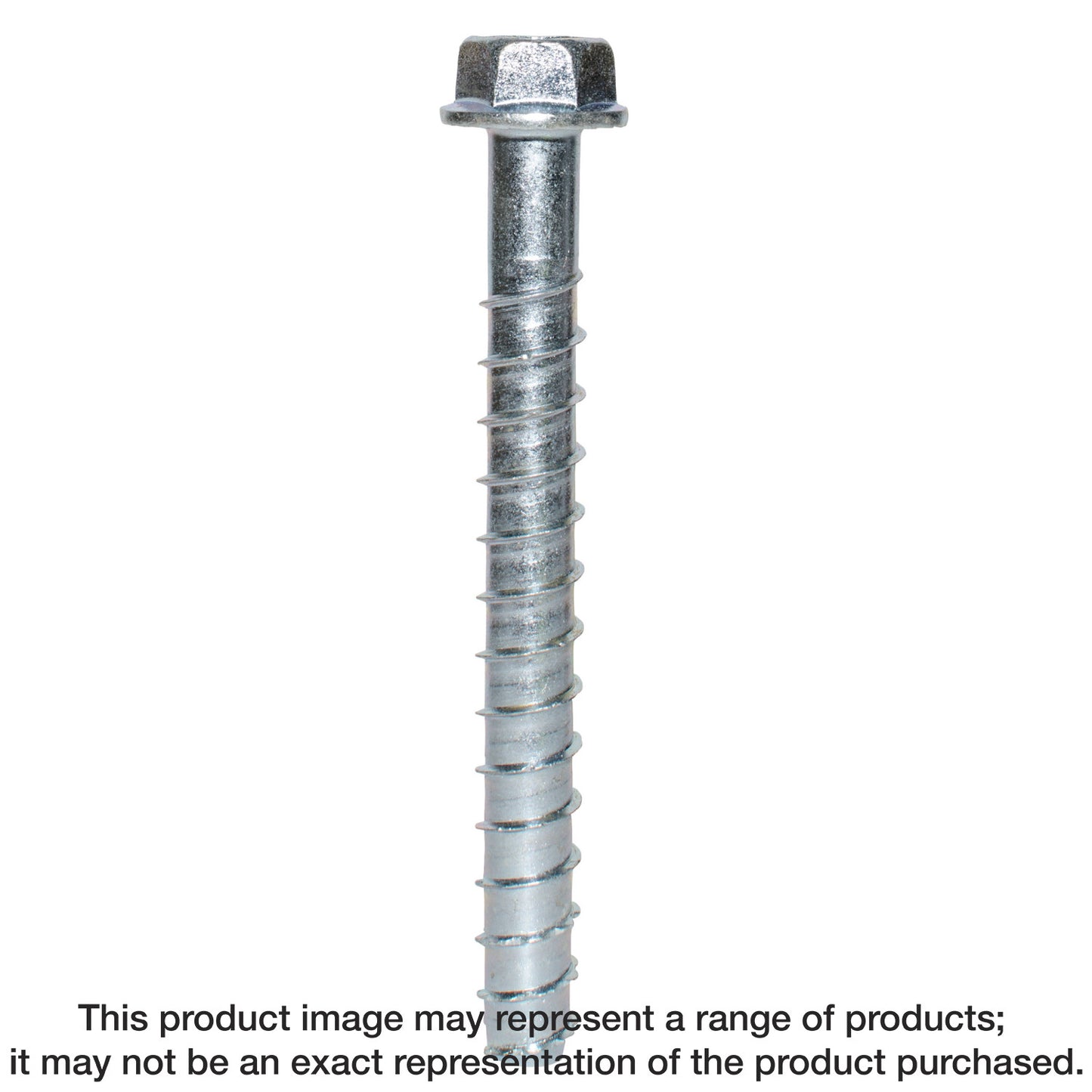

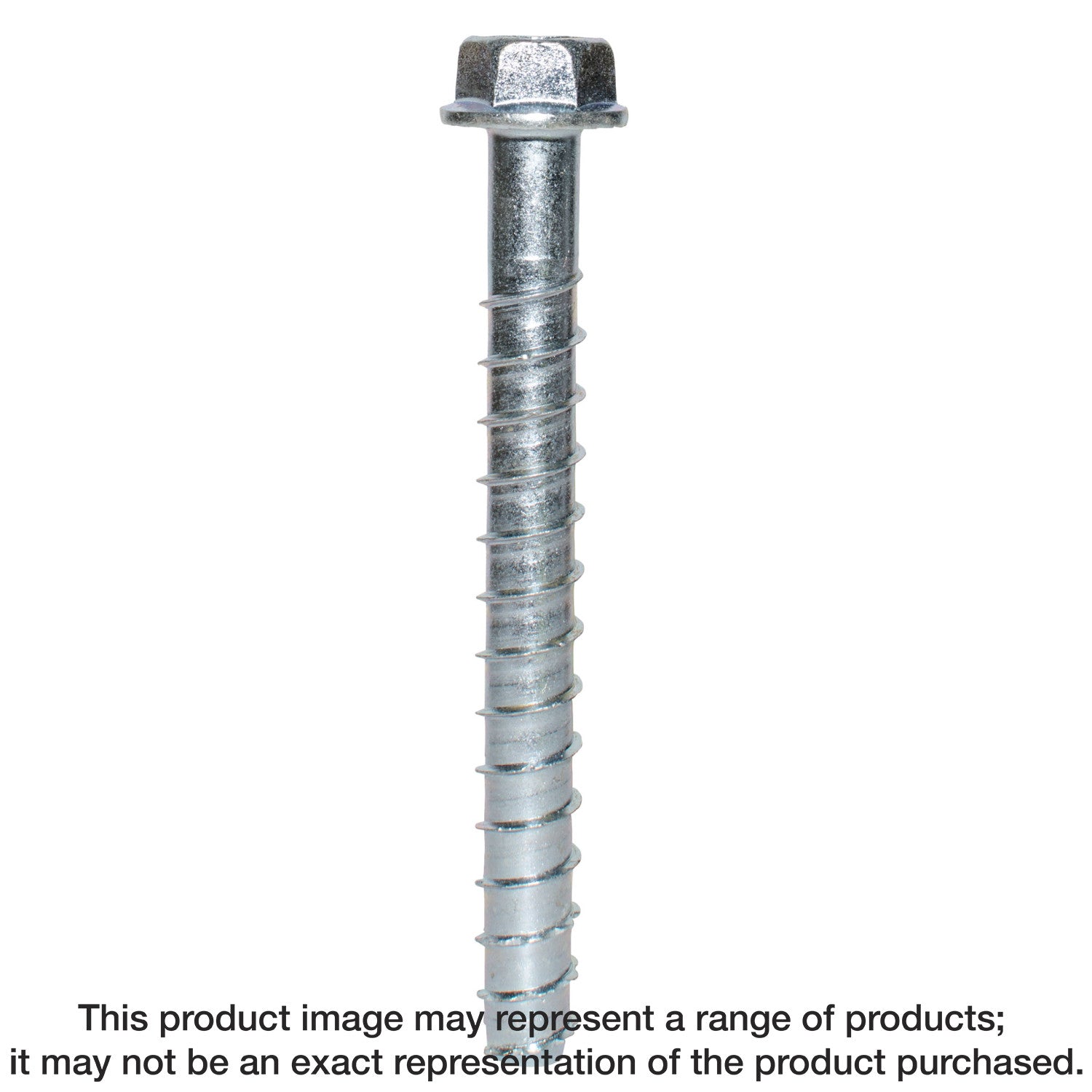

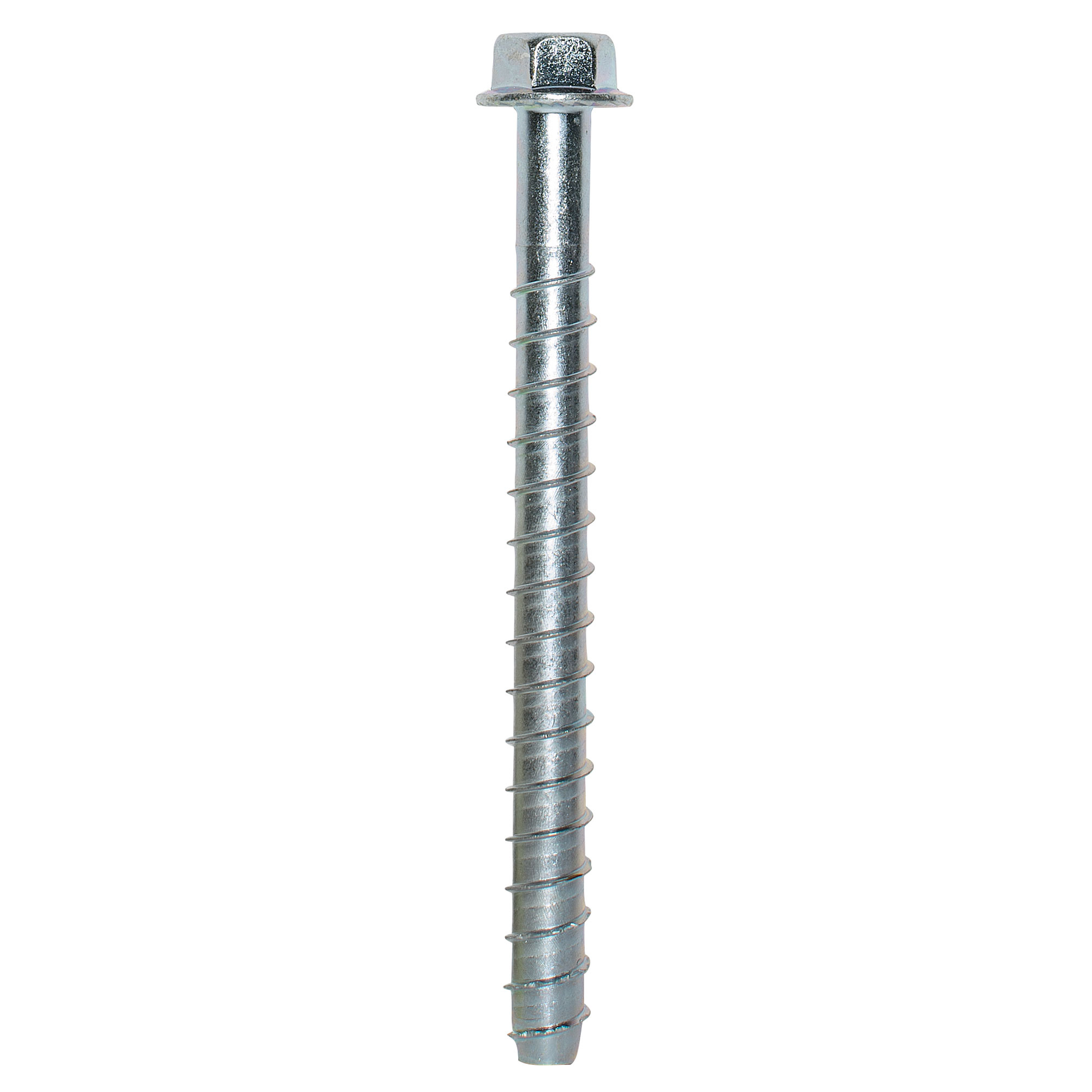

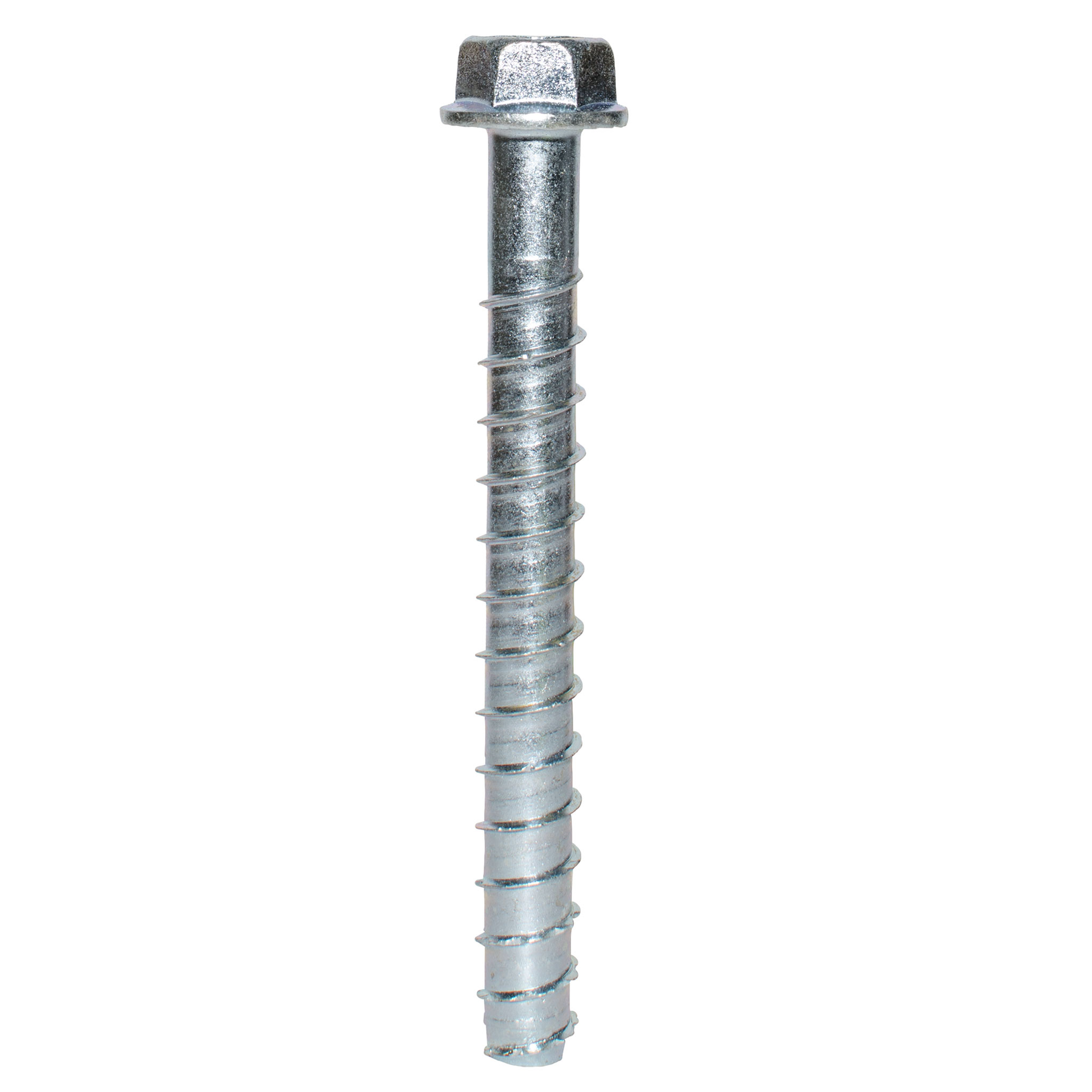

Simpson Strong-Tie THD50600H-SAST Titen HD® 1/2 in. x 6 in. Heavy-Duty Screw Anchor (8-Qty) (Pack of 4)
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Size: 1/2 in. x 6 in.
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
- Quantity: 8
Specifications
- ERP Part Number: THD50600H-SAST
- UPC: 10707392993909
- GTIN: 10707392993909
- Feature 01: Qualified for static and seismic loading conditions
- Feature 02: Thread design undercuts to efficiently transfer the load to the base material
- Feature 03: No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Feature 04: Hex-washer head requires no separate washer and provides a clean installed appearance
- Feature 05: Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Feature 06: Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Feature 07: Size: 1/2 in. x 6 in.
- Feature 08: Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
- Feature 09: Quantity: 8
- Base Product ID: THD_Anchor
- Base Product Name: Titen HD®
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
- Country of Origin: CN
- Customer Unit: No
- Display Unit/Measure: CAR
- EAN category: IC
- GUID: 134350368381803674372360759963204477289
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Carton
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Product Class: Screw Anchor
- Prop 65 - Cancer: Crystalline Silica
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 4
- Shipping Weight: 14.08
- Short Product Name: TITEN HD 1/2 X 6
- Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd_anchor/p/titen-hd
- Subcategory: Concrete Connectors and Anchors
- Subcategory 2: Mechanical Anchors
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- PAC Reference: 707392993926
