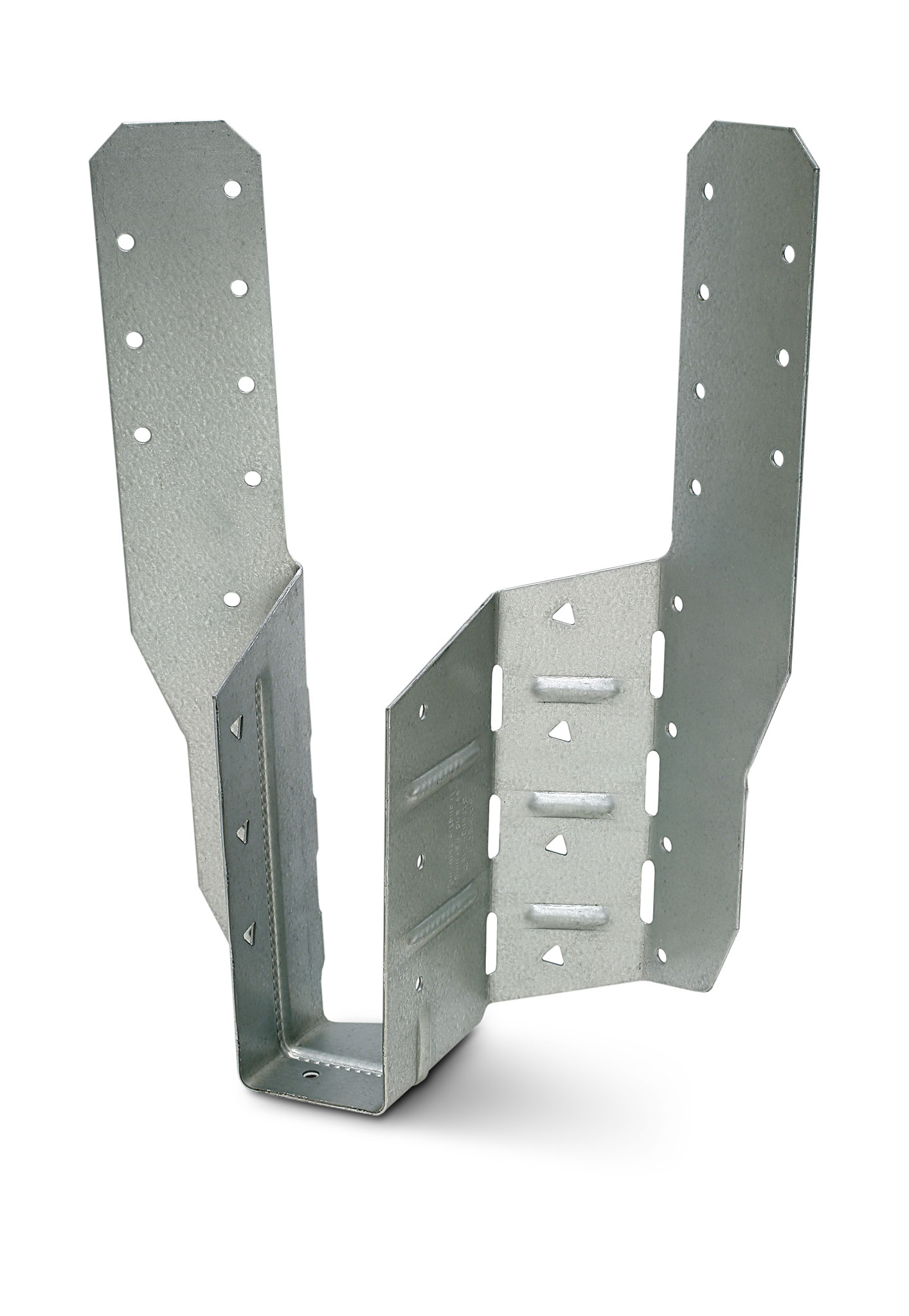

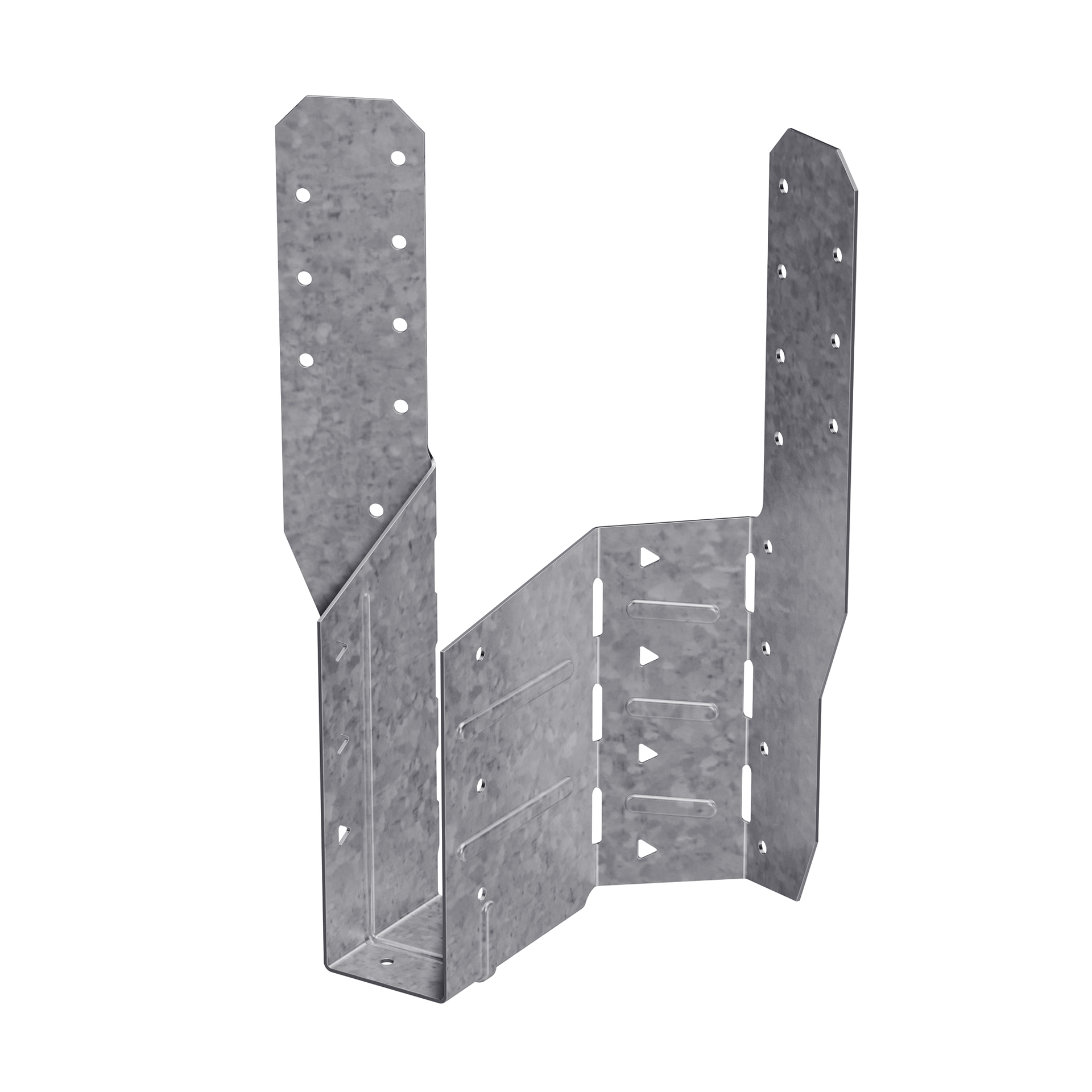

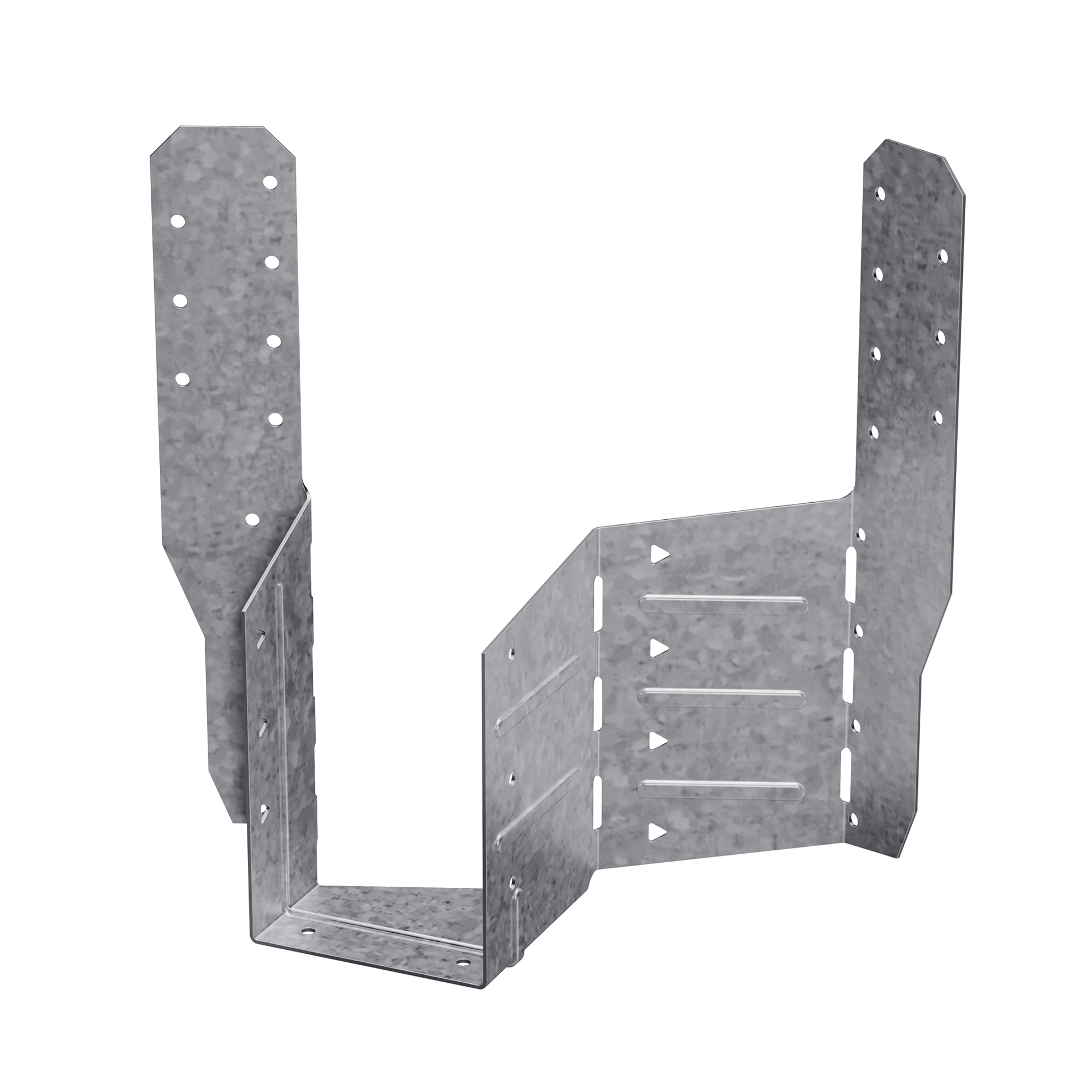

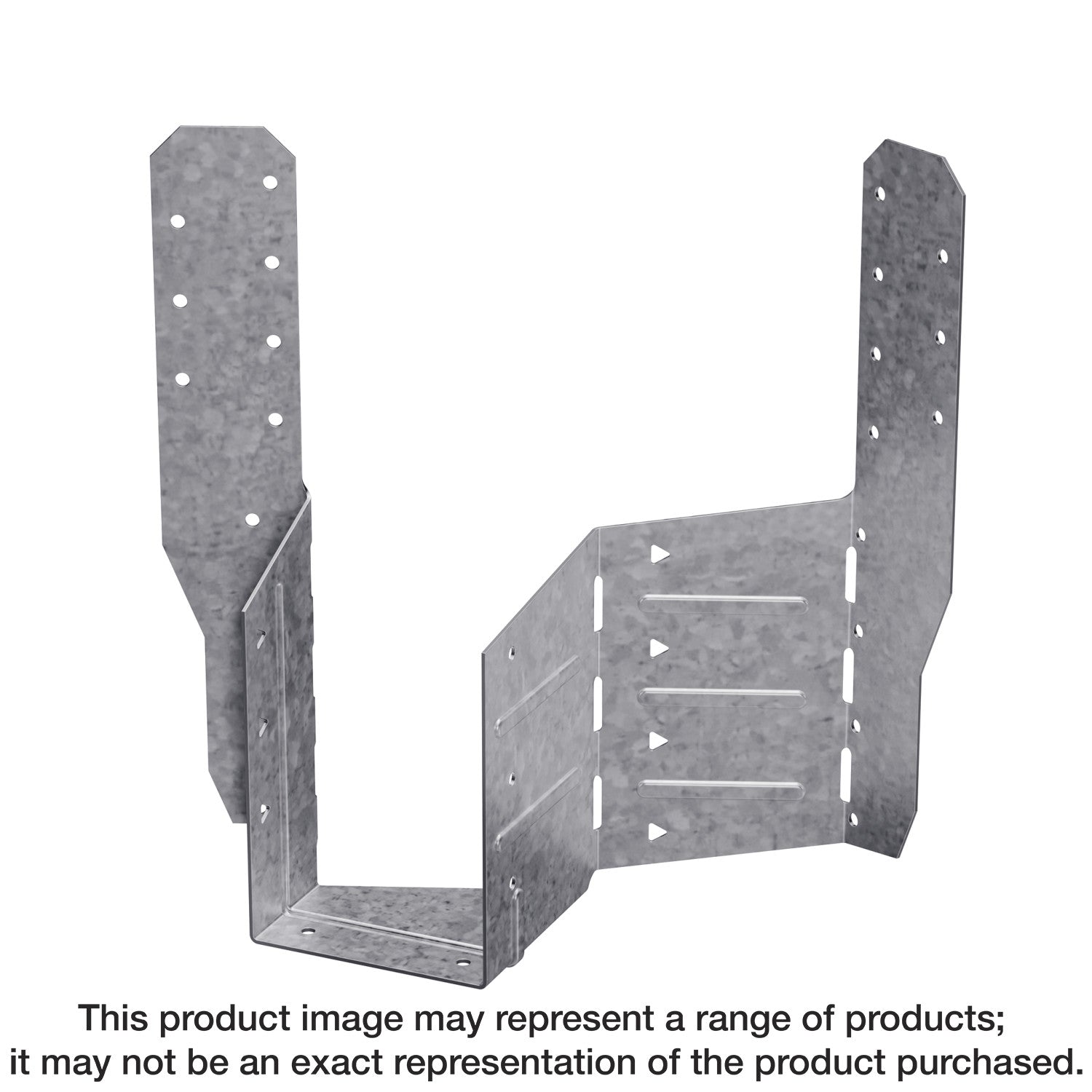

Simpson Strong-Tie THASL29 THASL Galvanized Adjustable Truss Hanger for 2x9, Skewed Left

Simpson Strong-Tie THASL29 THASL Galvanized Adjustable Truss Hanger for 2x9, Skewed Left

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22-1/2° right or left, the THASR/L hangers can be field-skewed from 22-1/2° to 75°.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Eliminates the need for special orders
• Replaces the former THASL218
• One acute side bend line to ease design and installation
• Joist fasteners are only required from one side for skews greater than 22-1/2°
• Rated for installation with either nails or Simpson Strong-Tie Strong-Drive® SD Connector screws
• Minimum carried member: 2x truss
• Width: 1-5/8 in.
• Height: 9-7/8 in.
• Made from 16-gauge steel

Specifications

• ERP Part Number: THASL29
• UPC: 707392281504
• GTIN: 707392281504
• Feature 01: Eliminates the need for special orders
• Feature 02: Replaces the former THASL218
• Feature 03: One acute side bend line to ease design and installation
• Feature 04: Joist fasteners are only required from one side for skews greater than 22-1/2°
• Feature 05: Rated for installation with either nails or Simpson Strong-Tie Strong-Drive® SD Connector screws
• Feature 06: Minimum carried member: 2x truss
• Feature 07: Width: 1-5/8 in.
• Feature 08: Height: 9-7/8 in.
• Feature 09: Made from 16-gauge steel
• Install With: (12) 0.148 in. x 3 in. nails in the header and (4-7) 0.148 in. x 1-1/2 in. nails in the joist OR (12) #9 x 2-1/2 in. Strong-Drive® SD Connector screws in the header and (4-7) #9 x 1-1/2 in. Strong-Drive SD Connector screws in the joist
• Assembled Depth - Imperial: 2.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.78125
• Assembled Width UOM - Imperial: in.
• Base Product ID: THASR-L_Hanger
• Base Product Name: THASR/THASL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 250119761903128497858983184747783773867
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.1
• Short Product Name: 2 X 9 ADJUSTABLE TRUSS HGR SKEW LEFT
• Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/thasr-l_hanger/p/thasr.thasl
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392281501
• PAL Reference: 50707392281509
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
