Simpson Strong-Tie THAC426-2 THAC Galvanized Adjustable Concealed-Flange Truss Hanger for Double 4x26

Simpson Strong-Tie THAC426-2 THAC Galvanized Adjustable Concealed-Flange Truss Hanger for Double 4x26

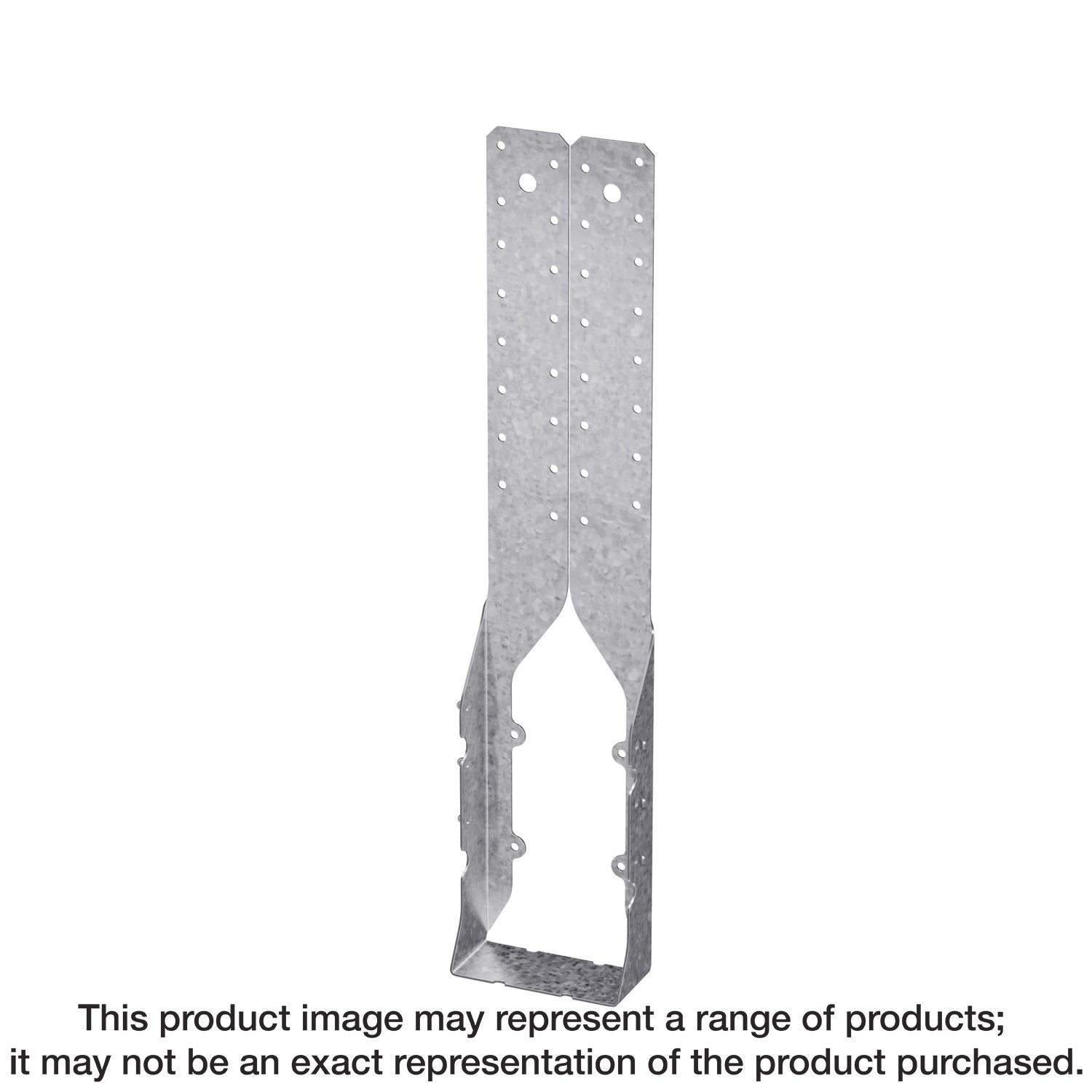

The Simpson Strong-Tie® THAC is a wood connector designed to support trusses and beams. This versatile U-shaped truss hanger features long, straight straps for applications where the height location of the truss needs to be adjustable. The field-adjustable THAC features concealed flanges for applications in restricted spaces.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be used for top-flange or face-mount installation
• Extra-long straps for height adjustability and top-flange installation convenience
• Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
• Min./max. nailing installation options
• Seat width: 7-1/4 in.
• Hanger height: 26-1/16 in.
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: THAC426-2
• UPC: 44315124600
• GTIN: 44315124600
• Feature 01: Can be used for top-flange or face-mount installation
• Feature 02: Extra-long straps for height adjustability and top-flange installation convenience
• Feature 03: Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
• Feature 04: Min./max. nailing installation options
• Feature 05: Seat width: 7-1/4 in.
• Feature 06: Hanger height: 26-1/16 in.
• Feature 07: Made from 14-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: For top-flange installation, install with (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist; for face-mount installation, install with (38) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
• Assembled Depth - Imperial: 2.695
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 26.07
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.8275
• Assembled Width UOM - Imperial: in.
• Base Product ID: THAC_Hanger
• Base Product Name: THAC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 96497218698578085586404840234708718374
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Double 4x26
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3
• Short Product Name: 4 X 26 DBL ADJUSTABLE TRUSS HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/thac_hanger/p/thac
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315124607
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
