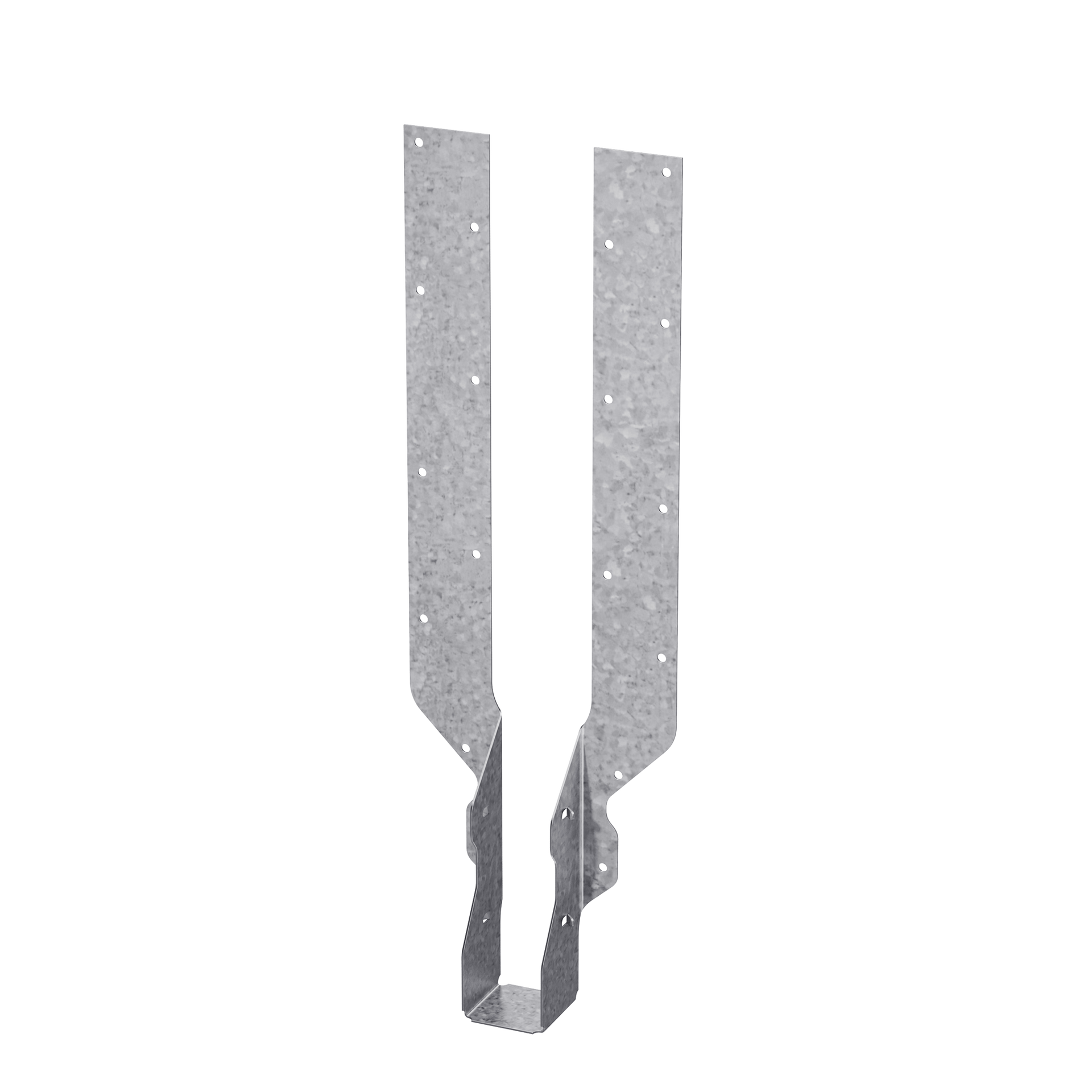

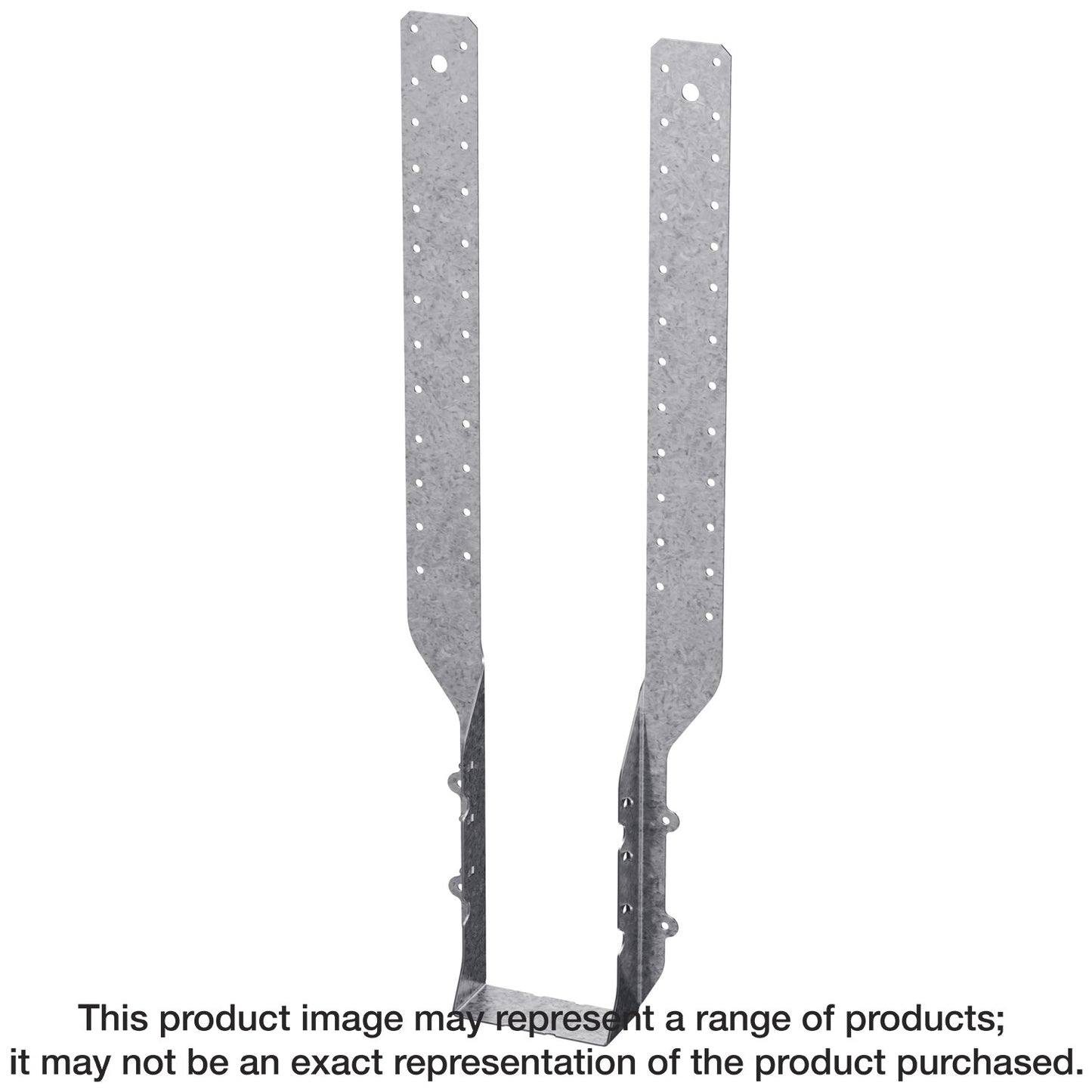

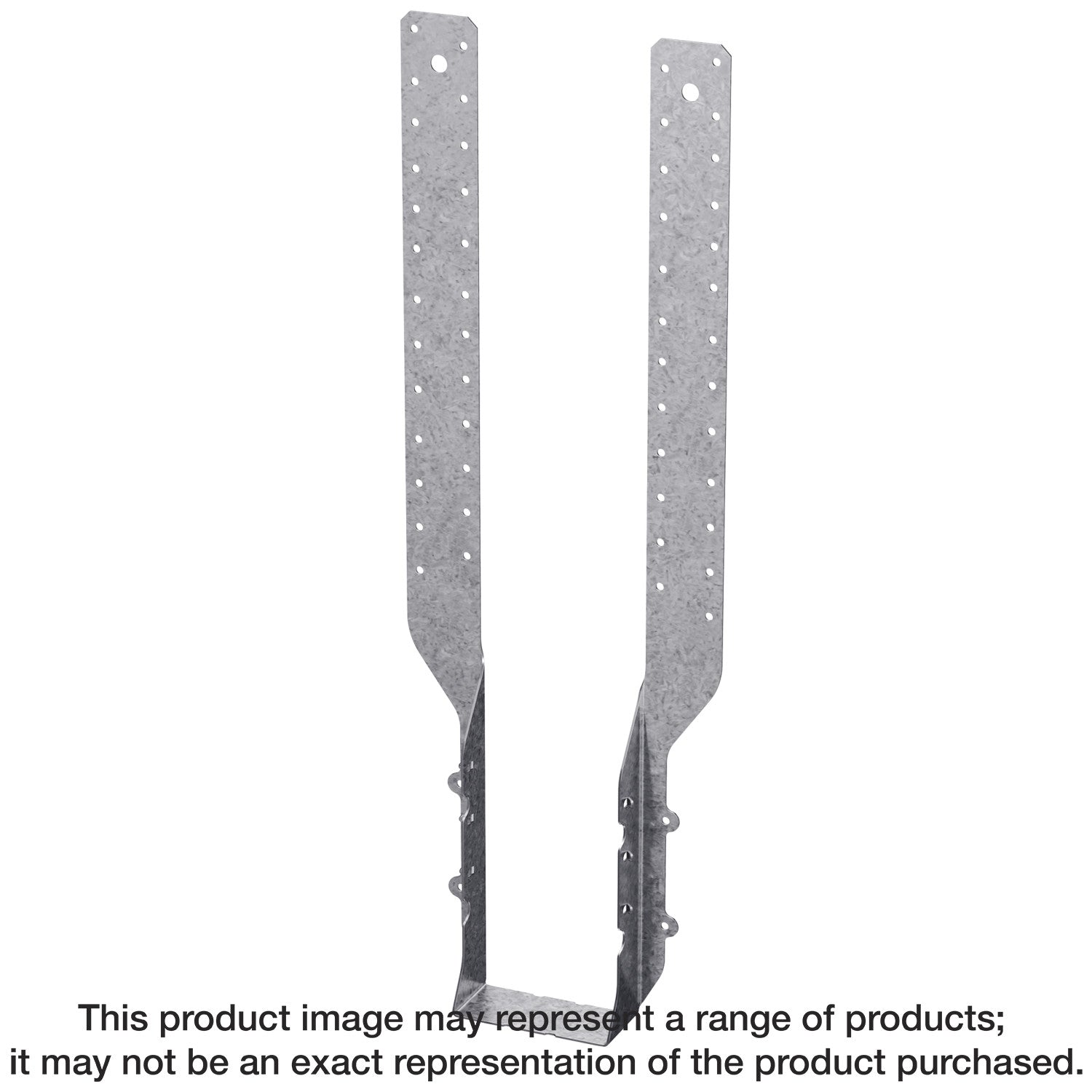

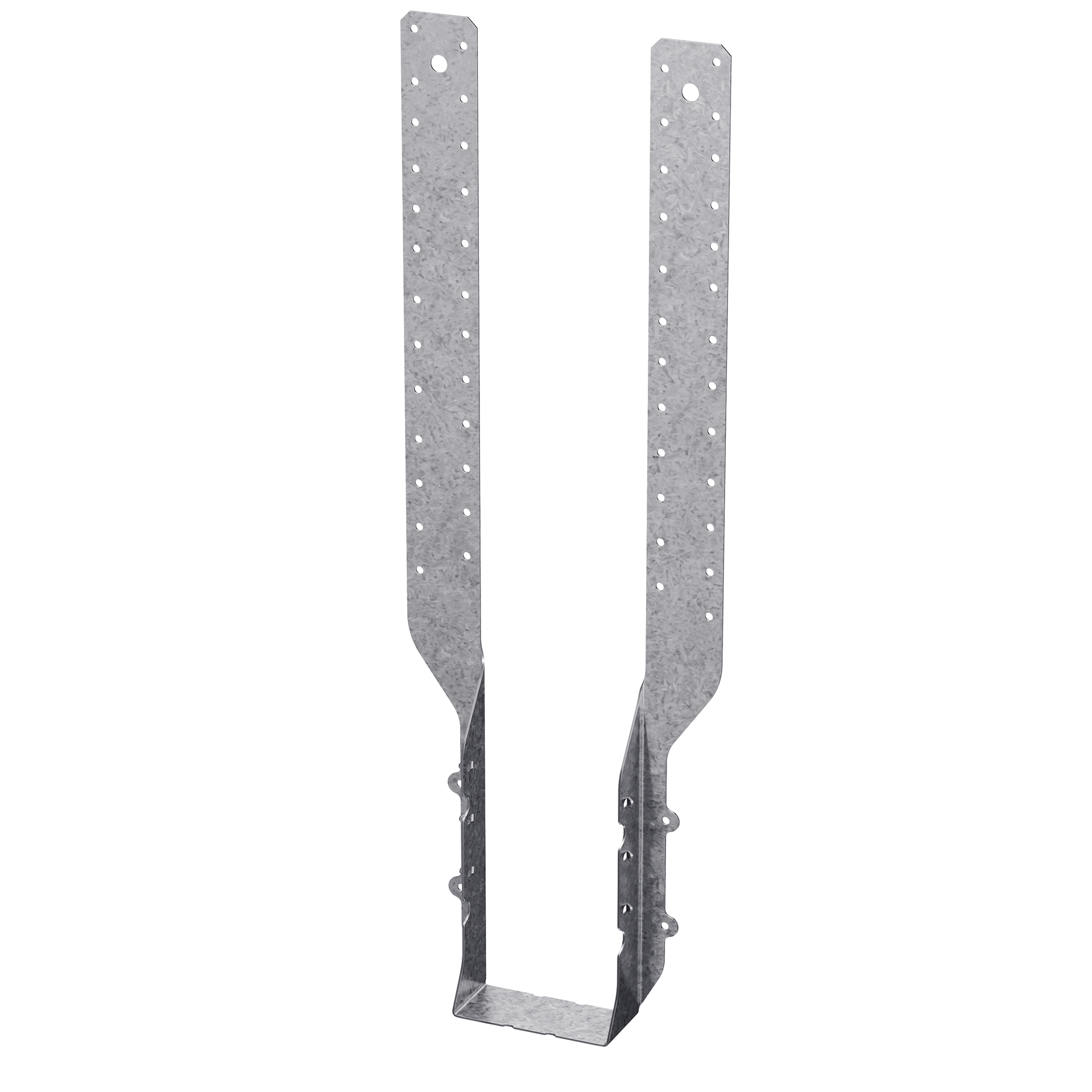

Simpson Strong-Tie THA218 THA 17-3/16 in. Galvanized Adjustable Hanger for 2x Truss

Simpson Strong-Tie THA218 THA 17-3/16 in. Galvanized Adjustable Hanger for 2x Truss

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The THA series hangers have extra long straps that can be field-formed to give height adjustability and top-flange hanger convenience.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed as a top-flange or face-mount hanger
• Seat width: 1-5/8 in.
• Height: 17-3/16 in.
• Nominal joist size: 2x truss
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: THA218
• UPC: 44315825101
• GTIN: 44315825101
• Feature 01: Can be installed as a top-flange or face-mount hanger
• Feature 02: Seat width: 1-5/8 in.
• Feature 03: Height: 17-3/16 in.
• Feature 04: Nominal joist size: 2x truss
• Feature 05: Made from 18-gauge steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Install With: For top-flange installation, install with 10d common nails and 10d x 1-1/2 in. nails; for face-mount installation, install with 10d common nails
• Assembled Depth - Imperial: 1.921
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 17.2335
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.592
• Assembled Width UOM - Imperial: in.
• Base Product ID: THA_Hanger
• Base Product Name: THA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 173305449070337482399837540448819034090
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x truss
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.85
• Short Product Name: 2 X 18 ADJUSTABLE TRUSS HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/tha_hanger/p/tha
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315825108
• PAL Reference: 50044315825106
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
