Simpson Strong-Tie TBP8 TBP 8 in. Truss Barrier Plate

Simpson Strong-Tie TBP8 TBP 8 in. Truss Barrier Plate

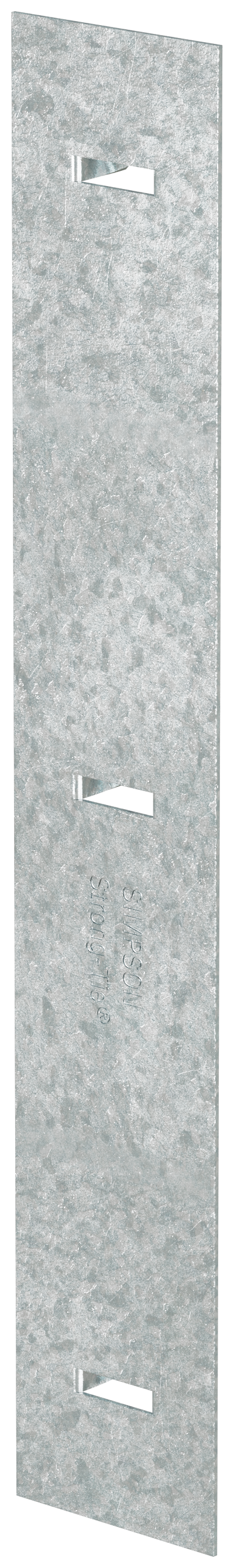

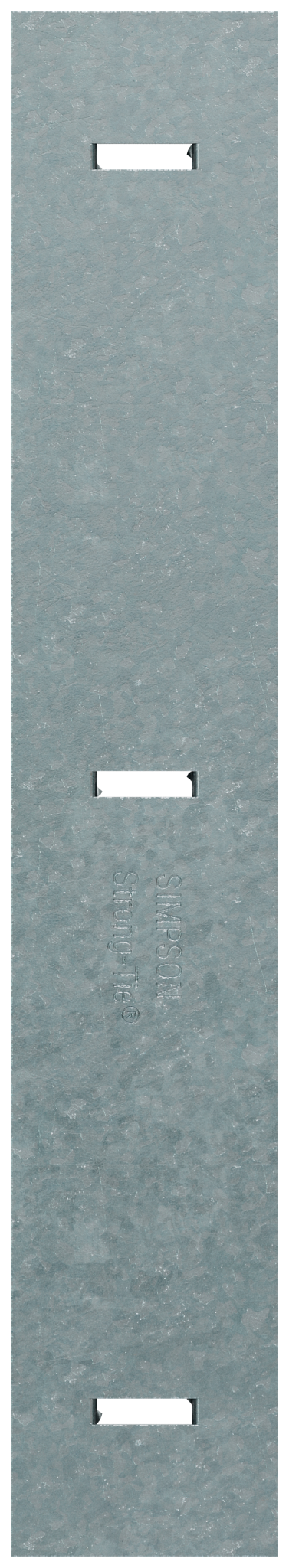

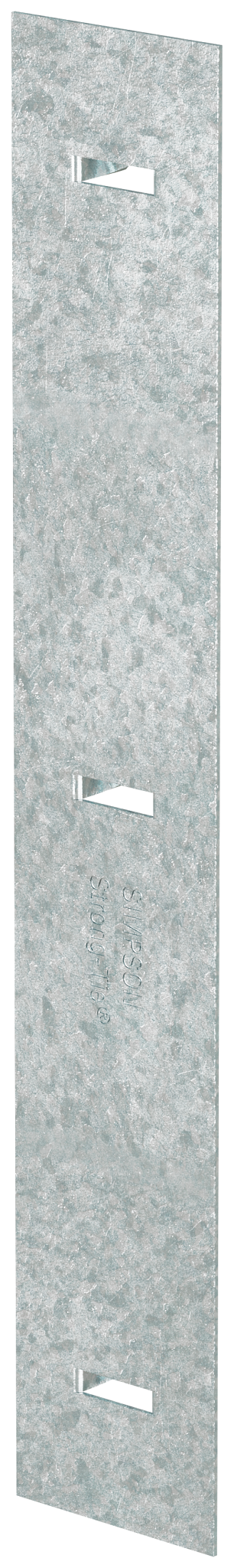

The TBP8 serves as a moisture barrier between a truss and the top of a concrete or masonry wall. The truss bearing plate is installed on the truss prior to placement. The plate features three pairs of prongs in place of fasteners for quick and easy installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Eliminates the need for higher-cost treated lumber
• Slightly narrower than 2x nominal lumber to avoid catching or pulling off
• Installation prongs designed to penetrate southern yellow pine (SYP) and other common types of truss lumber
• Made from 22-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: TBP8
• UPC: 707392276500
• GTIN: 707392276500
• Feature 01: Eliminates the need for higher-cost treated lumber
• Feature 02: Slightly narrower than 2x nominal lumber to avoid catching or pulling off
• Feature 03: Installation prongs designed to penetrate southern yellow pine (SYP) and other common types of truss lumber
• Feature 04: Made from 22-gauge steel
• Feature 05: Galvanized (G90) for extra corrosion resistance
• Install With: Installs with the WT wedge form tie; (2) W1 wedges required for each tie
• Assembled Depth - Imperial: 0.67375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8
• Assembled Width UOM - Imperial: in.
• Base Product ID: TBP_Plate
• Base Product Name: TBP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Masonry and Concrete Connectors > Plate
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 22
• GUID: 160938319909514468169583505832348577726
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Plate
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.104
• Short Product Name: TRUSS BARRIER PLATE 8IN
• Strongtie.com URL: https://www.strongtie.com/trusstiedownsformasonry_masonryconnectors/tbp_plate/p/tbp
• Subcategory: Wood Construction Connectors
• Subcategory 2: Masonry and Concrete Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392276507
• PAL Reference: 50707392276505
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
