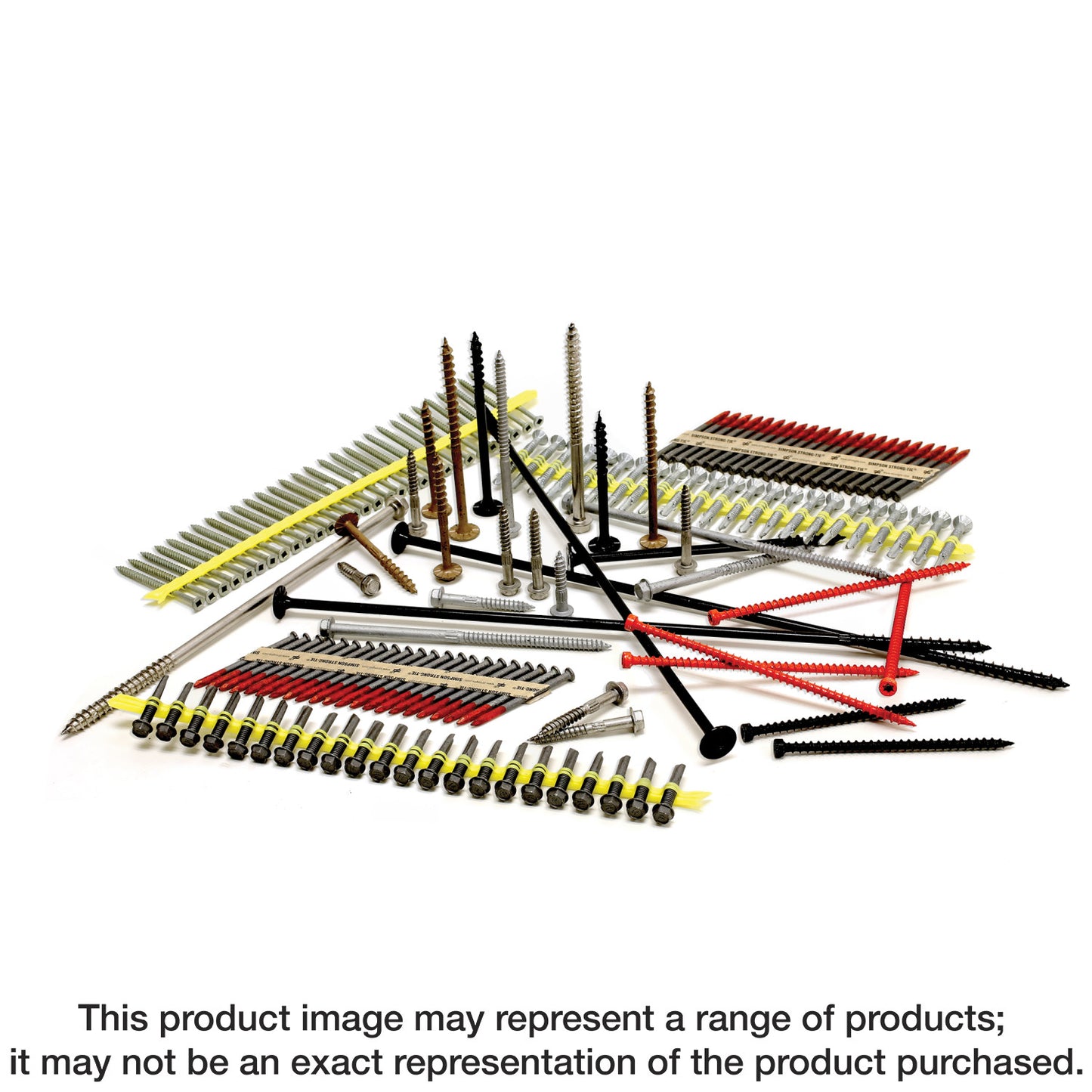

Simpson Strong-Tie TBG1260S Strong-Drive® TB WOOD-TO-STEEL Screw (Collated) — #12 x 2-3/8 in. N2000® (1000-Qty)

Simpson Strong-Tie TBG1260S Strong-Drive® TB WOOD-TO-STEEL Screw (Collated) — #12 x 2-3/8 in. N2000® (1000-Qty)

The TB Wood-to-Steel screw is designed to work with the Simpson Strong-Tie® Quik Drive® auto-feed screw driving system. This structural screw is used for fastening wood to hot-rolled steel and is great for installing wood truck beds. The TB Wood-to-Steel screw is also available in bulk for hand-drive fastening.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Straight collation
• Flat head with nibs for easy countersinking
• T30 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
• Driver bit included
• #4 drill point with wings
• Tapping threads
• Length: 2-3/8 in.
• N2000® coatings provide a medium-level of corrosion resistance
• Quantity: 1,000

Application

• Truck Beds / Trailer Flooring
• Cold-Formed Steel
• Fastening Wood-to-Steel — Nailers and Ledgers
• Fastening Wood-to-Steel

Specifications

• ERP Part Number: TBG1260S
• UPC: 746056545927
• GTIN: 746056545927
• Feature 01: Straight collation
• Feature 02: Flat head with nibs for easy countersinking
• Feature 03: T30 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
• Feature 04: Driver bit included
• Feature 05: #4 drill point with wings
• Feature 06: Tapping threads
• Feature 07: Length: 2-3/8 in.
• Feature 08: N2000® coatings provide a medium-level of corrosion resistance
• Feature 09: Quantity: 1,000
• Install With: Installs with the Simpson Strong-Tie® Quik Drive® PROHSD60 or PROHSD60M auto-feed screw driving systems
• Applications List: Truck Beds / Trailer Flooring
• Applications List.1: Cold-Formed Steel
• Applications List.2: Fastening Wood-to-Steel — Nailers and Ledgers
• Applications List.3: Fastening Wood-to-Steel
• Assembled Depth - Imperial: 0.460
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.460
• Assembled Width UOM - Imperial: in.
• Base Product ID: TB_CScrew
• Base Product Name: Strong-Drive® TB WOOD-TO-STEEL Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Collated Screw
• Coating: N2000® Mechanically Galvanized
• Collation Type: Straight
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T30 6-Lobe
• EAN category: UC
• Finish: N2000® Mechanically Galvanized
• GUID: 112470978172790815005800268840697888683
• Head Diameter (in.): 0.460
• Head Type: Flat Head
• Length (in.): 2 3/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 1.645
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1000
• Packaging Type: Box
• Point Size: 4
• Point Type: Drill Point with Wings
• Product Class: Collated Screw
• Product Includes: Driver bit included
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #12
• Shipping Weight: 18.04
• Short Product Name: #12 X 60MM (2-3/8IN) GALV - 1000/BX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_collatedmetalscrews/tb_cscrew/p/strong-drive-tb-wood-to-steel-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Tapping Threads
• TPI: 14
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50746056545922
