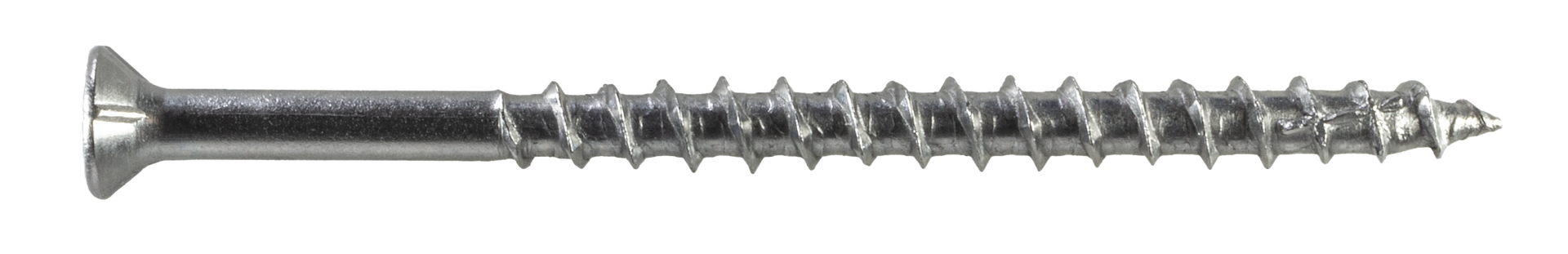

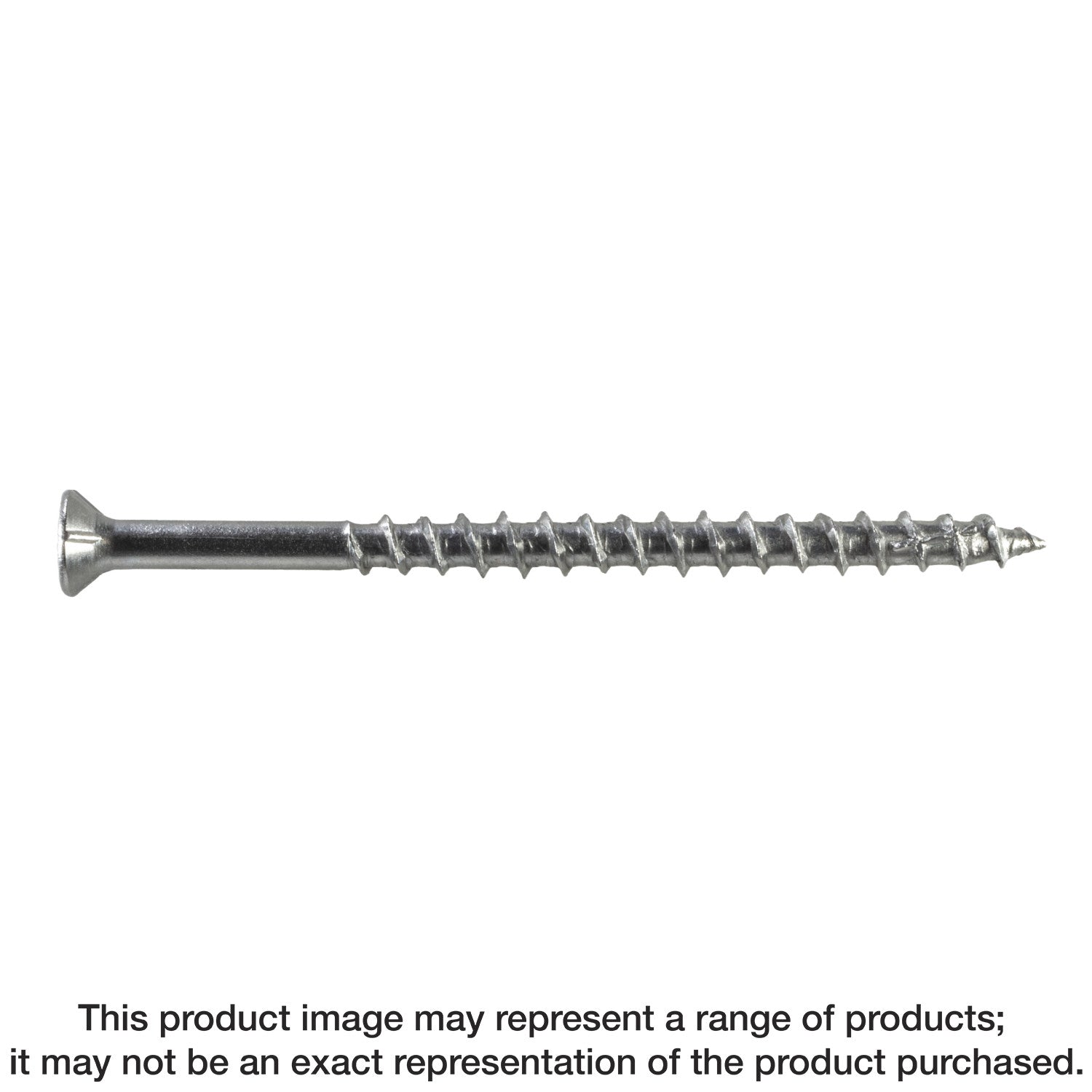

Simpson Strong-Tie T10300DWP Deck-Drive™ DWP WOOD SS Screw — #10 x 3 in. T-25, Flat Head, Type 316 (40-Qty)

Simpson Strong-Tie T10300DWP Deck-Drive™ DWP WOOD SS Screw — #10 x 3 in. T-25, Flat Head, Type 316 (40-Qty)

The Deck-Drive DWP Wood SS screw is a powerful fastening solution for deck, dock and general exterior applications where extra corrosion protection is needed. With its specially designed sharp-point and unique box-threads, the DWP is ideally suited for the majority of wood used in today’s deck boards. DWP screws are also offered in a variety of sizes to fasten fascia and trim.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flat head; also available in trim-head version
• Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Specially designed sharp point penetrates hard wood products with ease
• 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• T25 6-lobe bit included (replacement bit model BIT25T-2-R2)
• Length: 3 in.
• Type 316 stainless steel provides severe-level corrosion resistance
• Quantity: 40

Application

• Marine
• Decks — Deck Boards Wood
• Fastening Wood-to-Wood
• Dock and Boardwalk
• Decks — Guard Rail Post to Deck
• Decks — Guard Rail Infill
• Decks — Railing Post-to-Deck Framing

Specifications

• ERP Part Number: T10300DWP
• UPC: 744039022847
• GTIN: 744039022847
• Feature 01: Flat head; also available in trim-head version
• Feature 02: Unique "box" thread design with raised-ridge technology greatly reduces driving torque, which allows you to drive more screws on a single battery charge
• Feature 03: Specially designed sharp point penetrates hard wood products with ease
• Feature 04: 6-lobe drive helps prevent driver-bit cam-out, resulting in easier driving and longer bit life
• Feature 05: T25 6-lobe bit included (replacement bit model BIT25T-2-R2)
• Feature 06: Length: 3 in.
• Feature 07: Type 316 stainless steel provides severe-level corrosion resistance
• Feature 08: Quantity: 40
• Applications List: Marine
• Applications List.1: Decks — Deck Boards Wood
• Applications List.2: Fastening Wood-to-Wood
• Applications List.3: Dock and Boardwalk
• Applications List.4: Decks — Guard Rail Post to Deck
• Applications List.5: Decks — Guard Rail Infill
• Applications List.6: Decks — Railing Post-to-Deck Framing
• Appx Count Per Lb: 68
• Assembled Depth - Imperial: 0.335
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.335
• Assembled Width UOM - Imperial: in.
• Base Product ID: DWP_Screw
• Base Product Name: Deck-Drive™ DWP WOOD SS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• Finish: Type 316 Stainless Steel
• GUID: 82234303035581100956439481712004578829
• Head Diameter (in.): 0.335
• Head Type: Flat Head
• Length (in.): 3
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 1.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 5.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.13
• Package Width UOM - Imperial: in.
• Packaging Quantity: 40
• Packaging Type: Clamshell
• Point Type: Sharp Point
• Product Class: Hand-Drive Screw
• Product Includes: (1) T25 6-lobe driver bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 0.588
• Short Product Name: #10 3IN 316SS HARDWOOD FLAT T25 40CT
• Strongtie.com URL: https://www.strongtie.com/deckdrive_exteriorwoodscrews/dwp_screw/p/deck-drive-dwp-wood-ss-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Box Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10744039022844
• PAL Reference: 50744039022842
