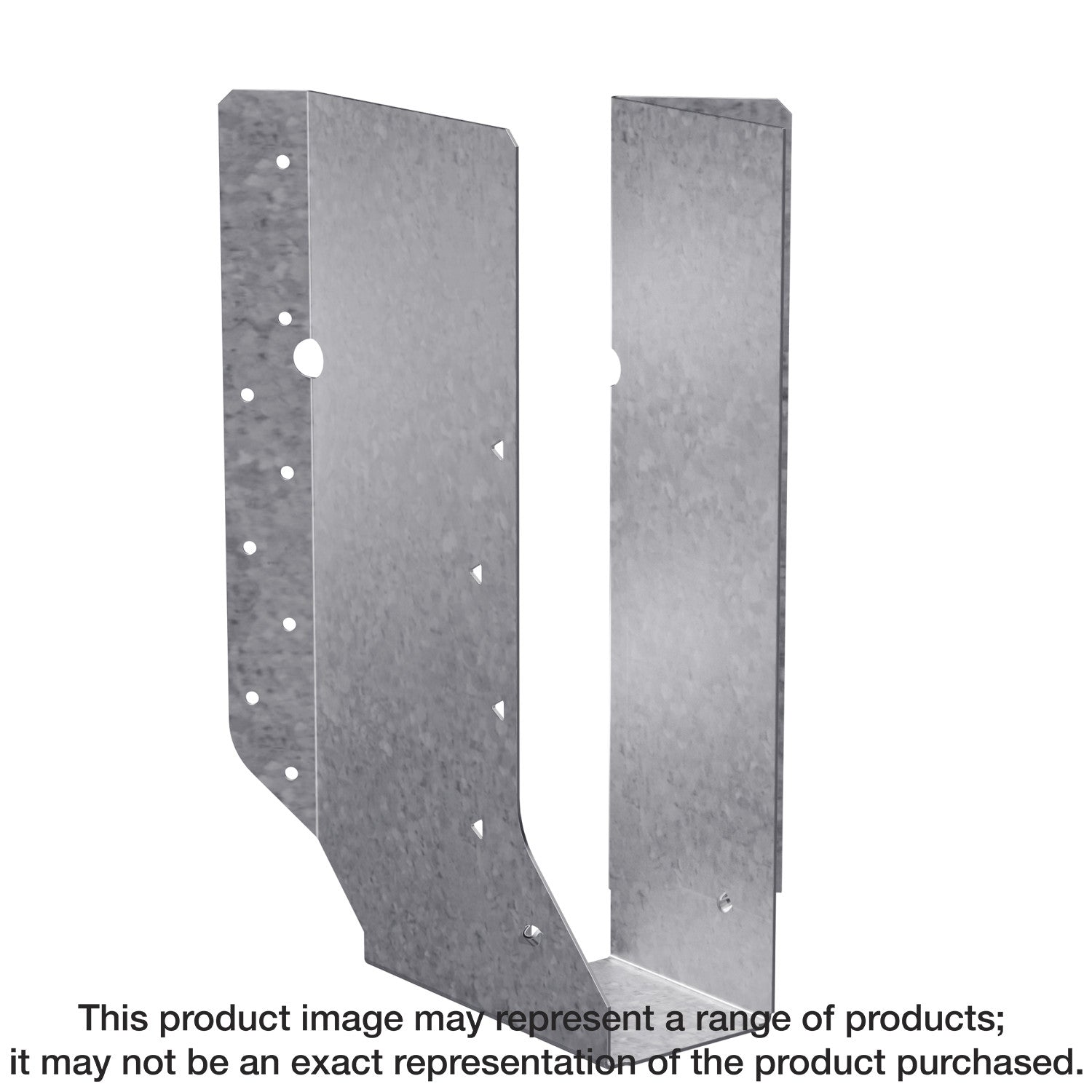

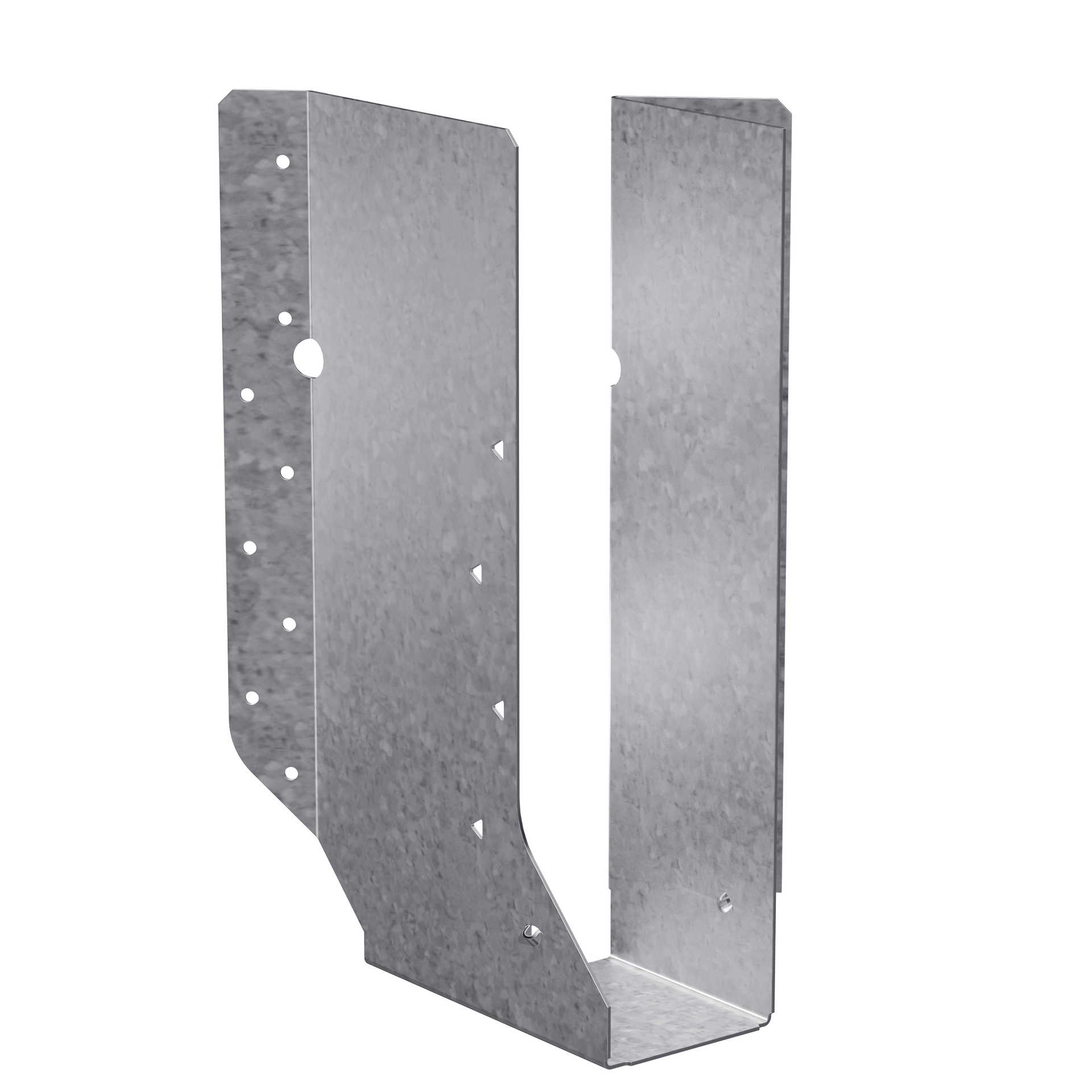

Simpson Strong-Tie SUL26SS SUL Stainless-Steel Joist Hanger for 2x6, Skewed Left (Pack of 10)

Simpson Strong-Tie SUL26SS SUL Stainless-Steel Joist Hanger for 2x6, Skewed Left (Pack of 10)

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• SUL = skewed left
• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
• Seat width: 1-9/16 inches
• Nominal joist size: 2x6 or 2x8
• Made from 16-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: SUL26SS
• UPC: 10707392967702
• GTIN: 10707392967702
• Feature 01: SUL = skewed left
• Feature 02: Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• Feature 03: These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Feature 04: Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
• Feature 05: Seat width: 1-9/16 inches
• Feature 06: Nominal joist size: 2x6 or 2x8
• Feature 07: Made from 16-gauge steel
• Feature 08: Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 2.4819999999999998
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.02575
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5
• Assembled Width UOM - Imperial: in.
• Base Product ID: SUR-L_Hanger
• Base Product Name: SUR/SUL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• GUID: 239793723029845075363211148001937524419
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 13.875
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.5
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 10
• Shipping Weight: 6.4
• Short Product Name: 2 X 6 JOIST HANGER SKEWED LEFT SS
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/sur-l_hanger/p/sur.sul
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392967705
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
