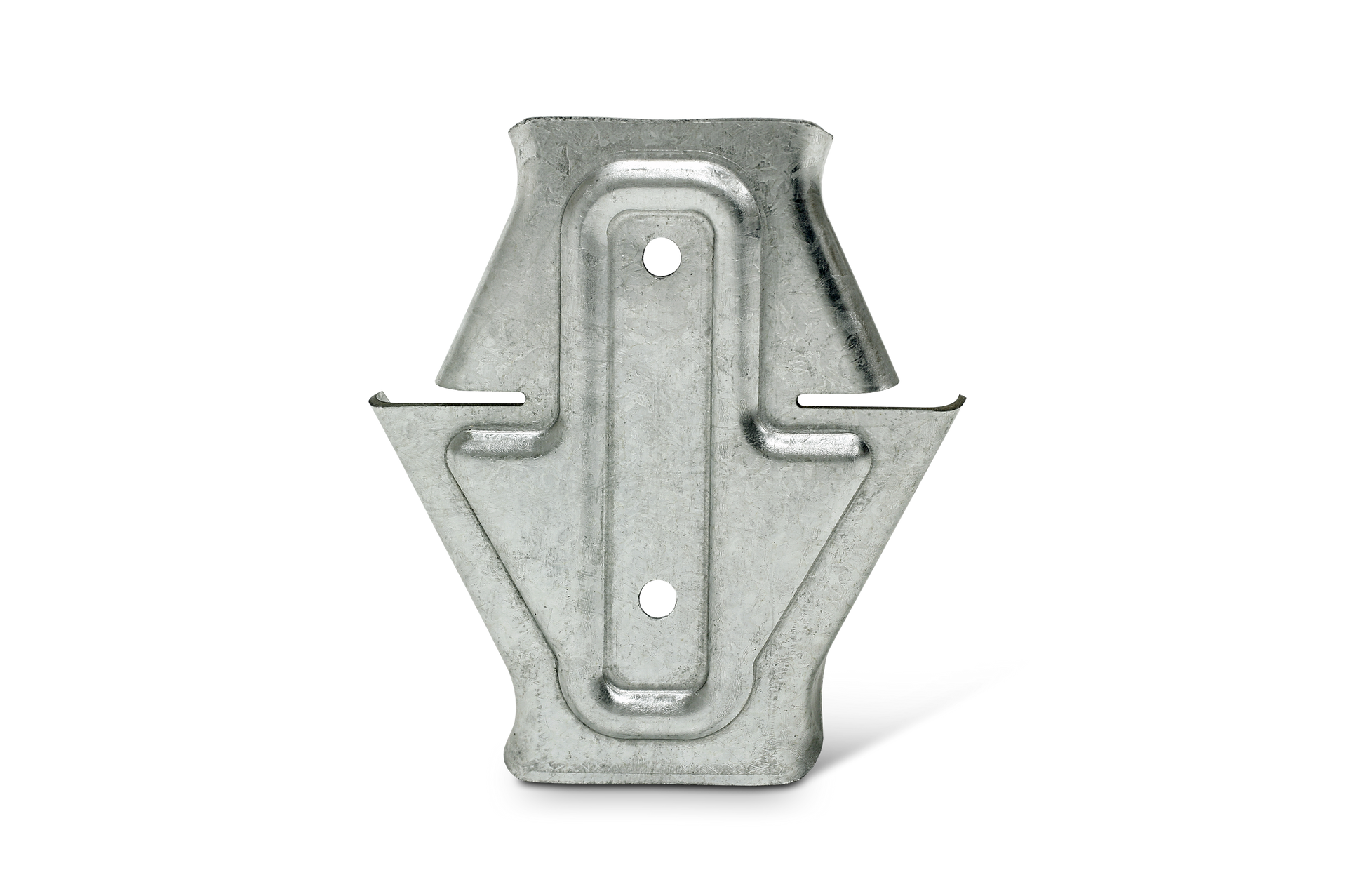

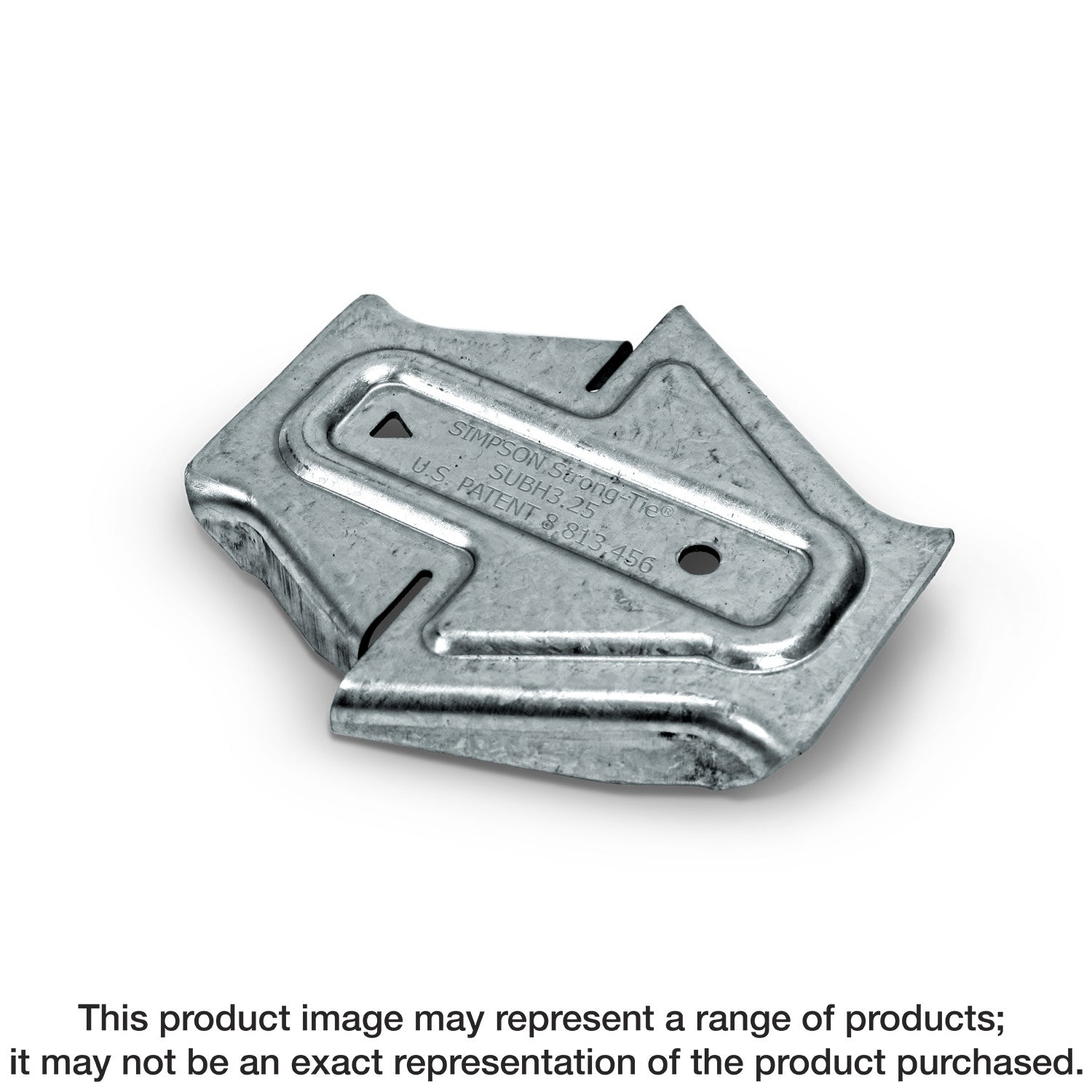

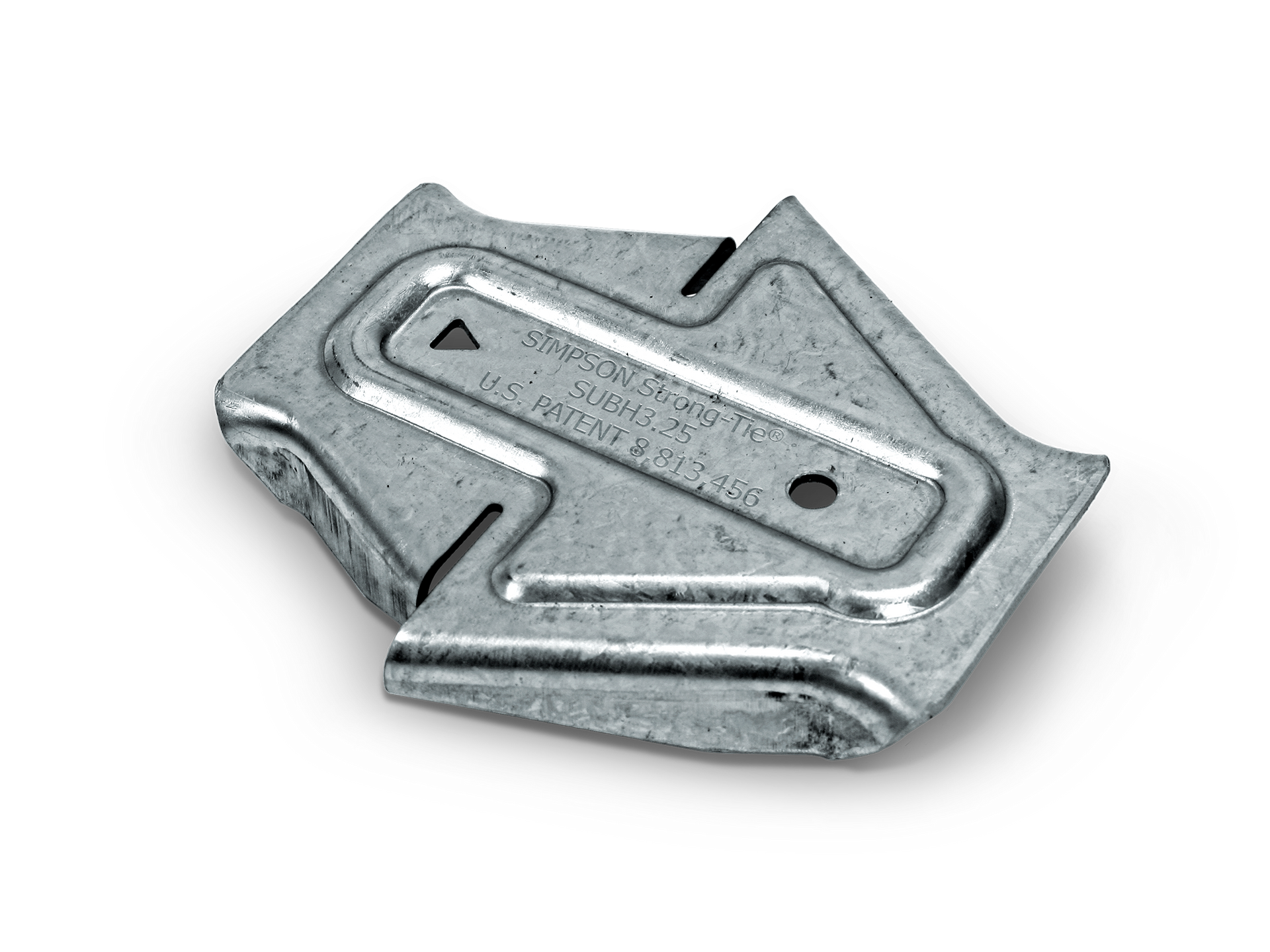

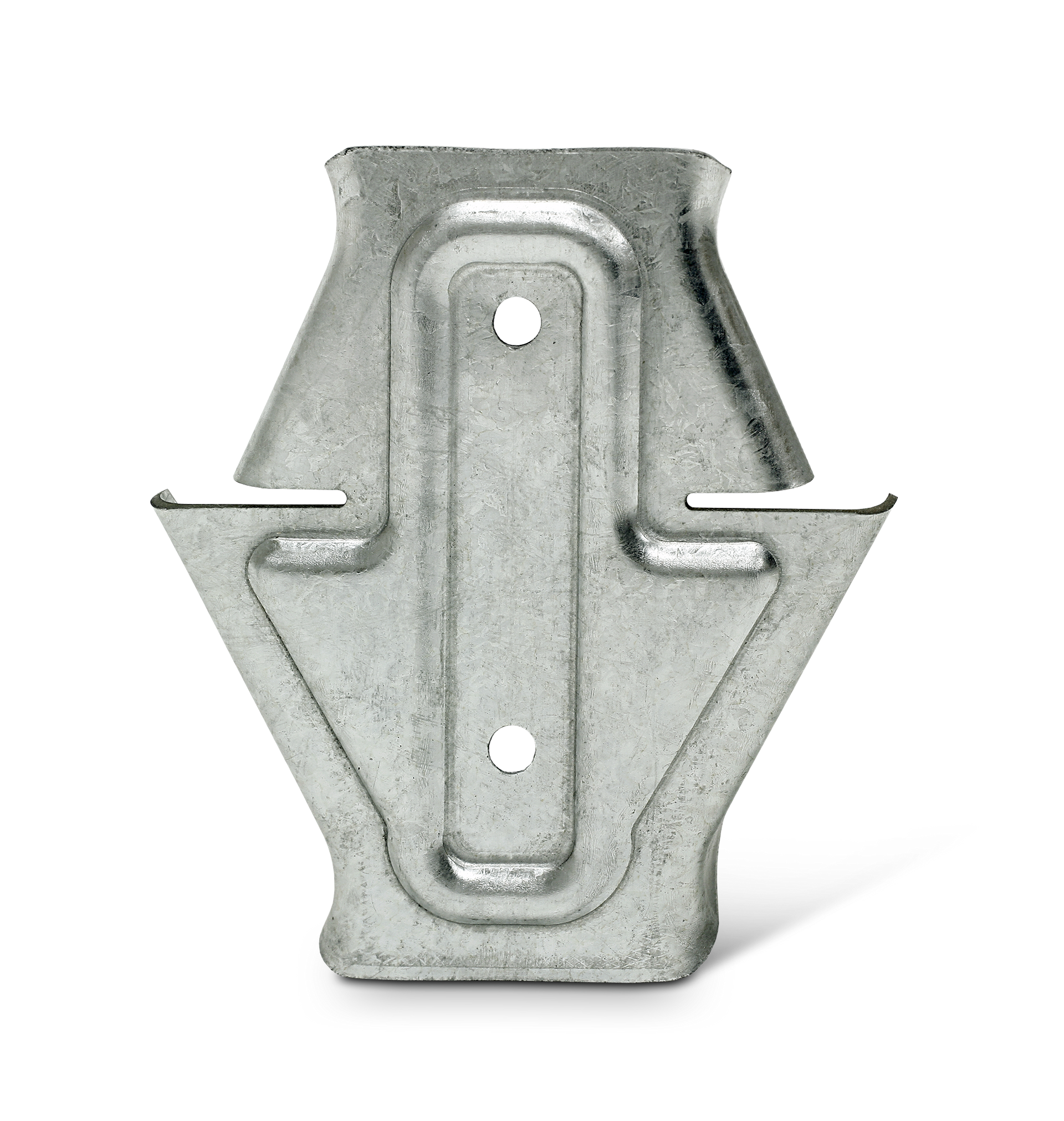

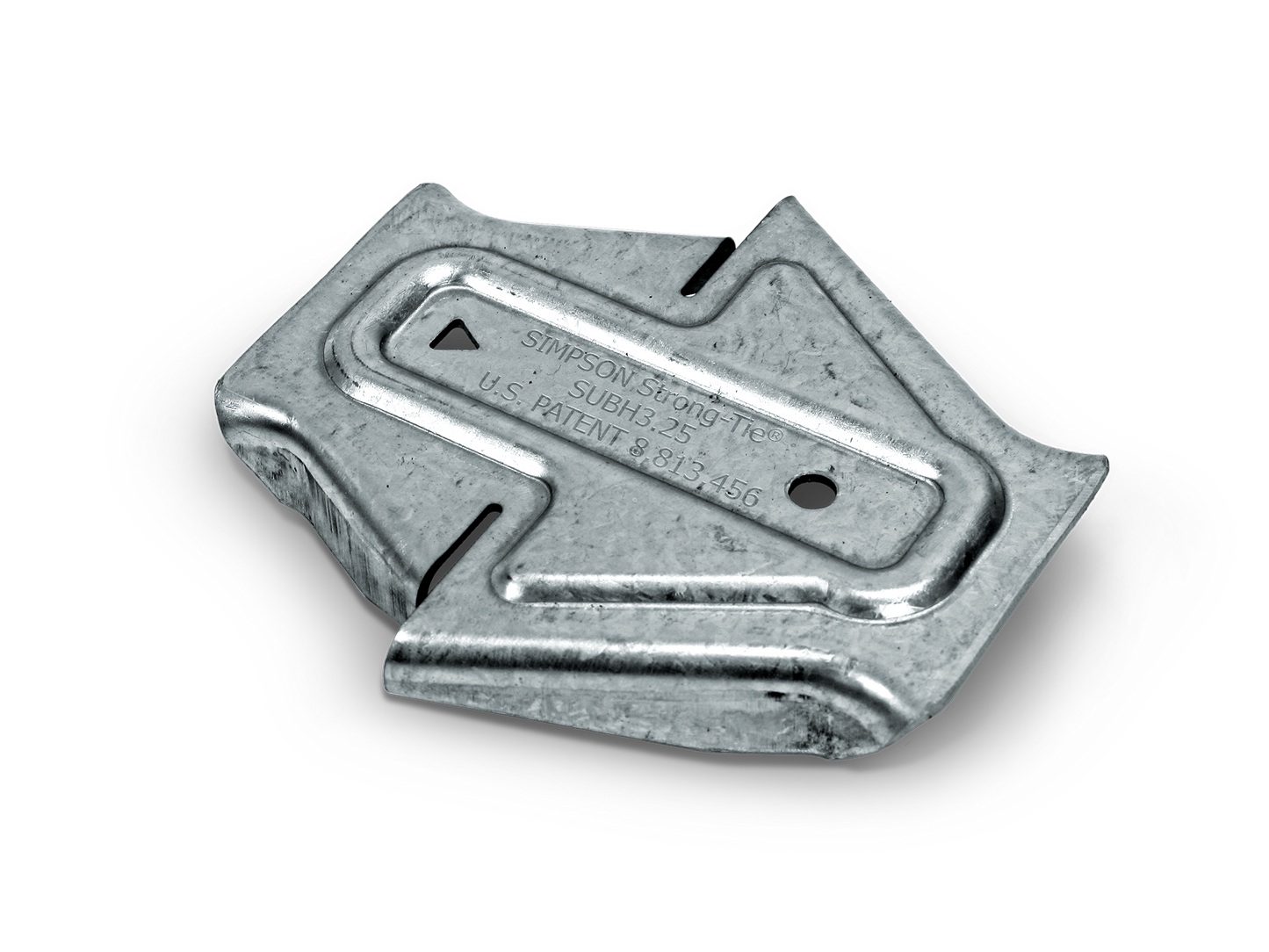

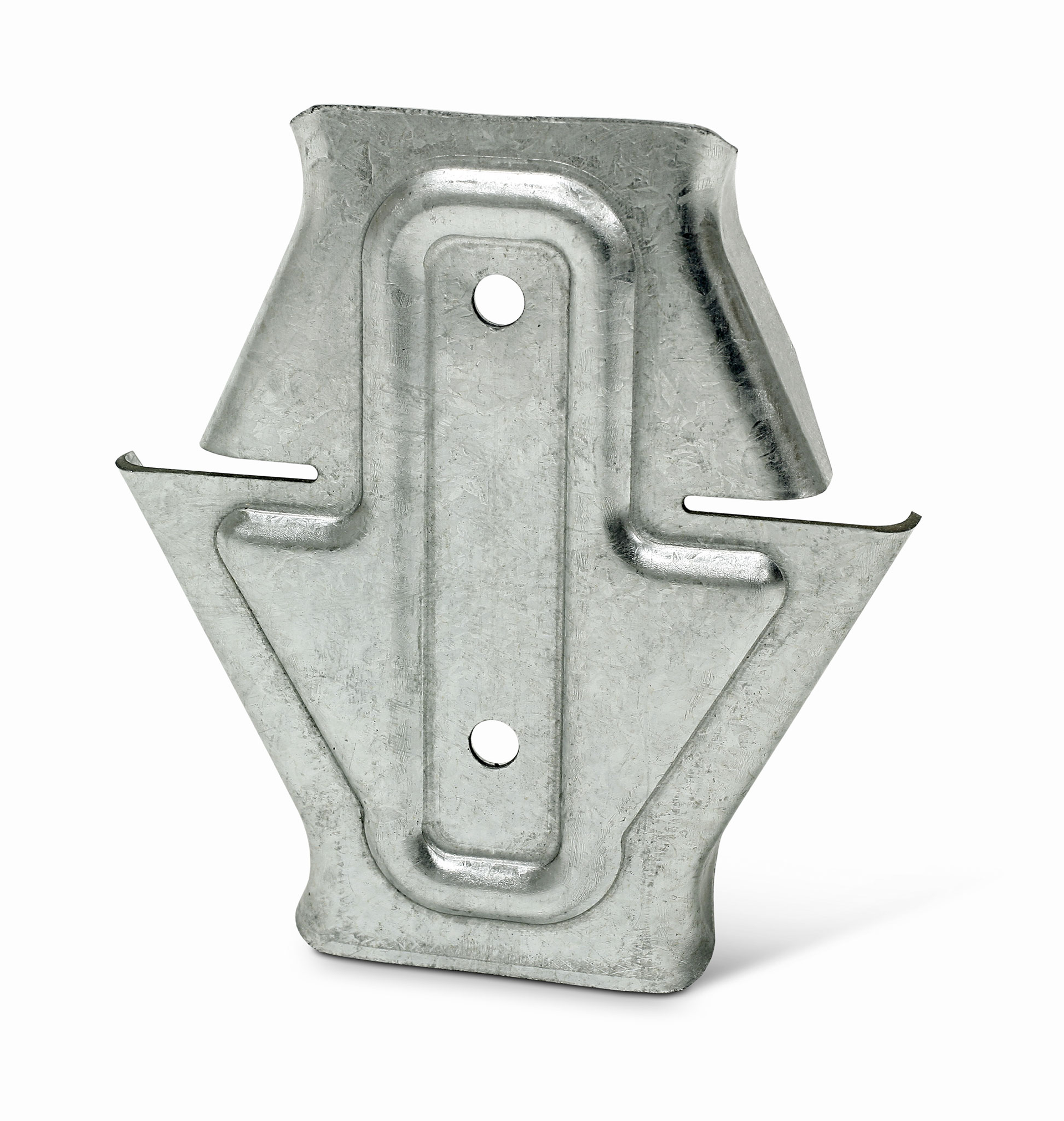

Simpson Strong-Tie SUBH3.25-R150 SUBH 3-1/4 in. 18 ga. Bridging Connector (Qty-150)

Simpson Strong-Tie SUBH3.25-R150 SUBH 3-1/4 in. 18 ga. Bridging Connector (Qty-150)

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. SUBH wall stud bridging connectors for cold-formed steel framing feature a compact profile that allows standard 1-5/8 in. studs to be sistered directly against adjacent studs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• A single installer can easily install these clips, meaning faster work
• Many applications require only one screw, greatly reducing labor costs and increasing productivity
• Tested to include stud-web strength and stiffness in the tabulated design values
• Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3-5/8 in. to 8 in.
• Compact profile allows standard 1-5/8 in. studs to be sistered directly against adjacent studs
• SUBH accommodates single members from 33 mil (20 ga.) to 54 mil (16 ga.)
• Width: 3-1/4 in.
• Made from 18-gauge (43 mil) steel
• Quantity: 150 per package

Application

• Curtain-Wall Construction
• U-Channel Bridging
• Cold-Formed Steel
• Wall Bracing
• Bridging / Bracing

Specifications

• ERP Part Number: SUBH3.25-R150
• UPC: 707392968405
• GTIN: 707392968405
• Feature 01: A single installer can easily install these clips, meaning faster work
• Feature 02: Many applications require only one screw, greatly reducing labor costs and increasing productivity
• Feature 03: Tested to include stud-web strength and stiffness in the tabulated design values
• Feature 04: Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3-5/8 in. to 8 in.
• Feature 05: Compact profile allows standard 1-5/8 in. studs to be sistered directly against adjacent studs
• Feature 06: SUBH accommodates single members from 33 mil (20 ga.) to 54 mil (16 ga.)
• Feature 07: Width: 3-1/4 in.
• Feature 08: Made from 18-gauge (43 mil) steel
• Feature 09: Quantity: 150 per package
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie® catalog or strongtie.com
• Applications List: Curtain-Wall Construction
• Applications List.1: U-Channel Bridging
• Applications List.2: Cold-Formed Steel
• Applications List.3: Wall Bracing
• Applications List.4: Bridging / Bracing
• Assembled Depth - Imperial: 0.46875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.53125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: SUBH_Clip
• Base Product Name: SUBH
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Bridging and Bracing Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 250006526496210671053777078087957126419
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 15.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 150
• Packaging Type: Pail
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 22
• Short Product Name: STD DUTY BRIDGE CLIP 150 RETAIL PACK
• Strongtie.com URL: https://www.strongtie.com/bridgingandbracingconnectors_coldformedsteelconstruction/subh_clip/p/subh
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Bridging and Bracing Connectors
• US Patents: 8,590,255
• US Patents.1: 8,813,456
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392968400
