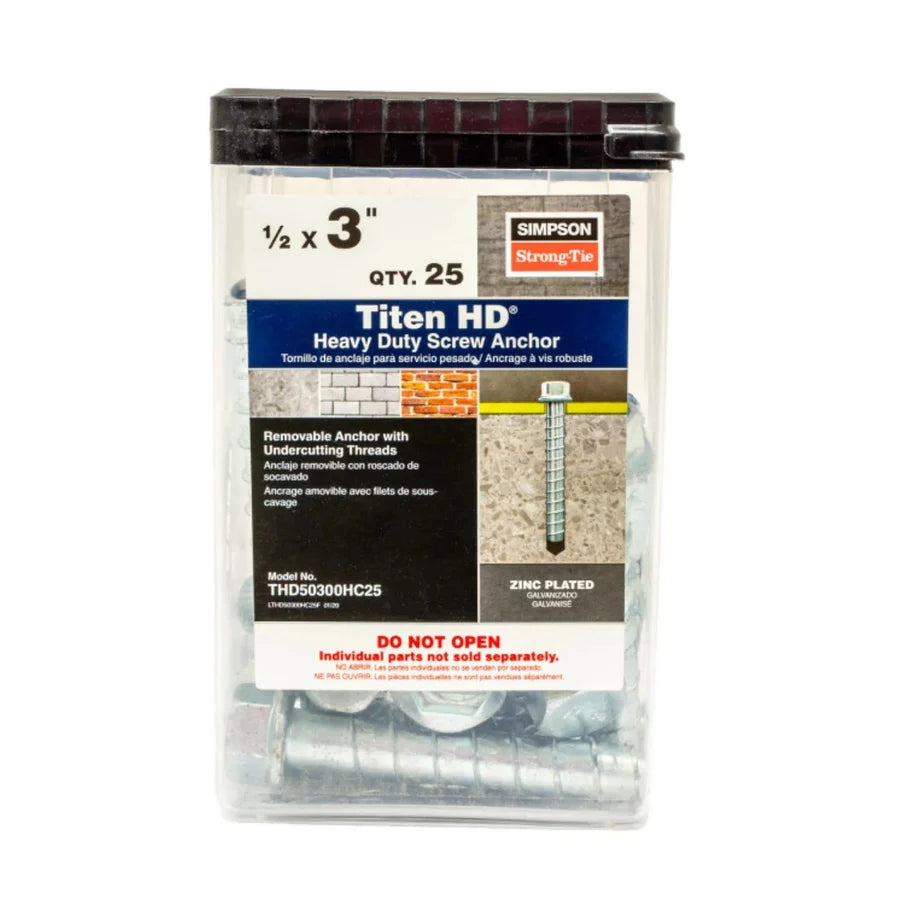

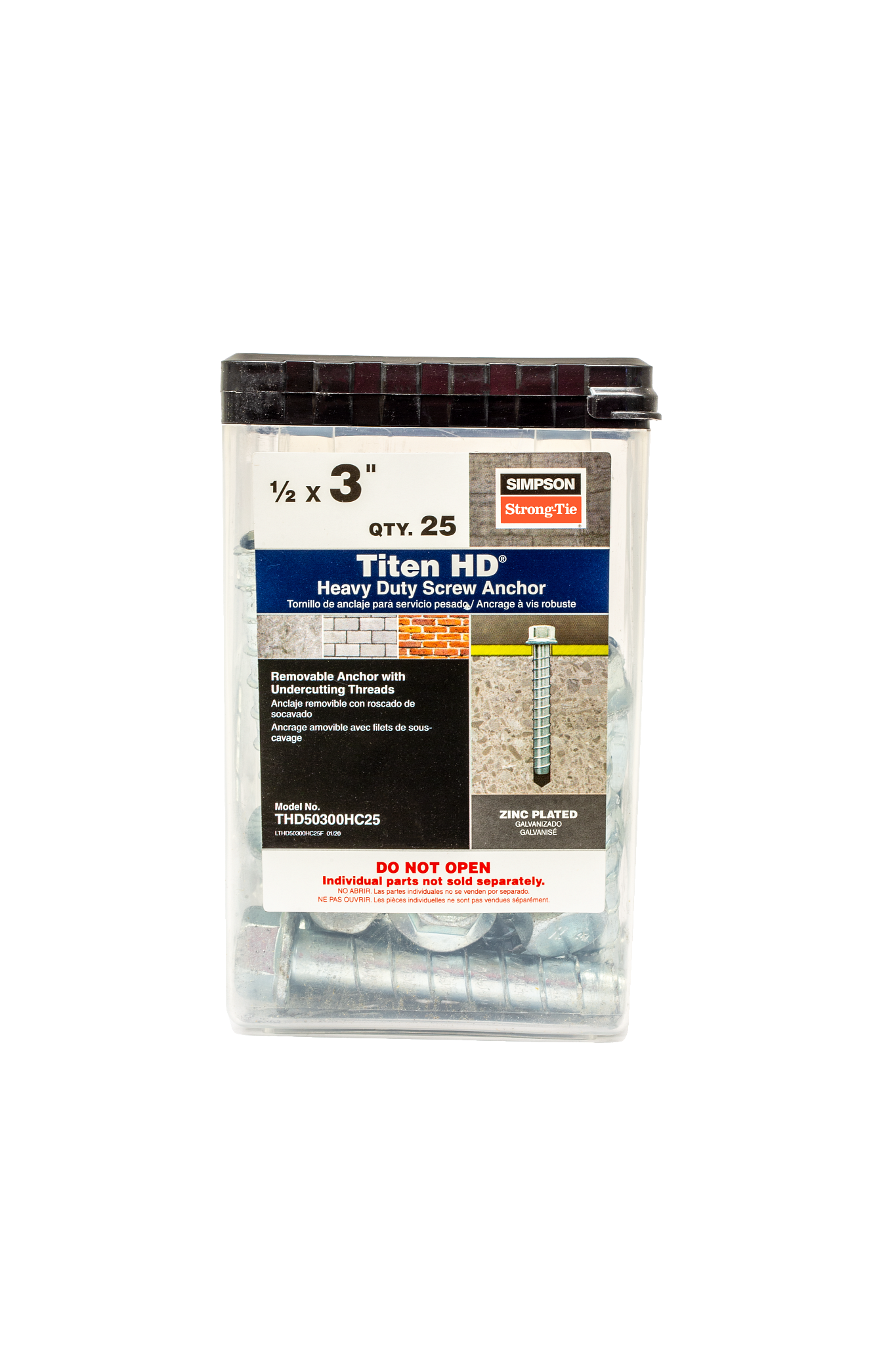

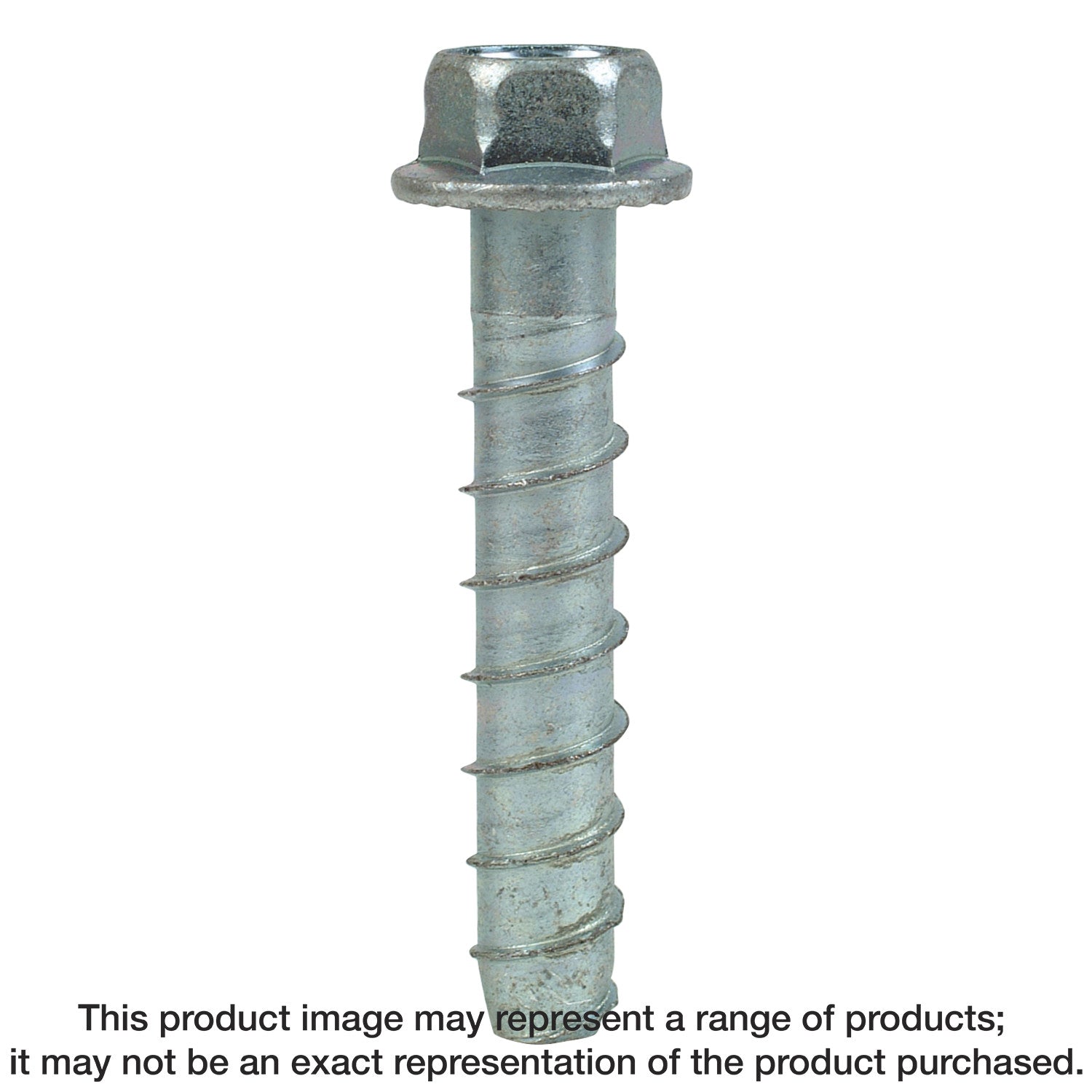

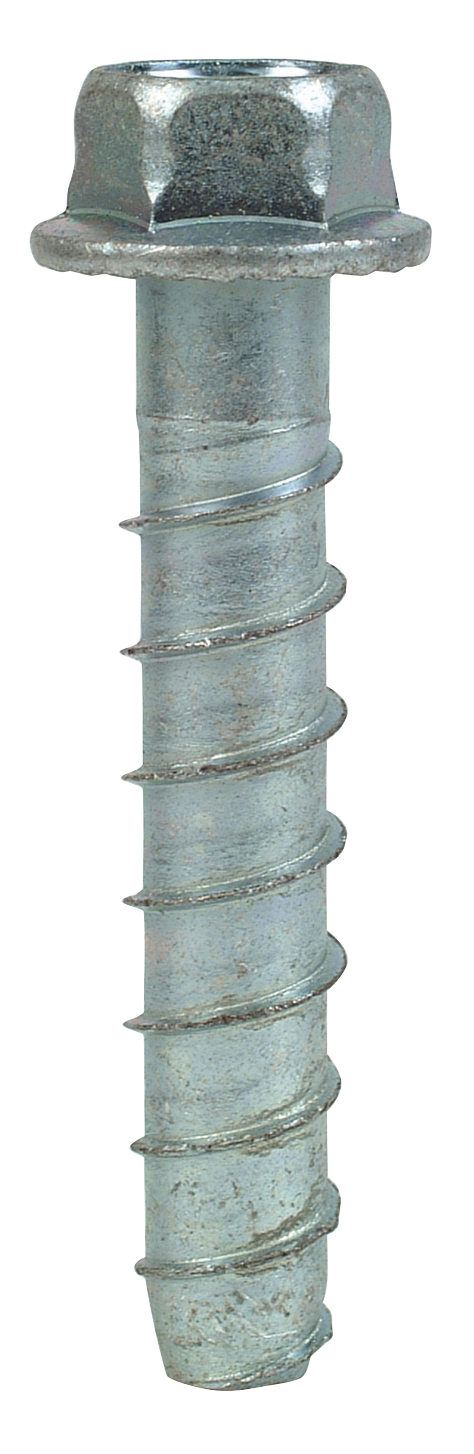

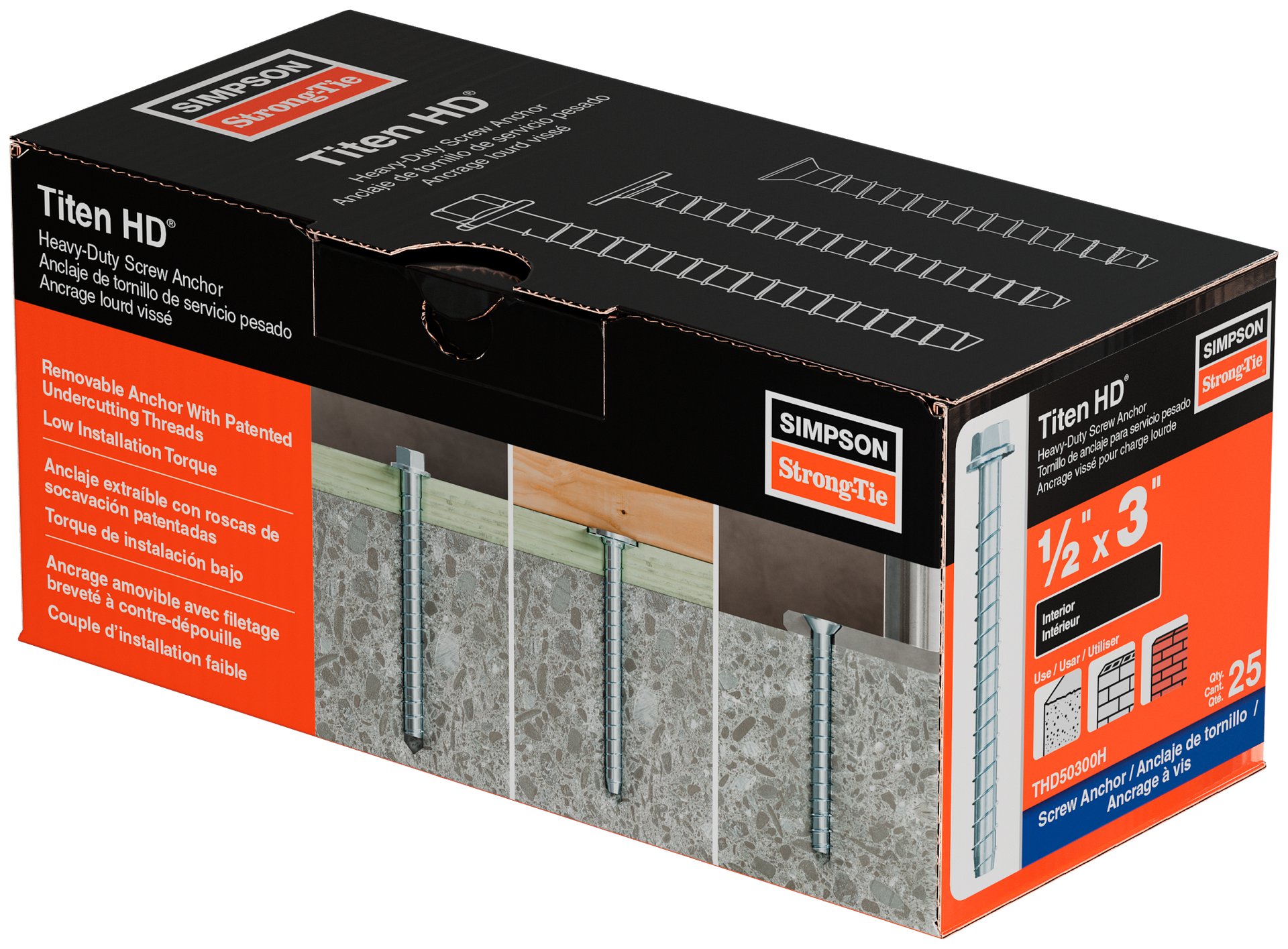

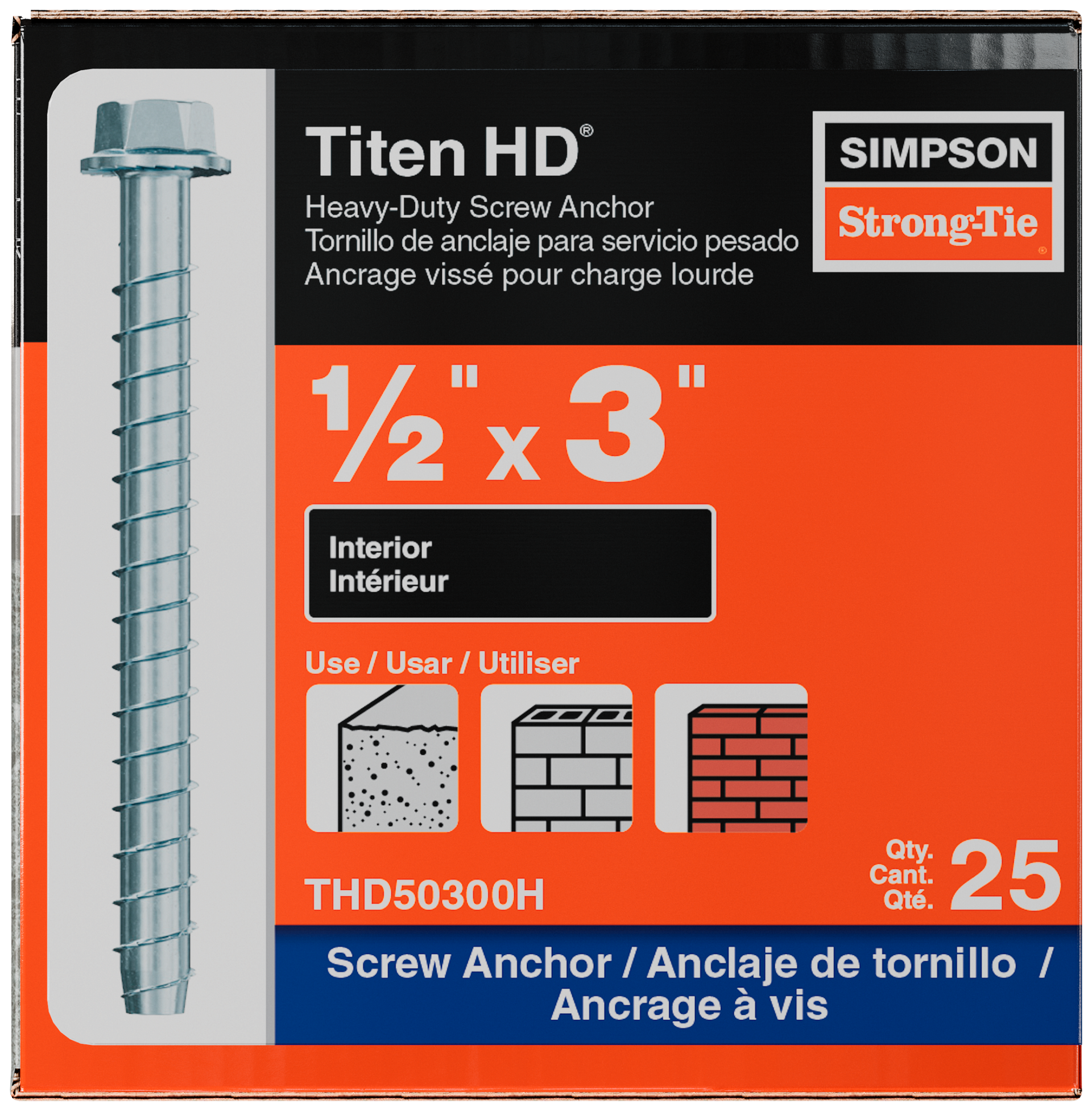

Simpson Strong-Tie THD50300H Titen HD (1/2" x 3") Heavy-Duty Screw Anchor - Zinc Plated (25 Pack)
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
This Simpson Strong-Tie product is designed for demanding construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation are important. It belongs to the Concrete Connectors and Anchors product family. Use the information below to confirm the correct SKU, UPC, dimensions, finish, material, packaging, application, fastening details, code references, and other available Simpson product specifications before ordering.
Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Size: 1/2 in. x 3 in.
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
- Quantity: 25
Specifications
- ERP Part Number: THD50300H
- UPC: 10707392409707
- GTIN: 10707392409707
- Feature 01: Qualified for static and seismic loading conditions
- Feature 02: Thread design undercuts to efficiently transfer the load to the base material
- Feature 03: No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Feature 04: Hex-washer head requires no separate washer and provides a clean installed appearance
- Feature 05: Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Feature 06: Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Feature 07: Size: 1/2 in. x 3 in.
- Feature 08: Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
- Feature 09: Quantity: 25
- Assembled Depth - Imperial: 1.07
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 3.5825
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 1.07
- Assembled Width UOM - Imperial: in.
- Base Product ID: THD_Anchor
- Base Product Name: Titen HD®
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Screw Anchor
- Country of Origin: CN
- Customer Unit: No
- Display Unit/Measure: CAR
- EAN category: IC
- GUID: 49948628928620602410204928888907054024
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Carton
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 15.19
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 4
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 8
- Package Width UOM - Imperial: in.
- Product Class: Screw Anchor
- Prop 65 - Cancer: Crystalline Silica
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 4
- Shipping Weight: 25.6
- Short Product Name: TITEN HD 1/2 X 3
- Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd_anchor/p/titen-hd
- Subcategory: Concrete Connectors and Anchors
- Subcategory 2: Mechanical Anchors
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- PAC Reference: 707392409717
- PAL Reference: 50707392409705
- Cost: $37.00
- Shopify Price: $47.99
