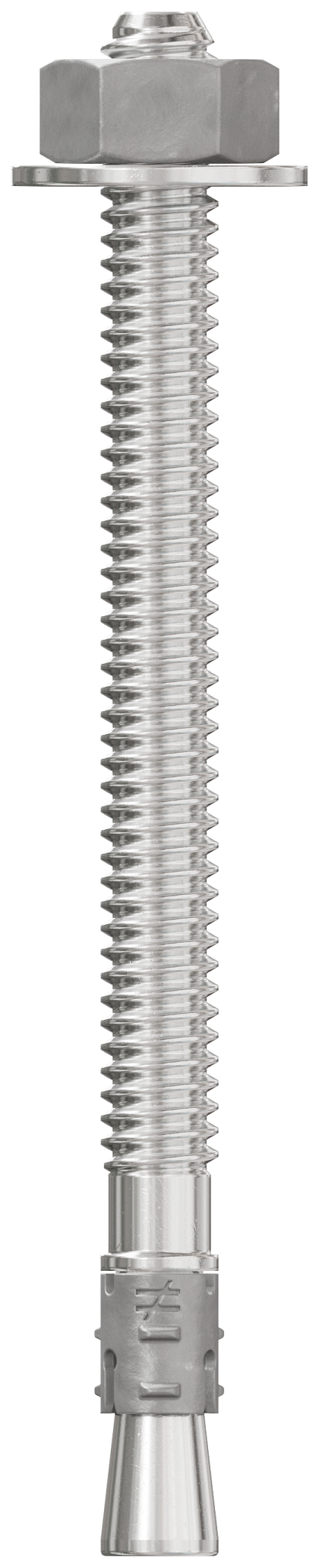

Simpson Strong-Tie STB2-25314S4F100 Strong-Bolt® 2 — 1/4 in. x 3-1/4 in. Type 304 Stainless-Steel Wedge Anchor, Fully Assembled (100-Qty)
The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Code listed for uncracked concrete applications
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Size: 1/4 in. x 3-1/4 in.
- Made from Type 304 stainless steel for long-lasting corrosion resistance
- Quantity: 100 per package
Specifications
- ERP Part Number: STB2-25314S4F100
- UPC: 707392030614
- GTIN: 707392030614
- Feature 01: Code listed for uncracked concrete applications
- Feature 02: Chamfered top designed to prevent mushrooming during installation
- Feature 03: Qualified for static and seismic loading conditions (seismic design categories A through F)
- Feature 04: Suitable for horizontal, vertical and overhead applications
- Feature 05: Tested per ACI355.2 and AC193
- Feature 06: Size: 1/4 in. x 3-1/4 in.
- Feature 07: Made from Type 304 stainless steel for long-lasting corrosion resistance
- Feature 08: Quantity: 100 per package
- Install With: Installs with 1/4 in. drill bit and 7/16 in. wrench size
- Assembled Depth - Imperial: 0.625
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 3.313
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 0.625
- Assembled Width UOM - Imperial: in.
- Base Product ID: STB2-SS_Anchor
- Base Product Name: Strong-Bolt® 2
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Wedge Anchor
- Country of Origin: CN
- Customer Unit: Yes
- Diameter (in.): 1/4
- Display Unit/Measure: EA
- Drill Bit Diameter (in.): 1/4
- Finish: Type 304 Stainless Steel
- GUID: 294916245667637130653200013518938959071
- Length (in.): 3 1/4
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Material: Type 304 Stainless Steel
- Measurement Unit Text: each
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 7.75
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 3.63
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 3.60
- Package Width UOM - Imperial: in.
- Packaging Quantity: 100
- Packaging Type: Box
- Product Class: Wedge Anchor
- Prop 65 - Cancer: Crystalline Silica
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 1
- Shipping Weight: 4.696
- Short Product Name: Strong-Bolt2 1/4 X 3-1/4 304SS PAK 100
- Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/stb2-ss_anchor/p/strong-bolt-2
- Subcategory: Concrete Connectors and Anchors
- Subcategory 2: Mechanical Anchors
- Thread Length (in.): 2 7/16
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10707392030611
- PAL Reference: 50707392030619
