Simpson Strong-Tie SSDWP3S316 Deck-Drive™ DWP WOOD SS Screw (Collated) — #10 x 3 in. T25 6-Lobe Type 316 (1000-Qty)

Simpson Strong-Tie SSDWP3S316 Deck-Drive™ DWP WOOD SS Screw (Collated) — #10 x 3 in. T25 6-Lobe Type 316 (1000-Qty)

The Deck-Drive DWP Wood SS screw is a powerful fastening solution for deck, dock and general exterior applications where extra corrosion protection is needed. With its specially designed sharp-point and unique box-threads, the DWP is ideally suited for the majority of wood used in today’s deck boards. DWP screws are also offered in a variety of sizes to fasten fascia and trim.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

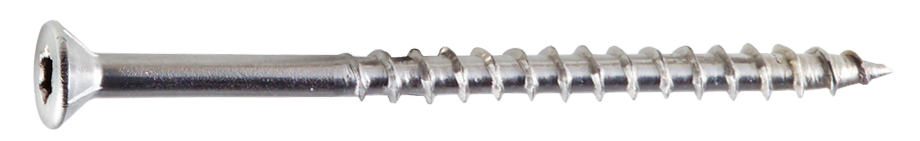

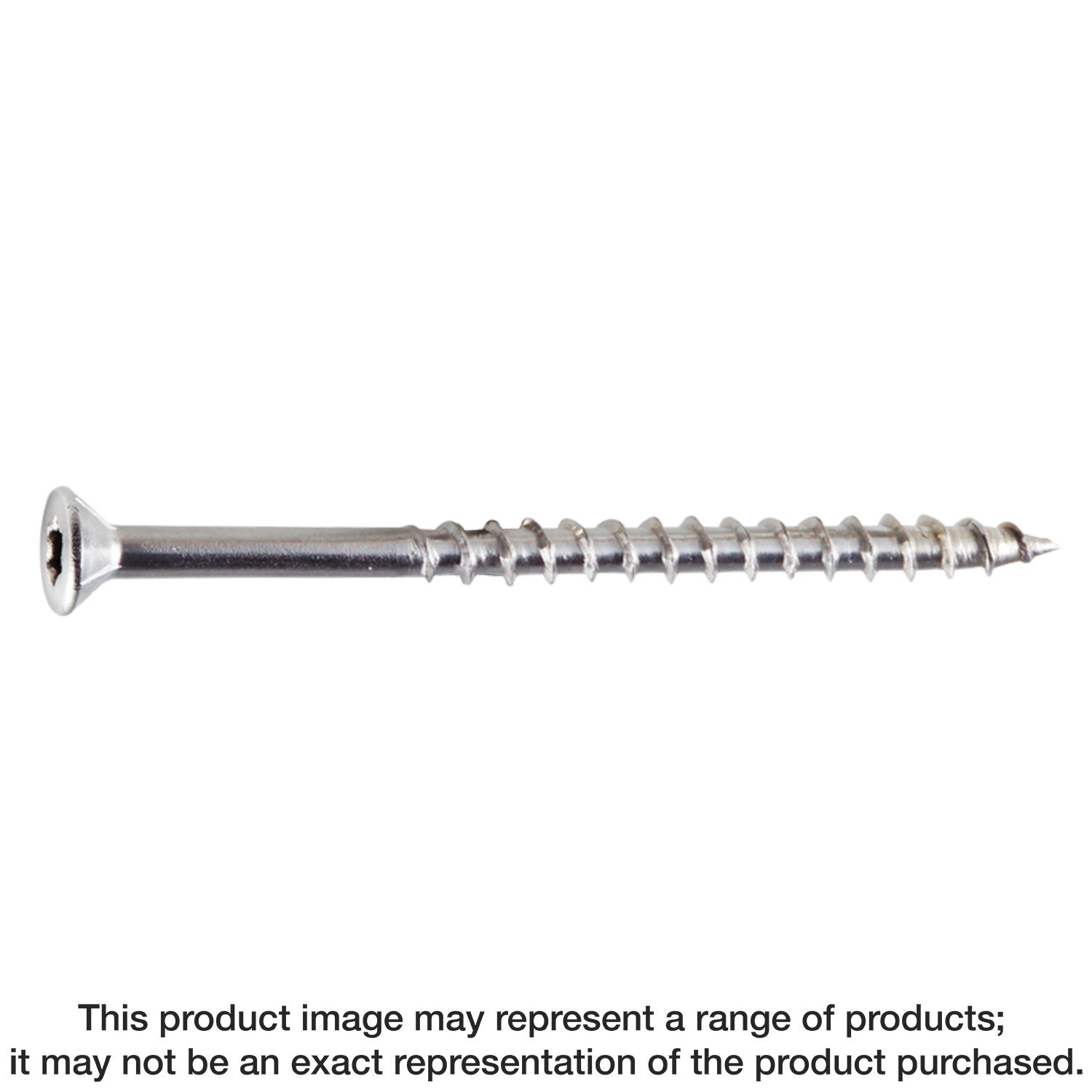

• Flat head
• Unique “box” thread design with raised-ridge technology greatly reduces driving torque
• Specially designed sharp point penetrates hard wood products with ease
• 6-lobe drive helps prevent driver-bit cam-out while driving easier and extending bit life
• (3) T25 6-lobe driver bits included (replacement bit BITTX25)
• Length: 3 in.
• Made from Type 316 stainless steel for seaside applications and superior corrosion resistance
• Quantity: 1,000

Application

• Decks — Deck Boards Wood
• Fastening Wood-to-Wood
• Dock and Boardwalk

Specifications

• ERP Part Number: SSDWP3S316
• UPC: 746056449386
• GTIN: 746056449386
• Feature 01: Flat head
• Feature 02: Unique “box” thread design with raised-ridge technology greatly reduces driving torque
• Feature 03: Specially designed sharp point penetrates hard wood products with ease
• Feature 04: 6-lobe drive helps prevent driver-bit cam-out while driving easier and extending bit life
• Feature 05: (3) T25 6-lobe driver bits included (replacement bit BITTX25)
• Feature 06: Length: 3 in.
• Feature 07: Made from Type 316 stainless steel for seaside applications and superior corrosion resistance
• Feature 08: Quantity: 1,000
• Install With: Installs with the Simpson Strong-Tie® Quik Drive® PRO300SG2 auto-feed screw driving system or attachment
• Applications List: Decks — Deck Boards Wood
• Applications List.1: Fastening Wood-to-Wood
• Applications List.2: Dock and Boardwalk
• Assembled Depth - Imperial: 0.340
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.340
• Assembled Width UOM - Imperial: in.
• Base Product ID: DWP_CScrew
• Base Product Name: Deck-Drive™ DWP WOOD SS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Collated Screw

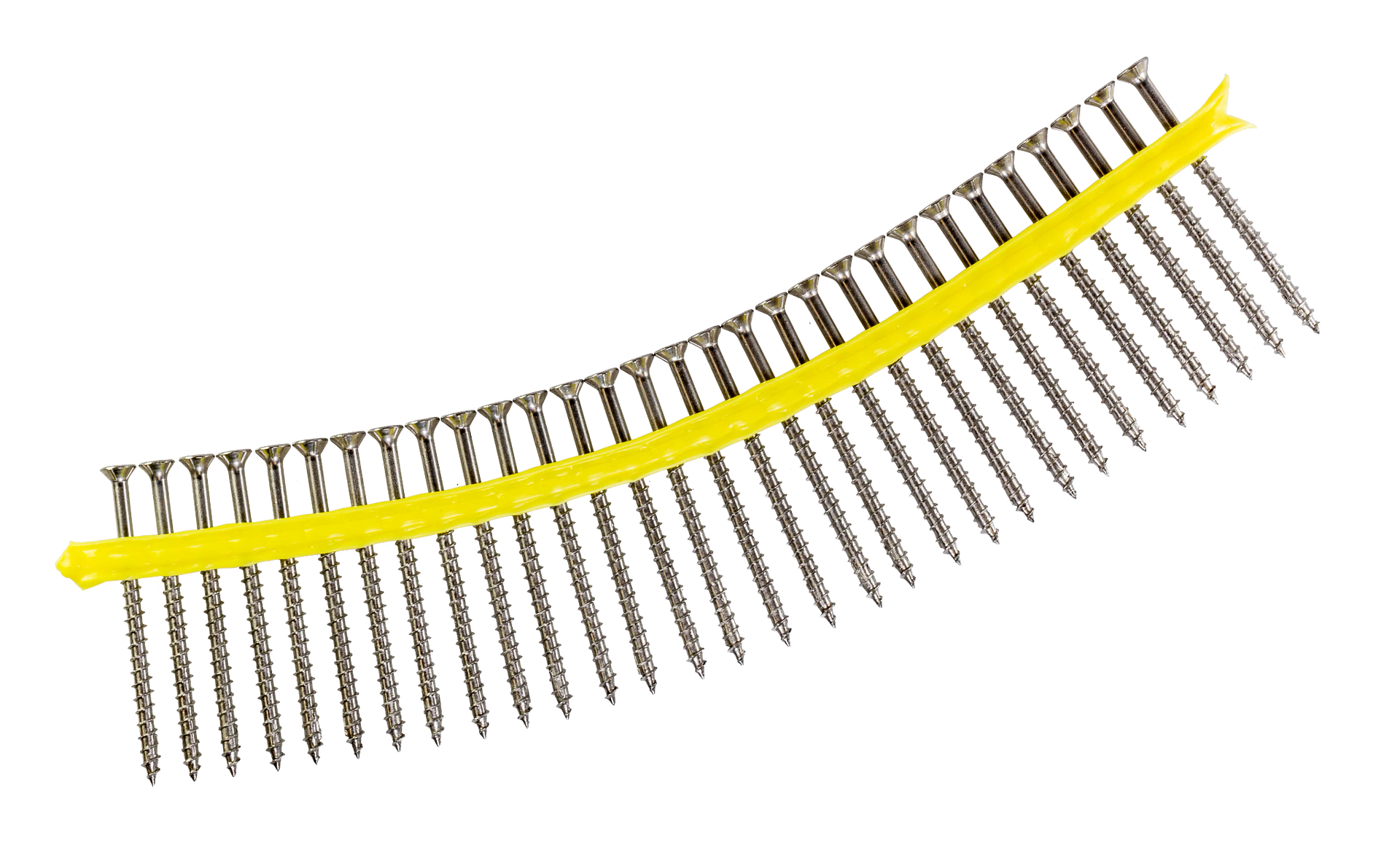

• Collation Type: Curved
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Type 316 Stainless Steel
• GUID: 82234303035581100956439481712004578829
• Head Diameter (in.): 0.340
• Head Type: Flat Head
• Length (in.): 3
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14.13
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1000
• Packaging Type: Box
• Point Type: Sharp Point
• Product Class: Collated Screw
• Product Includes: (3) T25 6-lobe driver bits included
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 16.3
• Short Product Name: QD 10 X 3 316SS WP T25 1000CT
• Strongtie.com URL: https://www.strongtie.com/deckdrive_collatedexteriorwoodscrews/dwp_cscrew/p/deck-drive-dwp-wood-ss-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• Thread Type: Box Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50746056449381
