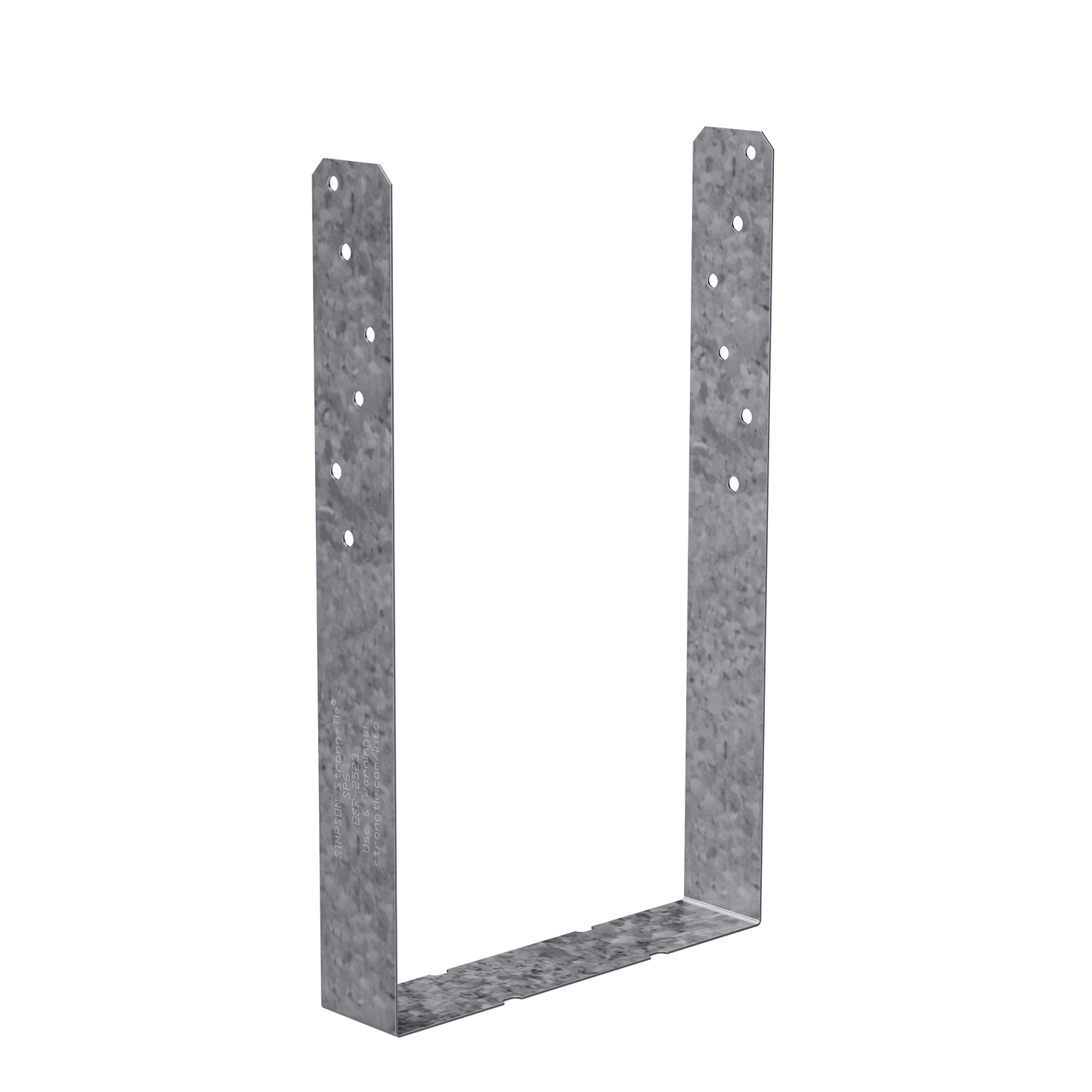

Simpson Strong-Tie SPH6 SPH 5-9/16 in. x 9-1/4 in. Galvanized Heavy-Duty Stud Plate Tie

Simpson Strong-Tie SPH6 SPH 5-9/16 in. x 9-1/4 in. Galvanized Heavy-Duty Stud Plate Tie

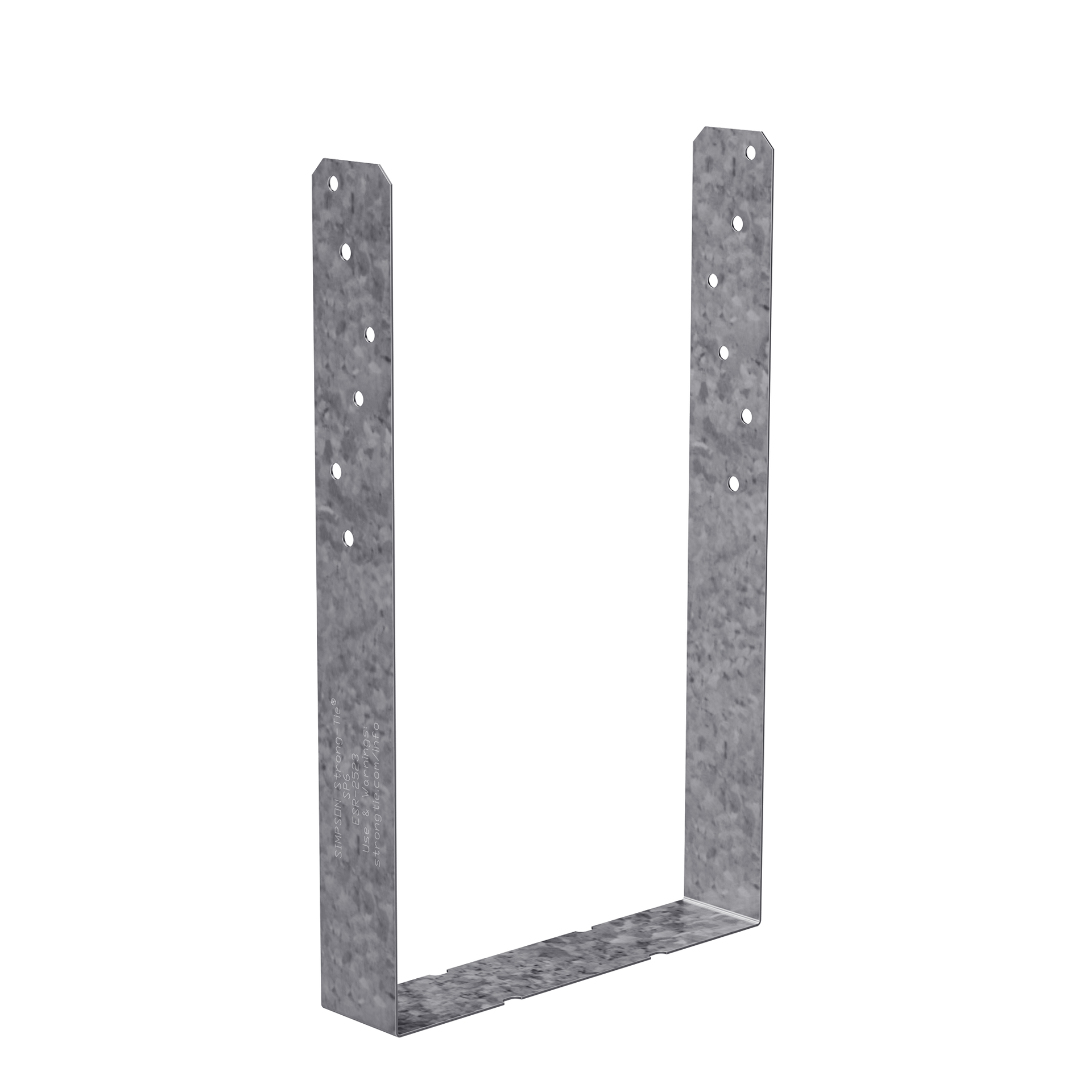

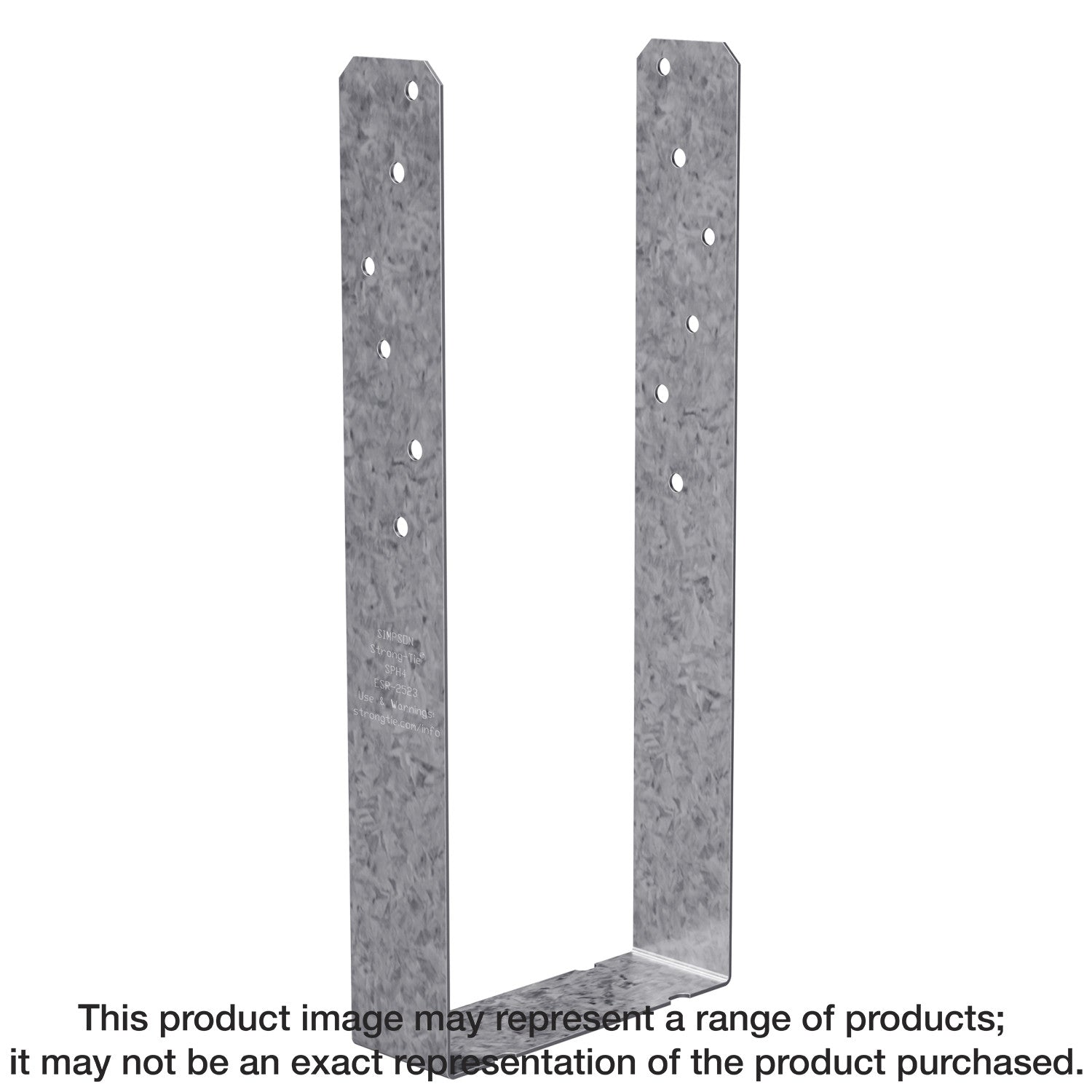

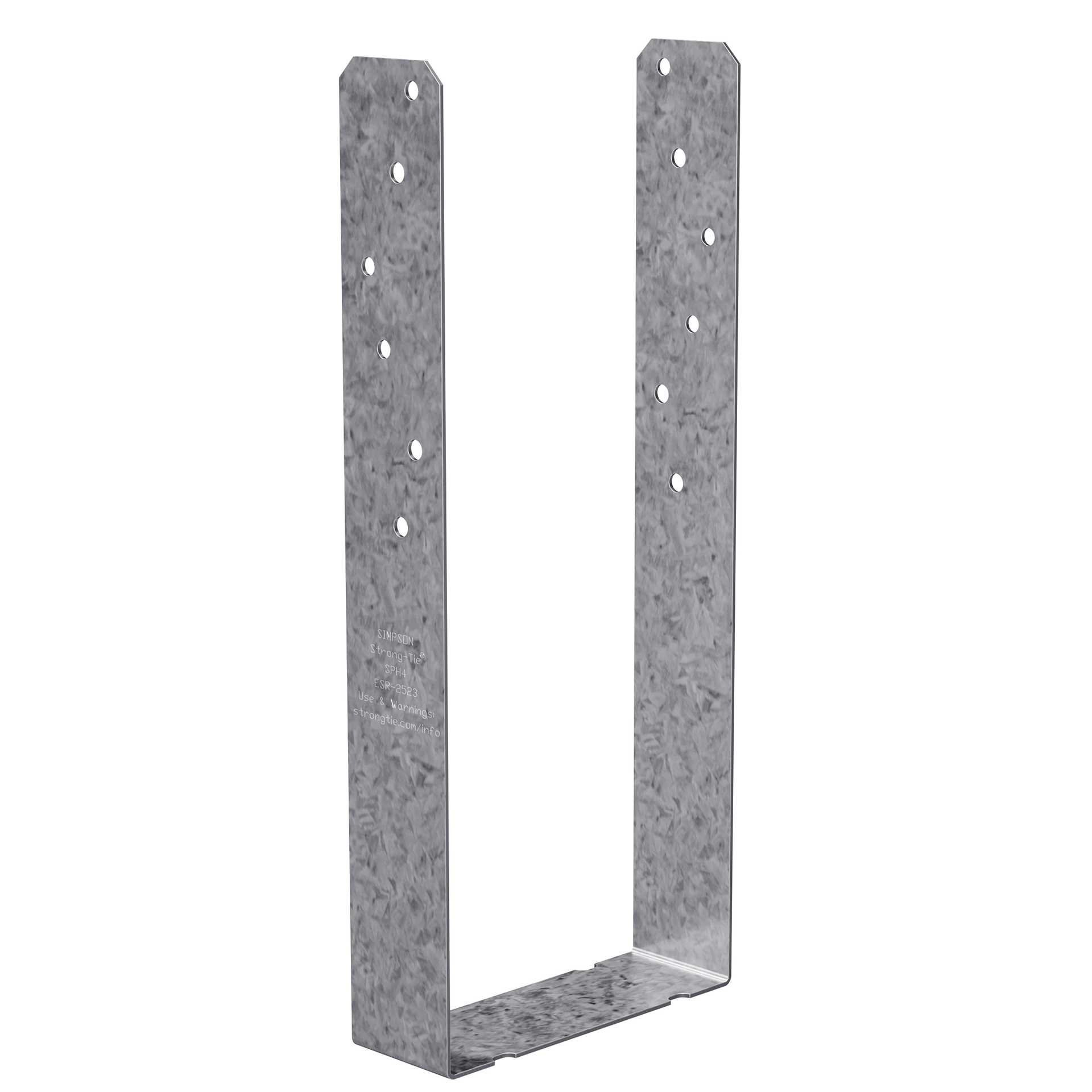

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Load rated
• Designed to resist wind and seismic forces
• Does not require top or bottom track attachment
• Nominal stud size: 2x
• Nominal plate width: 6x
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: SPH6
• UPC: 44315878701
• GTIN: 44315878701
• Feature 01: Load rated
• Feature 02: Designed to resist wind and seismic forces
• Feature 03: Does not require top or bottom track attachment
• Feature 04: Nominal stud size: 2x
• Feature 05: Nominal plate width: 6x
• Feature 06: Made from 18-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: (10-12) 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 1.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.26475
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.6545
• Assembled Width UOM - Imperial: in.
• Base Product ID: SPH_Tie
• Base Product Name: SPH
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 220541804945325016160356742523940070455
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x stud; 6x plate
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Stud-Plate Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.4
• Short Product Name: HEAVY DUTY STUD TO PLATE TIE
• Strongtie.com URL: https://www.strongtie.com/studplateties_strapsandties/sph_tie/p/sph
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315878708
• PAL Reference: 50044315878706
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
