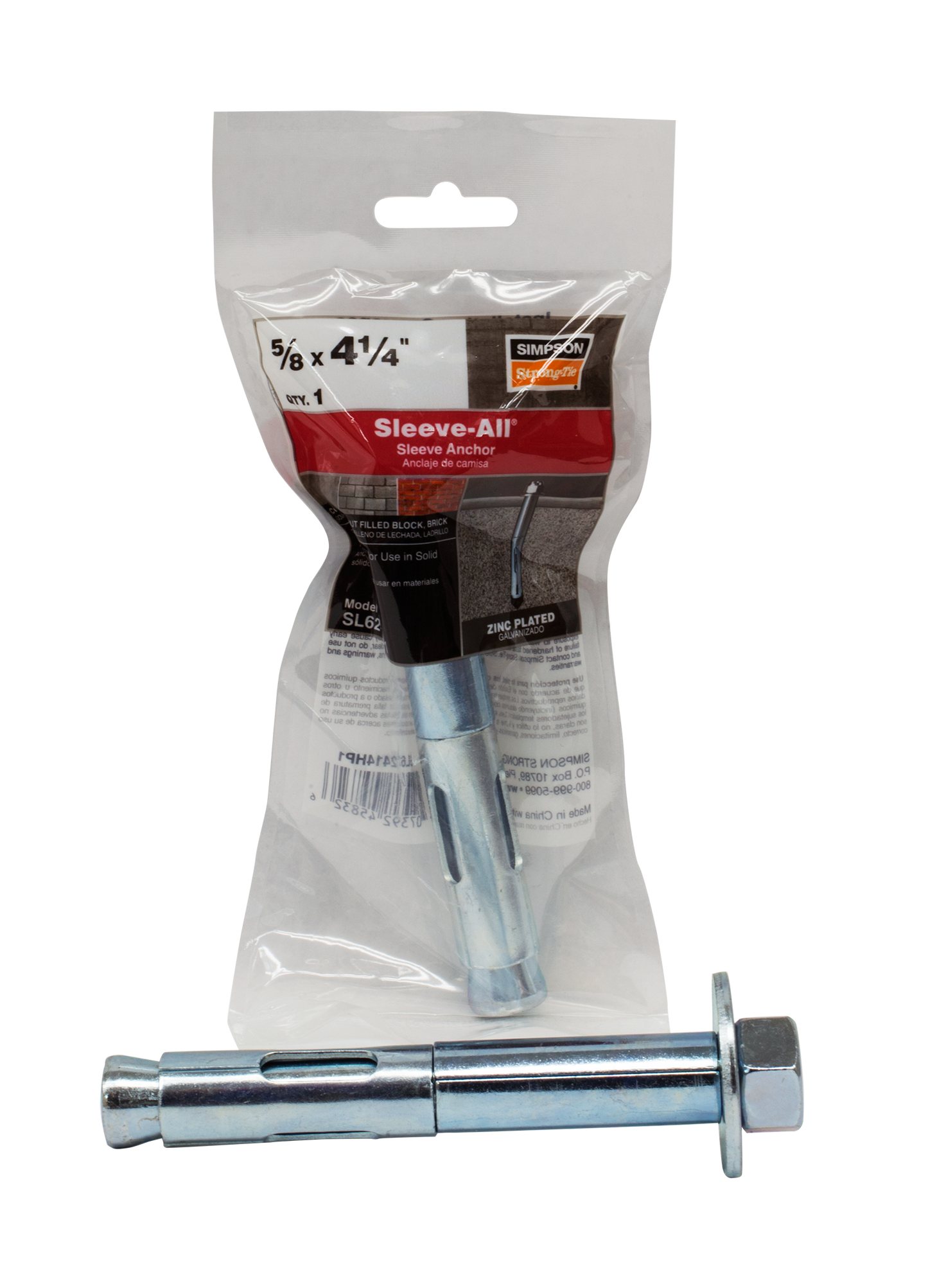

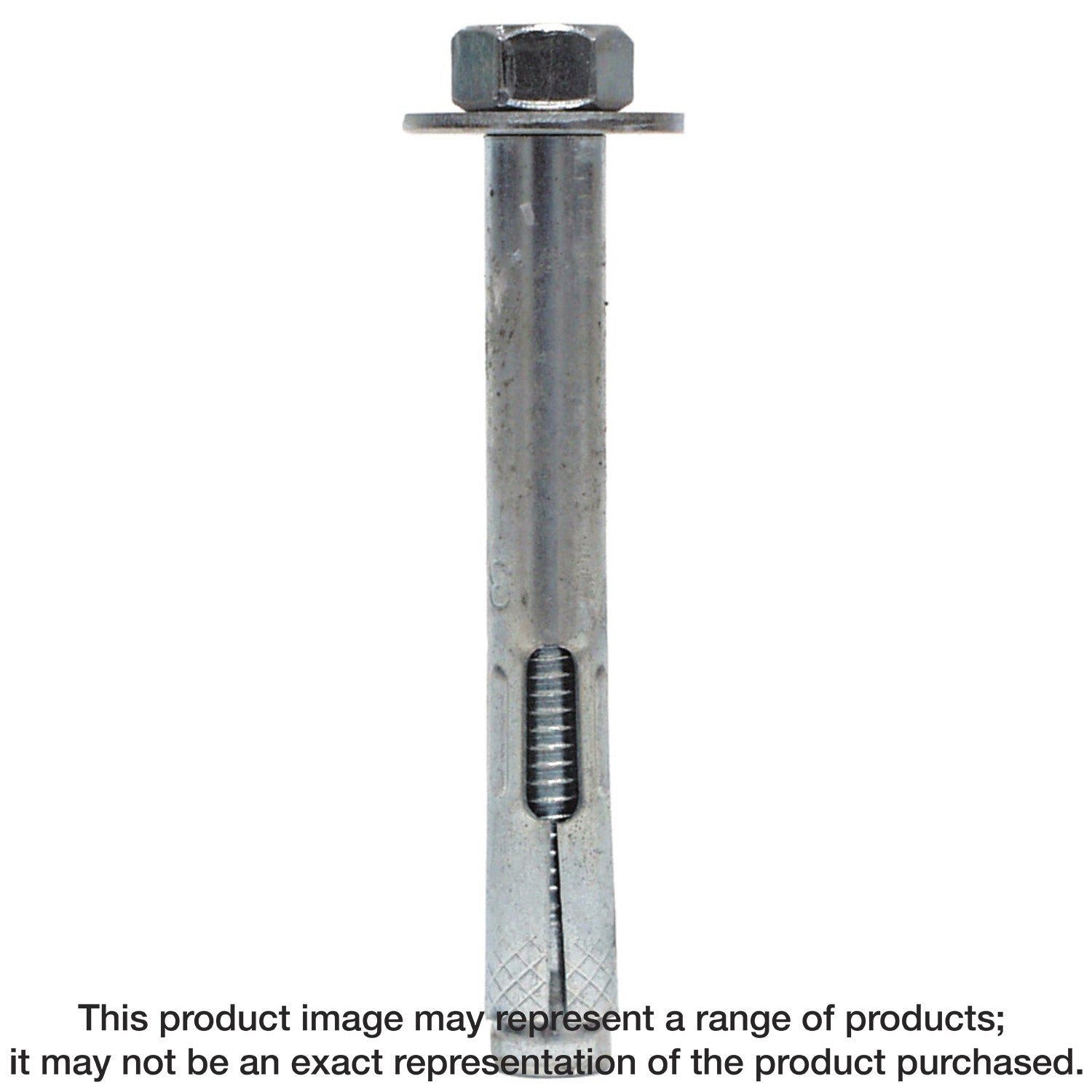

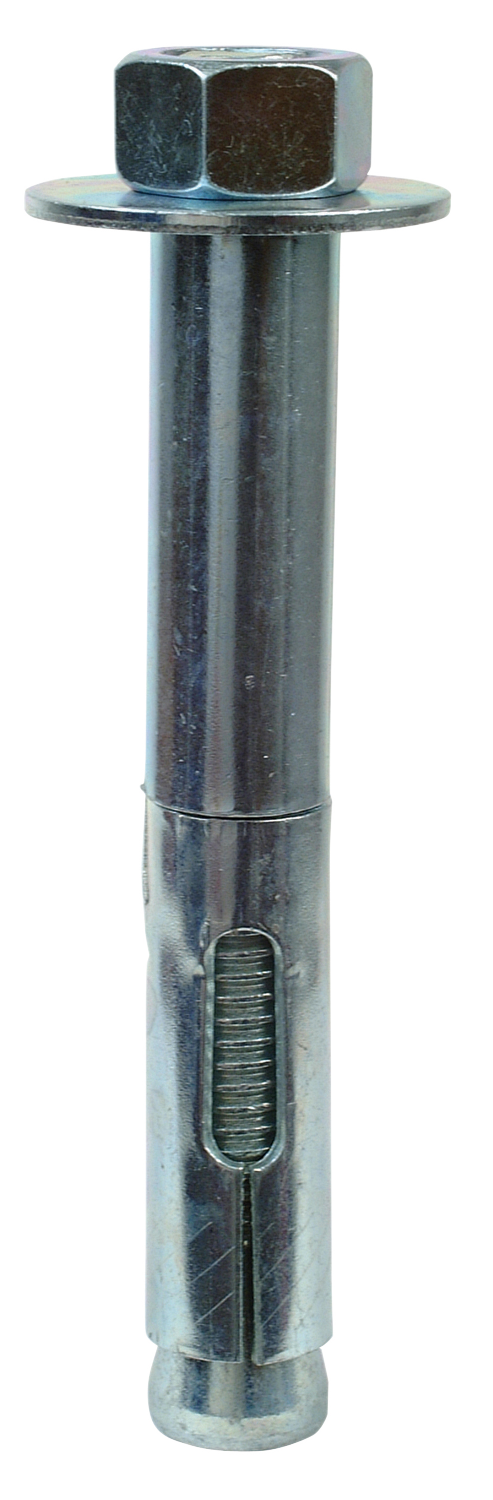

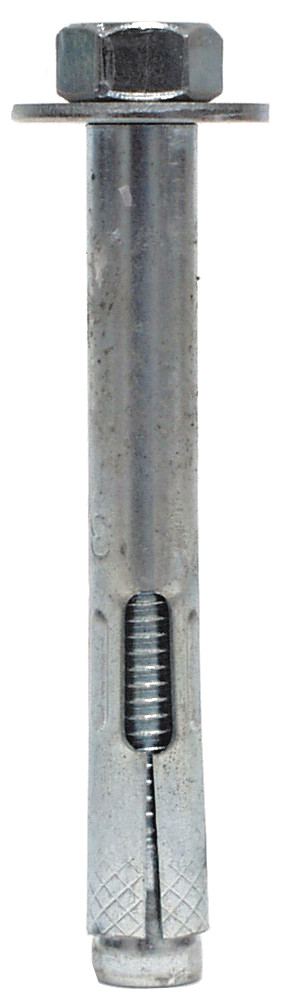

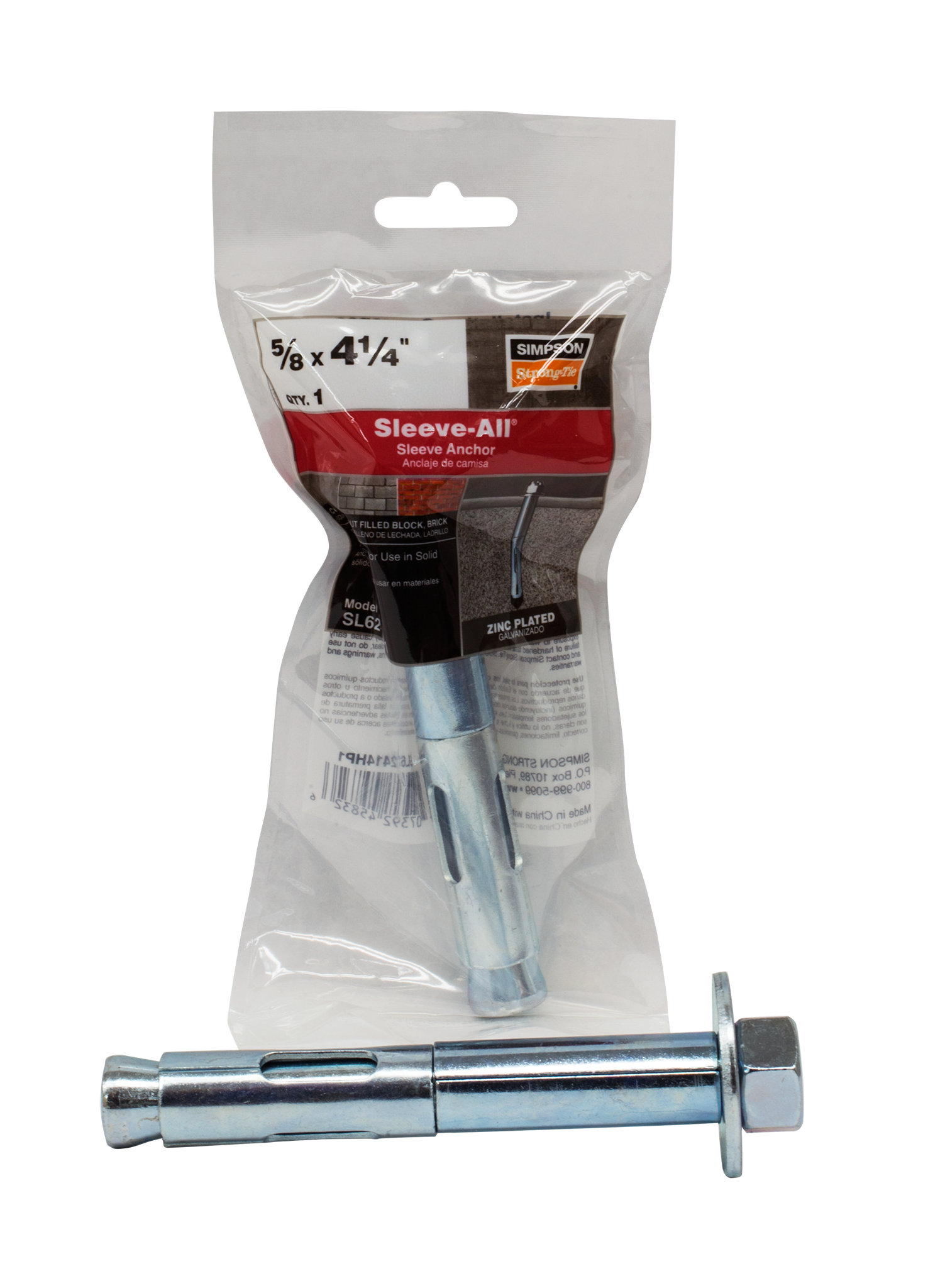

Simpson Strong-Tie SL62414HP1 Sleeve-All® 5/8 in. x 4-1/4 in. Hex-Head Sleeve Anchor

Simpson Strong-Tie SL62414HP1 Sleeve-All® 5/8 in. x 4-1/4 in. Hex-Head Sleeve Anchor

From complex infrastructure projects to do-it-yourself ventures, Simpson Strong-Tie offers a wide variety of anchoring products to meet virtually any need. Our mechanical anchors are designed to install easily and securely into a variety of base materials, including concrete and brick to hollow and grouted CMU. They offer optimal performance even in the most demanding structural applications. Sleeve-All expanding anchors are pre-assembled, expanding sleeve anchors for use in all types of solid base materials. These anchors are available in acorn, hex, rod coupler and flat head styles for a wide range of applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Expansion anchor for use in solid base materials
• FM and UL approved with multiple DOT listings
• Hex head
• Size: 5/8 in. x 4-1/4 in.
• Wrench size: 3/4 in.
• Drill bit size: 5/8 in.
• Zinc-plated carbon steel
• Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity

Specifications

• ERP Part Number: SL62414HP1
• UPC: 707392458326
• GTIN: 707392458326
• Feature 01: Expansion anchor for use in solid base materials
• Feature 02: FM and UL approved with multiple DOT listings
• Feature 03: Hex head
• Feature 04: Size: 5/8 in. x 4-1/4 in.
• Feature 05: Wrench size: 3/4 in.
• Feature 06: Drill bit size: 5/8 in.
• Feature 07: Zinc-plated carbon steel
• Feature 08: Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
• Assembled Depth - Imperial: 1.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.705
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: SL_Anchor
• Base Product Name: Sleeve-All®
• Bolt/Rod Diameter (in.): 1/2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Sleeve Anchor
• Coating: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 5/8
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 5/8
• EAN category: UC
• Finish: Zinc Plated
• GUID: 317752749838163816268498231600981030351
• Head Type: Hex Head
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Max. Fixture Thickness (in.): 1 1/2
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 0.5
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.5
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Bag
• Product Class: Sleeve Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 0.413
• Short Product Name: 5/8 X 4 1/4 INCH SLEEVE ALL HEX 1 POLY
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/sl_anchor/p/sleeve-all
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• TPI: 13
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 3/4
• CAR Reference: 10707392458323
• PAL Reference: 50707392458321
