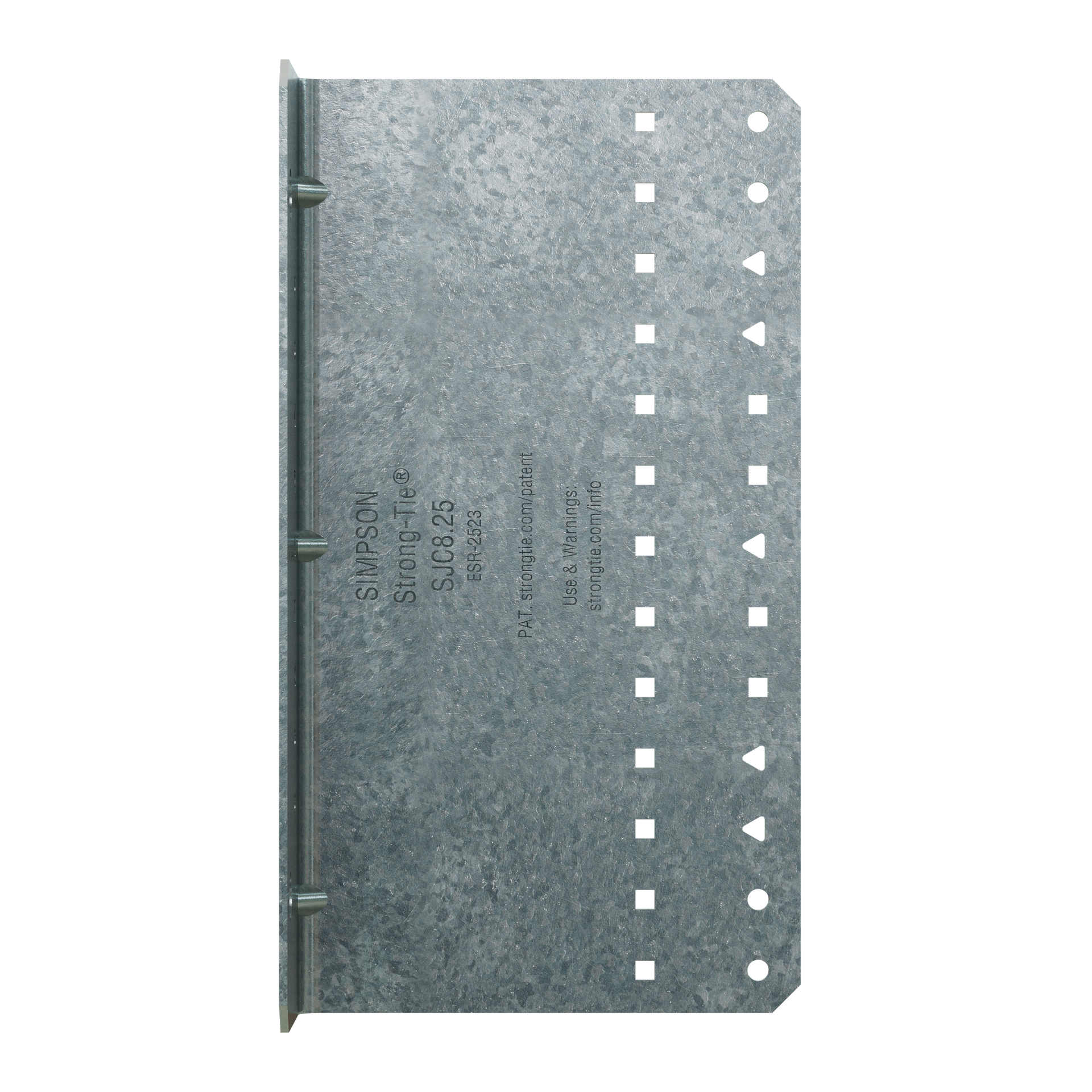

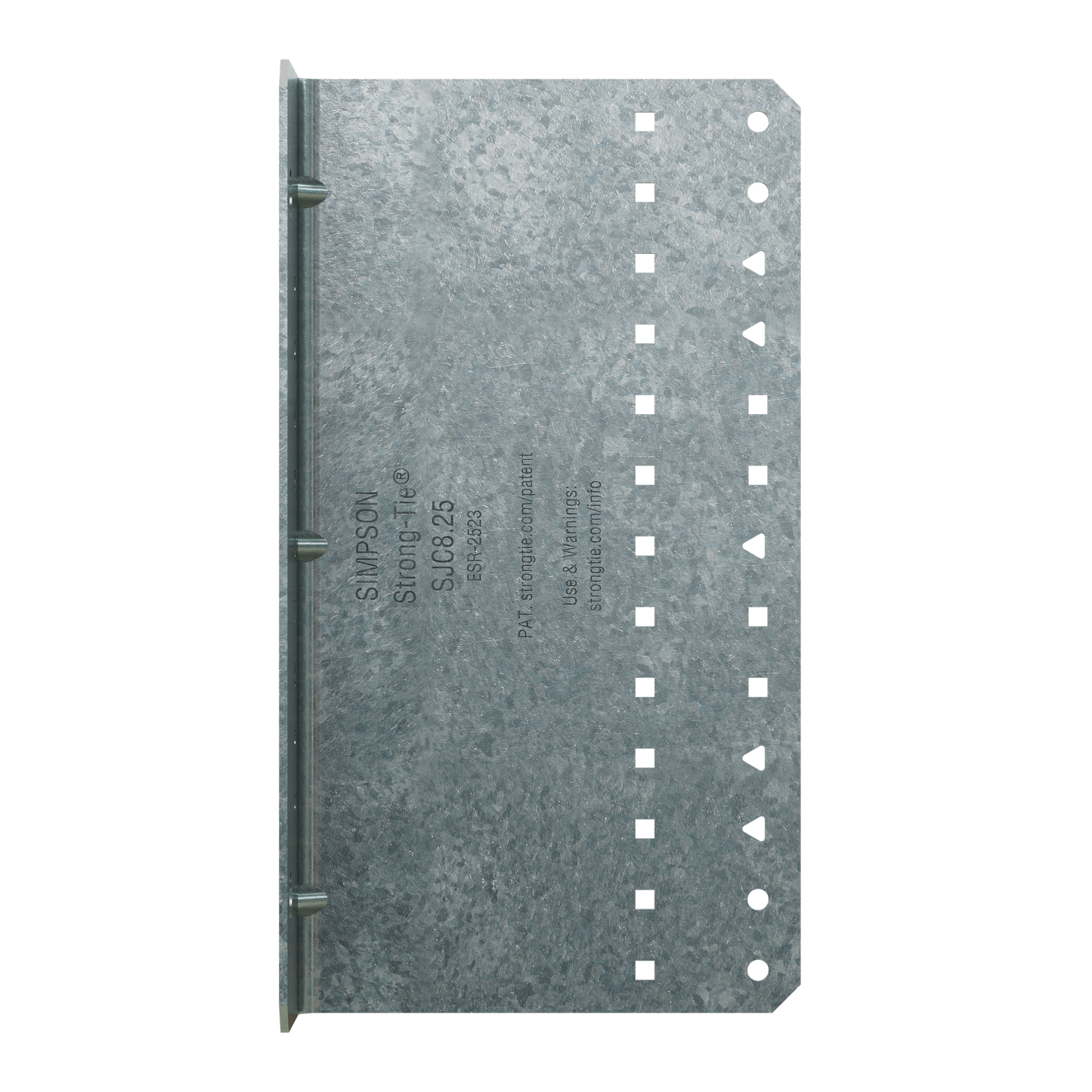

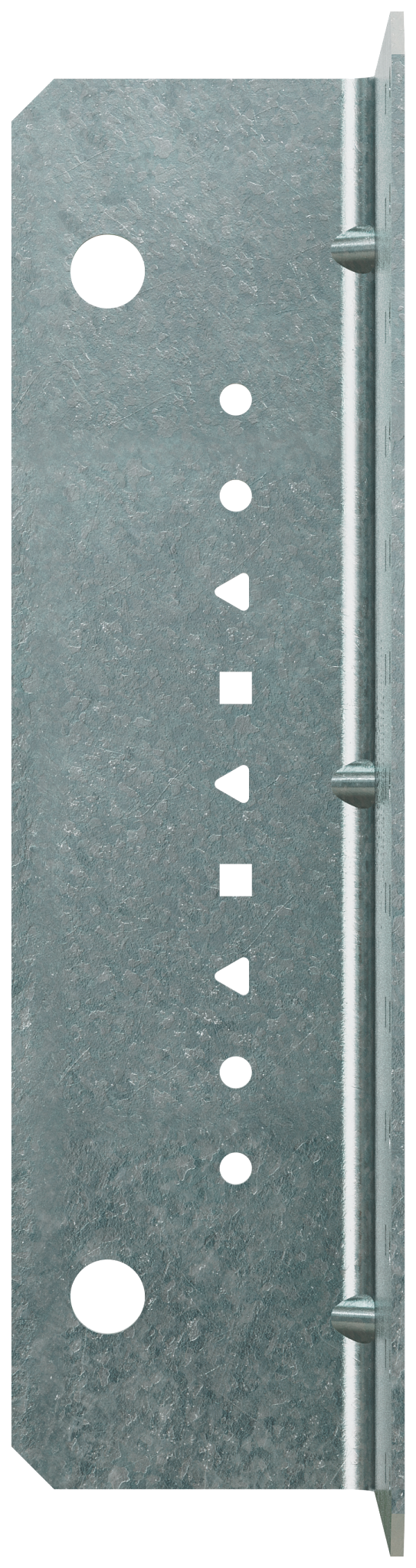

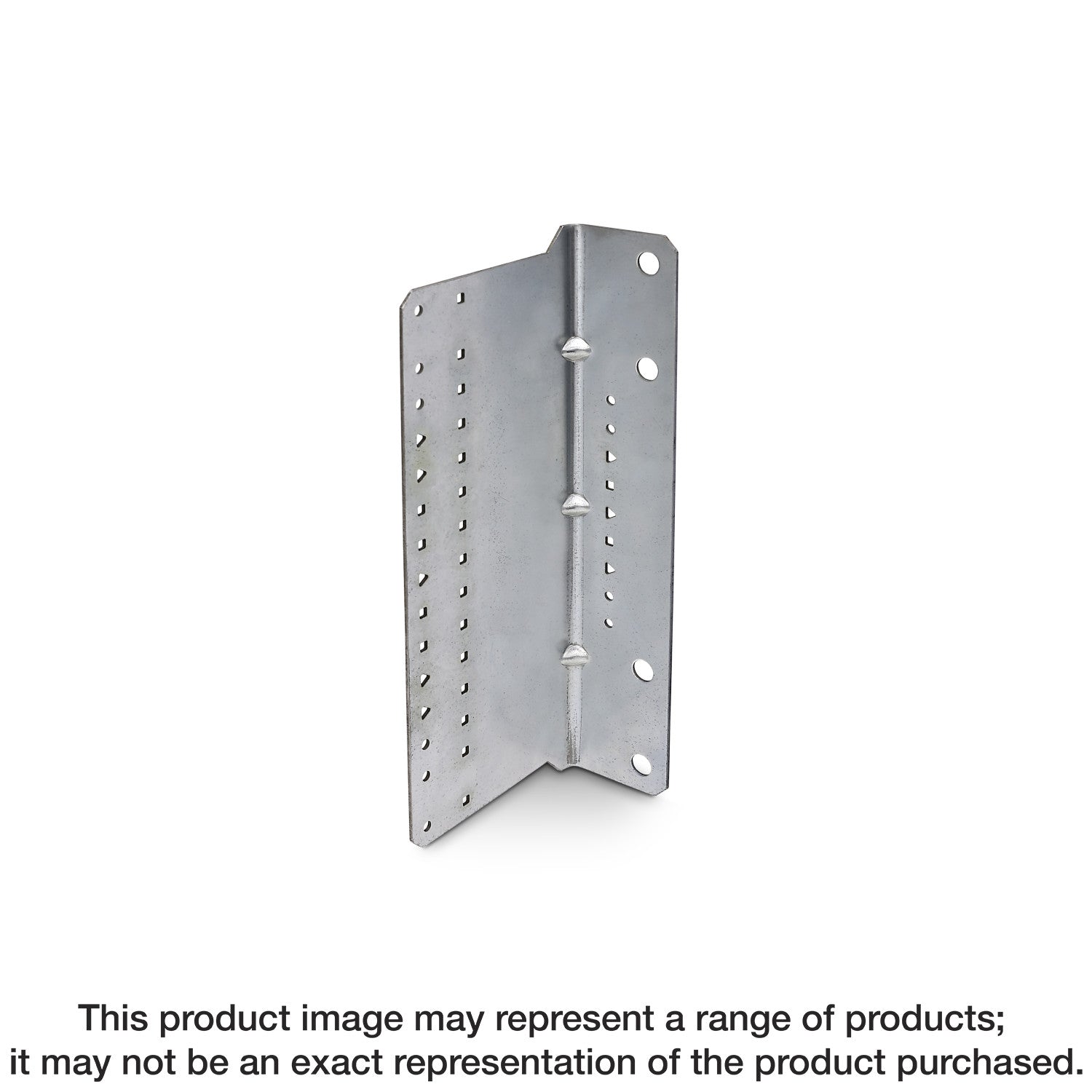

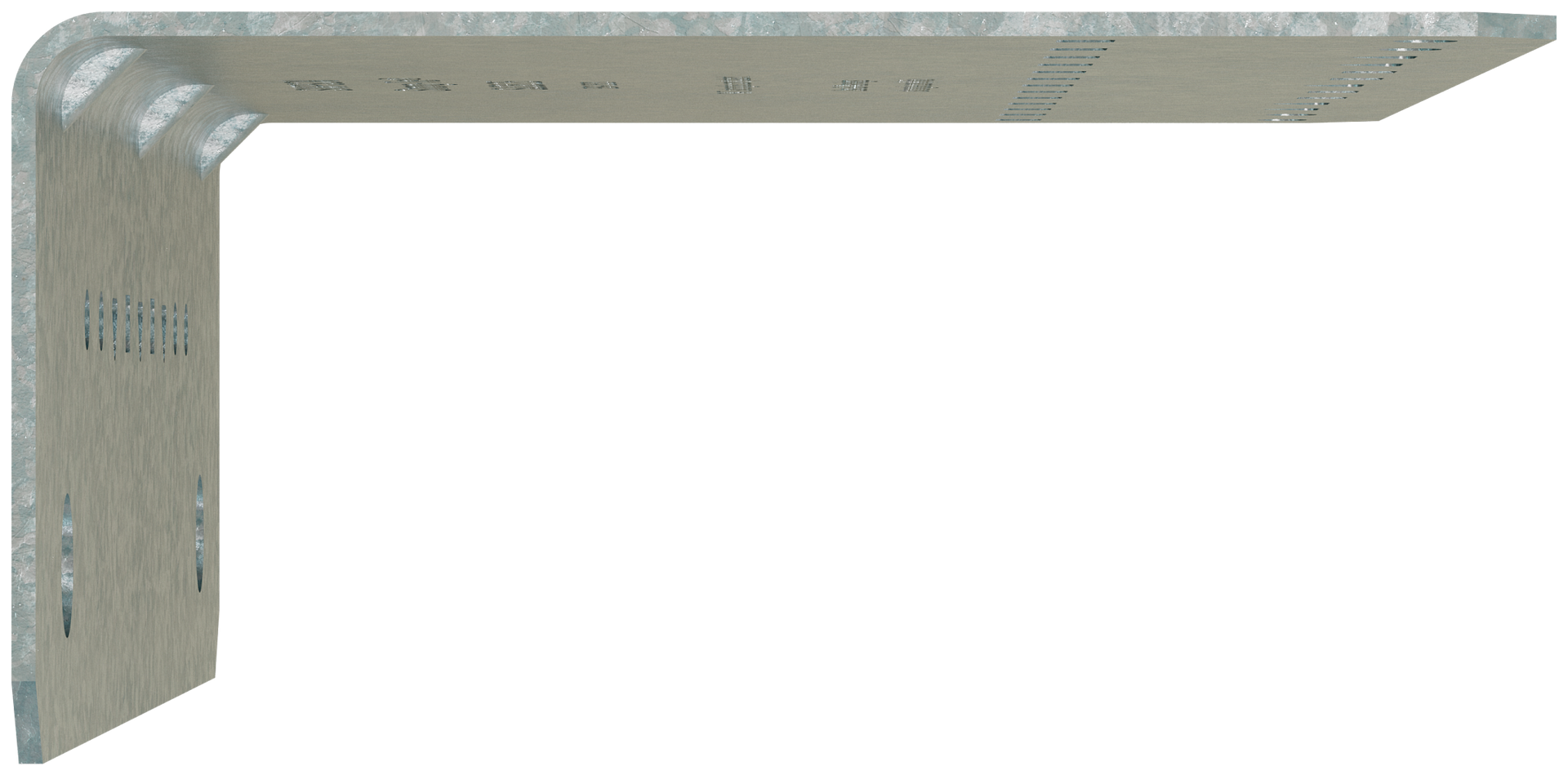

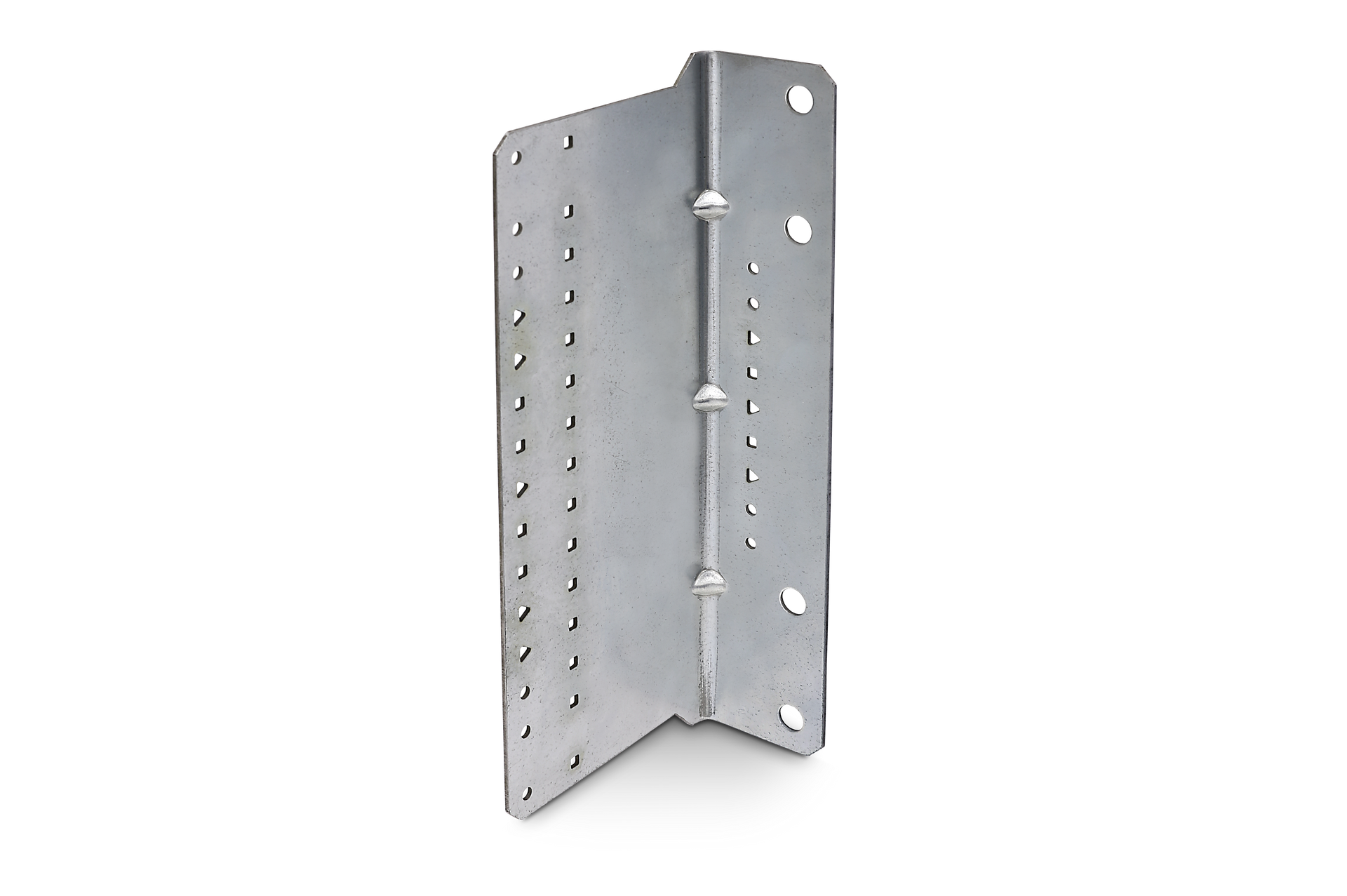

Simpson Strong-Tie SJC8.25-R15 SJC 2 in. x 4-1/2 in. x 8-1/4 in. 14-Gauge Galvanized Steel-Joist Connector (15-Qty)
Simpson Strong-Tie® SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Also accommodates kicker-to-metal-deck applications
- Made from 14-gauge (68 mil) steel
- Galvanized (G90) for extra corrosion resistance
- Size: 2 in. x 4-1/2 in. x 8-1/4 in.
- Quantity: 15
Specifications
- ERP Part Number: SJC8.25-R15
- UPC: 707392127321
- GTIN: 707392127321
- Feature 01: Prepunched holes reduce installation cost by eliminating predrilling
- Feature 02: Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Feature 03: Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
- Feature 04: 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
- Feature 05: Also accommodates kicker-to-metal-deck applications
- Feature 06: Made from 14-gauge (68 mil) steel
- Feature 07: Galvanized (G90) for extra corrosion resistance
- Feature 08: Size: 2 in. x 4-1/2 in. x 8-1/4 in.
- Feature 09: Quantity: 15
- Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
- Assembled Depth - Imperial: 4.5075
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 8.25
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 2.195
- Assembled Width UOM - Imperial: in.
- Base Product ID: SJC_Connect
- Base Product Name: SJC
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
- Coating: Zinc Galvanized, G90
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Finish: Zinc Galvanized, G90
- Gauge: 14
- GUID: 56702194234976108583194962696667171039
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 13.81
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 7.38
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 7.81
- Package Width UOM - Imperial: in.
- Packaging Quantity: 15
- Packaging Type: Box
- Product Class: Clip
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 15.51
- Short Product Name: CFS CLIP 2 X 4.5 X 8.25 14GA 15PAK
- Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/sjc_connect/p/sjc
- Subcategory: Cold-Formed Steel Connectors
- Subcategory 2: Rigid Connectors
- US Patents: D730,545
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- PAL Reference: 50707392127326
