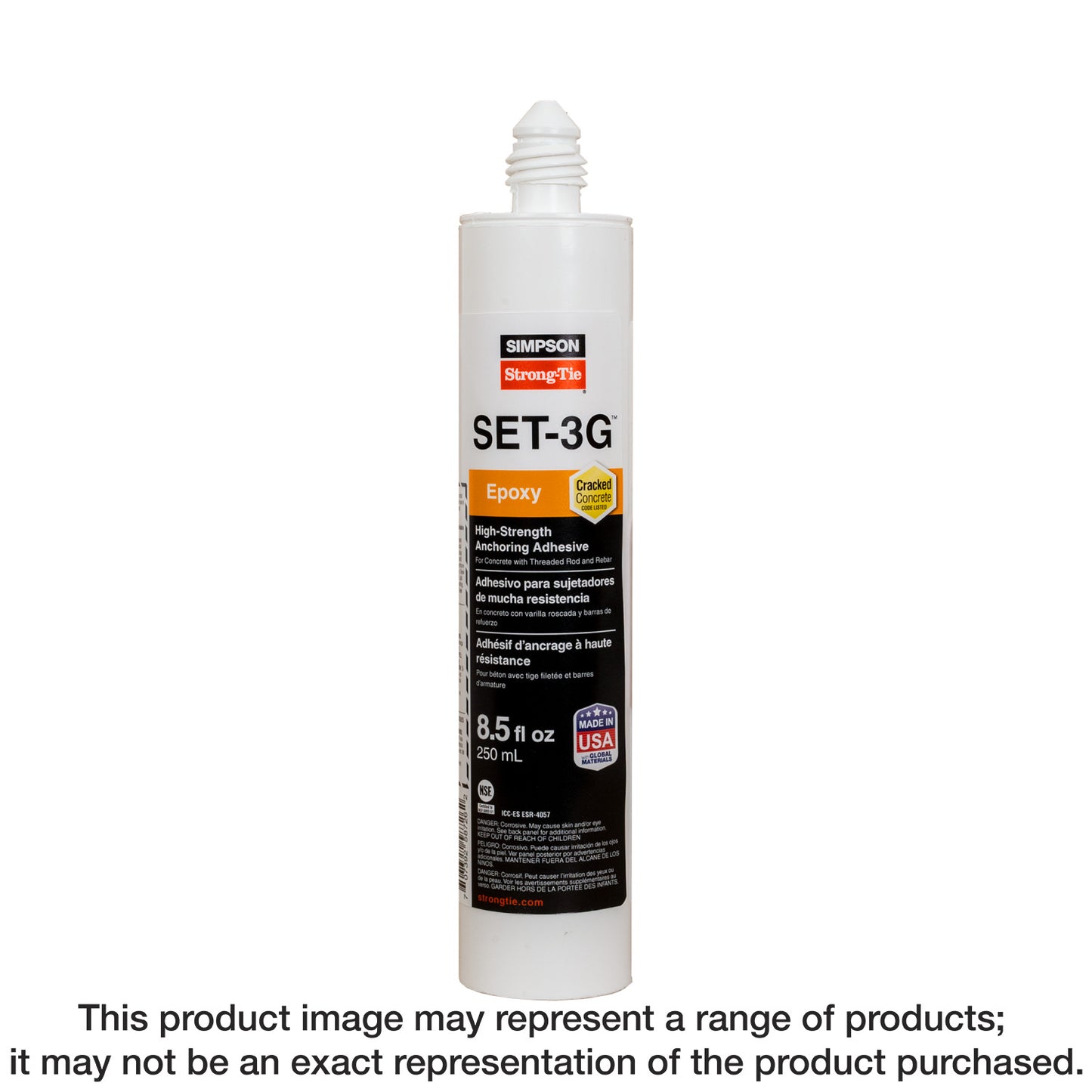

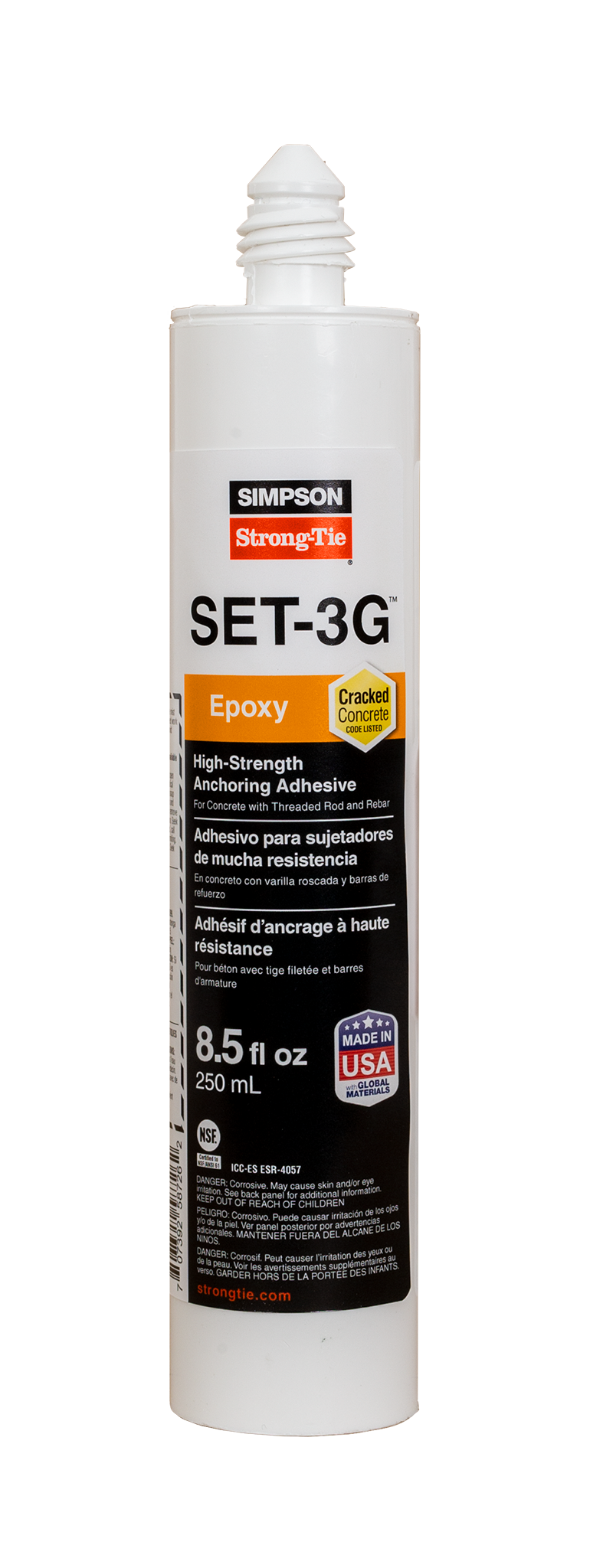

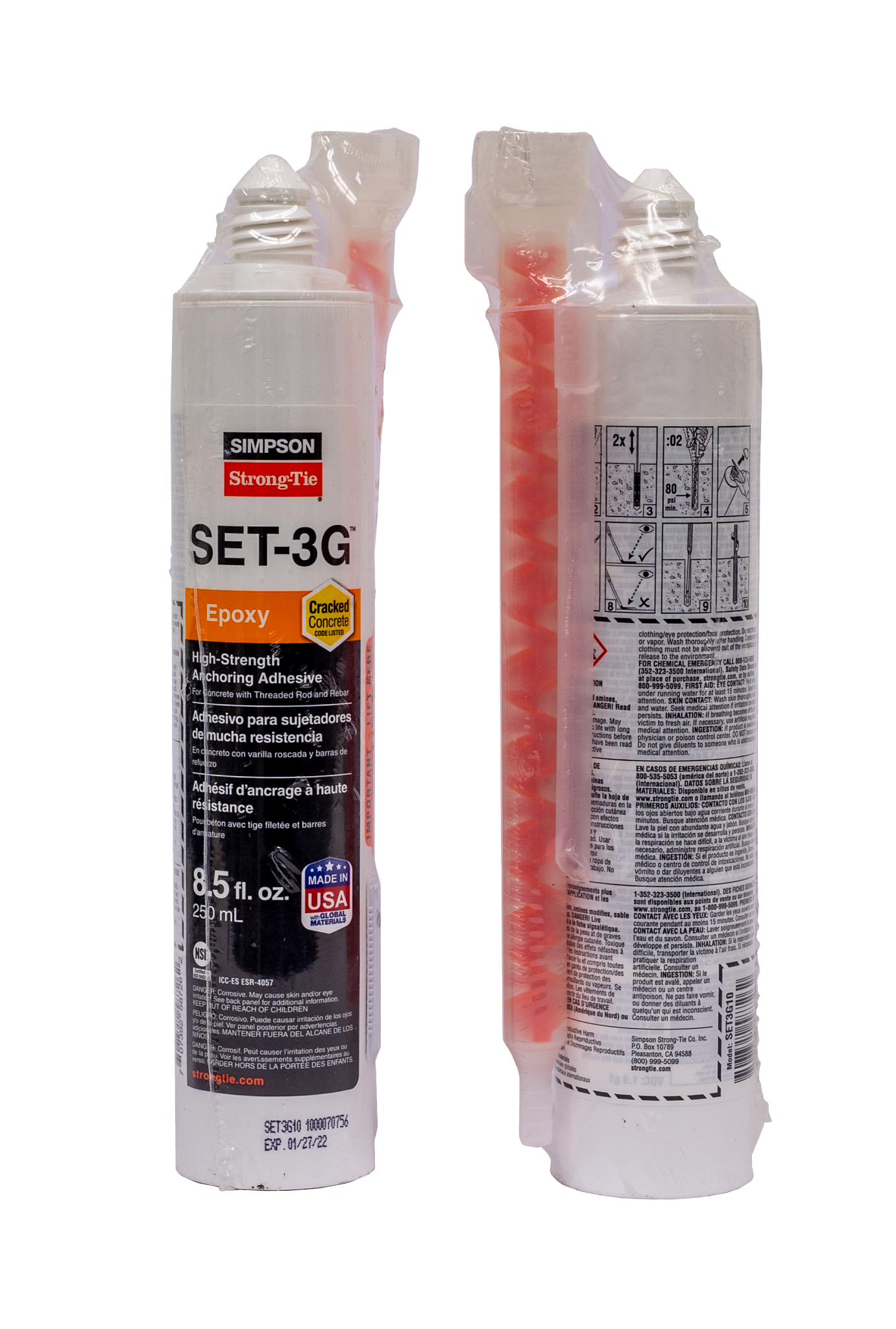

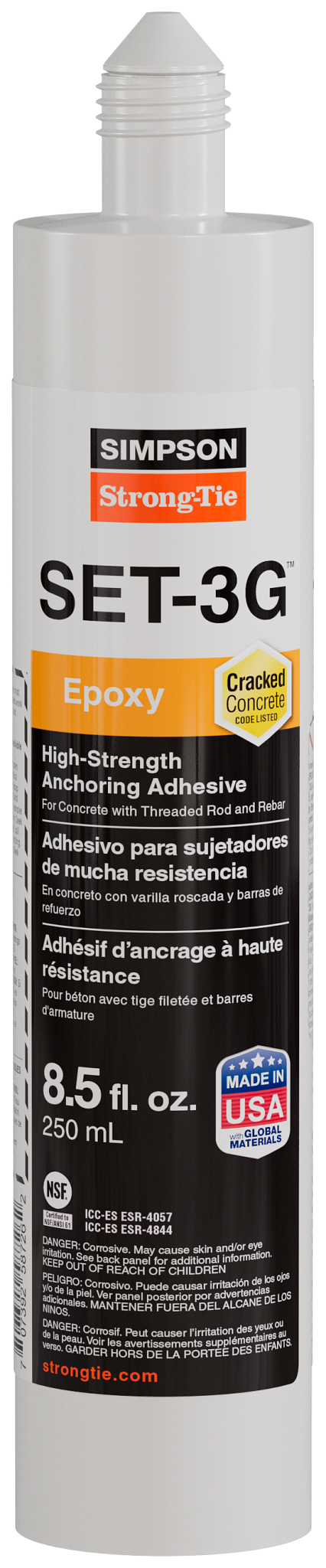

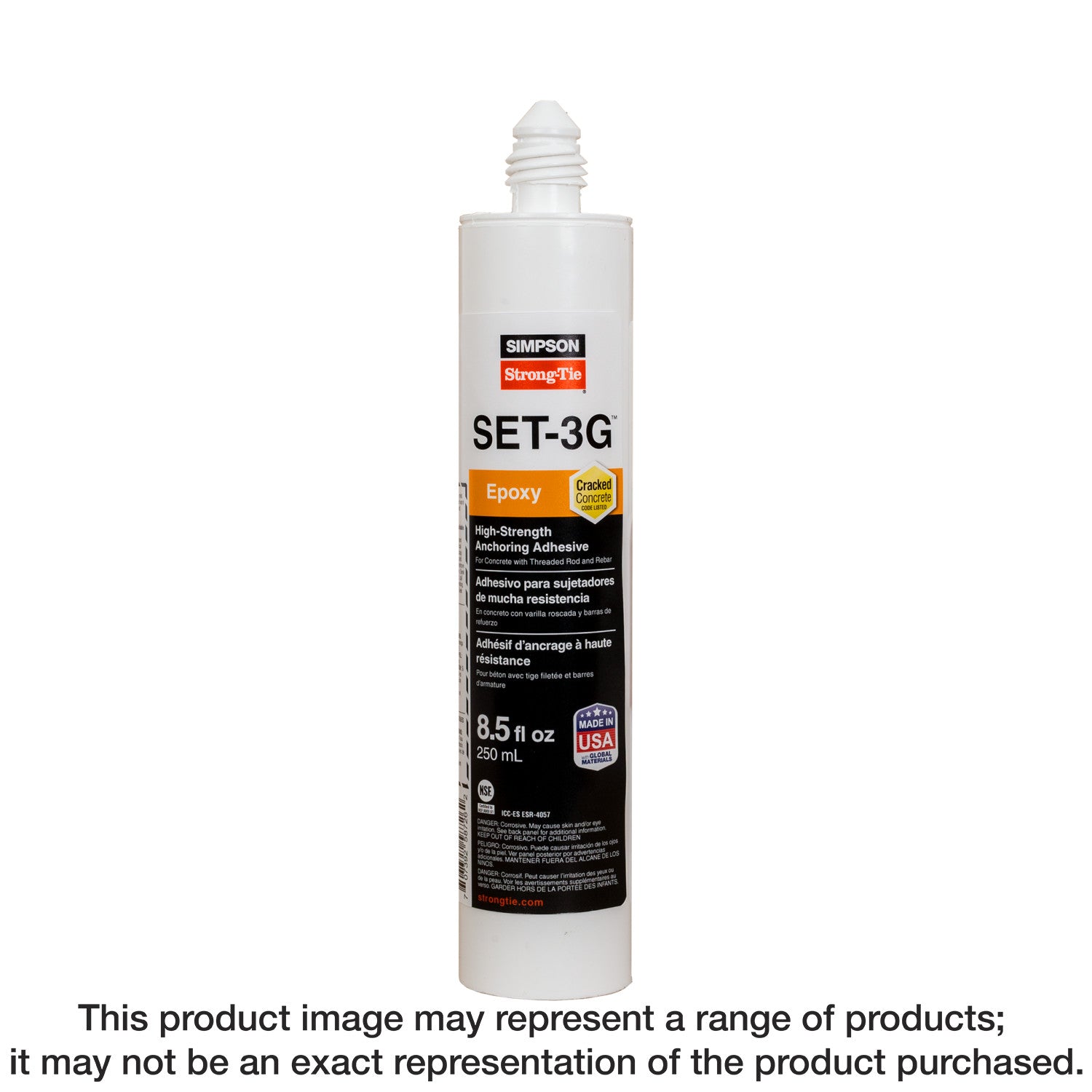

Simpson Strong-Tie SET3G10 SET-3G® 8.5 oz. High-Strength Epoxy Adhesive w/ 1 Nozzle and Extension (Pack of 12)

Simpson Strong-Tie SET3G10 SET-3G® 8.5 oz. High-Strength Epoxy Adhesive w/ 1 Nozzle and Extension (Pack of 12)

SET-3G® is an epoxy-based anchoring adhesive with high design strength and proven performance. The adhesive is a 1:1 ratio, two-component, anchoring adhesive formulated for anchoring threaded rod and rebar into concrete (cracked and uncracked). This low-odor adhesive is a uniform gray color when mixed properly and has a substrate installation temperature range from 40°F (4°C) to 100°F (38°C). SET-3G installs and performs in a variety of environmental conditions and temperature extremes and is suitable for use in dry concrete, water-saturated concrete, water-filled holes and submerged concrete.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
• Recognized per ICC-ES AC308 for post-installed rebar development and splice length design provisions
• Design flexibility — improved sustained load performance at elevated temperature
• Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from –40°F (–40°C) to 176°F (80°C)
• Manufactured in the USA using global materials
• 8.5 oz. coaxial cartridge
• Tested in accordance with ICC-ES AC308 (ESR-4057), ACI 355.4 and applicable ASTM test methods
• Approved for installation with multiple vacuum-drill bit systems without further hole cleaning; see Code Report (ESR-4057) for approved systems

Specifications

• ERP Part Number: SET3G10
• UPC: 10707392587269
• GTIN: 10707392587269
• Feature 01: Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
• Feature 02: Recognized per ICC-ES AC308 for post-installed rebar development and splice length design provisions
• Feature 03: Design flexibility — improved sustained load performance at elevated temperature
• Feature 04: Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from –40°F (–40°C) to 176°F (80°C)
• Feature 05: Manufactured in the USA using global materials
• Feature 06: 8.5 oz. coaxial cartridge
• Feature 07: Tested in accordance with ICC-ES AC308 (ESR-4057), ACI 355.4 and applicable ASTM test methods
• Feature 08: Approved for installation with multiple vacuum-drill bit systems without further hole cleaning; see Code Report (ESR-4057) for approved systems
• Assembled Depth - Imperial: 1.9375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 18.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.9375
• Assembled Width UOM - Imperial: in.
• Base Product ID: SET-3G_Adhesive
• Base Product Name: SET-3G®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Epoxy Anchoring Adhesives > Adhesive
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 245361474582314807176215553259285056627
• Hazardous Material Classification: 8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Adhesive
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including Bisphenol-A and Epichlorohydrin which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Reproductive Toxicity: Bisphenol-A and Epichlorohydrin
• Prop 65 - Short Text: TRIANGLE LOGO WARNING! Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 12
• Shipping Weight: 16.8
• Short Product Name: 8.5 OZ SET-3G W/1 NOZZLE AND EXTENSION
• Strongtie.com URL: https://www.strongtie.com/epoxyanchoringadhesives_adhesives/set-3g_adhesive/p/set-3g
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Epoxy Anchoring Adhesives
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392587262
• PAL Reference: 50707392587267
• InfoGraphics: https://images.salsify.com/image/upload/s--XUP_CQYm--/613e678fcbf27d14940ef52ea915062f2d3e8a15.png
• InfoGraphics.1: https://images.salsify.com/image/upload/s--MSIJGdk2--/d062eca7d4140774dffeb30419ef045a5744e013.png
• InfoGraphics.2: https://images.salsify.com/image/upload/s--EgY3SDTZ--/c55c286f907047c4090c5861d52fd8f384751cd0.png
• InfoGraphics.3: https://images.salsify.com/image/upload/s--cEhd7Vdf--/dcdc228d502bd7e7b1248da856c11f64026b1509.png
