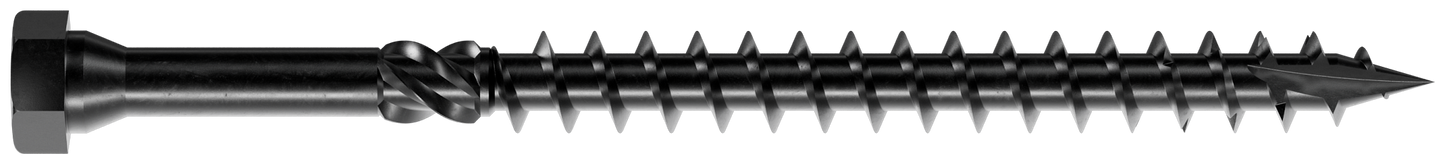

Simpson Strong-Tie SDHR12X160-R25 Strong-Drive® SDHR COMBO-HEAD Screw — 12 mm x 160 mm, Black E-Coat (25-Qty) (Pack of 6)

Simpson Strong-Tie SDHR12X160-R25 Strong-Drive® SDHR COMBO-HEAD Screw — 12 mm x 160 mm, Black E-Coat (25-Qty) (Pack of 6)

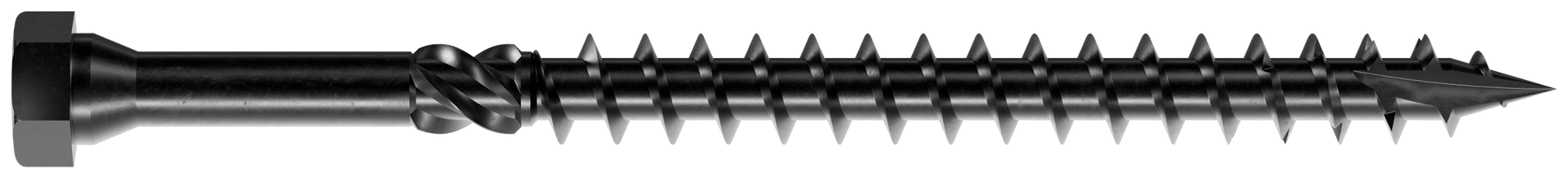

The Simpson Strong-Tie® Strong-Drive® SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber (CLT), mass timber construction and general interior applications. These partially-threaded, heavy-duty structural fasteners are designed to provide excellent connection strength, especially when connecting steel plate or angle connectors to wood. The unique “combination” head allows for the convenience of driving with either a hex-driver bit or 6-lobe driver bit. The SDHR Combo-Head has a black e-coat finish, a robust knurled shank, and a Type-17 point for fast starts and low-torque driving, making it ideal for self-drilling into wood without the need for predrilling. The SDHR screw is designed for dry-service applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Black e-coat finish provides a construction-durable, nonmetallic and friction-reducing coating for corrosion resistance in interior dry-service conditions
• Optimized hardness profile helps mitigate field embrittlement issues, and is compliant with CSA O86:24 hydrogen embrittlement requirements
• Designed for use with steel side plates
• Can be driven by a 17 mm hex-head driver bit or a T40 6-lobe driver bit
• Heavy-duty shank with robust knurl reduces installation torque
• Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Hex head with deep T40, 6-lobe recess for a secure drive
• Length: 160 mm (6-1/4 in.)
• Quantity: 25 per package

Specifications

• ERP Part Number: SDHR12X160-R25
• UPC: 10707392033865
• GTIN: 10707392033865
• Feature 01: Black e-coat finish provides a construction-durable, nonmetallic and friction-reducing coating for corrosion resistance in interior dry-service conditions
• Feature 02: Optimized hardness profile helps mitigate field embrittlement issues, and is compliant with CSA O86:24 hydrogen embrittlement requirements
• Feature 03: Designed for use with steel side plates
• Feature 04: Can be driven by a 17 mm hex-head driver bit or a T40 6-lobe driver bit
• Feature 05: Heavy-duty shank with robust knurl reduces installation torque
• Feature 06: Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Feature 07: Hex head with deep T40, 6-lobe recess for a secure drive
• Feature 08: Length: 160 mm (6-1/4 in.)
• Feature 09: Quantity: 25 per package
• Assembled Depth - Imperial: 0.5724 min
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.535 min
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.661 min
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDHR-E_Screw
• Base Product Name: Strong-Drive® SDHR COMBO-HEAD Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: CAR
• GUID: 301342253623942131673599660611845464073
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.14
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 9.05
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.12
• Package Width UOM - Imperial: in.
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 6
• Shipping Weight: 25.2
• Short Product Name: 12MM X 160MM BLACK HEX SS-H 25CT
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdhr-e_screw/p/strong-drive-sdhr-combo-head-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• EA Reference: 707392033868
• PAL Reference: 50707392033863
