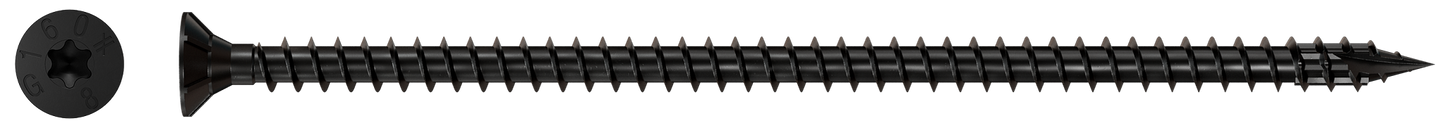

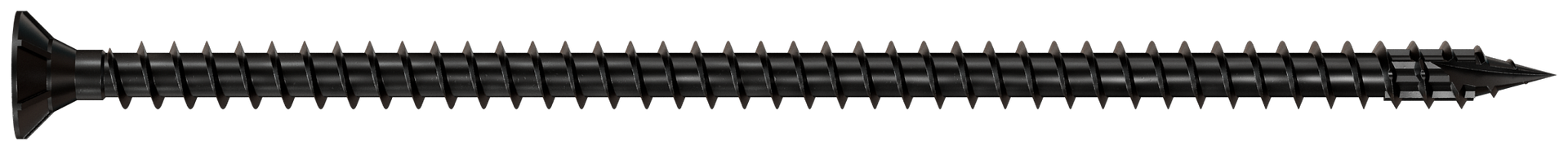

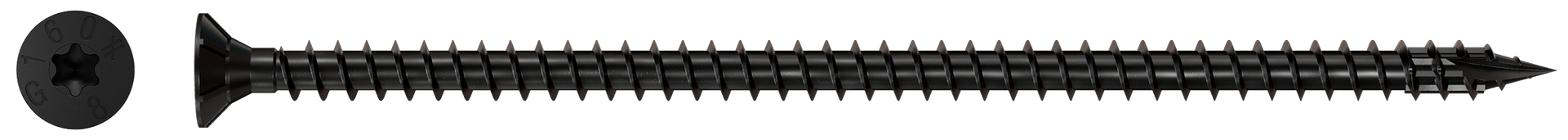

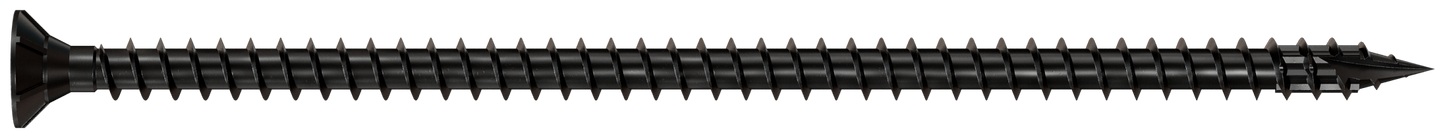

Simpson Strong-Tie SDCF8X180-R50 Strong-Drive® SDCF TIMBER-CF Screw — 0.315 in. x 7 in. T40, E-Coat® (50-Qty)

Simpson Strong-Tie SDCF8X180-R50 Strong-Drive® SDCF TIMBER-CF Screw — 0.315 in. x 7 in. T40, E-Coat® (50-Qty)

The redesigned Simpson Strong-Tie® Strong-Drive® SDCF Timber-CF screw is a structural fastener designed for cross-laminated timber (CLT), mass timber construction and general interior applications, providing uncompromised strength for demanding applications. The large flat head with underhead nibs enables clean countersinking and a flush finish. The SawTooth® point ensures fast starts, reducing installation torque and eliminating the need for predrilling in most applications. The black e-coat finish enhances aesthetics and, along with the optimized hardness profile, helps mitigate risk of brittle fracture for reliable, long-term performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flat head with nibs helps countersink the screw for a flush finish
• Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• SawTooth point for fast start and easy driving
• Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Deep 6-lobe recess for a secure drive
• Compliant with CSA O86:24 hydrogen embrittlement requirements
• Length: 7 in. (180 mm)
• Quantity: 50 per package

Application

• Fastening Wood-to-Wood
• General Interior
• Fastening Support Beams
• Heavy Timber
• Mass Timber / Cross-Laminated Timber
• Engineered Wood — Multi-Ply Fastening
• Fastening Simpson Strong-Tie Connectors
• Engineered Wood
• Fastening Wood-to-Steel
• Timber Framing
• Surface Splines
• Beam Reinforcement
• Fastening Wall-to-Wall
• Glulam
• Fastening Butt Joists
• Fastening Floor-to-Floor
• Fastening Stud-to-Plate

Specifications

• ERP Part Number: SDCF8X180-R50
• UPC: 707392028437
• GTIN: 707392028437
• Feature 01: Flat head with nibs helps countersink the screw for a flush finish
• Feature 02: Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
• Feature 03: SawTooth point for fast start and easy driving
• Feature 04: Black e-coat finish provides a construction-durable nonmetallic coating for corrosion resistance in interior dry-service applications
• Feature 05: Deep 6-lobe recess for a secure drive
• Feature 06: Compliant with CSA O86:24 hydrogen embrittlement requirements
• Feature 07: Length: 7 in. (180 mm)
• Feature 08: Quantity: 50 per package
• Applications List: Fastening Wood-to-Wood
• Applications List.1: General Interior
• Applications List.2: Fastening Support Beams
• Applications List.3: Heavy Timber
• Applications List.4: Mass Timber / Cross-Laminated Timber
• Applications List.5: Engineered Wood — Multi-Ply Fastening
• Applications List.6: Fastening Simpson Strong-Tie Connectors
• Applications List.7: Engineered Wood
• Applications List.8: Fastening Wood-to-Steel
• Applications List.9: Timber Framing
• Applications List.10: Surface Splines
• Applications List.11: Beam Reinforcement
• Applications List.12: Fastening Wall-to-Wall
• Applications List.13: Glulam
• Applications List.14: Fastening Butt Joists
• Applications List.15: Fastening Floor-to-Floor
• Applications List.16: Fastening Stud-to-Plate
• Assembled Depth - Imperial: 0.590
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.000
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.590
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDCF-E_Screw
• Base Product Name: Strong-Drive® SDCF TIMBER-CF Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Coating: E-coat® Electrocoating
• Color: Black
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T40 6-Lobe
• Finish: E-coat Electrocoating
• GUID: 261384083355519548697770669606687468238
• Head Diameter (in.): 0.590
• Head Type: Flat Head with Nibs
• Length (in.): 7
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 9.615
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.115
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.815
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Point Type: SawTooth® Point
• Product Class: Hand-Drive Screw
• Product Includes: T40, 6-lobe driver bit (replacement bit: BIT40T-134-R2)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.230
• Shipping Weight: 5
• Short Product Name: SDCF 8 X 180 T40 BLACK FLAT HD 50/BOX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdcf-e_screw/p/strong-drive-sdcf-timber-cf-screw
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Thread Length (in.): 6 5/8
