Simpson Strong-Tie SCS62-5/97-KT25 SCS 2 in. x 6 in. x 5 in. 12-Gauge Seismic Bypass Framing Slide Clip w/ Screws (25-Qty)

Simpson Strong-Tie SCS62-5/97-KT25 SCS 2 in. x 6 in. x 5 in. 12-Gauge Seismic Bypass Framing Slide Clip w/ Screws (25-Qty)

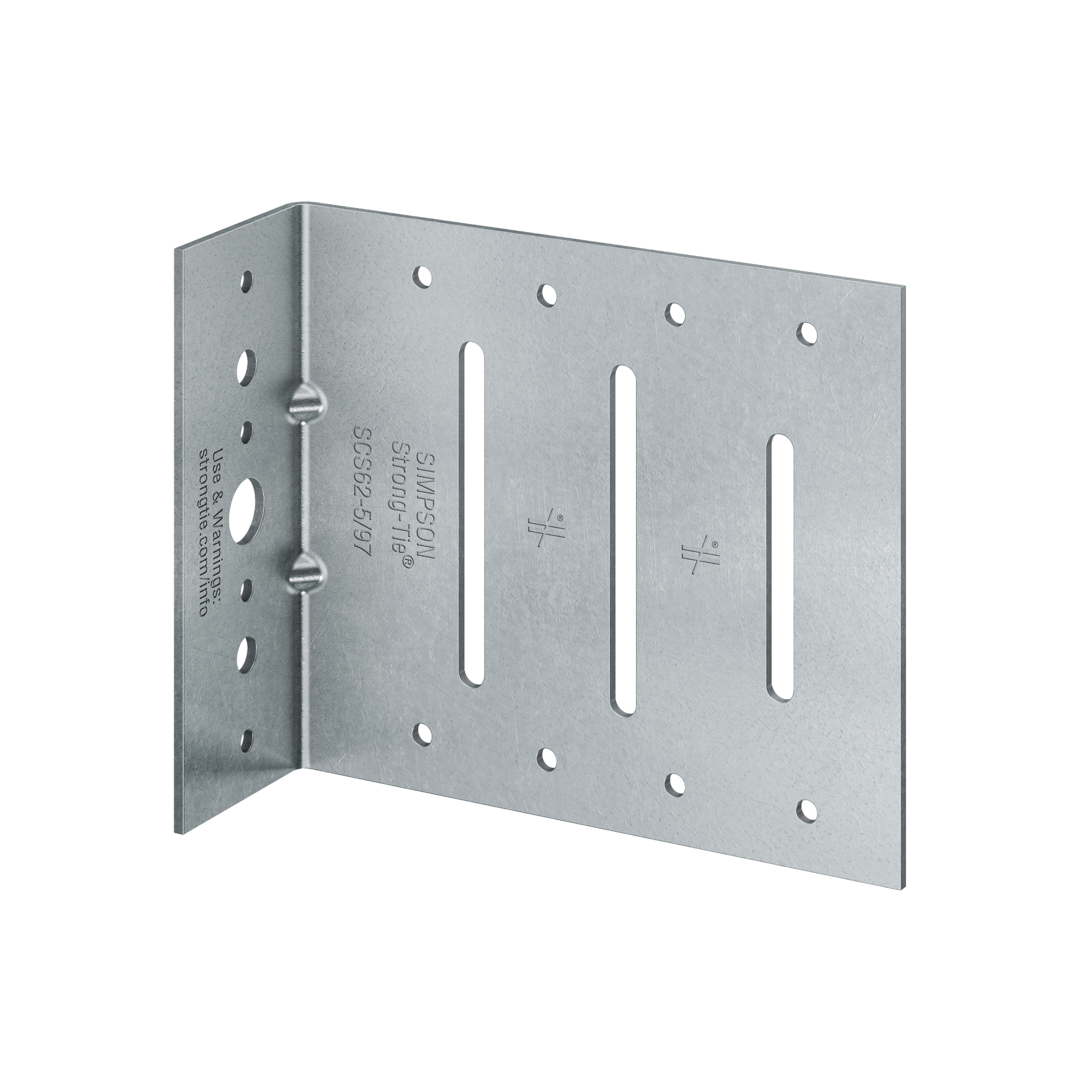

The Simpson Strong-Tie® SCS is a hybrid clip designed specifically to allow both slide-clip or fixed-clip applications in areas of high seismic activity. Everything about the SCS clip — from its heavy-duty steel manufacturing to its strategically placed darts to the location of its fastener slots and holes — has been engineered to provide exceptional resistance to in-plane seismic loads.  Backed by our real-world, full-scale cyclic testing, the SCS seismic clip delivers the highest seismic loads in the industry. Slide-clip testing shows that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two large washer screws (included) at the first slot attached to the stud.  The hole types and locations maximize the SCS clip’s versatility, with three prepunched oblong slots for slide-clip applications and a pattern of round holes allowing fixed-clip options to meet a range of load needs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

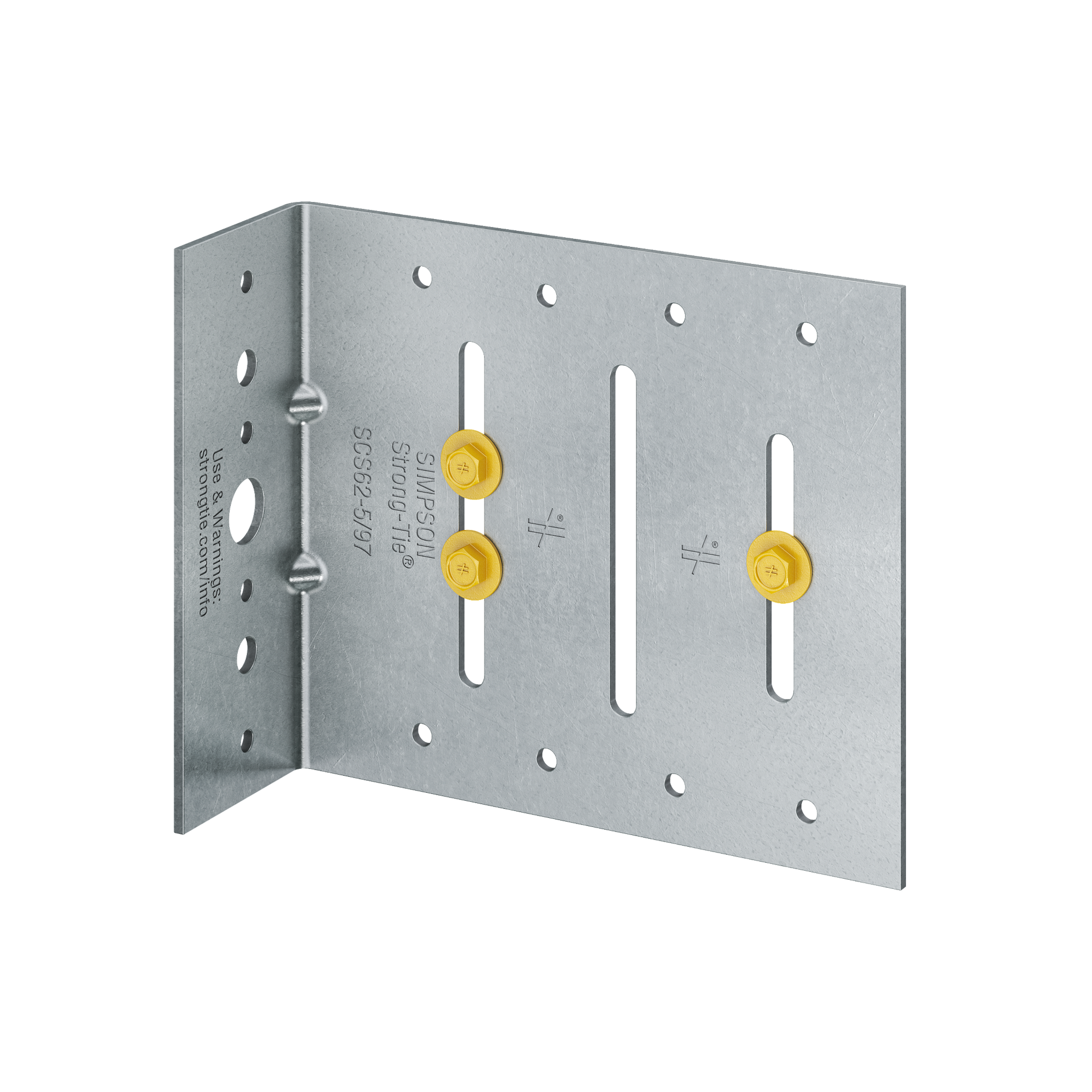

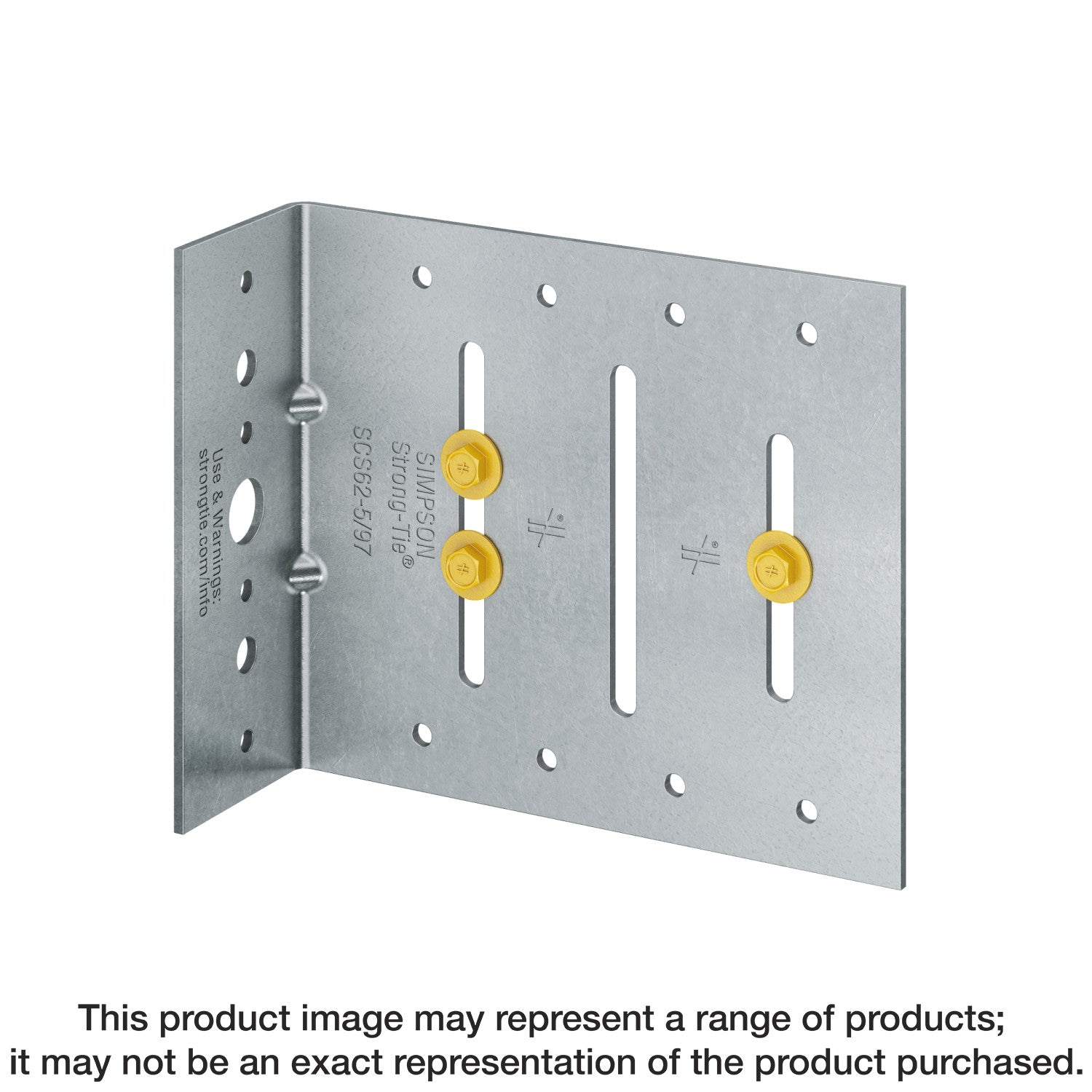

• Slide slots used with shouldered washer screws (included) allow a full 1 in. of vertical deflection
• Precision-located ribs enhance strength while allowing ductility

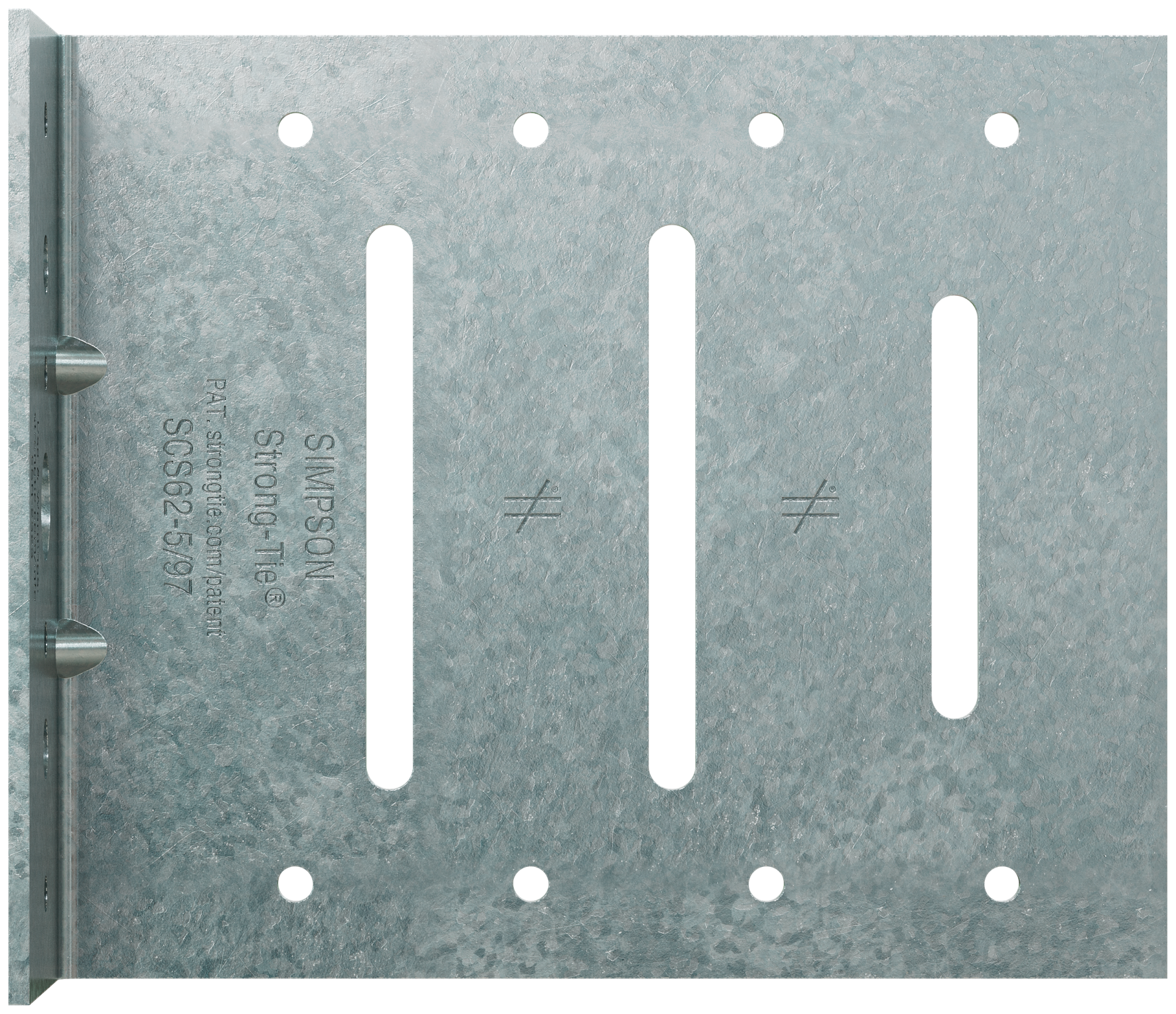

• Simpson Strong-Tie® No-Equal® stamps alongside slide slots indicate proper screw placement
• Dual-function clip with prepunched slots for slide application and small round holes for fixed application
• Width: 6 in.
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25

Specifications

• ERP Part Number: SCS62-5/97-KT25
• UPC: 707392003380
• GTIN: 707392003380
• Feature 01: Slide slots used with shouldered washer screws (included) allow a full 1 in. of vertical deflection
• Feature 02: Precision-located ribs enhance strength while allowing ductility
• Feature 03: Simpson Strong-Tie® No-Equal® stamps alongside slide slots indicate proper screw placement
• Feature 04: Dual-function clip with prepunched slots for slide application and small round holes for fixed application
• Feature 05: Width: 6 in.
• Feature 06: Made from 12-gauge (97 mil) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 25
• Install With: Installs with XLSH78B1414 #14 shouldered screws (included)
• Assembled Depth - Imperial: 2
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6
• Assembled Width UOM - Imperial: in.
• Base Product ID: SCS_Clip
• Base Product Name: SCS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 175400467686534669016882026889982981022
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.38
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Product Includes: (25) connectors; (83) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 28.84
• Short Product Name: Slide Clip 2x6x5 12 ga 25 PAK w/Screws
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/scs_clip/p/scs
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• US Patents: 10,724,229
