Simpson Strong-Tie SCHA10.75-KT15 SCHA 10-3/4 in. Slide-Clip Connector for Horizontal Anchorage, Right-Facing (Qty-15)

Simpson Strong-Tie SCHA10.75-KT15 SCHA 10-3/4 in. Slide-Clip Connector for Horizontal Anchorage, Right-Facing (Qty-15)

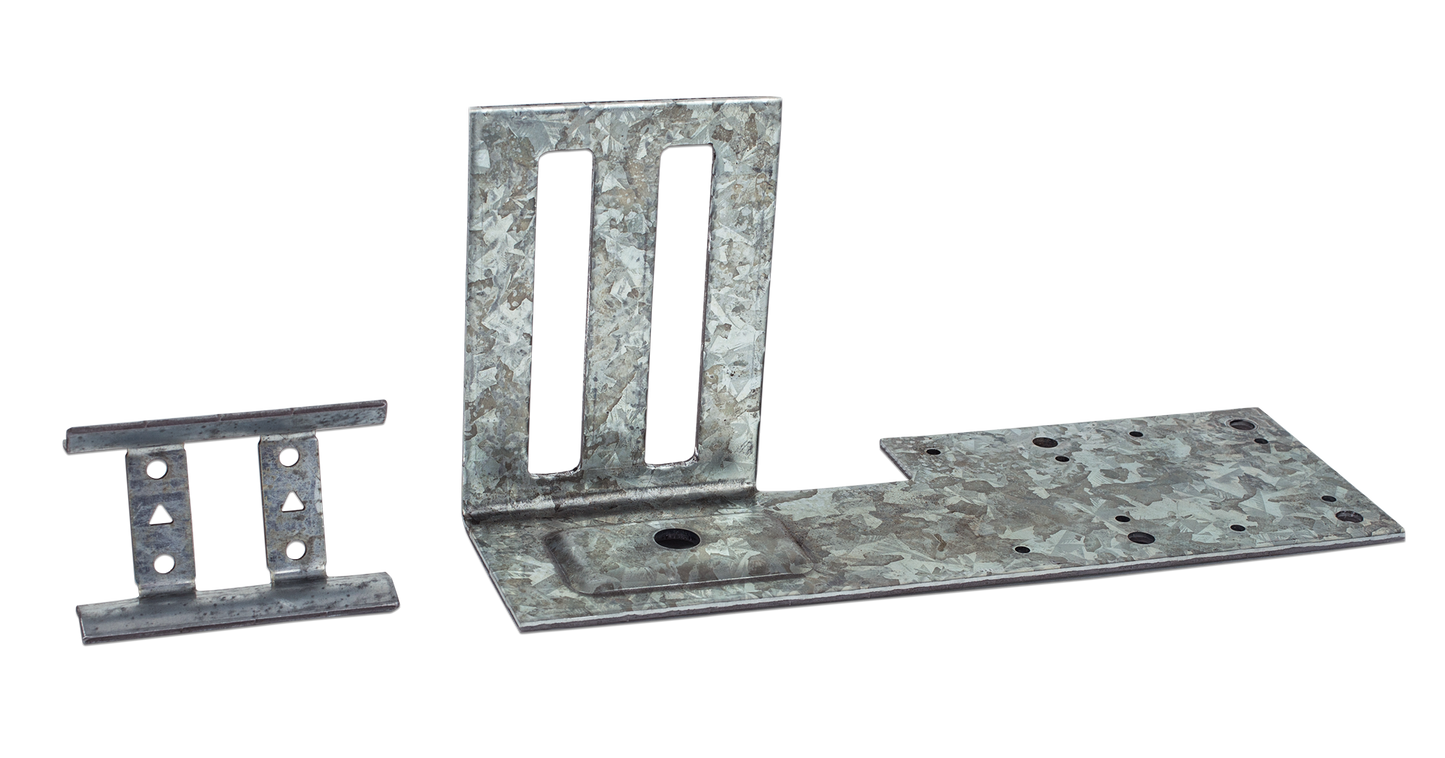

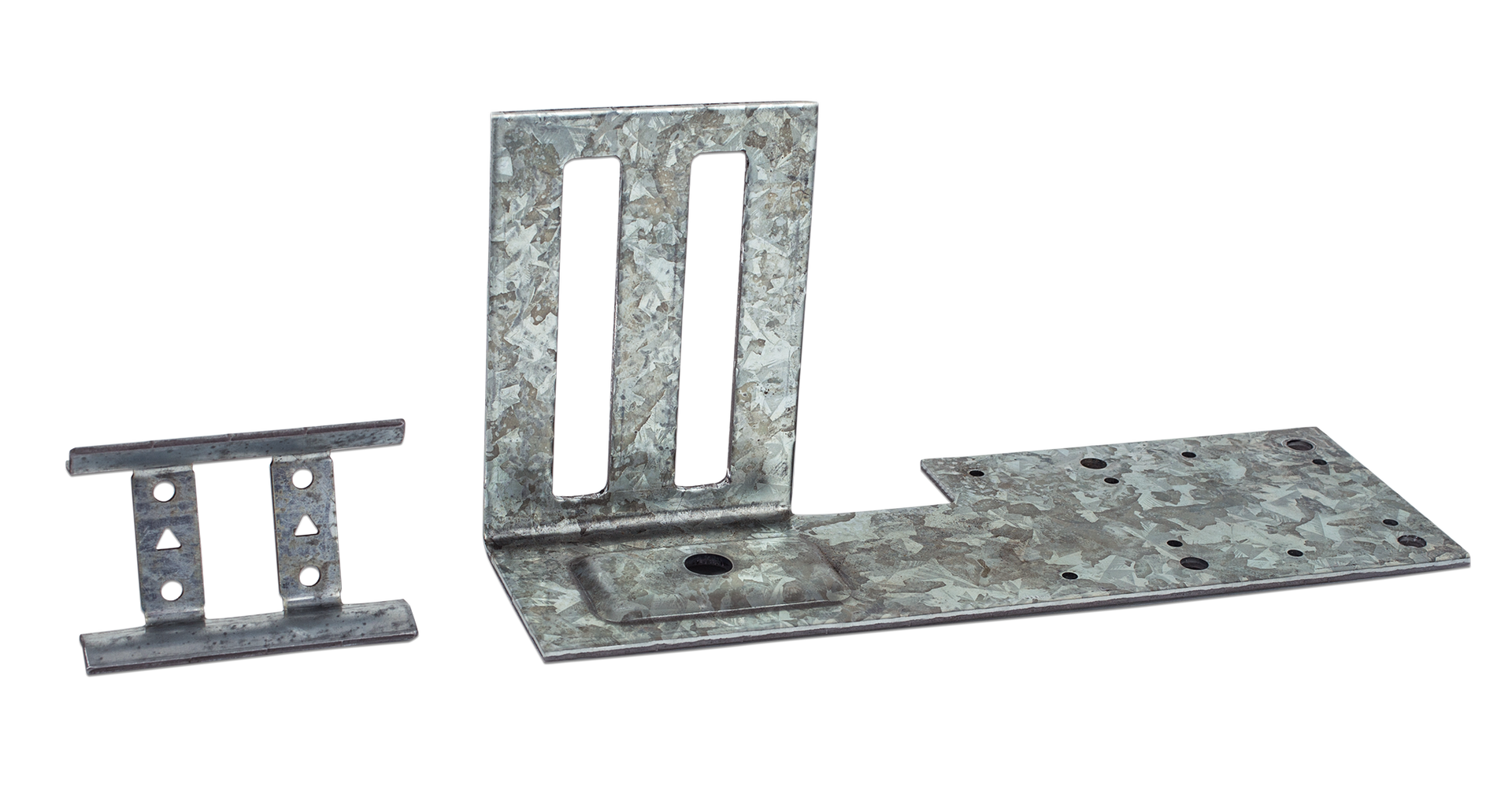

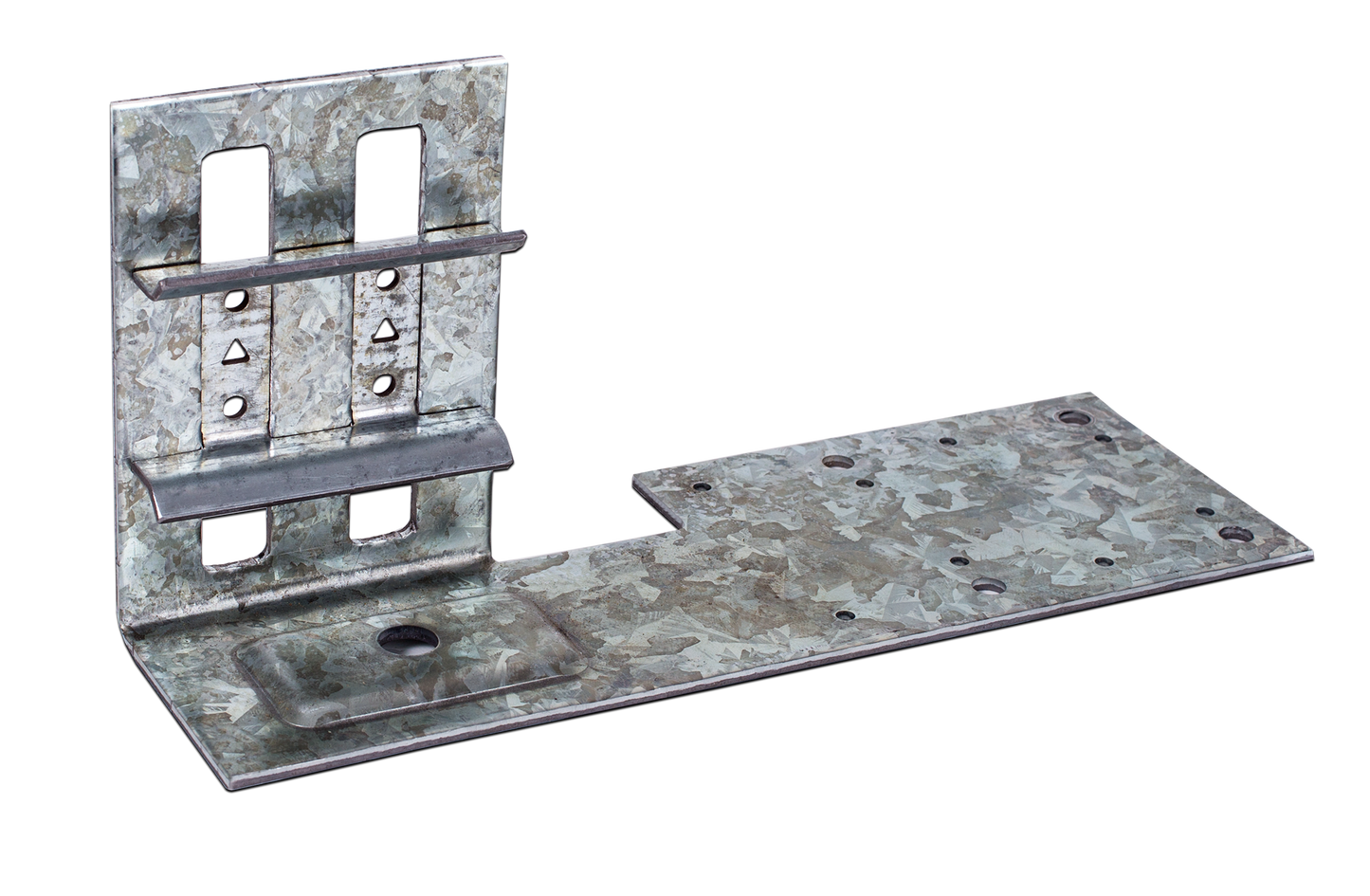

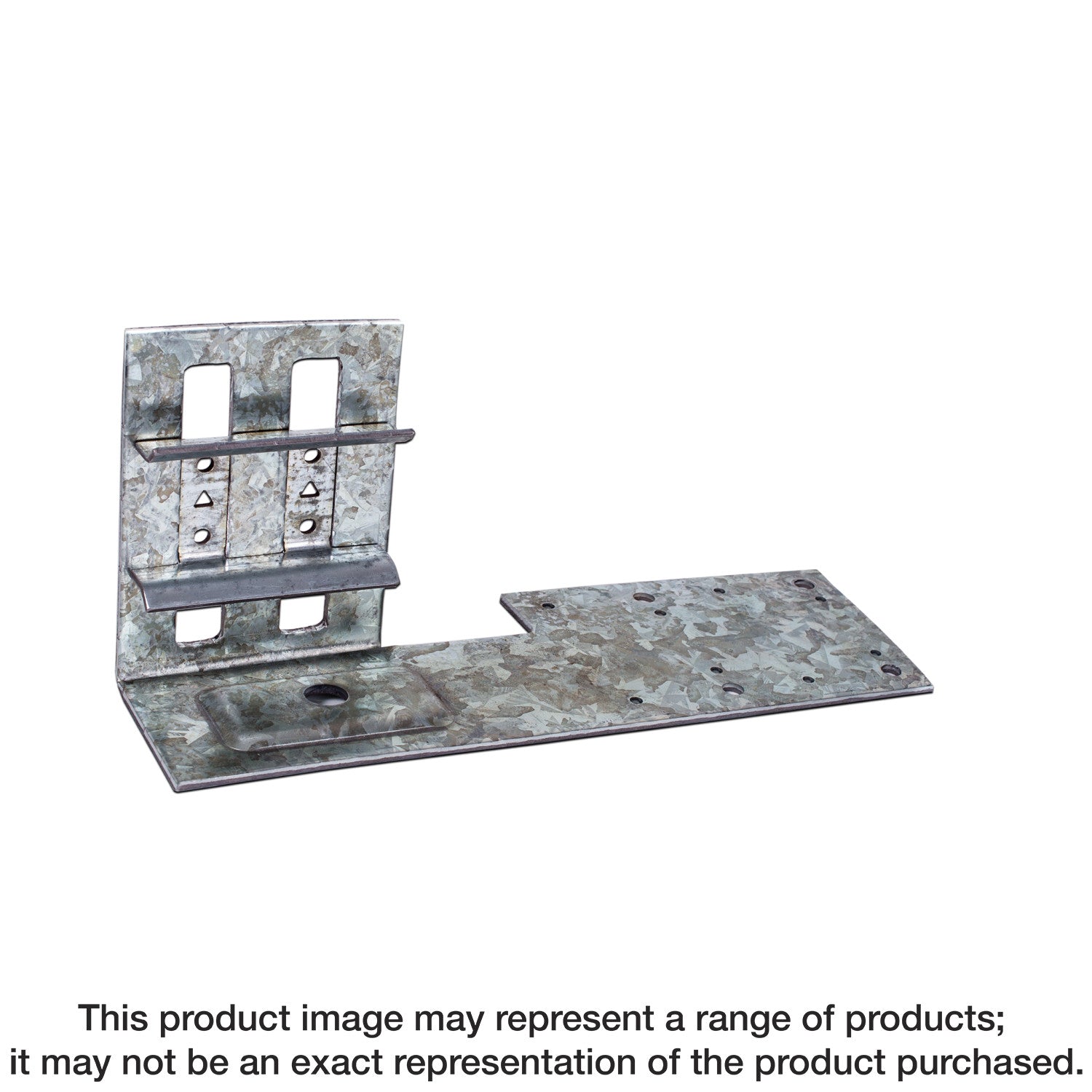

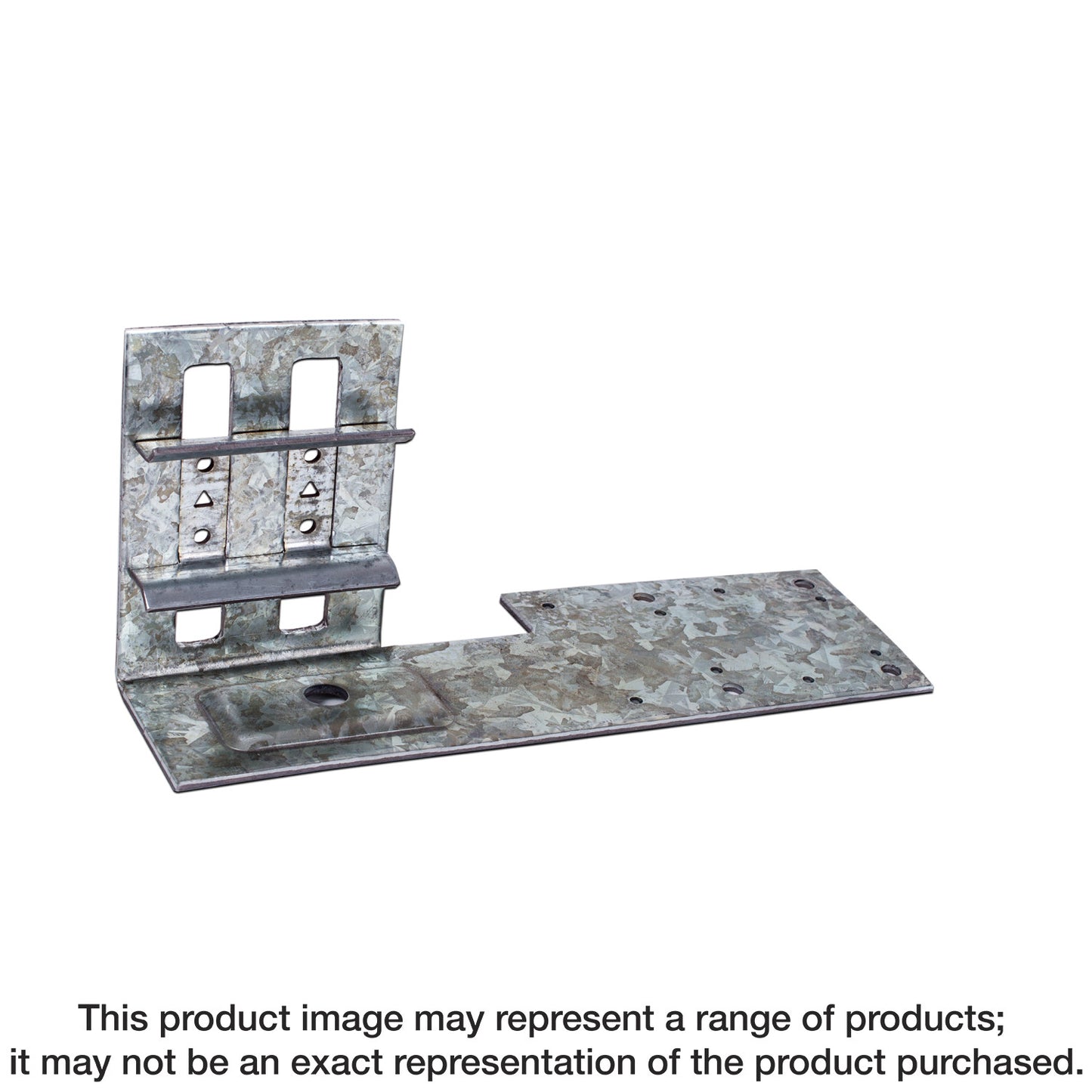

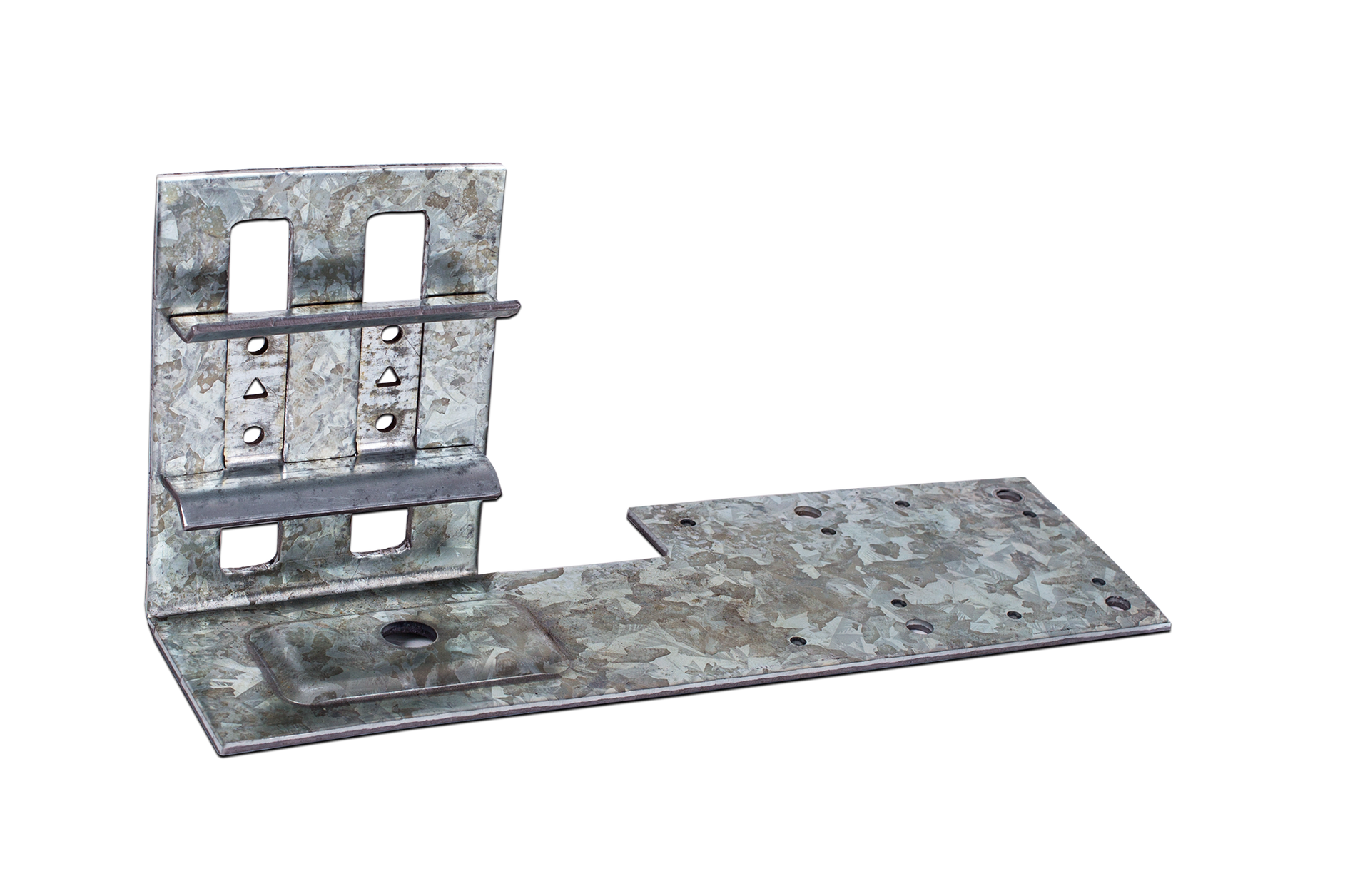

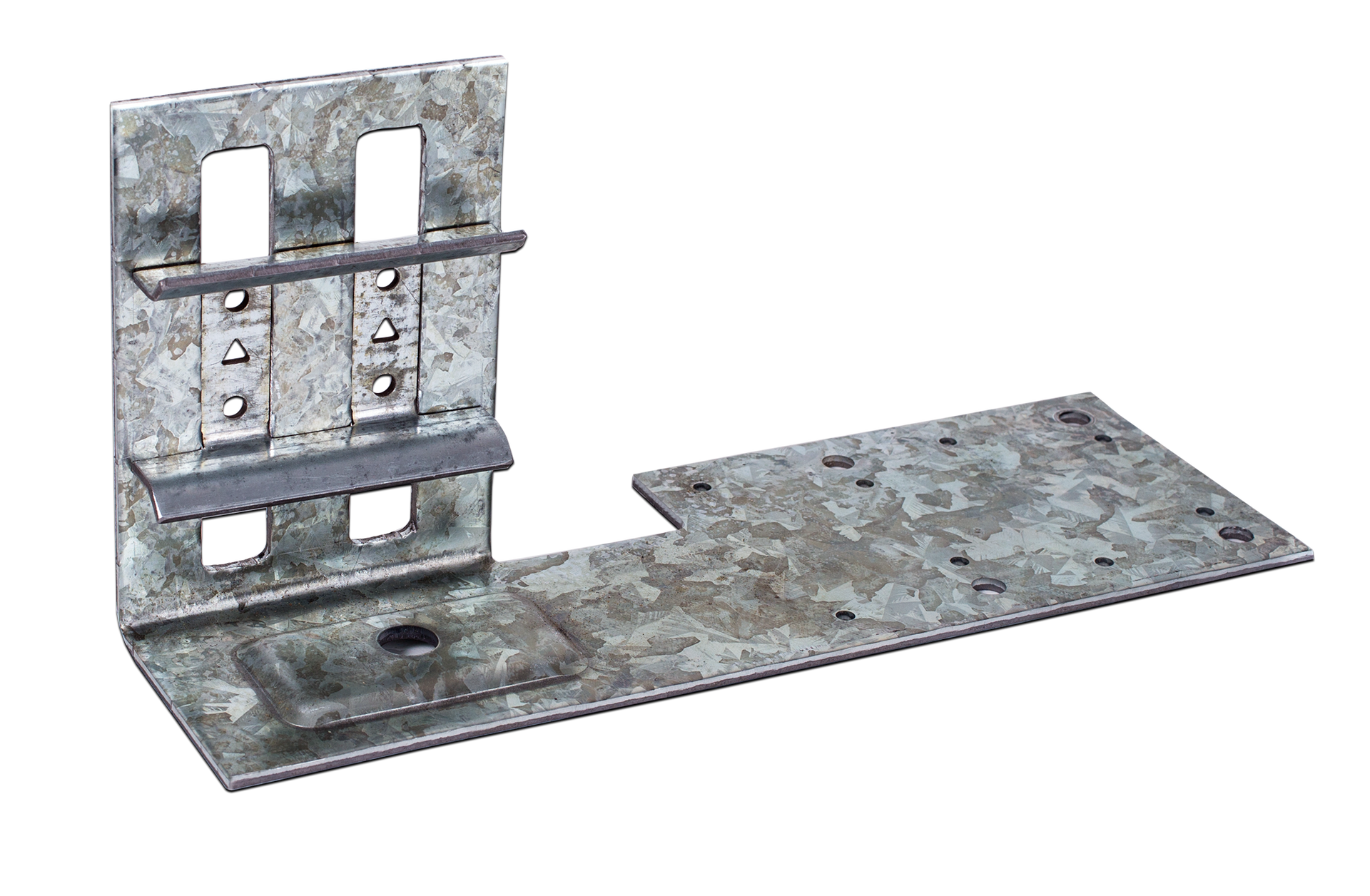

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. The SCHA connector is an ideal solution for panelized or stick-frame construction where the CFS framing anchors to the top of a concrete floor slab or the bottom of a steel beam. The connector features a wide support leg to decrease eccentricity on anchors and provide a variety of anchorage options. The included SCVS vertical slider helps to strengthen the connector for higher tension and compression loads.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• SCHA right-facing clip; for left-facing clip, see model SCHA10.75L-KT15
• Provides a full 1 in. of both upward and downward movement
• Either face of anchorage leg can be used against the support
• Accommodates standoff distances up to 4-3/4 in.
• Can be used with 3-5/8 in., 4 in., 6 in. and 8 in. studs
• Prepunched anchor holes accommodate 1/4 in. diameter Titen HD® or other 1/4 in. diameter concrete screw anchors, and 0.157 in. diameter powder-actuated fasteners such as the Simpson Strong-Tie® PDPAT-62KP
• Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
• SCHA made from 118 mil (10 ga.) steel (33 ksi); SCVS made from 97 mil (12 ga.) steel (33 ksi)
• Quantity: 15 connectors and sliders per package

Application

• Curtain-Wall Construction
• Deflection
• Cold-Formed Steel

Specifications

• ERP Part Number: SCHA10.75-KT15
• UPC: 707392828440
• GTIN: 707392828440
• Feature 01: SCHA right-facing clip; for left-facing clip, see model SCHA10.75L-KT15
• Feature 02: Provides a full 1 in. of both upward and downward movement
• Feature 03: Either face of anchorage leg can be used against the support
• Feature 04: Accommodates standoff distances up to 4-3/4 in.
• Feature 05: Can be used with 3-5/8 in., 4 in., 6 in. and 8 in. studs
• Feature 06: Prepunched anchor holes accommodate 1/4 in. diameter Titen HD® or other 1/4 in. diameter concrete screw anchors, and 0.157 in. diameter powder-actuated fasteners such as the Simpson Strong-Tie® PDPAT-62KP
• Feature 07: Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
• Feature 08: SCHA made from 118 mil (10 ga.) steel (33 ksi); SCVS made from 97 mil (12 ga.) steel (33 ksi)
• Feature 09: Quantity: 15 connectors and sliders per package
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie® catalog or strongtie.com
• Applications List: Curtain-Wall Construction
• Applications List.1: Deflection
• Applications List.2: Cold-Formed Steel
• Assembled Depth - Imperial: 3.6875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.90625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: SCHA_Clip
• Base Product Name: SCHA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 10
• GUID: 332998548327737998481042054626244749303
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.69
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.91
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.75
• Package Width UOM - Imperial: in.
• Packaging Quantity: 15
• Product Class: Clip
• Product Includes: (15) connectors; (15) SCVC vertical sliders
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 27.75
• Short Product Name: 10.75 HORIZ SLD CLIP- RIGHT W/SCVS 15PAK
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/scha_clip/p/scha
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• US Patents: 10,273,679
