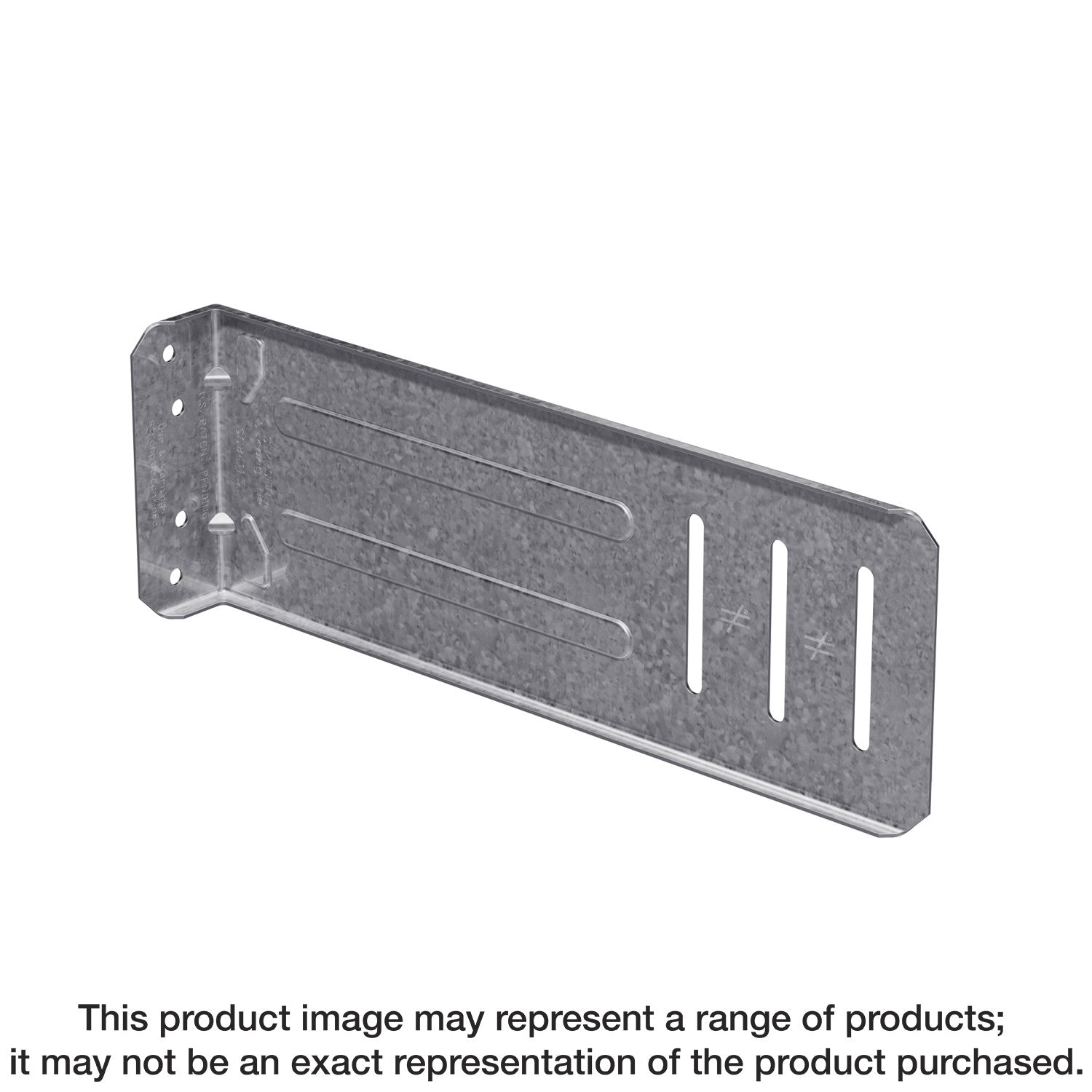

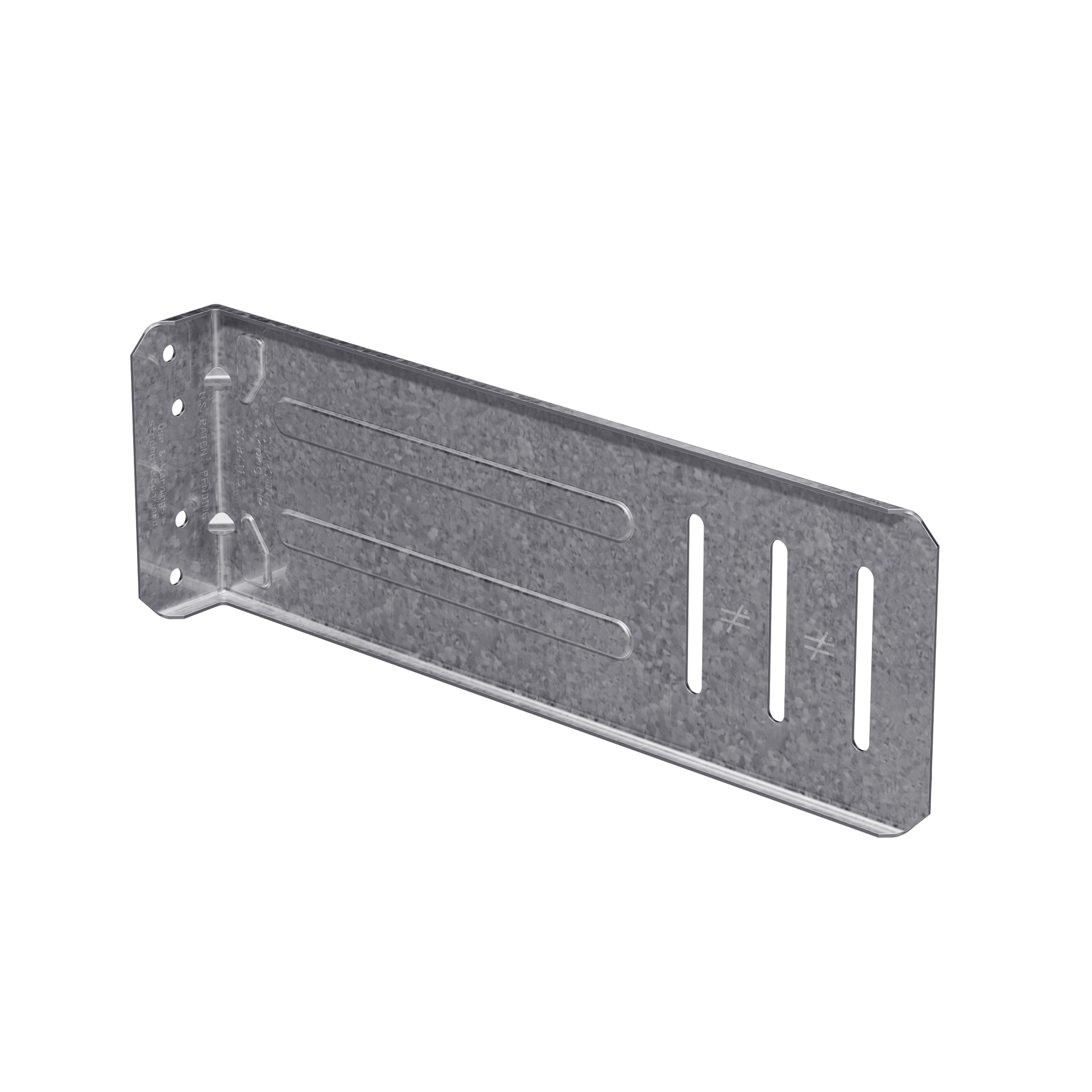

Simpson Strong-Tie SCB411.5-KT SCB™ 11-1/2 in. 16 ga. Bypass Framing Slide-Clip Connector w/ Screws (25-Qty) (Pack of 90)

Simpson Strong-Tie SCB411.5-KT SCB™ 11-1/2 in. 16 ga. Bypass Framing Slide-Clip Connector w/ Screws (25-Qty) (Pack of 90)

The Simpson Strong-Tie® SCB slide-clip connector is a time-saving, high-performance slide-clip connector for bypass framing applications that simplifies design and detailing for the designer and reduces field labor and material costs. Providing allowable anchorage loads for these connectors — with powder-actuated pins, screws, welds or Simpson Strong-Tie Titen Turbo™ concrete screws — eliminates the need to design this anchorage. For designs that have typically required two parts to accommodate large stand-offs, the SCB can take their place, thereby reducing field labor. The connector is manufactured in different lengths to accommodate a variety of stand-off conditions and steel stud sizes.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a full 1 in. of both upward and downward movement
• The precision-manufactured shouldered screws provided with the SCB connector are designed to prevent overdriving and to ensure the clip functions properly
• Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure correct shouldered-screw placement
• Length: 11-1/2 in.
• Made from 54 mil (16 ga.) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 clips per package

Specifications

• ERP Part Number: SCB411.5-KT
• UPC: 50707392662001
• GTIN: 50707392662001
• Feature 01: Provides a full 1 in. of both upward and downward movement
• Feature 02: The precision-manufactured shouldered screws provided with the SCB connector are designed to prevent overdriving and to ensure the clip functions properly
• Feature 03: Strategically placed stiffeners, embossments and anchor holes maximize connector performance
• Feature 04: Simpson Strong-Tie No-Equal® stamps mark the center of the slots to help ensure correct shouldered-screw placement
• Feature 05: Length: 11-1/2 in.
• Feature 06: Made from 54 mil (16 ga.) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Quantity: 25 clips per package
• Assembled Depth - Imperial: 1.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: SCB_Clip
• Base Product Name: SCB™/MSCB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 324238880577687156887557805843714708294
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Clip
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 90
• Shipping Weight: 2043
• Short Product Name: BY-PASS SLIDE CLIP 4X11.5 W/SCREWS 25PAK
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/scb_clip/p/scb.mscb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• US Patents: 8,555,592
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 707392662006
