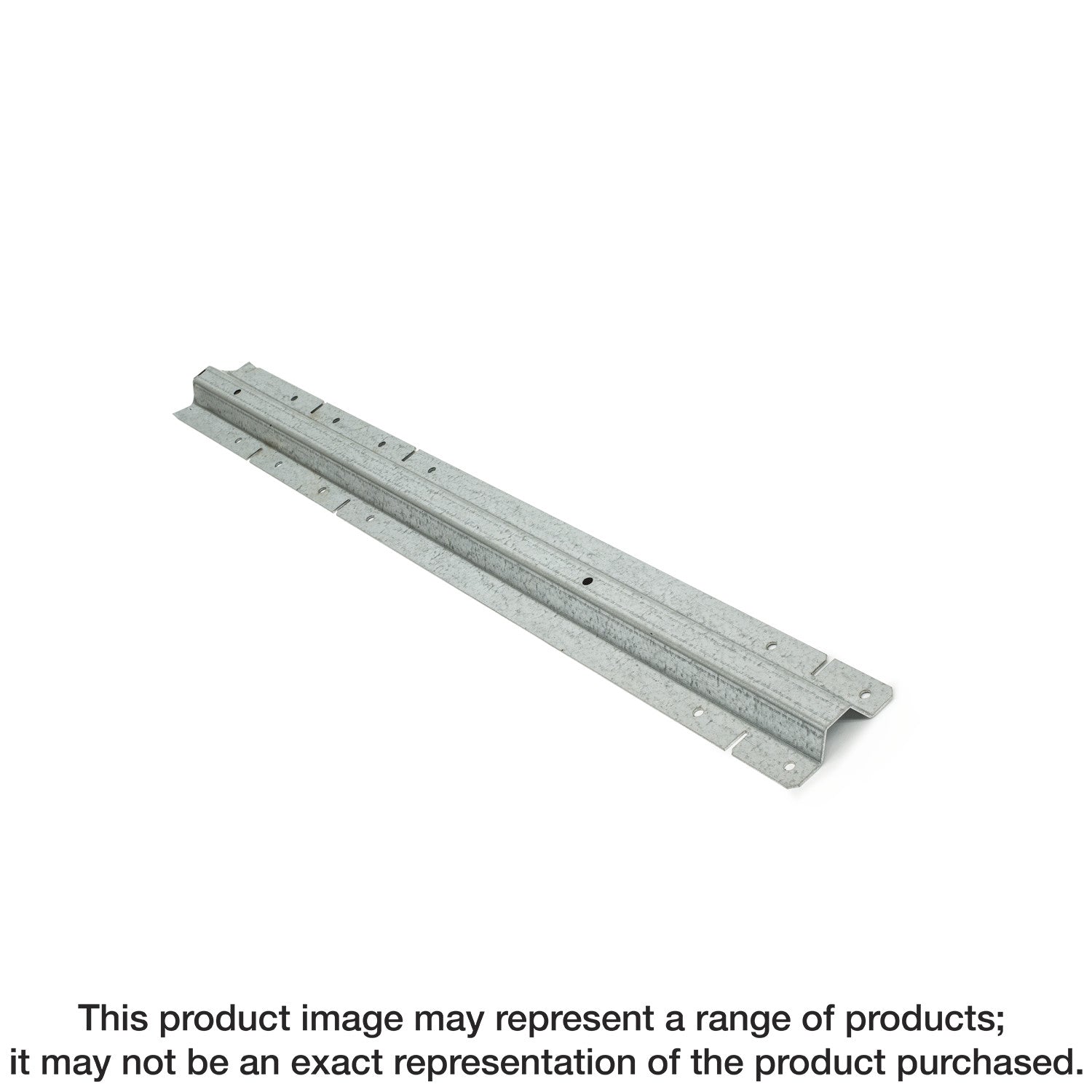

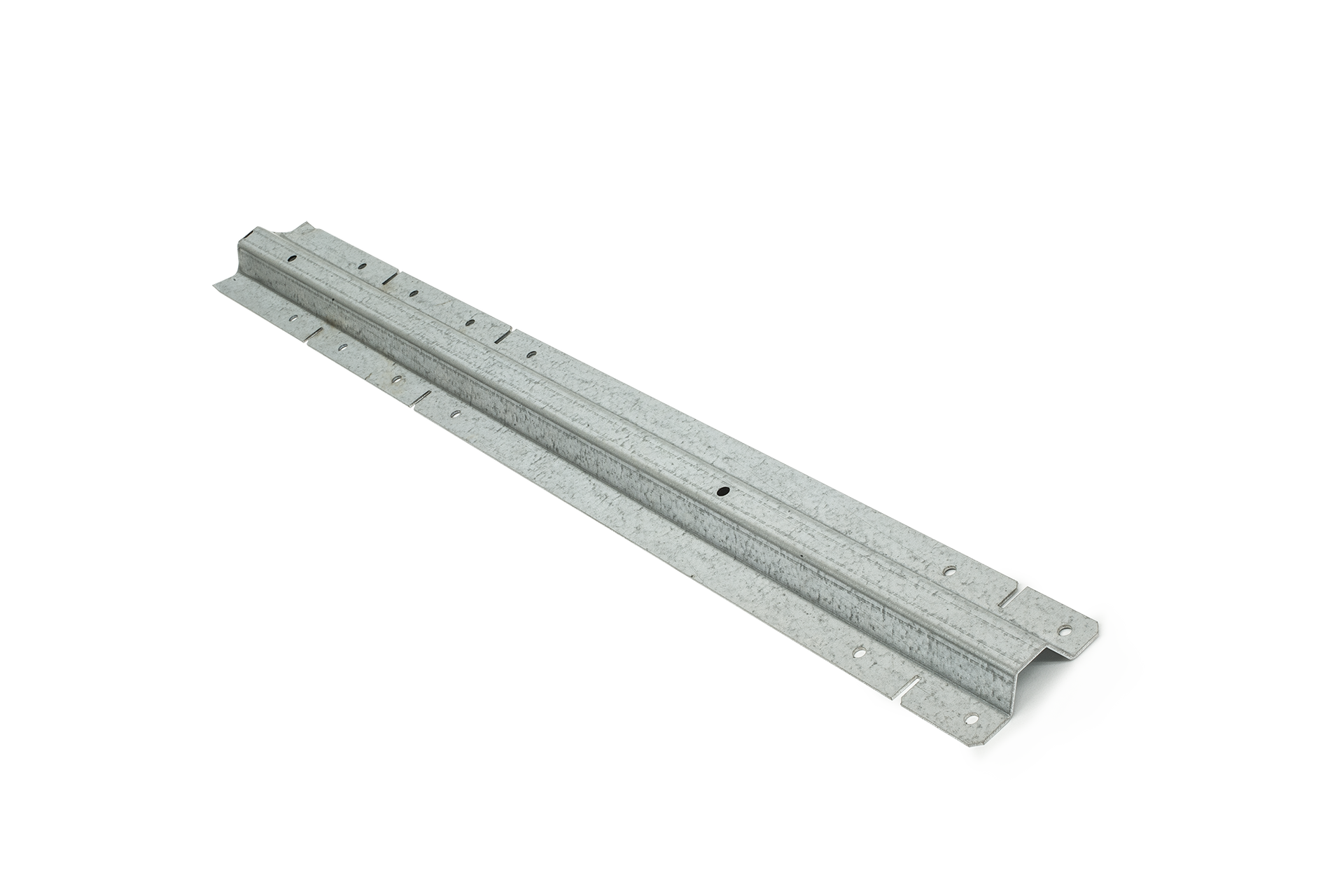

Simpson Strong-Tie SBR/43-R680 SBR 18-Gauge Structural Spacer Bracer (680-Qty)

Simpson Strong-Tie SBR/43-R680 SBR 18-Gauge Structural Spacer Bracer (680-Qty)

Simpson Strong-Tie spacer bracers reduce the installed cost of cold-formed steel stud walls by enabling faster stud layout while minimizing the need for bridging clips. The DBR is used for interior walls to eliminate stud bow and allow for quicker drywall attachment, while the SBR is designed for structural exterior walls. Both products provide bracing along the length of the stud, and for head-of-wall slip conditions. The SBR and DBR feature prepunched slots that eliminate the need to use bridging clips with on-module studs. The SBR and DBR spacer bracers come with bracing load data based on assembly testing, thus mitigating risk for designers and maximizing confidence in design specs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

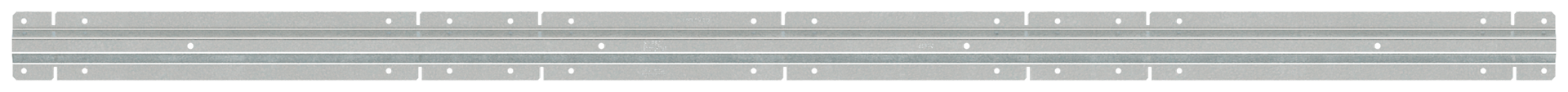

• SBR and DBR have patent-pending precision-engineered prepunched slots strategically located to enable 12 in., 16 in. and 24 in. on-center stud spacing and can be used to space the studs without having to mark the top track for layout
• The SBR will accommodate 3-5/8 in. and 6 in. studs in thicknesses of 33 mil (20 ga.) thru 68 mil (14 ga.)

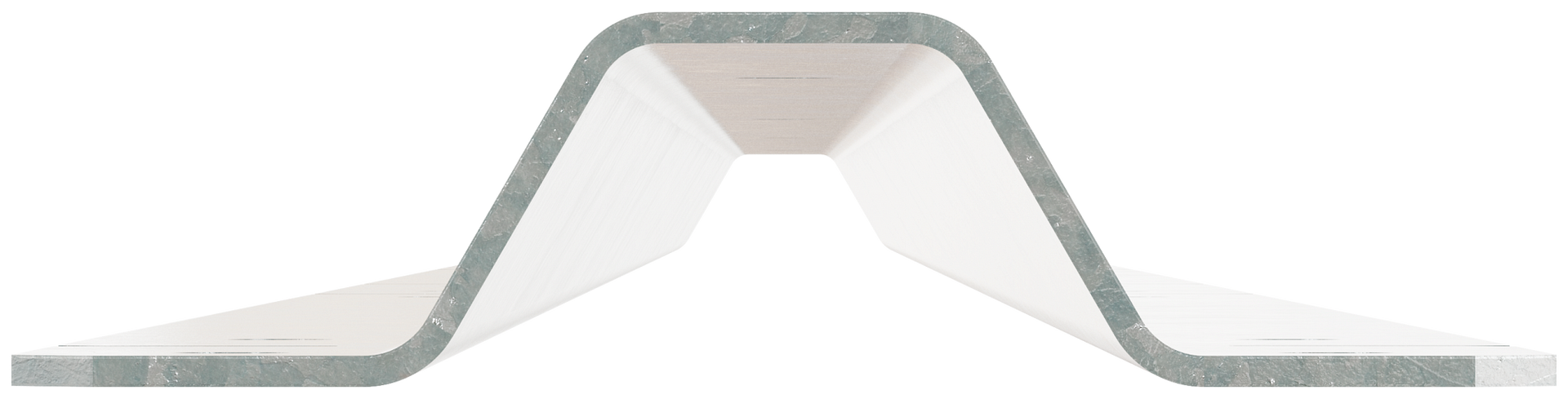

• In off-layout or end-of run conditions, the hat-section profiles enable clip attachments to the stud with Simpson Strong-Tie LSSC or RCA connectors
• Prepunched holes in the SBR provide rapid screw installation when spacer-bracer splices are needed for axial load-bearing studs
• Galvanized (G90) for extra corrosion resistance
• Made from 18-gauge (43 mil) steel
• Quantity: 680

Specifications

• ERP Part Number: SBR/43-R680
• UPC: 707392919575
• GTIN: 707392919575
• Feature 01: SBR and DBR have patent-pending precision-engineered prepunched slots strategically located to enable 12 in., 16 in. and 24 in. on-center stud spacing and can be used to space the studs without having to mark the top track for layout
• Feature 02: The SBR will accommodate 3-5/8 in. and 6 in. studs in thicknesses of 33 mil (20 ga.) thru 68 mil (14 ga.)
• Feature 03: In off-layout or end-of run conditions, the hat-section profiles enable clip attachments to the stud with Simpson Strong-Tie LSSC or RCA connectors
• Feature 04: Prepunched holes in the SBR provide rapid screw installation when spacer-bracer splices are needed for axial load-bearing studs
• Feature 05: Galvanized (G90) for extra corrosion resistance
• Feature 06: Made from 18-gauge (43 mil) steel
• Feature 07: Quantity: 680
• Assembled Depth - Imperial: 0.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 50.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: SBR_Bracer
• Base Product Name: SBR
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Bridging and Bracing Connectors > Bridging
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 17841384396623772156892863401425323573
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 680
• Packaging Type: Pallet
• Product Class: Bridging
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1264
• Short Product Name: STRUCTURAL SPACER-BRACER 18GA 680 PAK
• Strongtie.com URL: https://www.strongtie.com/bridgingandbracingconnectors_coldformedsteelconstruction/sbr_bracer/p/sbr
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Bridging and Bracing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
