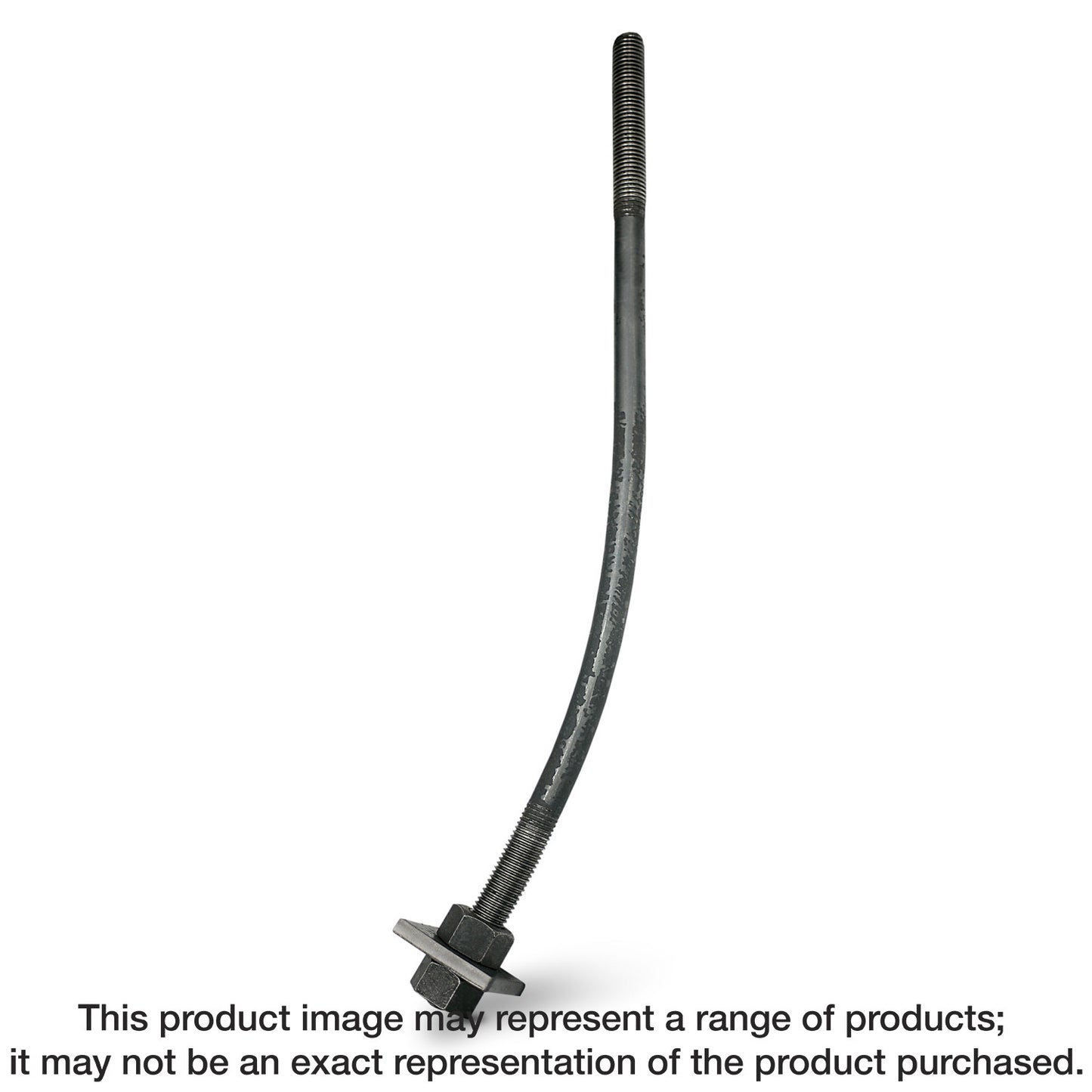

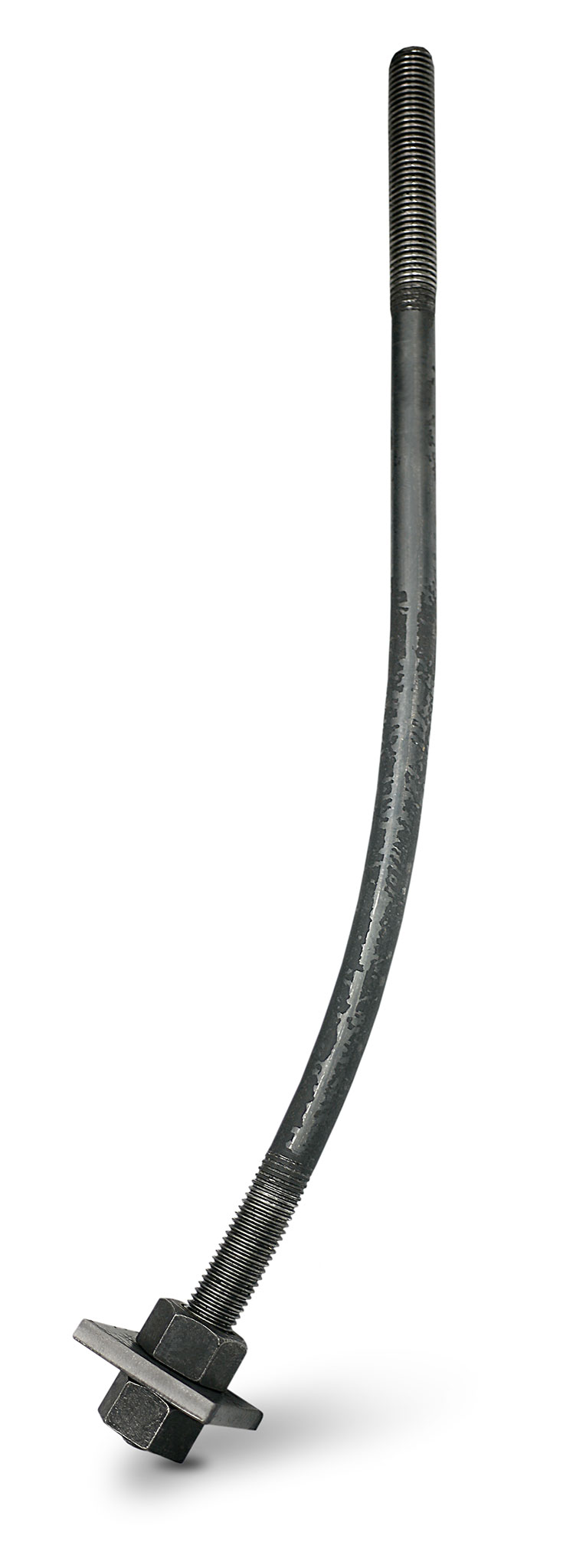

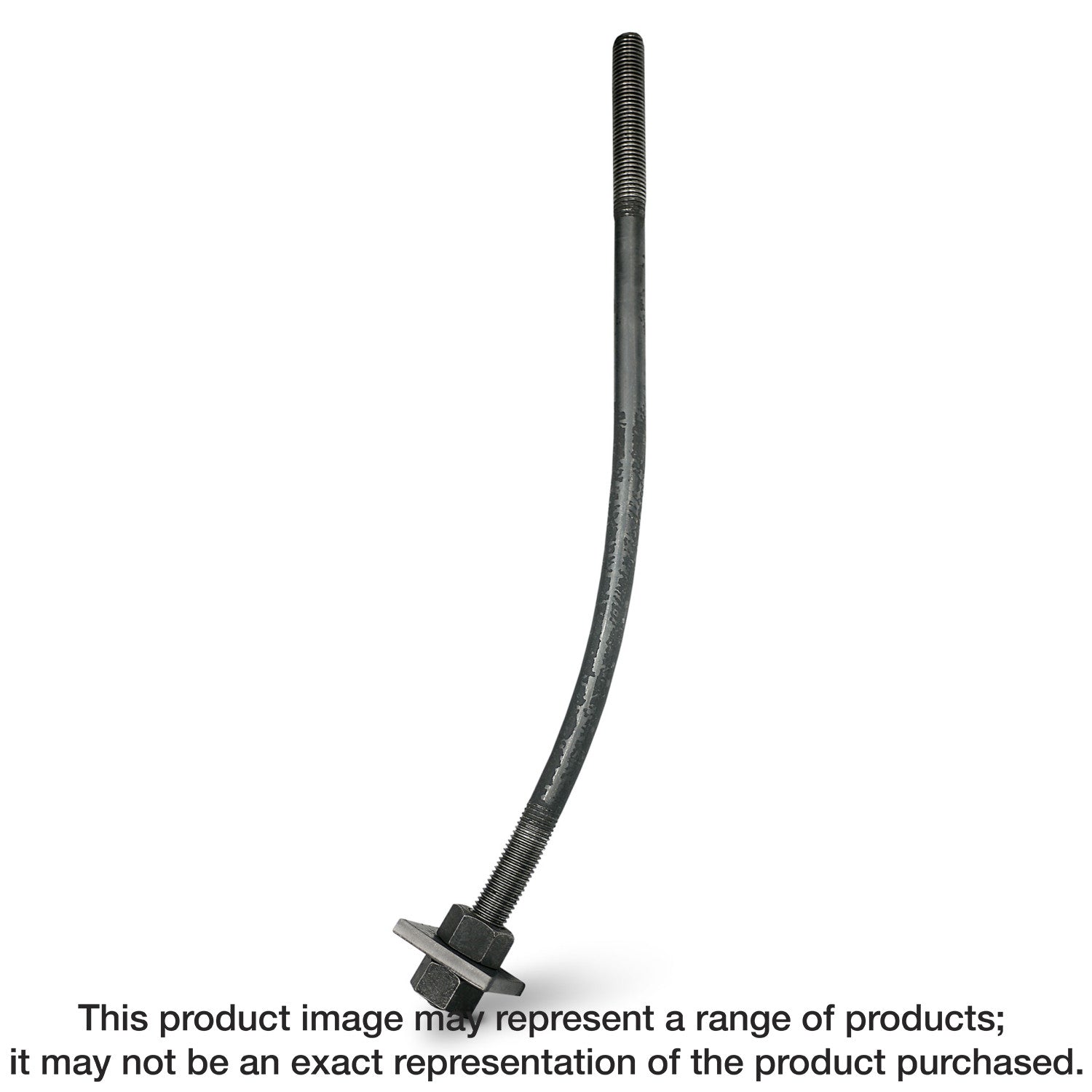

Simpson Strong-Tie SB1X30 SB 1 in. Dia. x 30 in. Anchor Bolt (Pack of 260)

Simpson Strong-Tie SB1X30 SB 1 in. Dia. x 30 in. Anchor Bolt (Pack of 260)

The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB1x30 covers holdowns utilizing a 1" diameter anchor that exceed the capacity of our SSTB bolts.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Identification on the bolt head showing embedment angle and model
• Sweep geometry to optimize position in form
• Rolled thread for higher tensile capacity
• Hex nuts and plate washer fixed in position
• Diameter: 1 in.
• Length: 30 in.
• Material: ASTM F-1554, Grade 36 (uncoated steel)

Specifications

• ERP Part Number: SB1X30
• UPC: 20707392176309
• GTIN: 20707392176309
• Feature 01: Identification on the bolt head showing embedment angle and model
• Feature 02: Sweep geometry to optimize position in form
• Feature 03: Rolled thread for higher tensile capacity
• Feature 04: Hex nuts and plate washer fixed in position
• Feature 05: Diameter: 1 in.
• Feature 06: Length: 30 in.
• Feature 07: Material: ASTM F-1554, Grade 36 (uncoated steel)
• Assembled Depth - Imperial: 2.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 30
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.66058
• Assembled Width UOM - Imperial: in.
• Base Product ID: SB_Bolt
• Base Product Name: SB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 16382362825198049538920667506754835726
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Anchor Bolt
• Prop 65 Warning: No
• Quantity: 260
• Shipping Weight: 1820
• Short Product Name: 1IN DIA 30IN ANCHOR BOLT
• Strongtie.com URL: https://www.strongtie.com/bolts_anchorbolts/sb_bolt/p/sb
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Anchor Bolts
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392176302
• EA Reference: 707392176305
