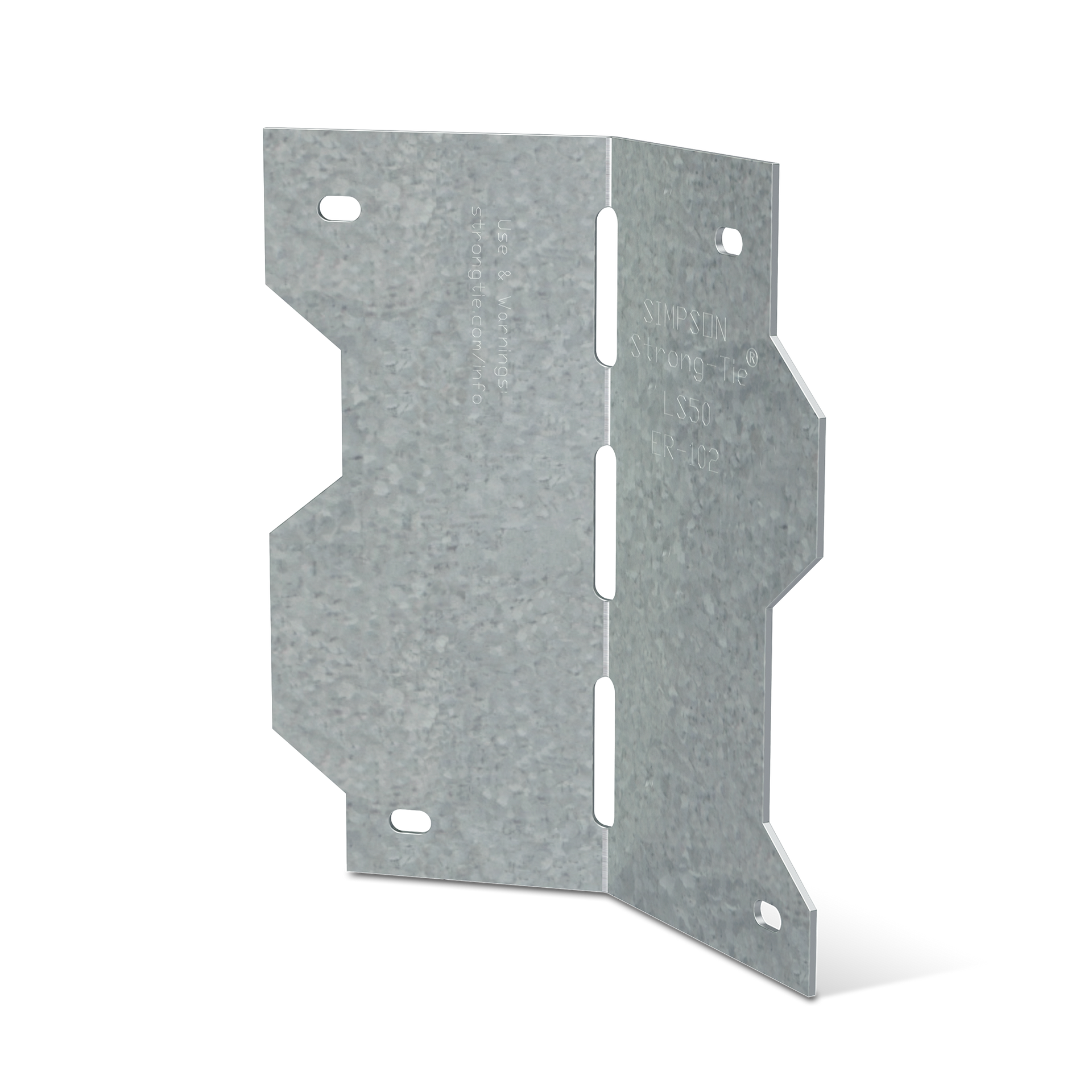

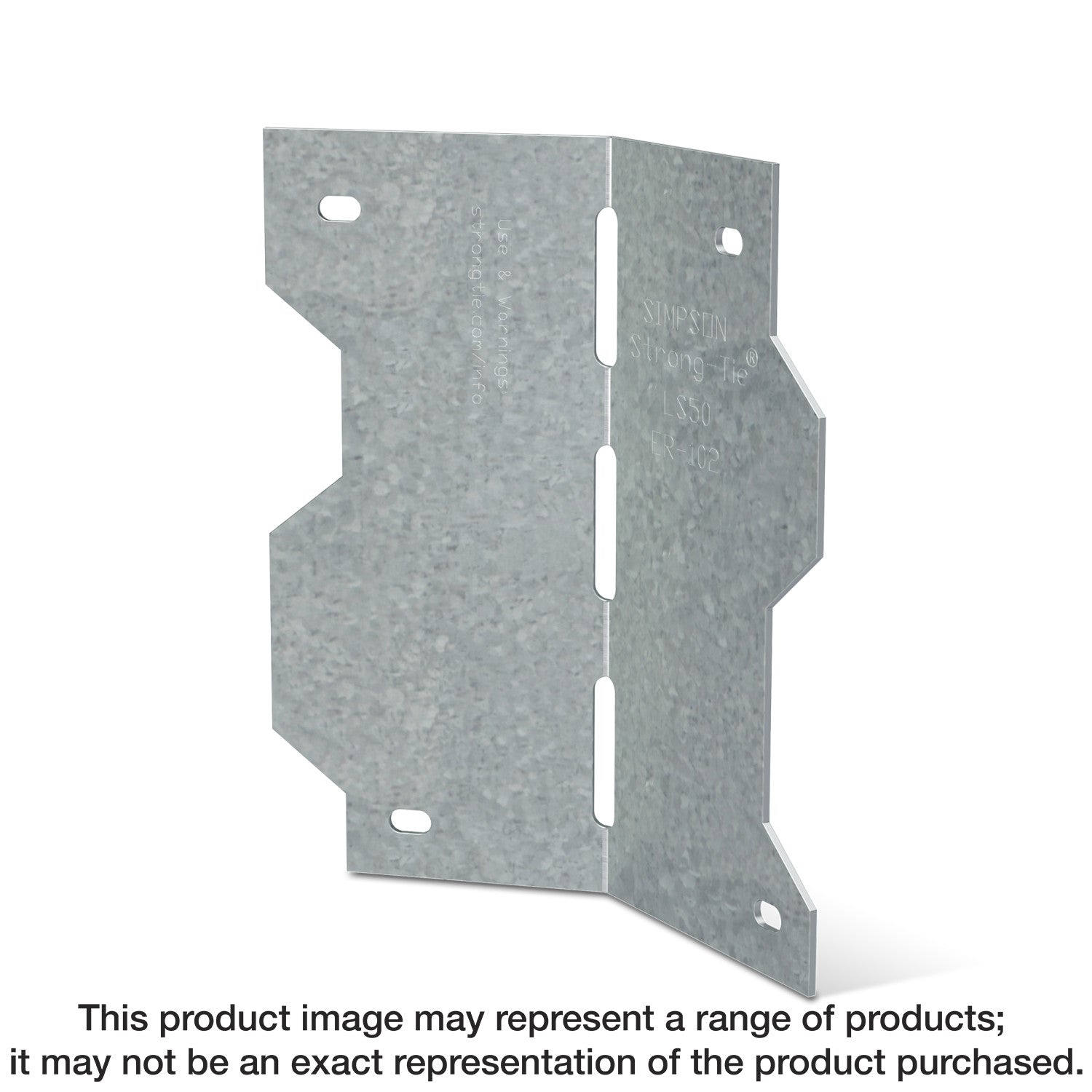

Simpson Strong-Tie S/LS50 S/LS 4-7/8 in. Light-Duty Skewable Angle

Simpson Strong-Tie S/LS50 S/LS 4-7/8 in. Light-Duty Skewable Angle

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. The S/LS connector is a general-utility, field-skewable, reinforcing angle with multiple uses including connecting roof rafters to hip rafters at different angles. The angle is load rated, providing the correct thickness and number of fasteners for the specifier, unlike field-fabricated clip angles. The S/LS angle also has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Field skewable from 0° to 135°
• Bend one time only
• Perfect for attachment of members intersecting at angles
• 4-7/8 in. length
• Made from 43 mil (18 ga.) steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: S/LS50
• UPC: 44315700606
• GTIN: 44315700606
• Feature 01: Field skewable from 0° to 135°
• Feature 02: Bend one time only
• Feature 03: Perfect for attachment of members intersecting at angles
• Feature 04: 4-7/8 in. length
• Feature 05: Made from 43 mil (18 ga.) steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Install With: Install with 4 #10 screws
• Assembled Depth - Imperial: 1.590990
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.840990
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.875
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/LS_Angle
• Base Product Name: S/LS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Roof Truss and Rafter Connectors, Ties, and Straps > Angle
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 117023445532504875191627243957344258715
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 13.875
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 8.75
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Angle
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.3
• Short Product Name: LIGHT GAUGE STEEL REINFORCING ANGLE
• Strongtie.com URL: https://www.strongtie.com/rooftrussandrafterconnectorstiesandstraps_coldformedsteelconstruction/s.ls_angle/p/s.ls
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Roof Truss and Rafter Connectors, Ties, and Straps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315700603
• PAL Reference: 50044315700601
