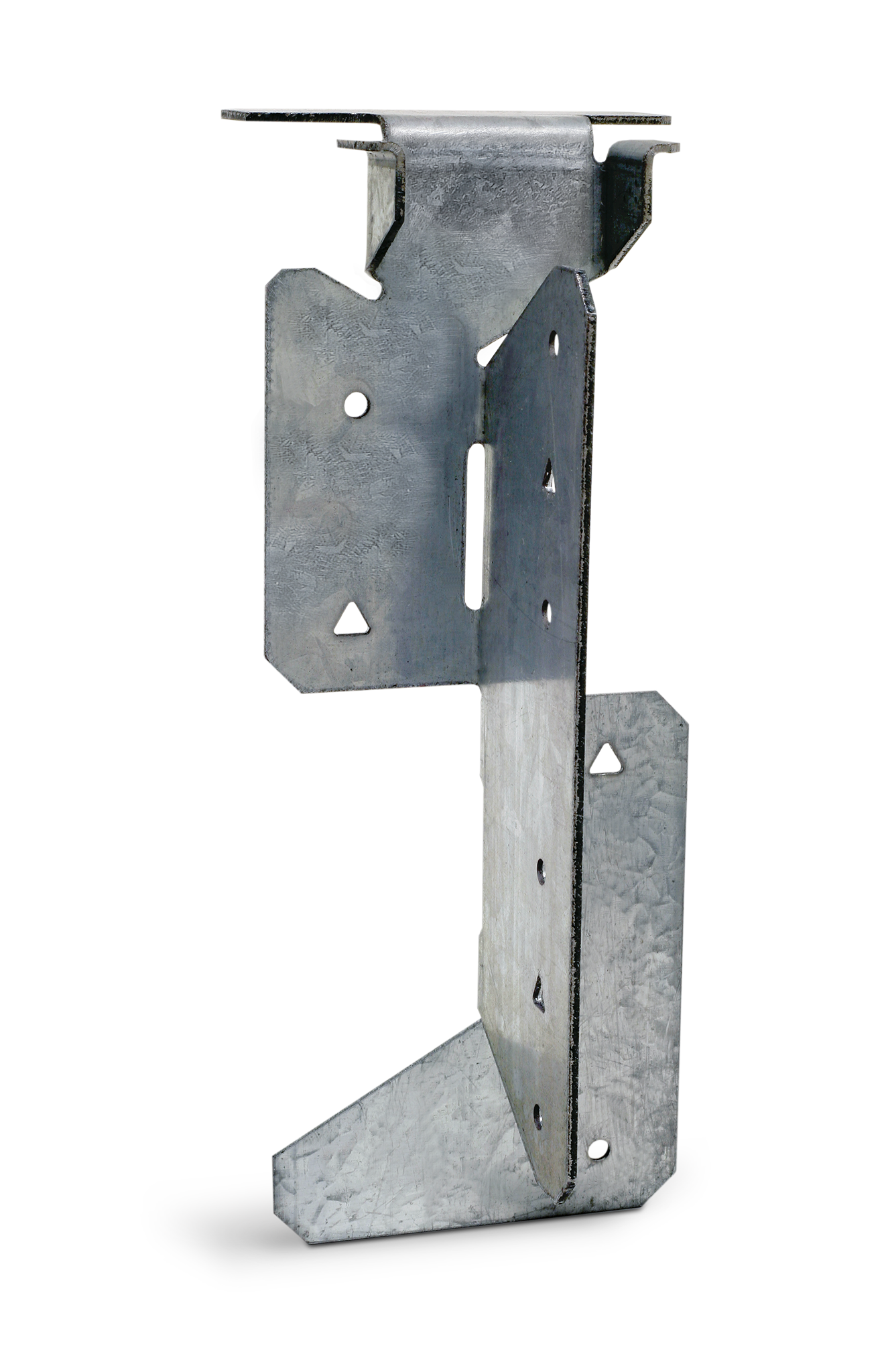

Simpson Strong-Tie S/JCT S/JCT 68-mil Light-Gauge Steel-Joist Hanger

Simpson Strong-Tie S/JCT S/JCT 68-mil Light-Gauge Steel-Joist Hanger

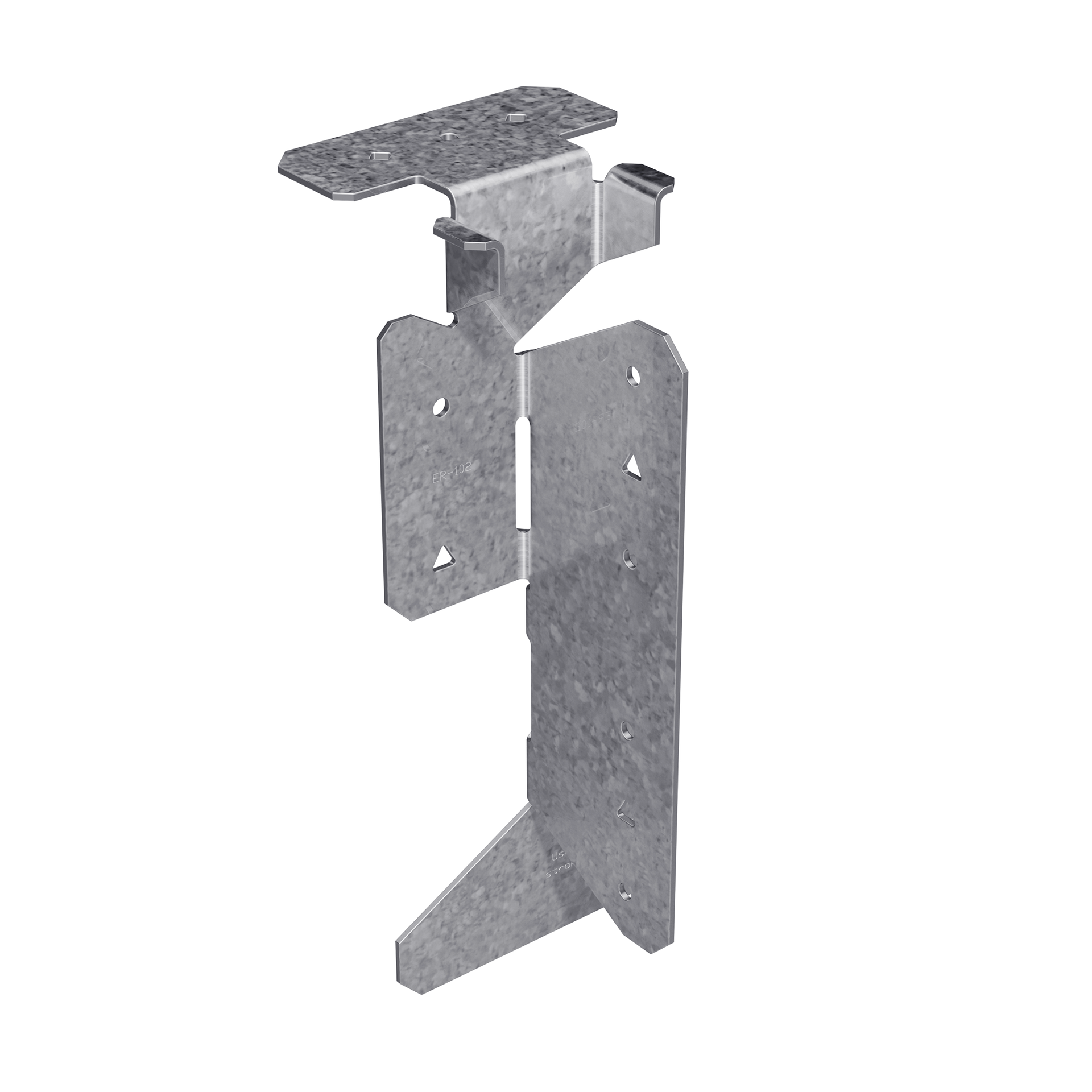

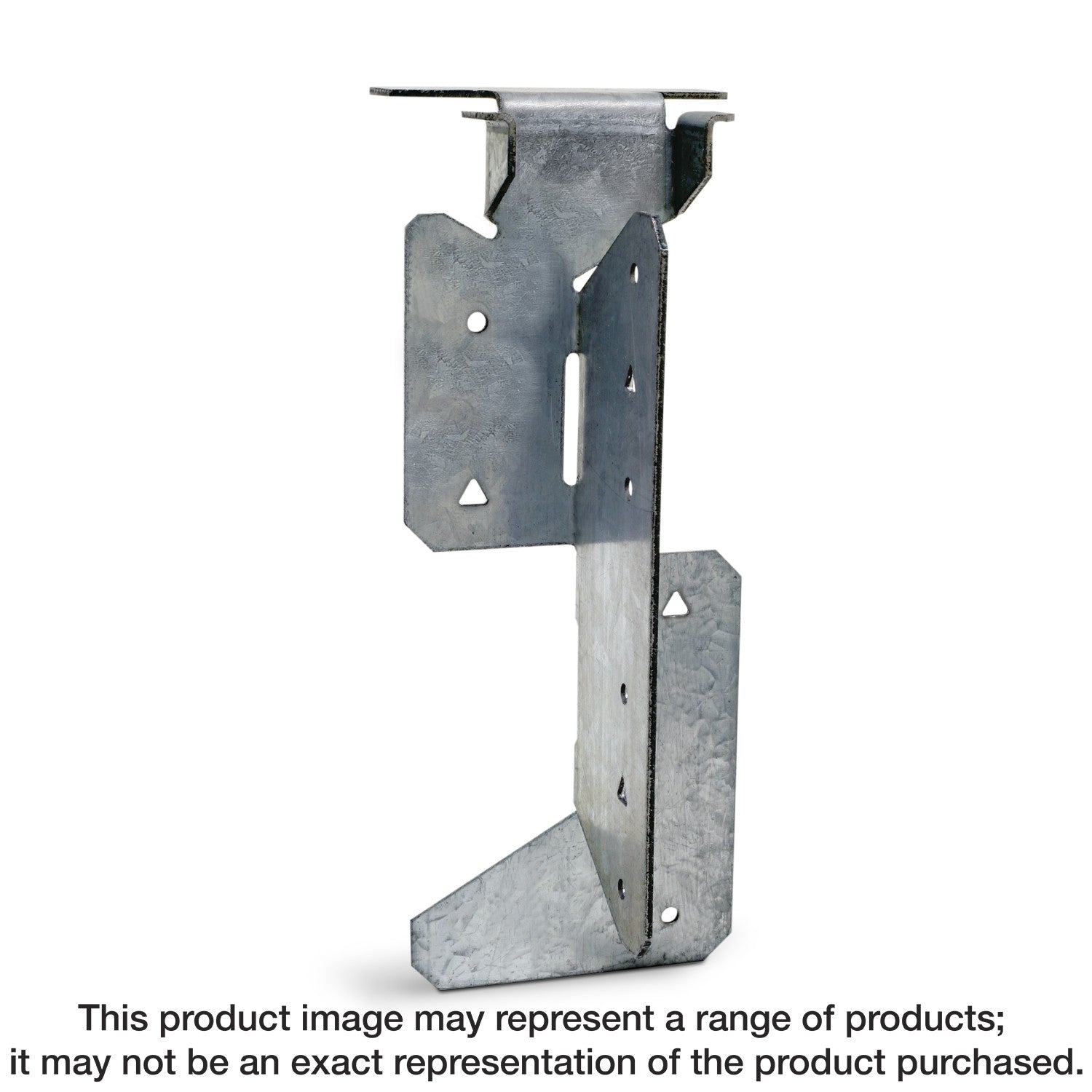

The Simpson Strong-Tie® S/JCT is a skewable steel-joist framing connector that combines strength, versatility and reduced installed cost. The hanger can be used with CFS headers, wood headers, steel I-beams (with welds or PAT fasteners) and masonry walls. Installed cost is minimized since these products are designed for shear loads rather than bearing, eliminating the need for web stiffeners. Framing is unidirectional and the joist can be attached from either the left or the right side.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Min./max. fill hole options for load capacity options
• Field skewable up to 45° left or right
• Horizontal tabs facilitate top-flange alignment and joist support during screw installation
• One size fits joists 8-in. through 14-in. deep
• Made from 68-mil (14-gauge) steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: S/JCT
• UPC: 707392697909
• GTIN: 707392697909
• Feature 01: Min./max. fill hole options for load capacity options
• Feature 02: Field skewable up to 45° left or right
• Feature 03: Horizontal tabs facilitate top-flange alignment and joist support during screw installation
• Feature 04: One size fits joists 8-in. through 14-in. deep
• Feature 05: Made from 68-mil (14-gauge) steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
• Assembled Depth - Imperial: 3.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.125
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/JCT_Hanger
• Base Product Name: S/JCT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 204876923763805150980461347722548486020
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 8 – 14
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.62
• Short Product Name: LIGHT GAUGE STEEL - CFS C-JOISTS
• Strongtie.com URL: https://www.strongtie.com/joistframingconnectors_coldformedsteelconstruction/s.jct_hanger/p/s.jct
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392697906
• PAL Reference: 50707392697904
