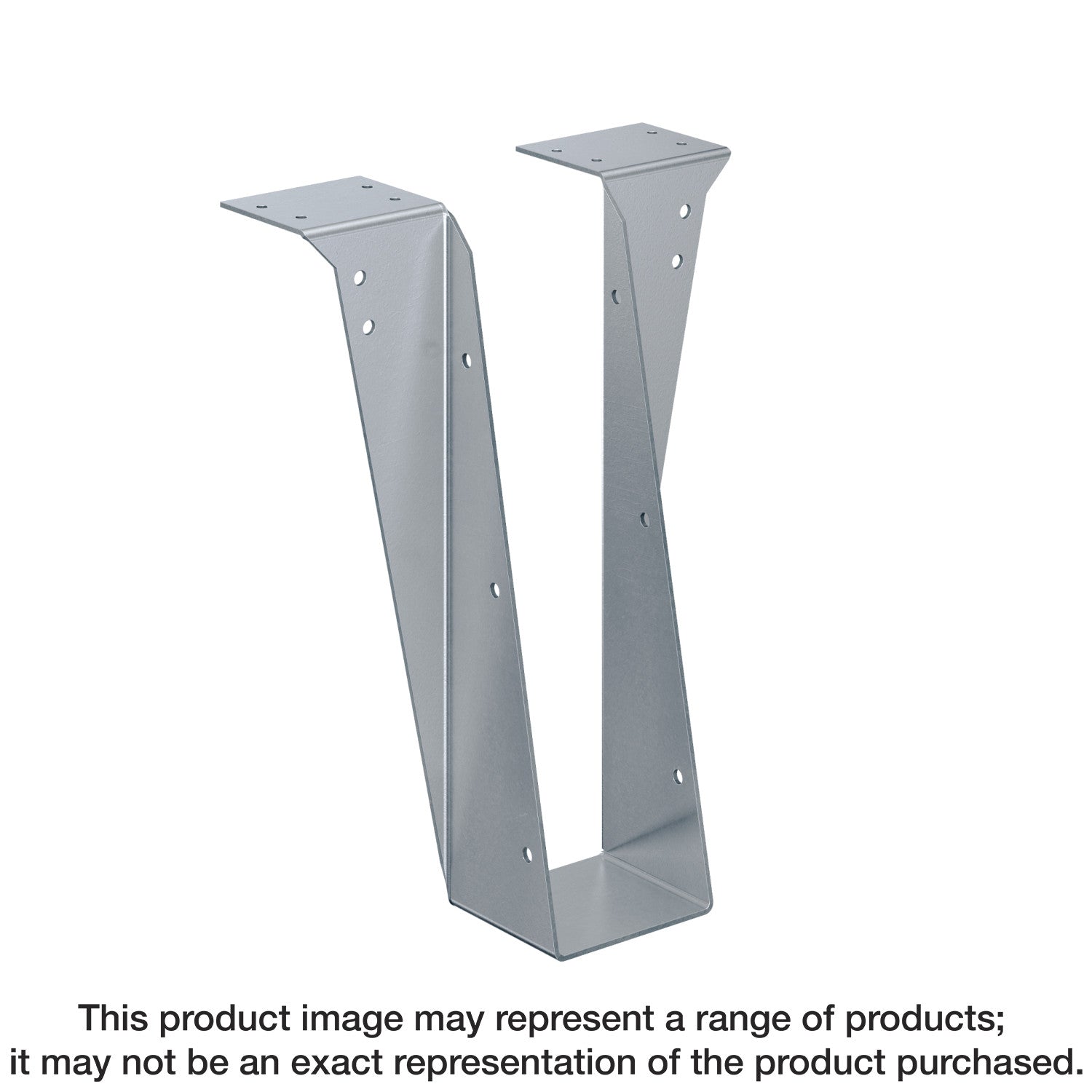

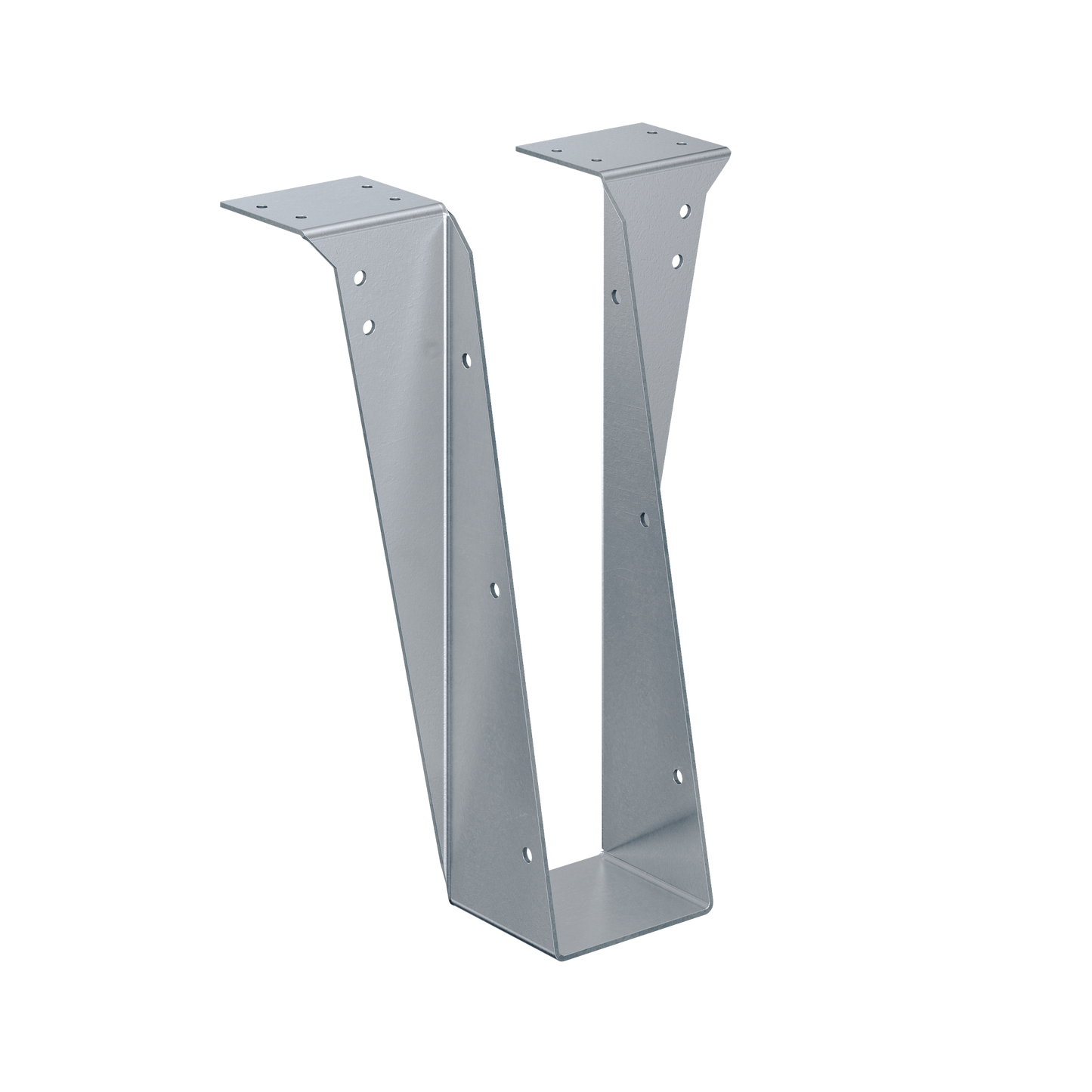

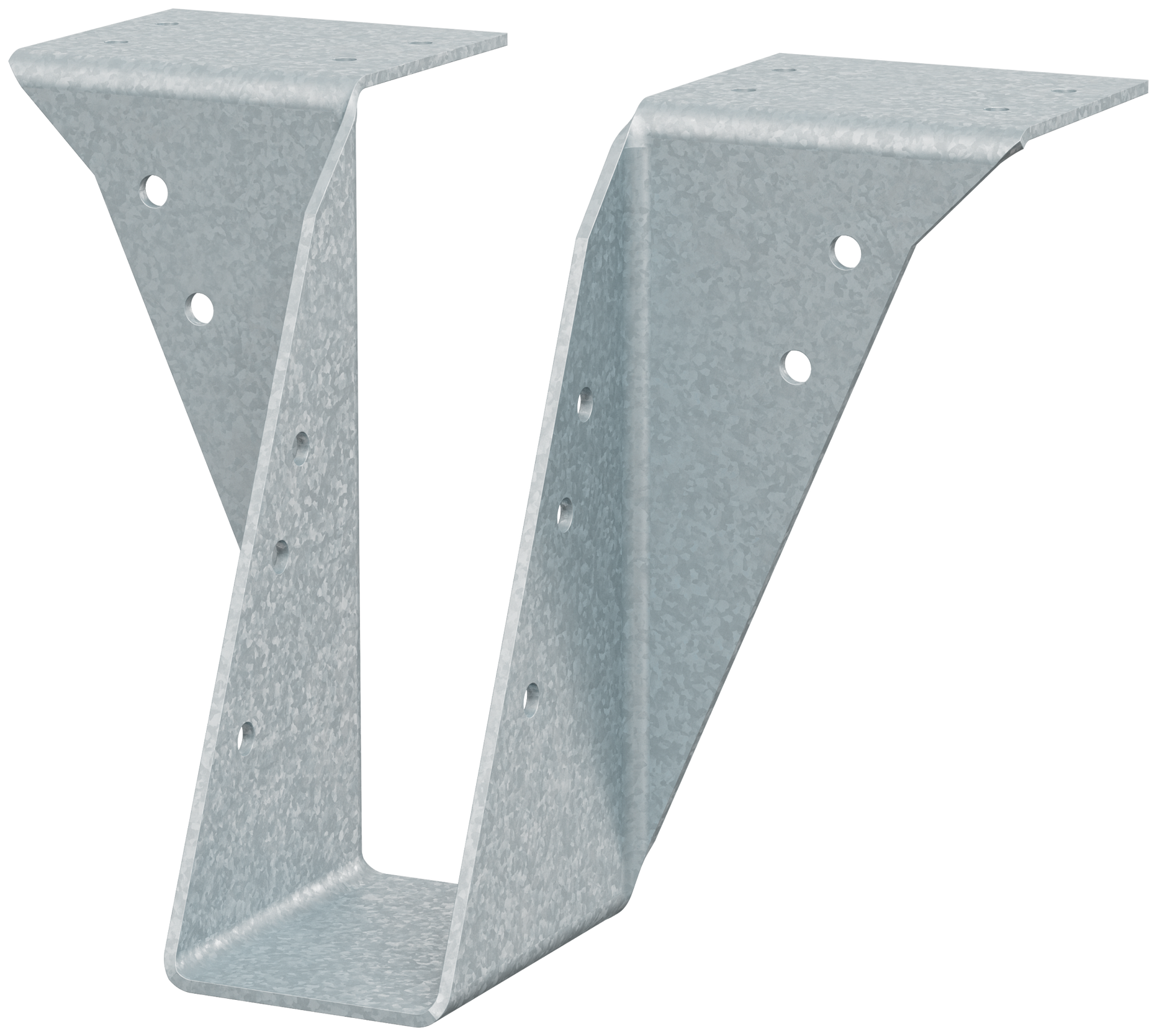

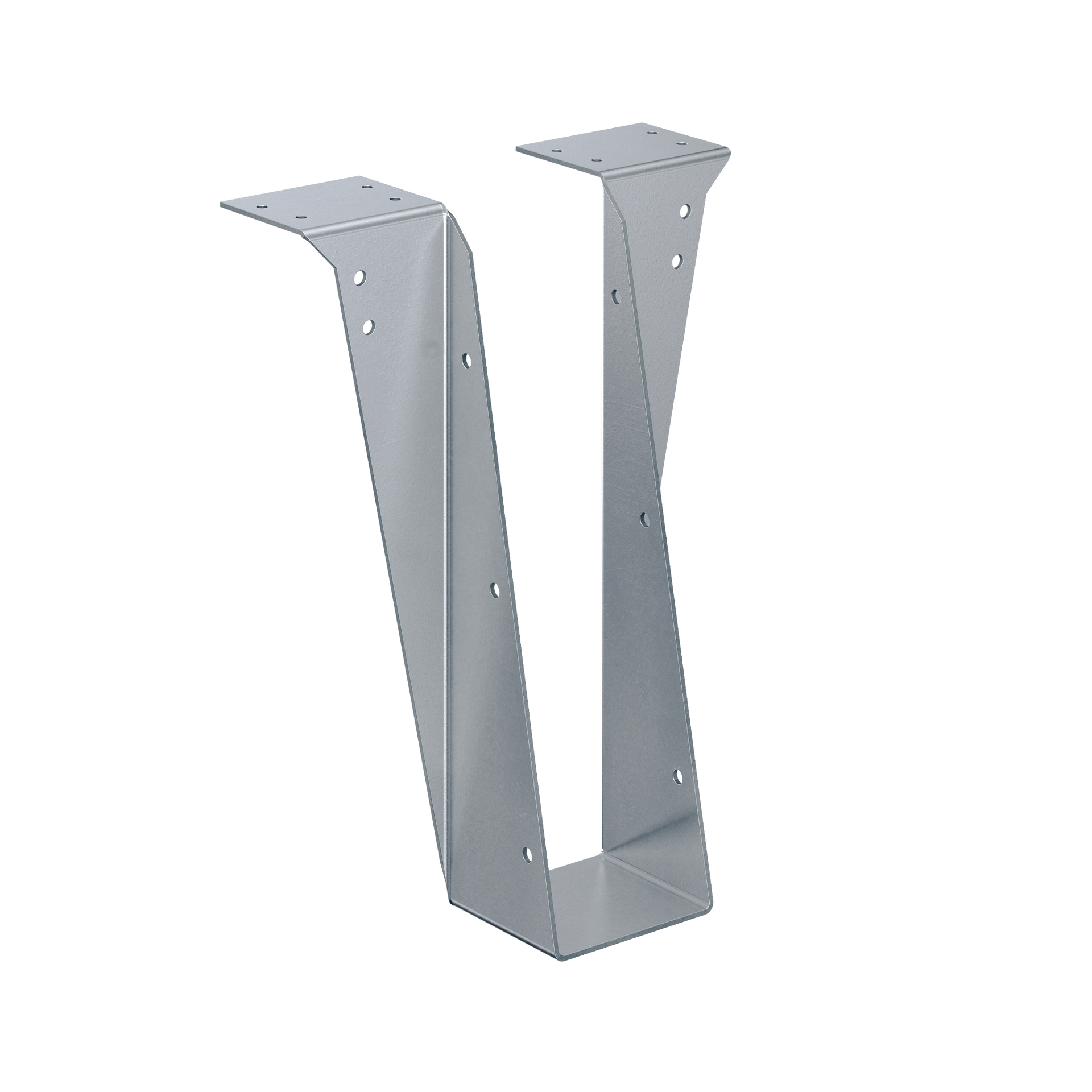

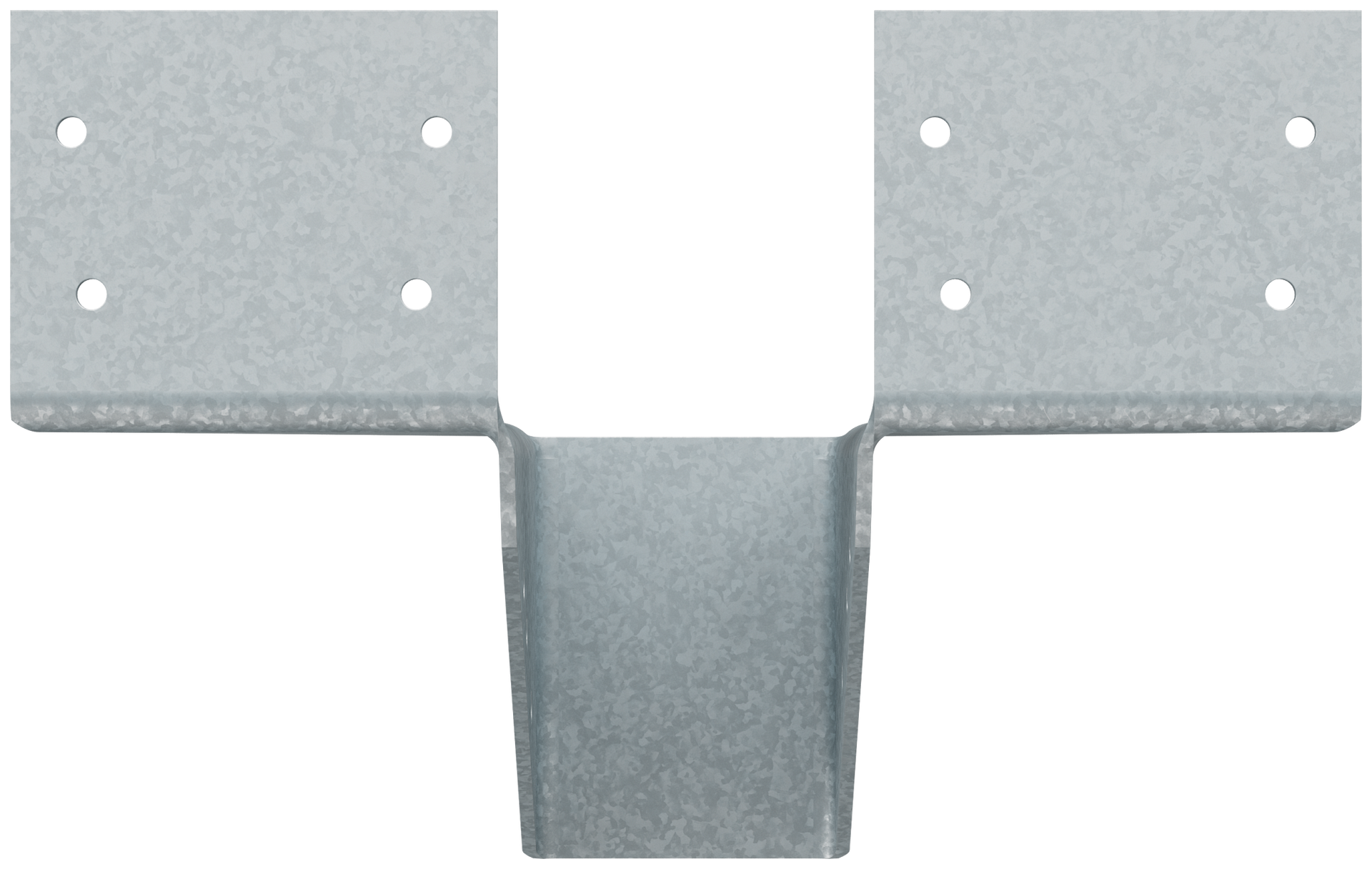

Simpson Strong-Tie S/B2.12/6 S/B 12 ga. Hanger for 2 in. x 6 in. Cold-Formed Steel Joist

Simpson Strong-Tie S/B2.12/6 S/B 12 ga. Hanger for 2 in. x 6 in. Cold-Formed Steel Joist

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/B hanger installs to structural steel or cold-formed steel beams for support of cold-formed steel joists.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Design provides dimensional accuracy and helps to ensure proper bearing area and connection
• High-capacity, top-flange hanger manufactured with precision forming and quality control
• Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
• Load-rated, tested and code listed
• For 2 in. width x 6 in. height cold-formed steel joist
• Made from 97mil (12 ga.) steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: S/B2.12/6
• UPC: 707392021889
• GTIN: 707392021889
• Feature 01: Design provides dimensional accuracy and helps to ensure proper bearing area and connection
• Feature 02: High-capacity, top-flange hanger manufactured with precision forming and quality control
• Feature 03: Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
• Feature 04: Load-rated, tested and code listed
• Feature 05: For 2 in. width x 6 in. height cold-formed steel joist
• Feature 06: Made from 97mil (12 ga.) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie® catalog or strongtie.com
• Assembled Depth - Imperial: 5.599
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.198
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.323
• Assembled Width UOM - Imperial: in.
• Base Product ID: S/B_Hanger
• Base Product Name: S/B
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Joist Framing Connectors > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 260275365547960670489983125525907568118
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2 x 6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.61
• Short Product Name: 2-1/8 X 6 LIGHT GAUGE HANGER
• Strongtie.com URL: https://www.strongtie.com/joistframingconnectors_coldformedsteelconstruction/s.b_hanger/p/s.b
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Joist Framing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
