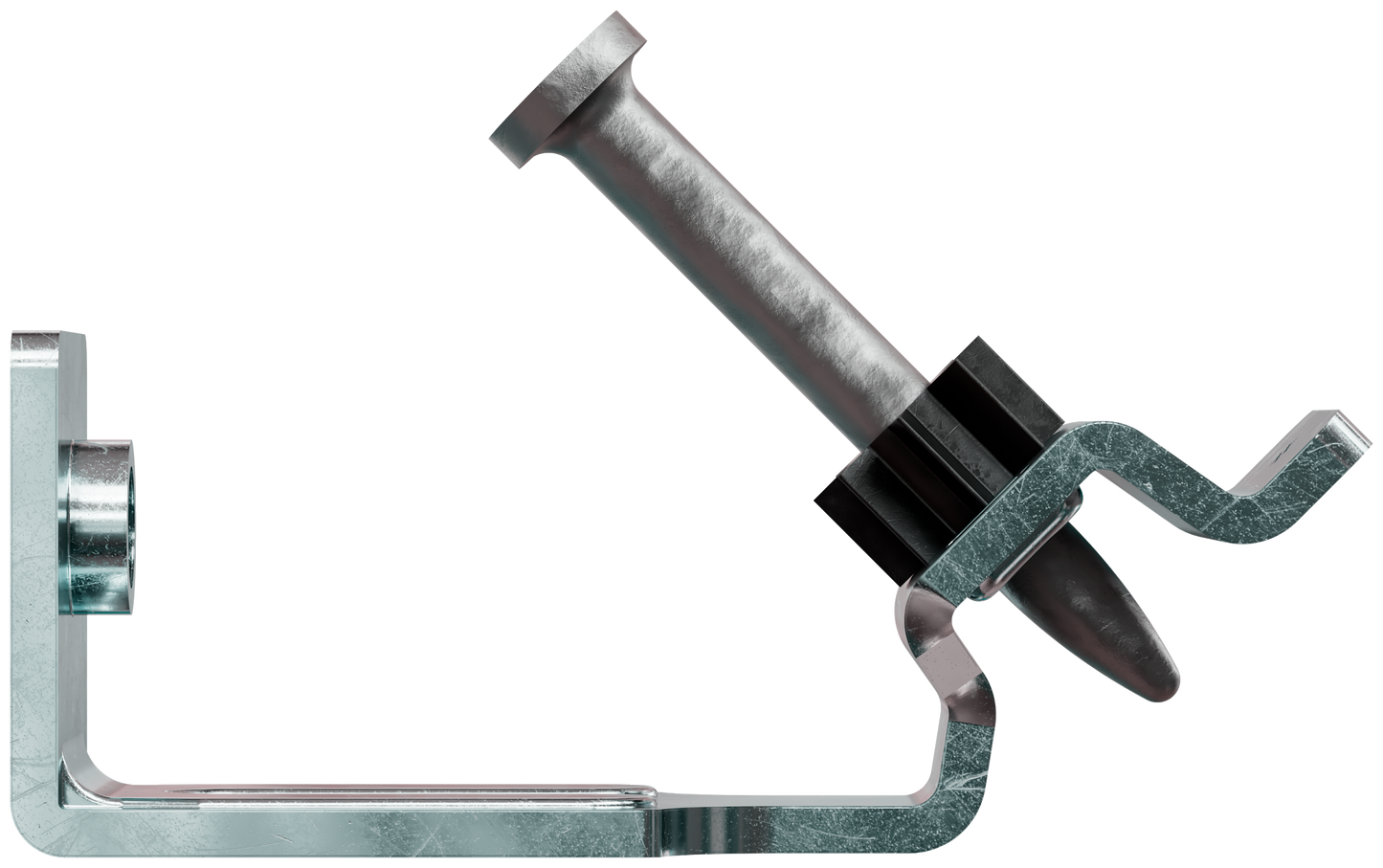

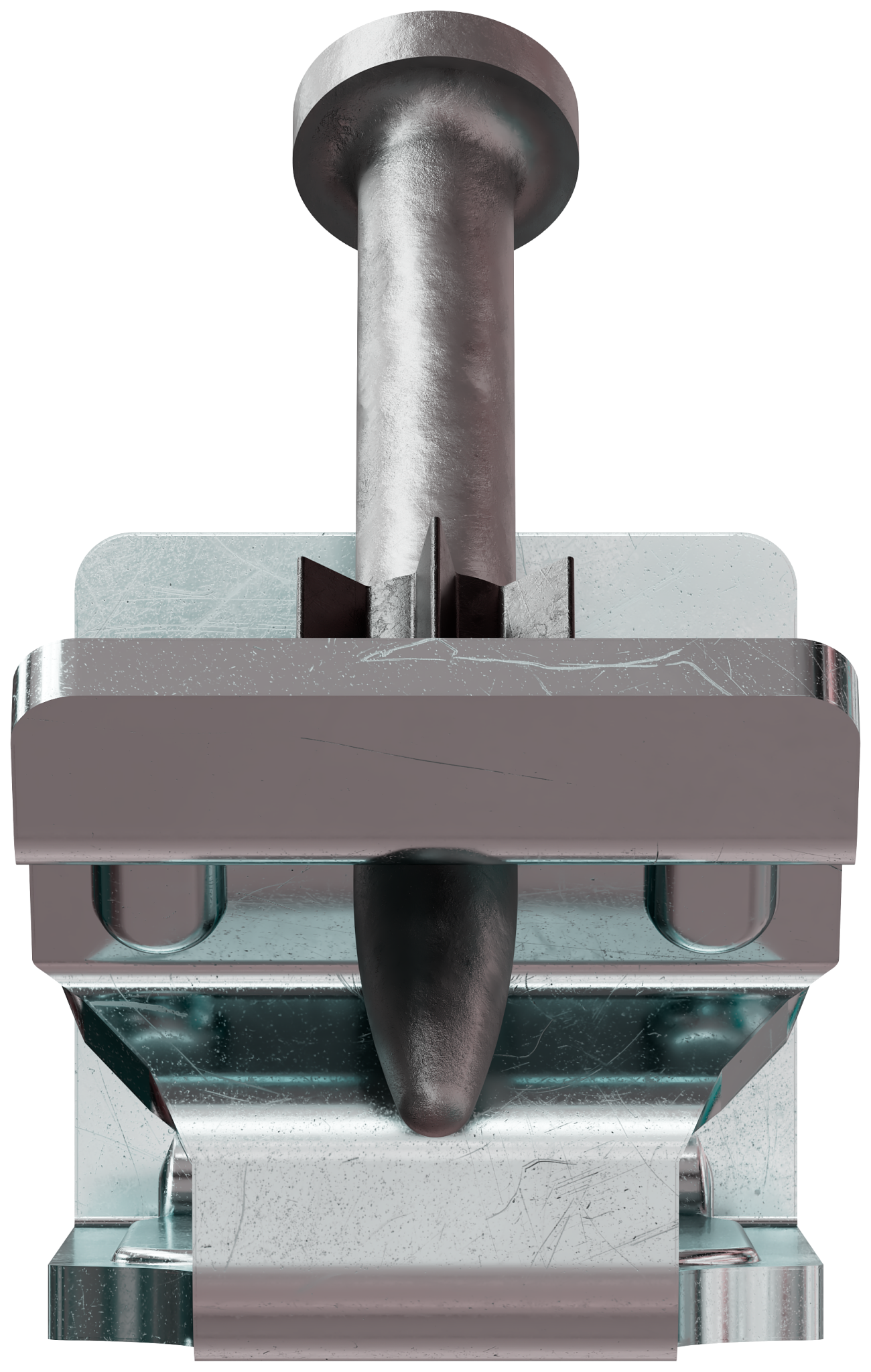

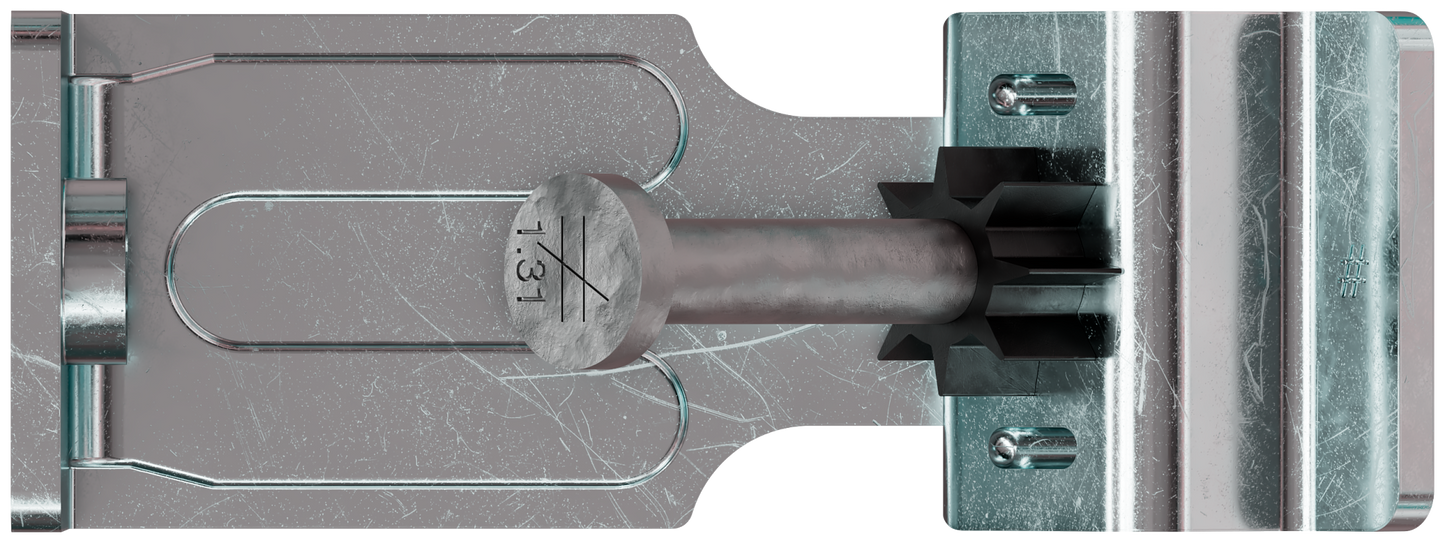

Simpson Strong-Tie PTRHA4-131 PTRHA Powder-Actuated Threaded Rod Hanger for 1/4-in. Threaded Rod (50-Qty)

Simpson Strong-Tie PTRHA4-131 PTRHA Powder-Actuated Threaded Rod Hanger for 1/4-in. Threaded Rod (50-Qty)

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PTRHA is powder-actuated assembly designed to attach threaded rod to concrete. The PTRHA consists of a 1-5/16 in. x 0.157-in. shank fastener attached to a 14-ga. threaded rod clip. The PTRHA is compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• 0.300-in. pin head diameter
• 0.157-in. pin shank diameter
• 1-5/16 in. pin length
• Accepts 1/4-in. —20 threaded rod
• Zinc-plated rod hanger
• Mechanically galvanized carbon-steel pin
• Quantity: 50

Specifications

• ERP Part Number: PTRHA4-131
• UPC: 707392579021
• GTIN: 707392579021
• Feature 01: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Feature 03: 0.300-in. pin head diameter
• Feature 04: 0.157-in. pin shank diameter
• Feature 05: 1-5/16 in. pin length
• Feature 06: Accepts 1/4-in. —20 threaded rod
• Feature 07: Zinc-plated rod hanger
• Feature 08: Mechanically galvanized carbon-steel pin
• Feature 09: Quantity: 50
• Assembled Depth - Imperial: 0.781
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.39
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.18
• Assembled Width UOM - Imperial: in.
• Base Product ID: PTRHA_Pin
• Base Product Name: PTRHA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Zinc Plated
• Coating.1: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Finish: Zinc Plated/Mechanically Galvanized
• GUID: 199123801986449734514956522820619148004
• Head Diameter (in.): 0.300
• Length (in.): 1 5/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.250
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.000
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 5.250
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.157
• Shipping Weight: 3.4
• Short Product Name: 1-5/16IN, 1/4IN ROD HANGER
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/ptrha_pin/p/ptrha
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392553110
