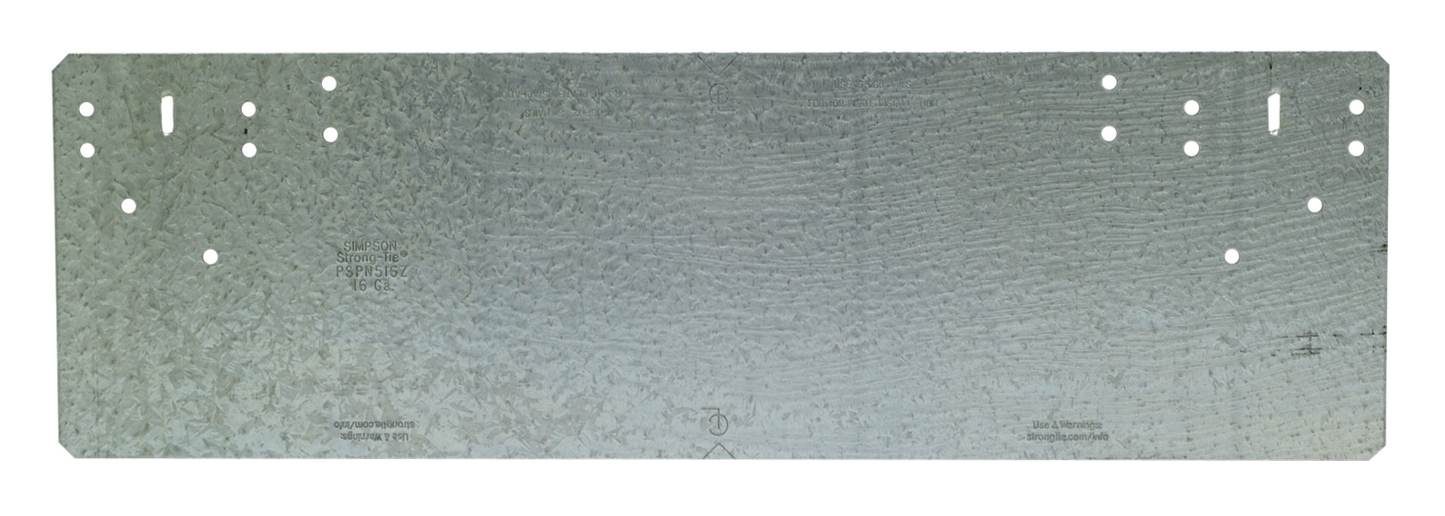

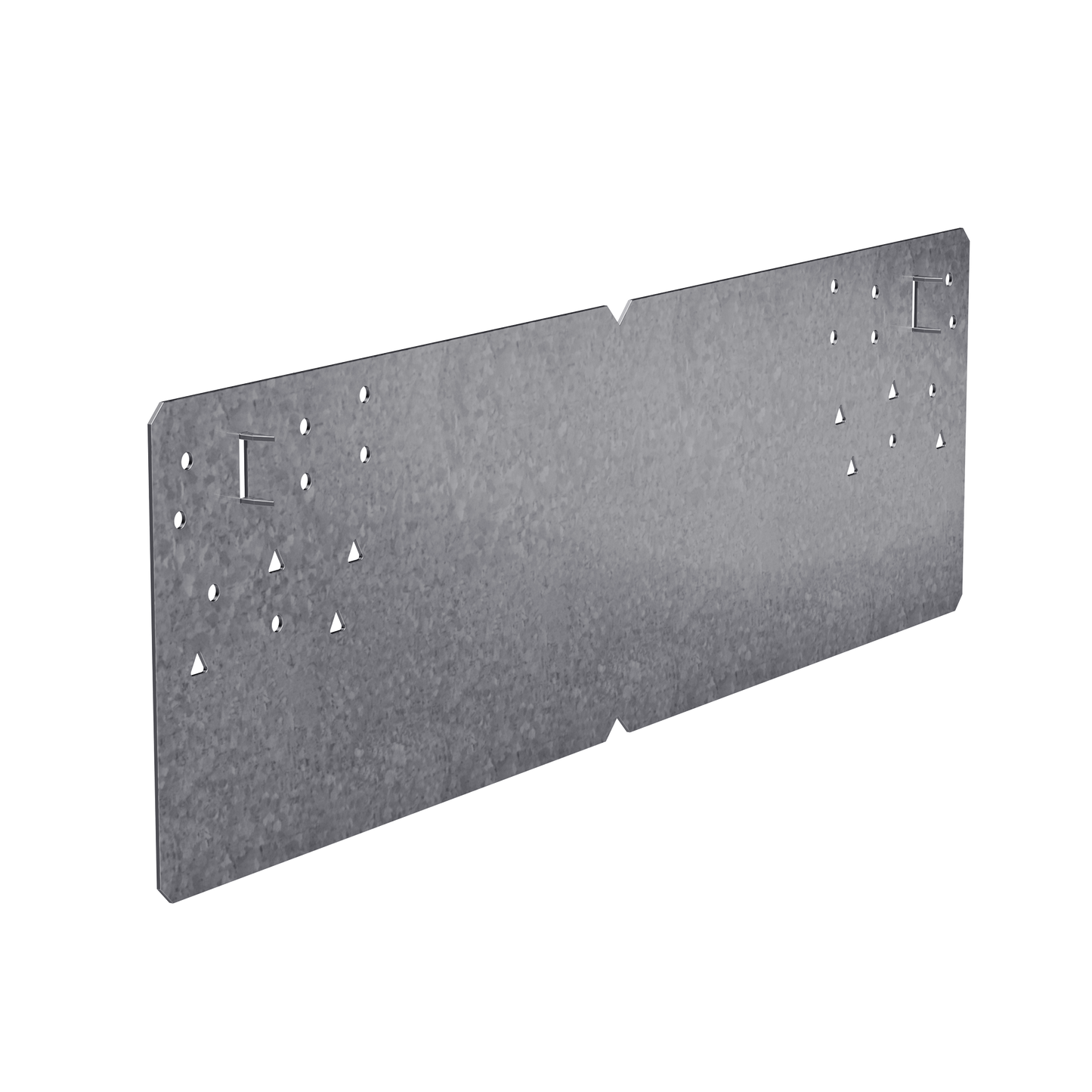

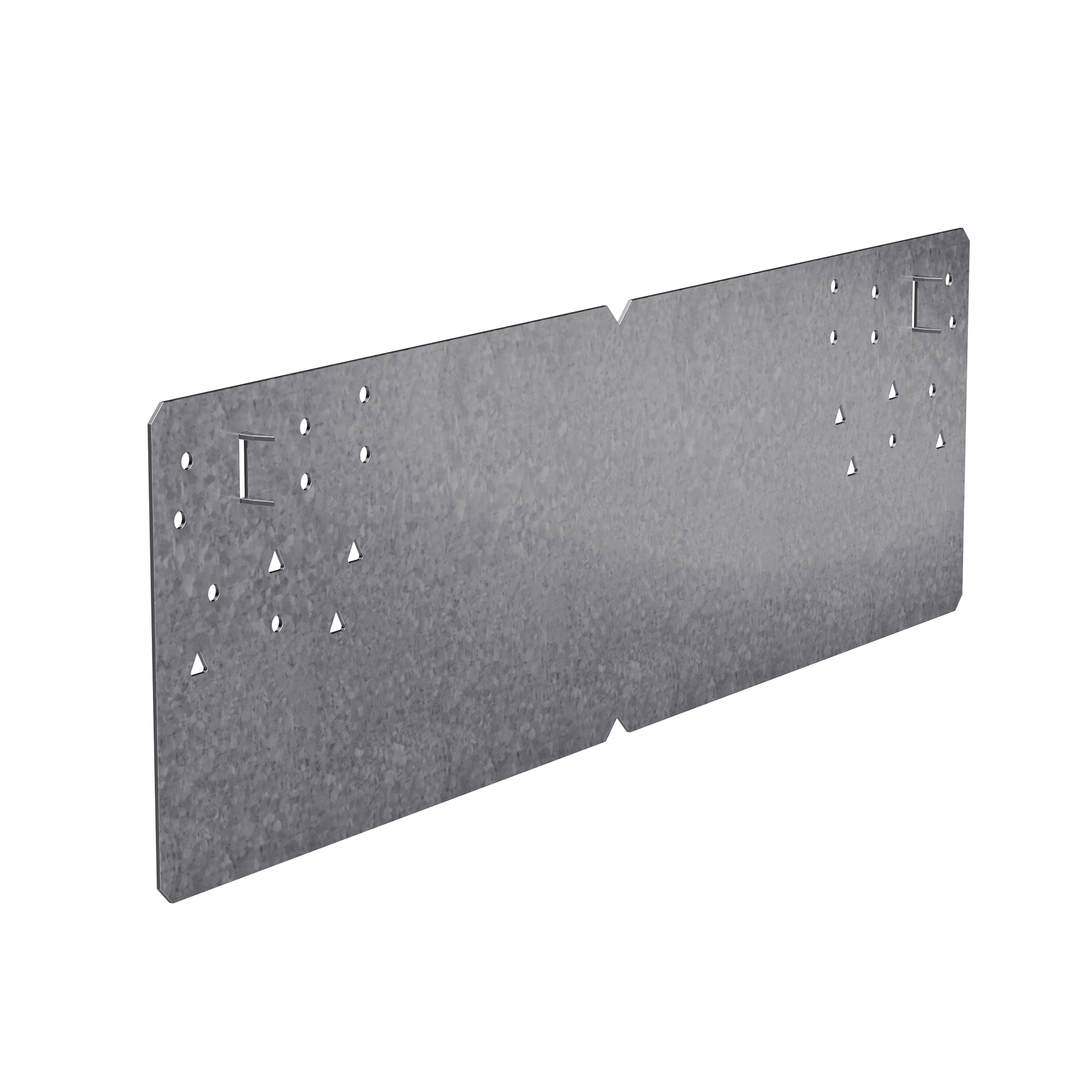

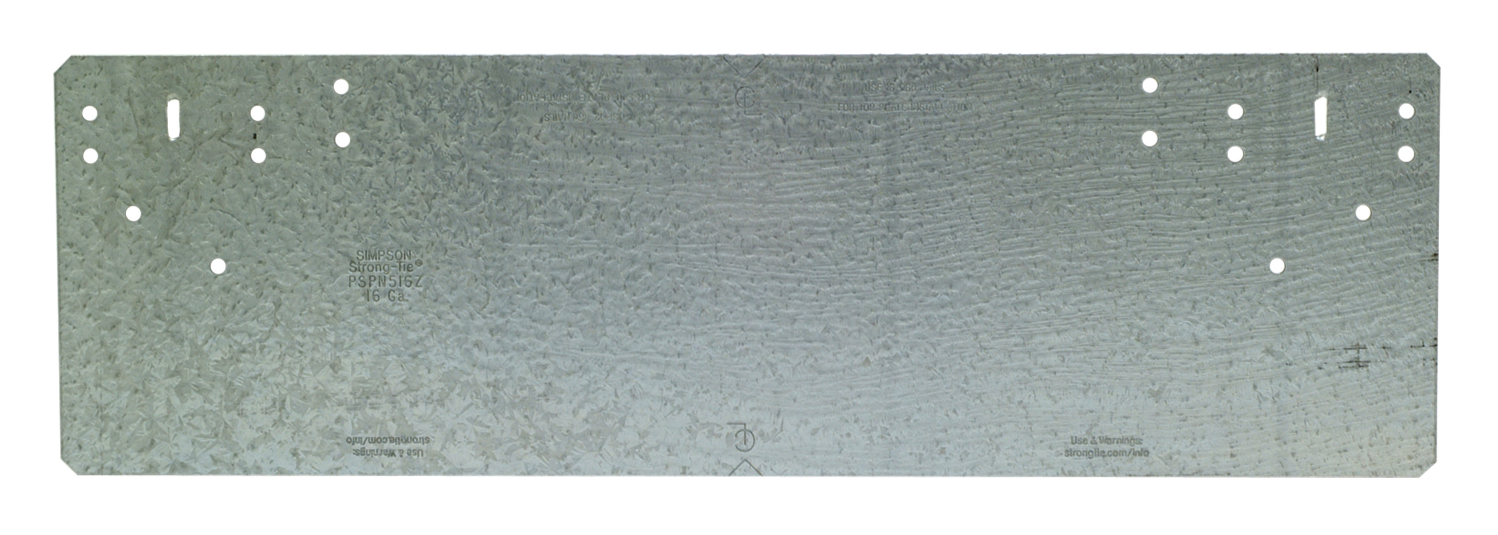

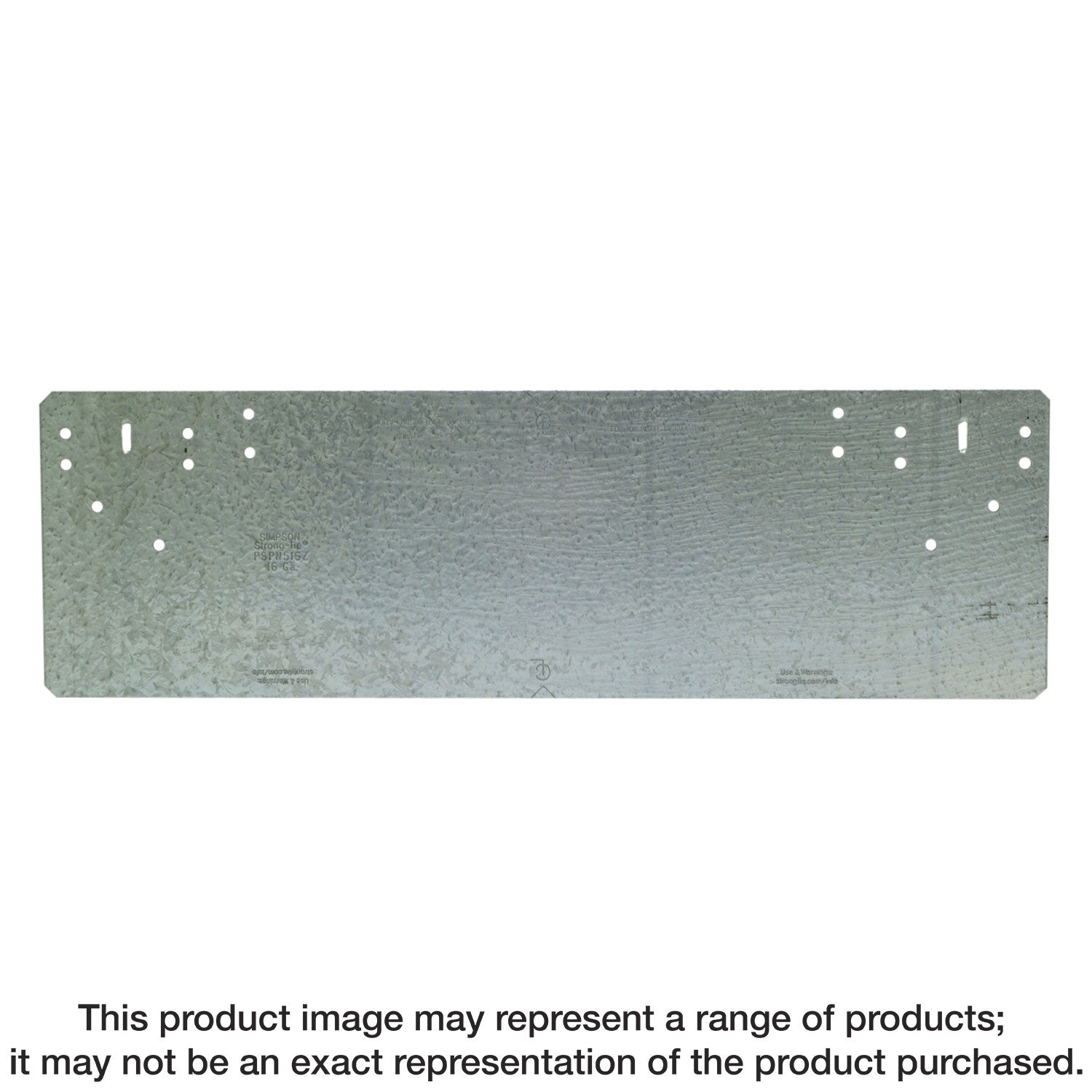

Simpson Strong-Tie PSPN516Z PSPNZ 5 in. x 16-5/16 in. ZMAX® Galvanized Protecting Shield Plate Nail Stopper

Simpson Strong-Tie PSPN516Z PSPNZ 5 in. x 16-5/16 in. ZMAX® Galvanized Protecting Shield Plate Nail Stopper

Nail stoppers help prevent nails from piercing pipes and electrical lines. Install over utilities that pass through framing members. PSPNZ protecting shield plate nail stoppers meet IRC, IBC and the International Plumbing Code. PSPN516Z meets the code plumbing protection requirements as well as having additional fasteners if the designer chooses to use it as a track splice strap.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Meets structural and protection requirements with one strap
• Width: 5 in.
• Length: 16-5/16 in.
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PSPN516Z
• UPC: 707392307907
• GTIN: 707392307907
• Feature 01: Meets structural and protection requirements with one strap
• Feature 02: Width: 5 in.
• Feature 03: Length: 16-5/16 in.
• Feature 04: Made from 16-gauge steel
• Feature 05: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 0.3715
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 16.3125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5
• Assembled Width UOM - Imperial: in.
• Base Product ID: PSPN_Plate
• Base Product Name: PSPNZ
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Nail Plate
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX®
• Gauge: 16
• GUID: 325940969969541409538786046774252695451
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Nail Plate
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.43
• Short Product Name: 5 X 16-5/16 PROTECTING SHIELD PLATE ZMAX
• Strongtie.com URL: https://www.strongtie.com/protectandrepair_miscellaneousconnectors/pspn_plate/p/pspnz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Angles and Plates
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392307901
• PAL Reference: 60707392307909
