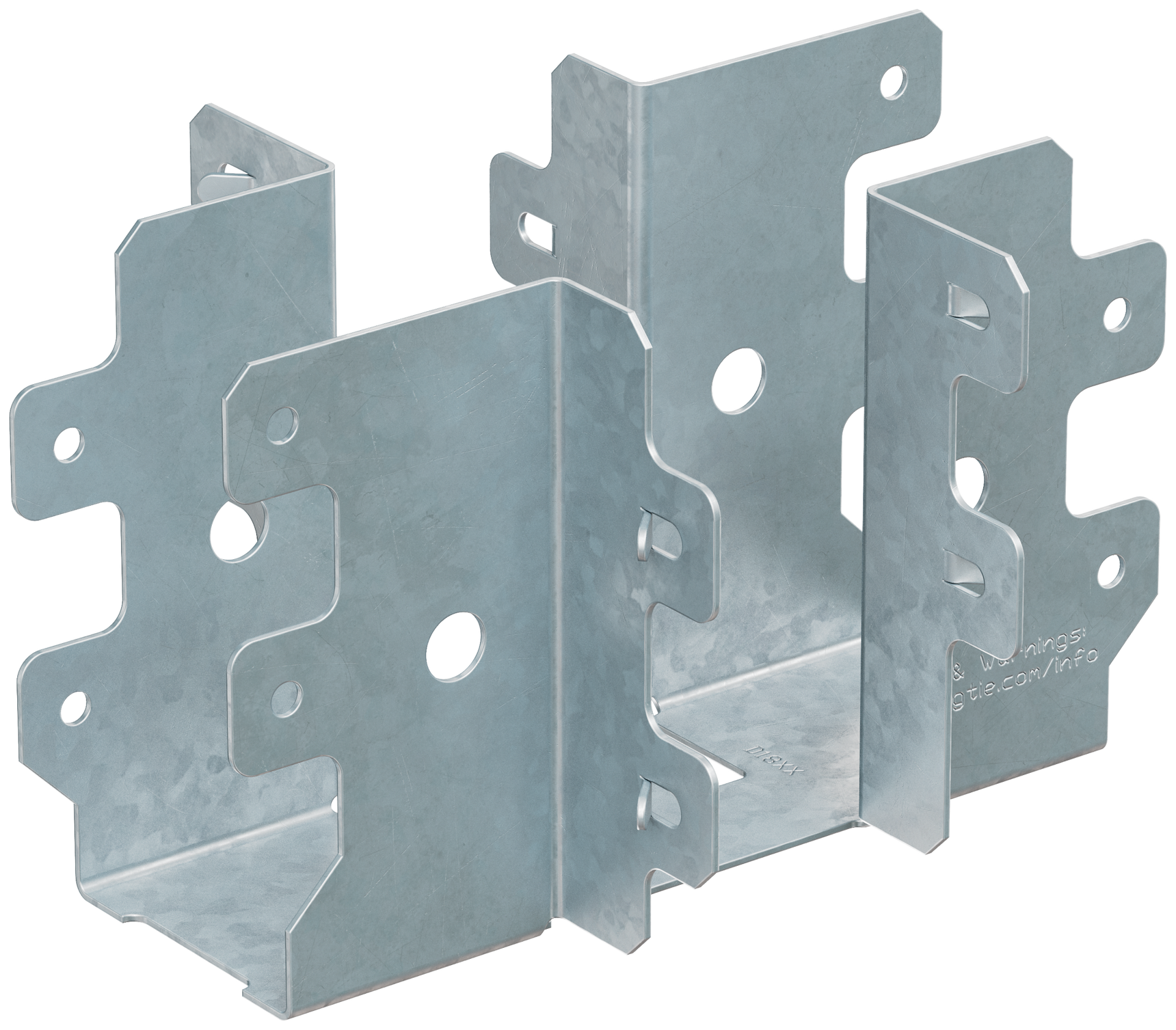

Simpson Strong-Tie PFUD24 PFUD™ 20-Gauge Post-Frame Under-Saddle Hanger for 2x4 Joist and 1-Ply Truss
The Simpson Strong-Tie® PFUD™ post-frame under-saddle hanger is an innovative solution for post-frame construction. The PFUD hanger is designed to support ceiling joists with ease. To minimize the labor required for hanger layout, the connector is 2-sided so that one hanger supports ceiling joists on each side of a truss. Layout is further simplified by the continuous seat that fits snugly under the truss’ bottom chord, automatically aligning parts vertically for an easier, faster layout. The PFUD can also be adjusted for single-side applications by simply bending the hanger in the field and separating it along the perforations to create two face-mounted options.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Reduces connector layout labor costs by half, as each unit supports two joists versus separate face-mounted hangers
- Load-rated for joist tension forces; ideal for ceiling panels acting as diaphragms or bottom chord truss bracing
- Easily halved along under-saddle perforations for one-sided use, eliminating the need for additional face-mounted hangers
- Offers greater reliability and load capacity than toe-nailed ceiling joists
- Compatible with both nails and screws for load-rated performance
- Fully tested and code listed to ensure strength, durability and peace of mind for specifiers and builders
- Nominal joist size: 2x4
- Fits 1-ply trusses
- Made from 20-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- ERP Part Number: PFUD24
- UPC: 707392264033
- GTIN: 707392264033
- Feature 01: Reduces connector layout labor costs by half, as each unit supports two joists versus separate face-mounted hangers
- Feature 02: Load-rated for joist tension forces; ideal for ceiling panels acting as diaphragms or bottom chord truss bracing
- Feature 03: Easily halved along under-saddle perforations for one-sided use, eliminating the need for additional face-mounted hangers
- Feature 04: Offers greater reliability and load capacity than toe-nailed ceiling joists
- Feature 05: Compatible with both nails and screws for load-rated performance
- Feature 06: Fully tested and code listed to ensure strength, durability and peace of mind for specifiers and builders
- Feature 07: Nominal joist size: 2x4
- Feature 08: Fits 1-ply trusses
- Feature 09: Made from 20-gauge steel
- Feature 10: Galvanized (G90) for corrosion resistance
- Install With: Install with (16–18) #9 x 1-1/2 in. Strong-Drive® SD Connector screws OR (16–18) 0.148 in. x 1-1/2 in. Strong-Drive® SCN Smooth-Shank Connector nails for 2-sided applications (Models: SD9112, N10DHDG)
- Assembled Depth - Imperial: 5.125
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 3.2225
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 3.82
- Assembled Width UOM - Imperial: in.
- Base Product ID: PFUD_Hanger
- Base Product Name: PFUD™
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
- Coating: Zinc Galvanized, G90
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- Finish: Zinc Galvanized, G90
- Gauge: 20
- GUID: 10972650625031973909344594230318024596
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- Member Size: 2x4
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 1
- Packaging Type: Unpacked
- Product Class: Hanger
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 0.33
- Short Product Name: 2x4 PF Under Saddle Hanger 1-Ply
- Strongtie.com URL: https://www.strongtie.com/postframehangers_solidsawnlumberconnectors/pfud_hanger/p/pfud
- Subcategory: Wood Construction Connectors
- Subcategory 2: Joist Hangers
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10707392264030
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
