Simpson Strong-Tie PFD24B PFB Galvanized Post-Frame Saddle Hanger for 2x4

Simpson Strong-Tie PFD24B PFB Galvanized Post-Frame Saddle Hanger for 2x4

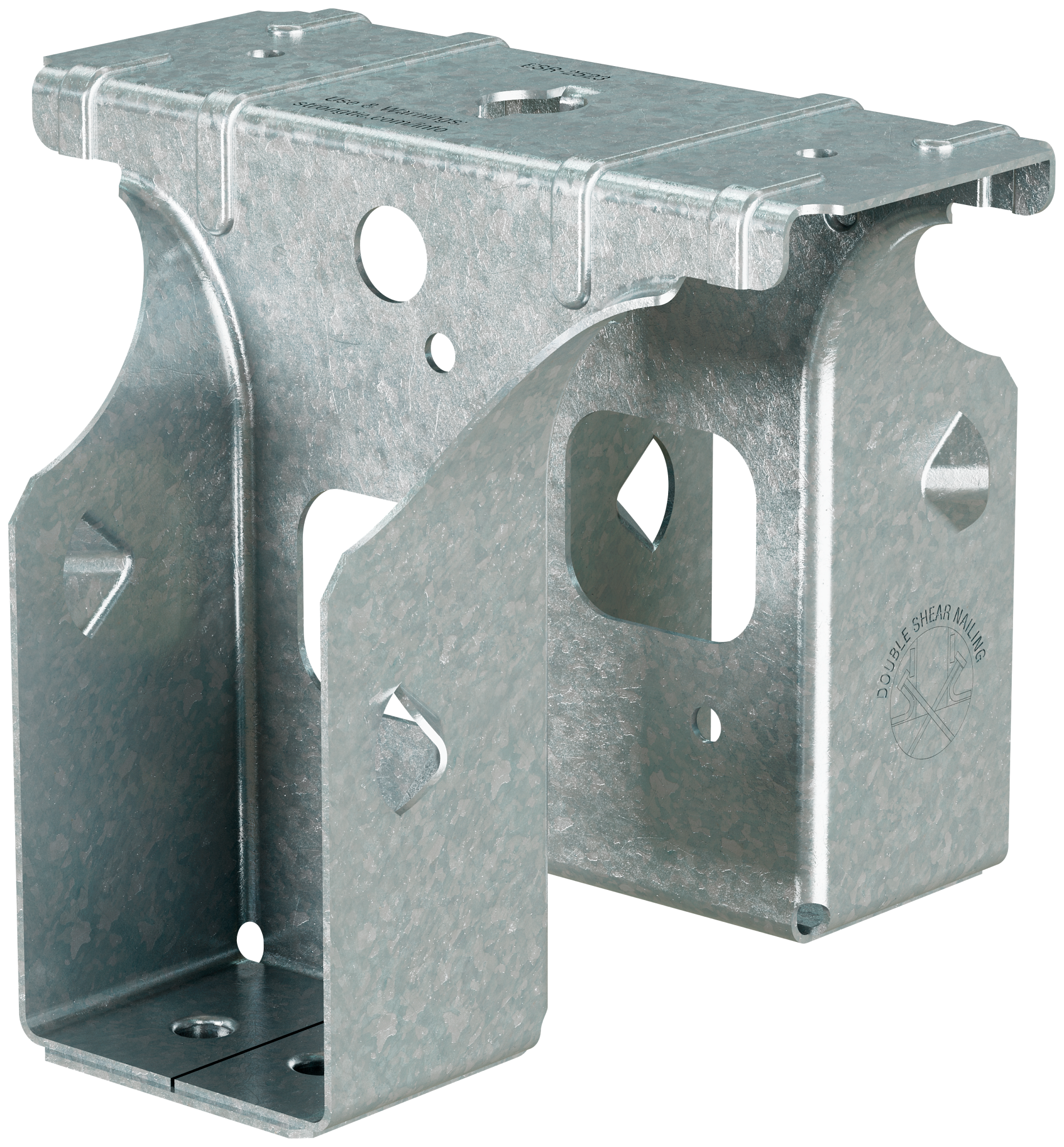

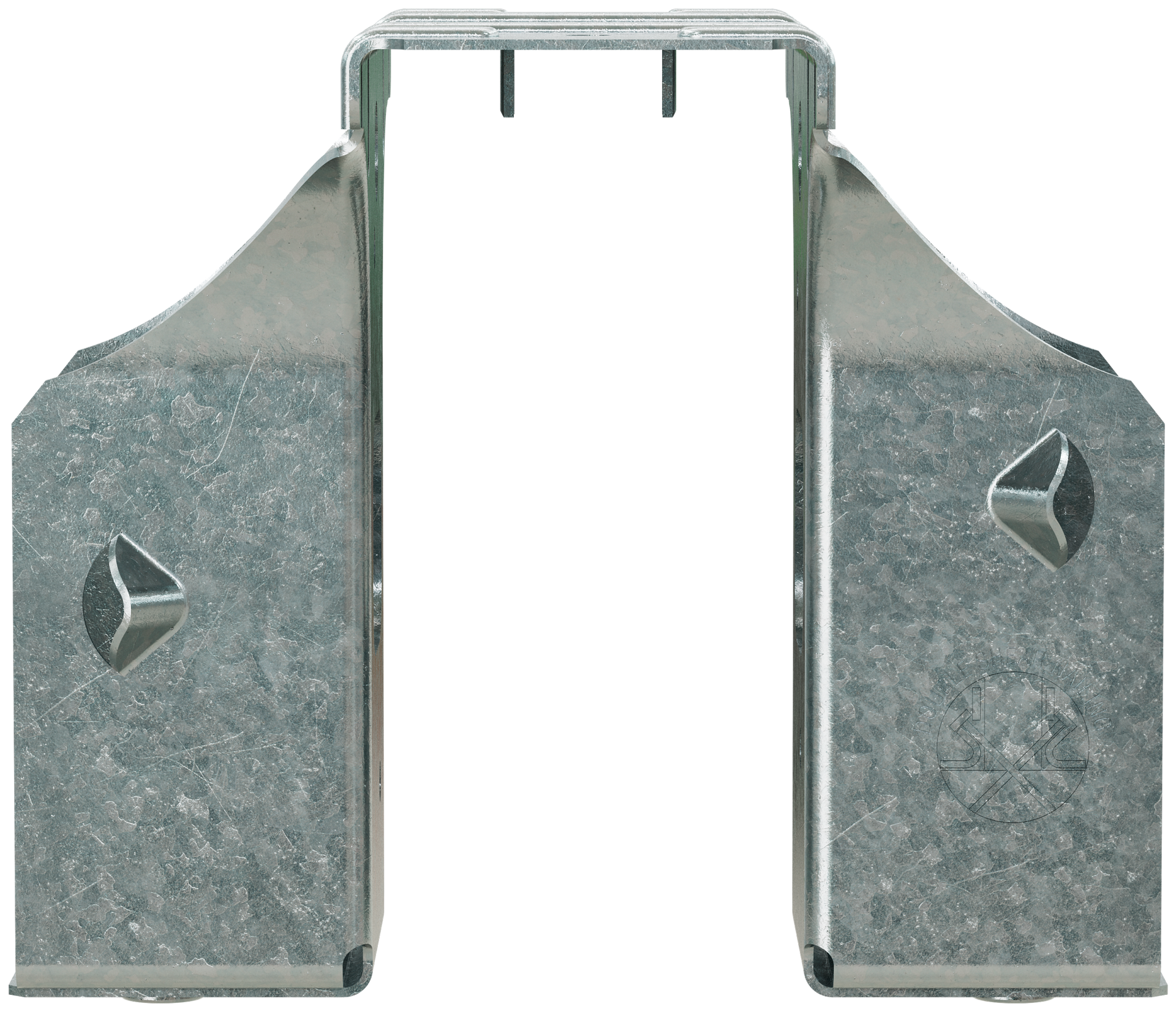

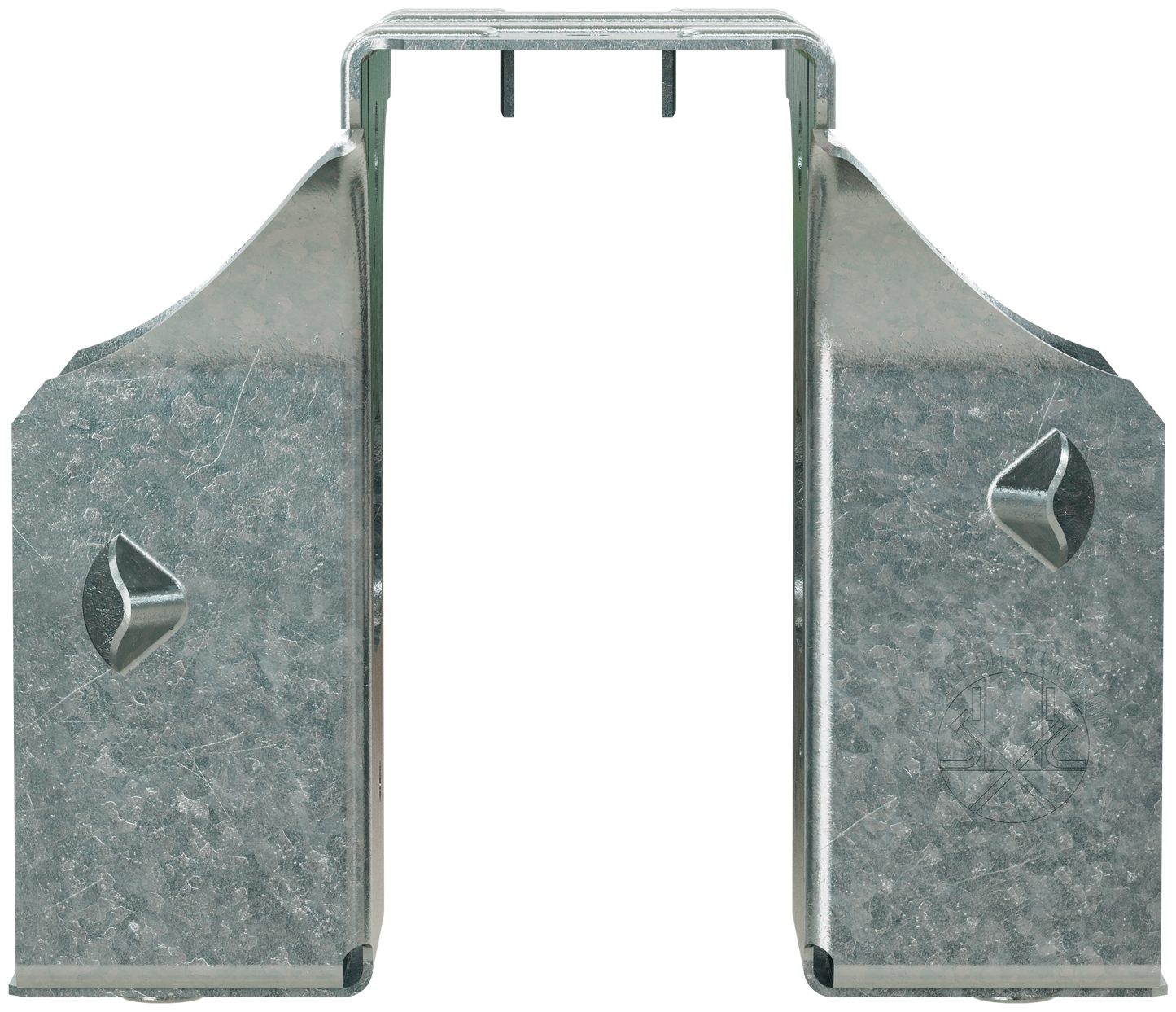

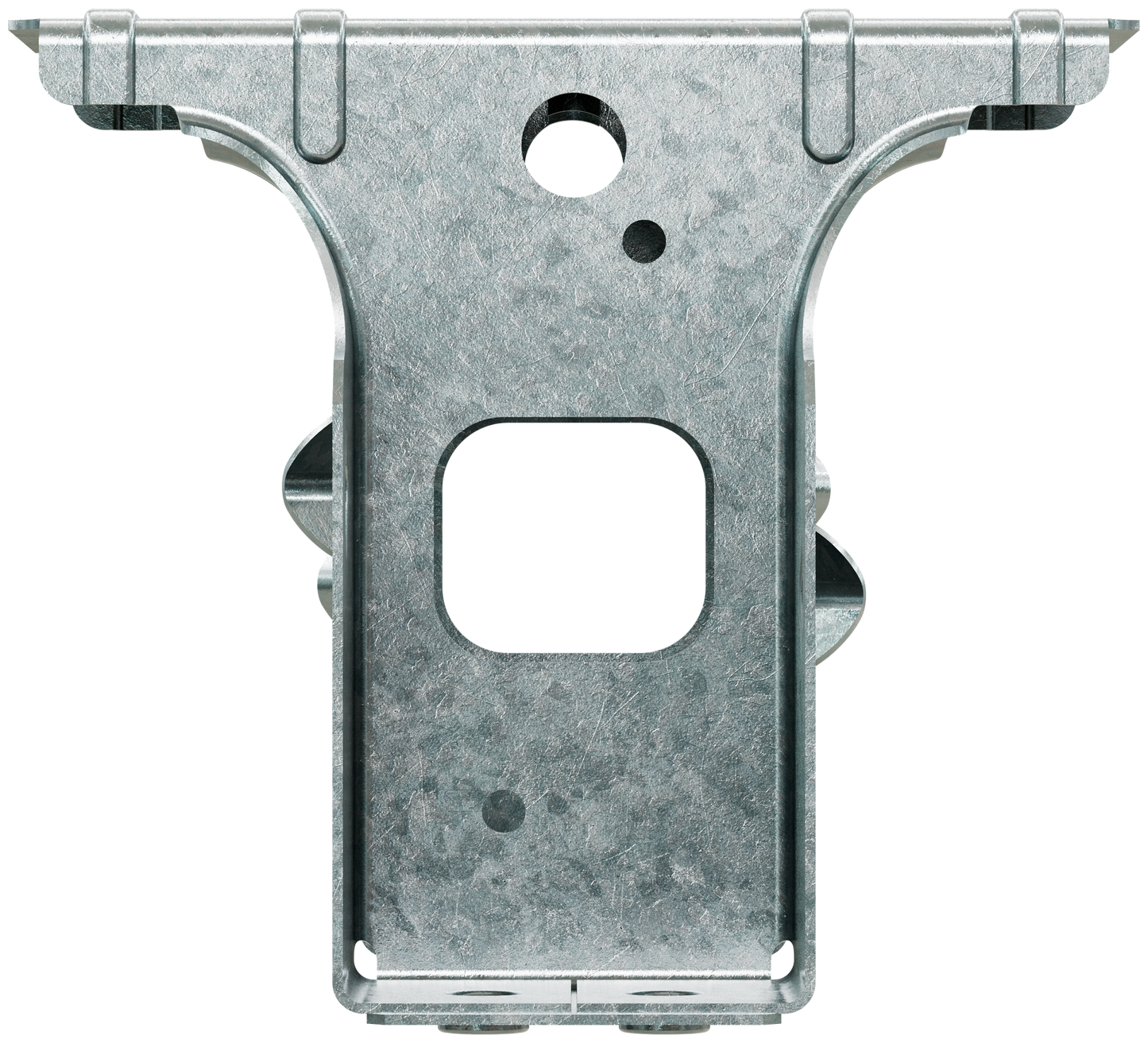

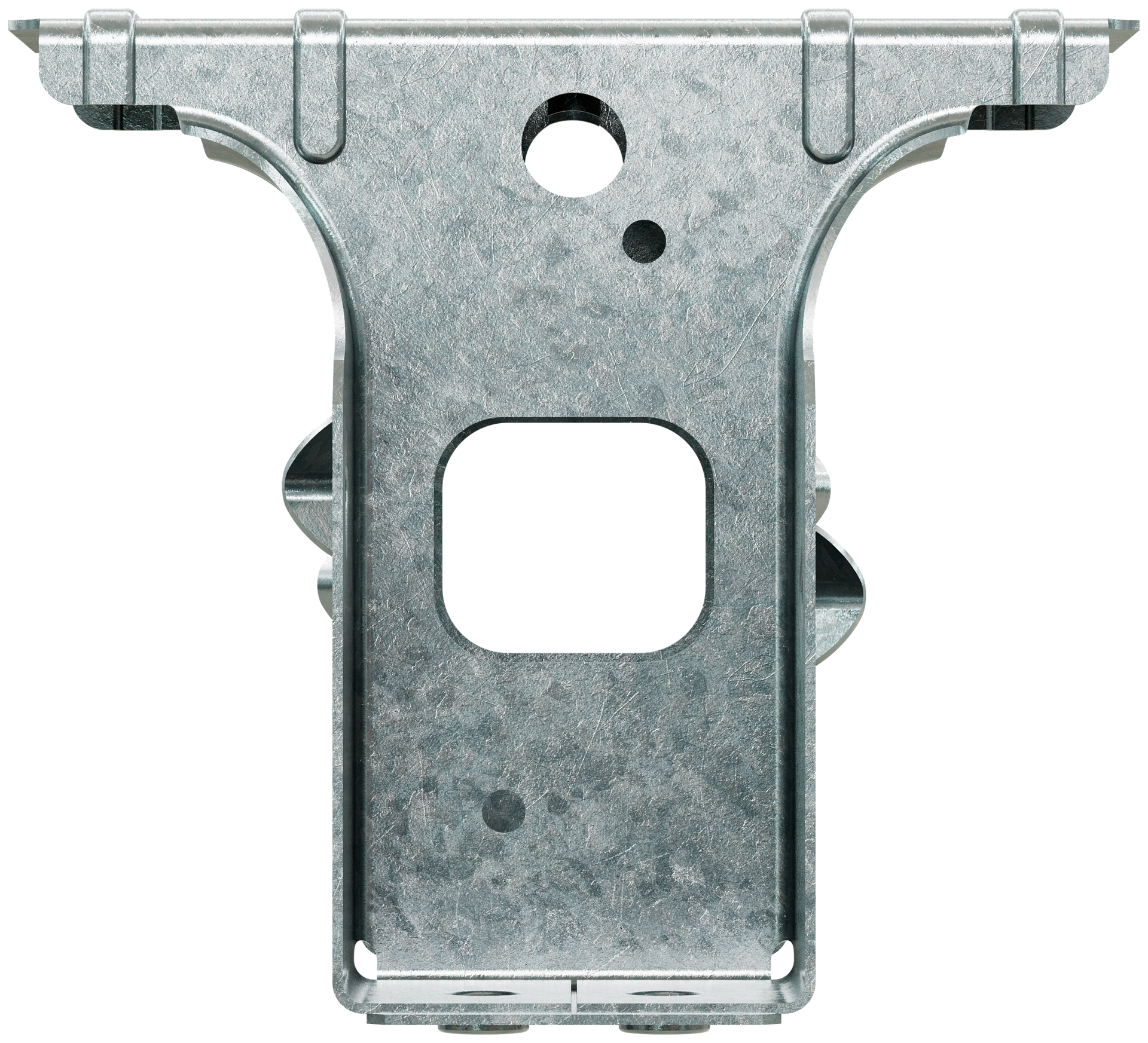

The PFDB hangers are top-flange saddle hangers for post-frame construction. They have dome-shaped joist nail holes that guide nails into the proper installation angle. Their design features a folded seat that raises the 2x joist slightly above the seat radius to enable a tighter connection to the back of the hanger. The solid, one-piece top flange allows for accurate and fast installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Installation prongs make setting the hanger quick and easy
• The patented double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails
• PFDSB models are for double 2x support, and PFDLB saddles are for LVL support
• Nominal joist size: 2x4
• Made from 20-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: PFD24B
• UPC: 707392334668
• GTIN: 707392334668
• Feature 01: Installation prongs make setting the hanger quick and easy
• Feature 02: The patented double-shear nailing design distributes the load through two points on each joist, providing greater strength with fewer nails
• Feature 03: PFDSB models are for double 2x support, and PFDLB saddles are for LVL support
• Feature 04: Nominal joist size: 2x4
• Feature 05: Made from 20-gauge steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Install With: 0.148 in. x 1-1/2 in. nails. or 0.148 in. x 3 in. nails
• Assembled Depth - Imperial: 4.2123
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.575
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PFDB_Hanger
• Base Product Name: PFDB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 20
• GUID: 300397064434286297637793159456773321702
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.4
• Short Product Name: 2 X 4 POST FRAME SADDLE HANGER
• Strongtie.com URL: https://www.strongtie.com/postframehangers_solidsawnlumberconnectors/pfdb_hanger/p/pfdb
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392334665
• PAL Reference: 50707392334663
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
