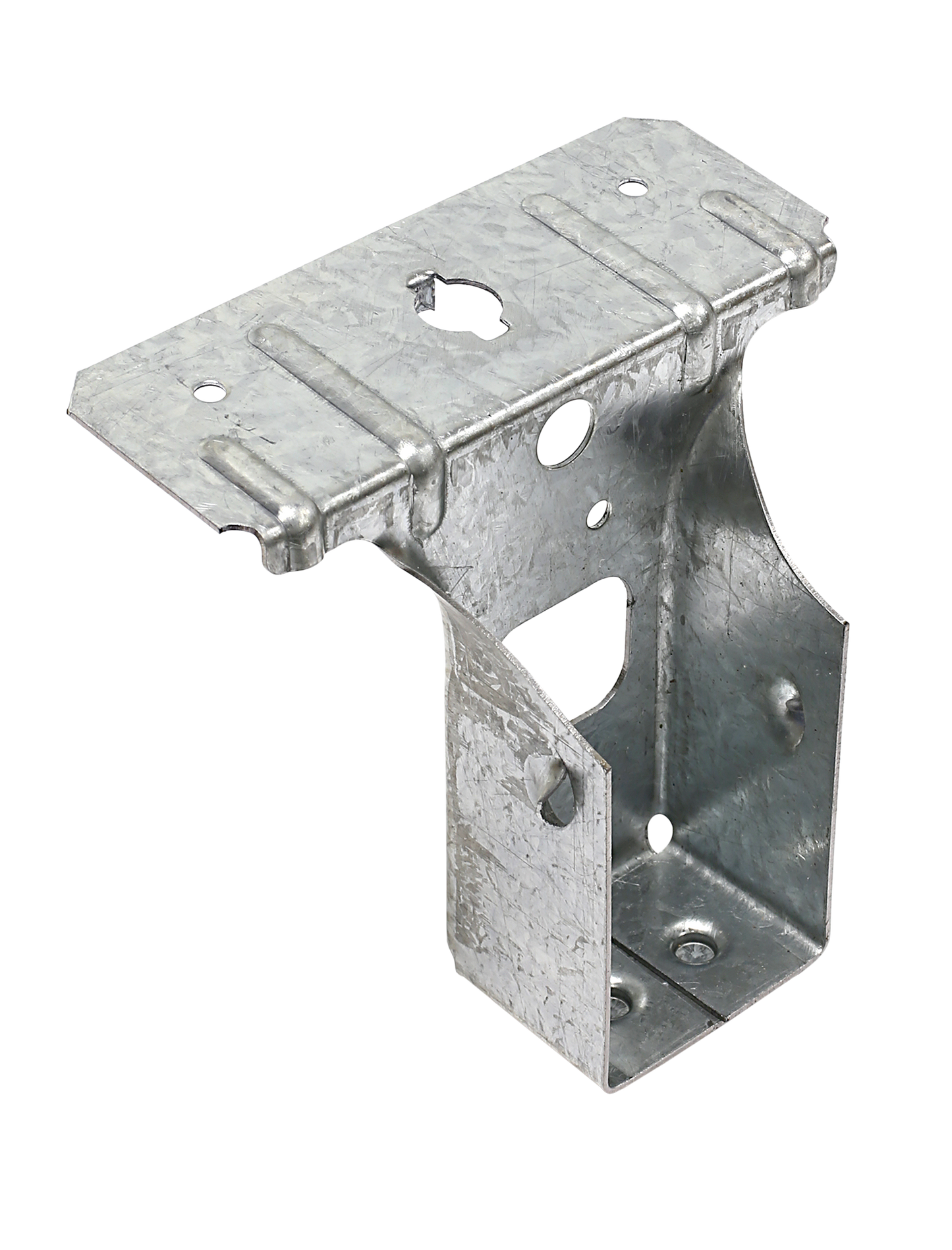

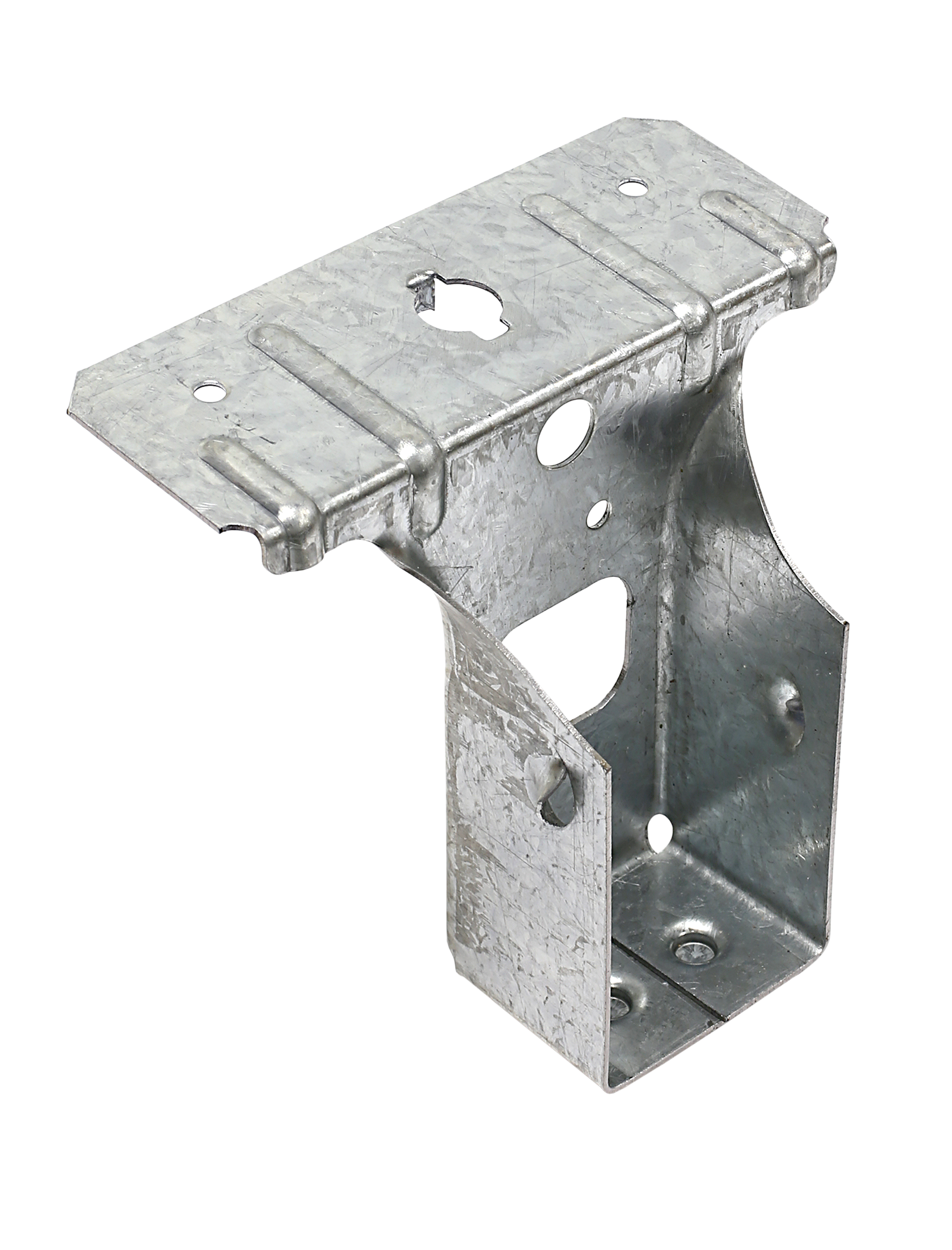

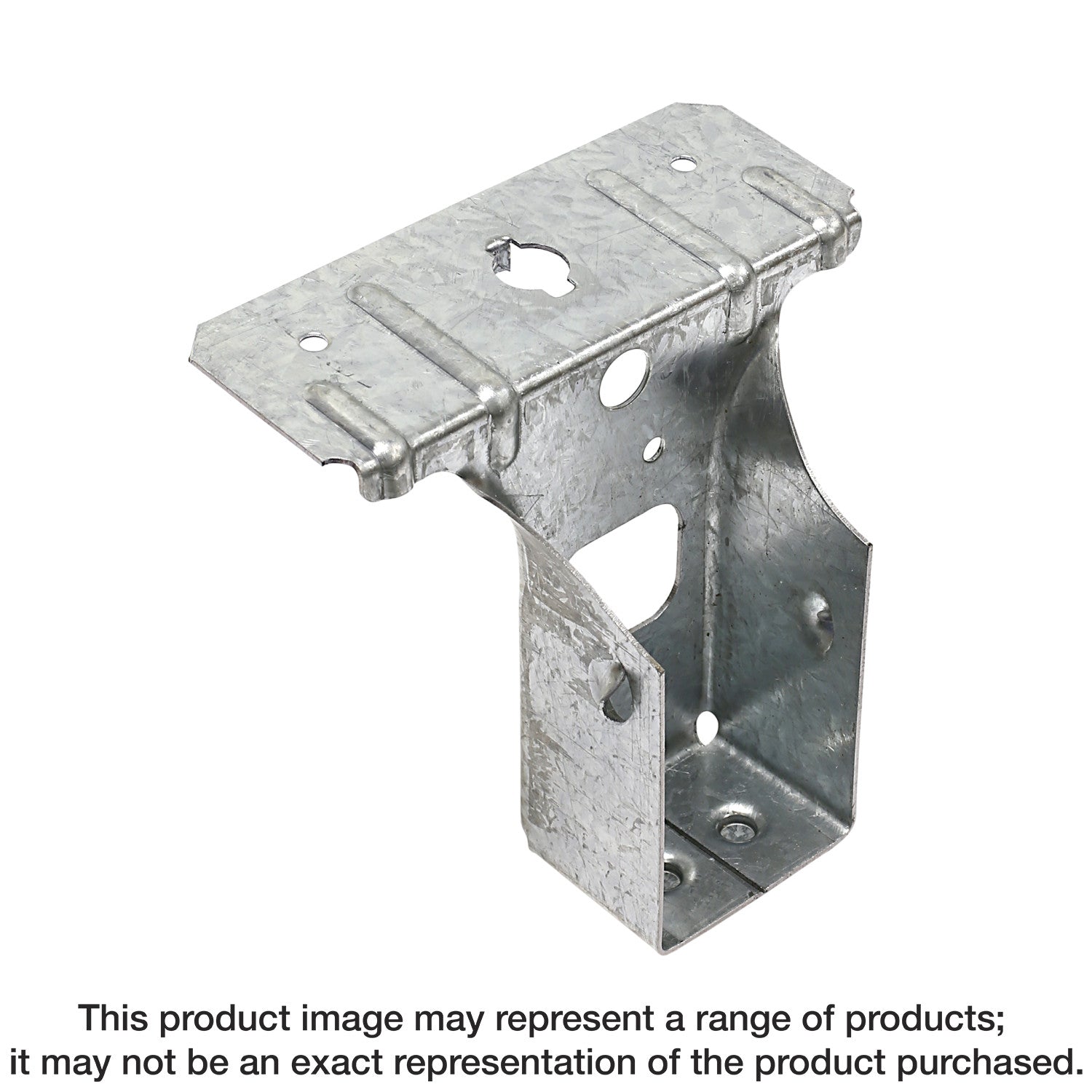

Simpson Strong-Tie PF24B PFB Galvanized Post-Frame Hanger for 2x4

Simpson Strong-Tie PF24B PFB Galvanized Post-Frame Hanger for 2x4

The Simpson Strong-Tie® PFB top-flange hanger is for use in post-frame construction. It has dome-shaped joist nail holes that guide nails into the proper installation angle. The PFB features a folded seat that raises the 2x joist slightly above the seat radius to enable a tighter connection to the back of the hanger.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Solid one-piece top flange allows for accurate and fast installation
• Installation prongs make setting the hanger quick and easy
• The double-shear nailing design distributes the load throughout two points on each joist, providing greater strength with fewer nails
• Seat width: 1-9/16 in.
• Nominal joist size: 2x4
• Made from 20-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: PF24B
• UPC: 707392503064
• GTIN: 707392503064
• Feature 01: Solid one-piece top flange allows for accurate and fast installation
• Feature 02: Installation prongs make setting the hanger quick and easy
• Feature 03: The double-shear nailing design distributes the load throughout two points on each joist, providing greater strength with fewer nails
• Feature 04: Seat width: 1-9/16 in.
• Feature 05: Nominal joist size: 2x4
• Feature 06: Made from 20-gauge steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Install With: (2) 0.148 in. x 3 in. nails in the top and (2) 0.148 in. x 3 in. nails in the joist OR (2) 0.148 in. x 1-1/2 in. nails in the top, (2) 0.148 in. x 1-1/2 in. nails in the face and (2) 0.148 in. x 1-1/2 in. nails in the joist
• Assembled Depth - Imperial: 2.8249
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.575
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PFB_Hanger
• Base Product Name: PFB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 20
• GUID: 121428947125125225008365419637365406149
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.23
• Short Product Name: 2 X 4 POST FRAME HANGER
• Strongtie.com URL: https://www.strongtie.com/postframehangers_solidsawnlumberconnectors/pfb_hanger/p/pfb
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392503061
• PAL Reference: 50707392503069
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
