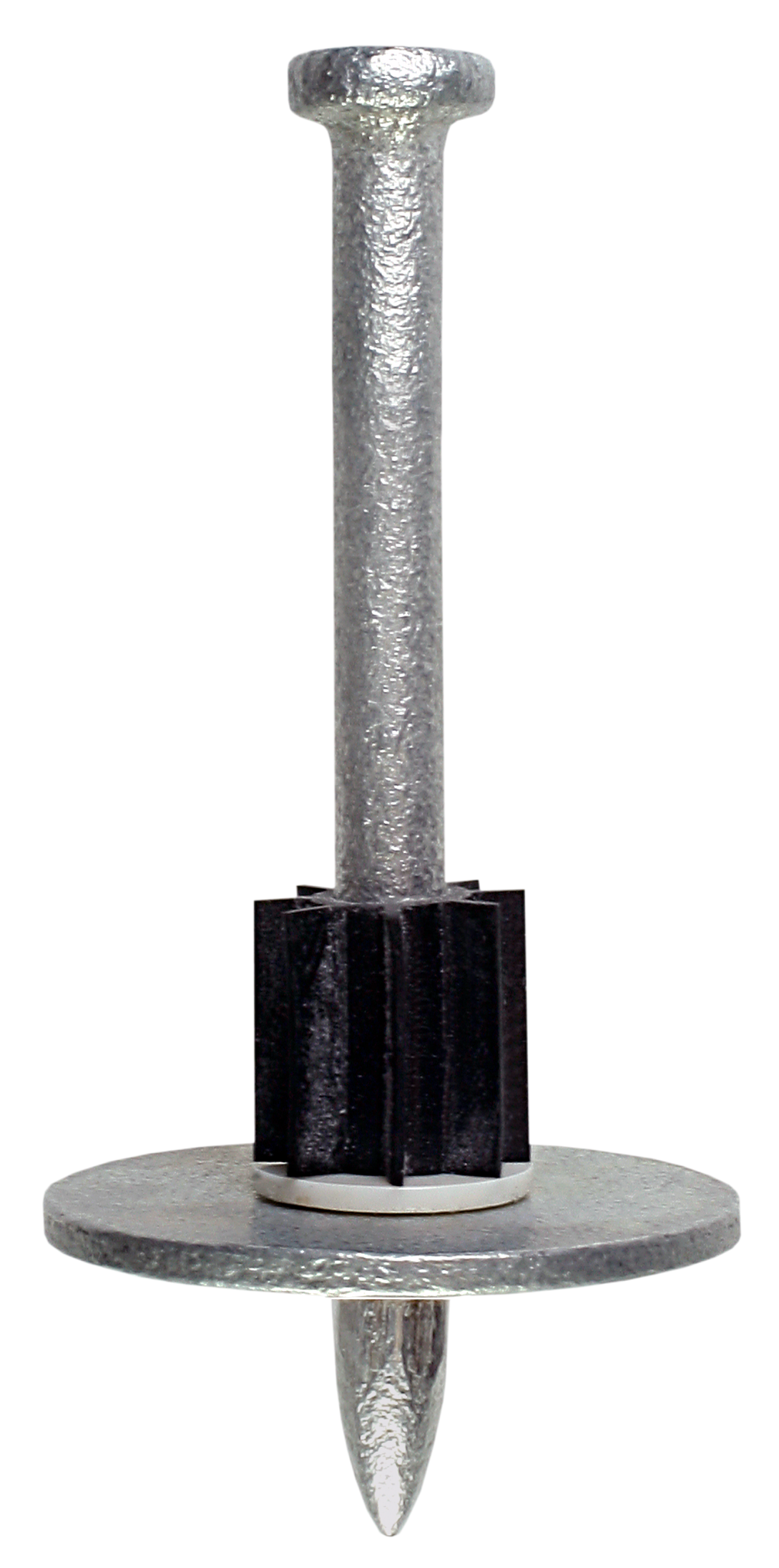

Simpson Strong-Tie PDPAWL-225 PDPAWL .157-in. x 2-1/4-in. Powder-Actuated Pin with 1-in. Washer (100-Qty)

Simpson Strong-Tie PDPAWL-225 PDPAWL .157-in. x 2-1/4-in. Powder-Actuated Pin with 1-in. Washer (100-Qty)

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PDPAWL is a powder-actuated washered pin designed to fasten building components to concrete, steel and CMU. The PDPAWL consists of a hardened-steel PDPA pin preassembled with a 1-in. washer that provides additional bearing surface for enhanced upload resistance. The PDPAWL is designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
• 0.300-in. head diameter / 0.157-in. shank diameter
• 1-in. zinc-plated washer
• Mechanically galvanized carbon-steel pin
• Length: 2-1/4 in.
• Quantity: 100

Specifications

• ERP Part Number: PDPAWL-225
• UPC: 707392000198
• GTIN: 707392000198
• Feature 01: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Feature 03: Compatible with Simpson Strong-Tie powder-actuated tool systems as well as other common tools
• Feature 04: 0.300-in. head diameter / 0.157-in. shank diameter
• Feature 05: 1-in. zinc-plated washer
• Feature 06: Mechanically galvanized carbon-steel pin
• Feature 07: Length: 2-1/4 in.
• Feature 08: Quantity: 100
• Assembled Depth - Imperial: 1.00
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.00
• Assembled Width UOM - Imperial: in.
• Base Product ID: PDPAWL_Pin
• Base Product Name: PDPAWL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Mechanically Galvanized
• GUID: 127973199143035006198455944558592887769
• Head Diameter (in.): 0.300
• Length (in.): 2 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.250
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.000
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 5.250
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.157
• Shipping Weight: 3.3
• Short Product Name: .157 X 2 14 pin w 1' washer 100 PACK
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/pdpawl_pin/p/pdpawl
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392000195
