Simpson Strong-Tie PDPAT-50K PDPAT 1/2-in. Knurled-Shank Powder-Driven Top-Hat Pin (100-Qty)

Simpson Strong-Tie PDPAT-50K PDPAT 1/2-in. Knurled-Shank Powder-Driven Top-Hat Pin (100-Qty)

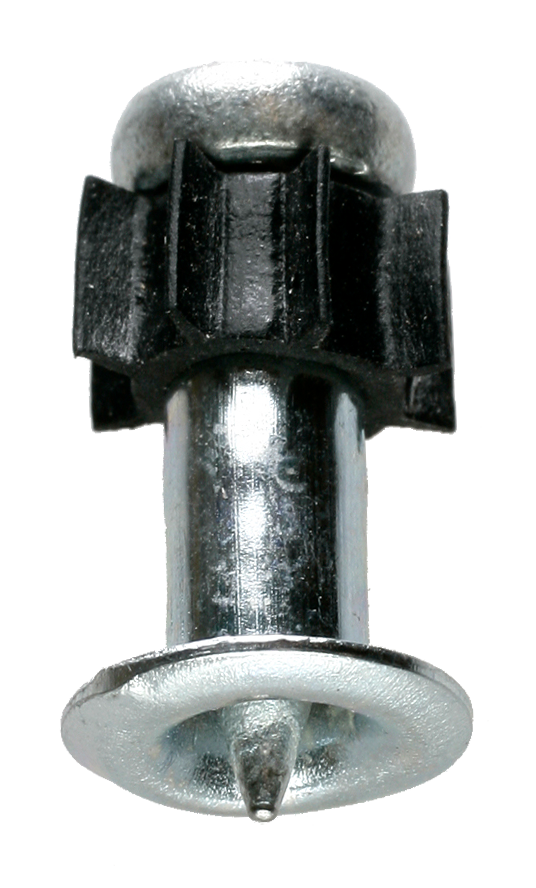

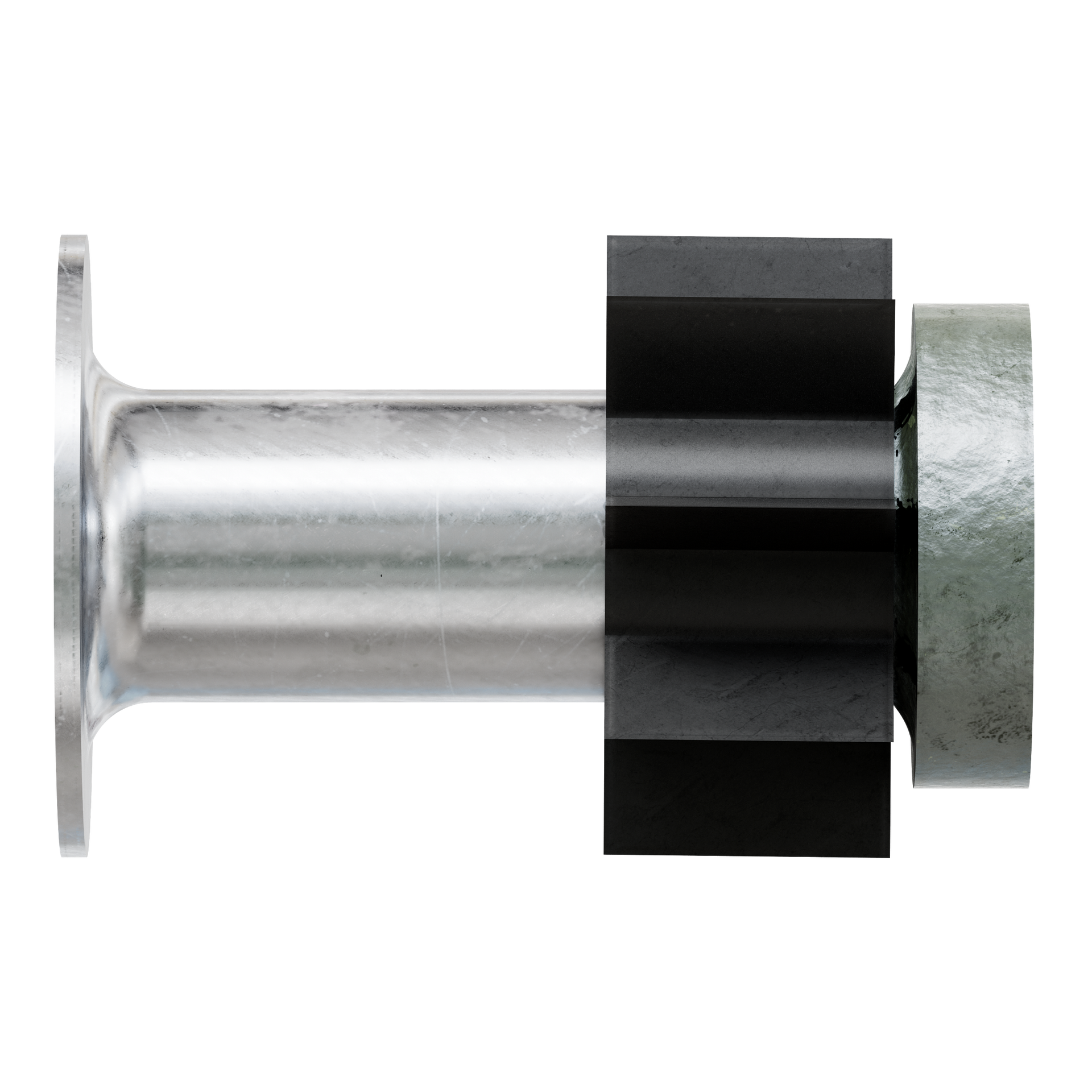

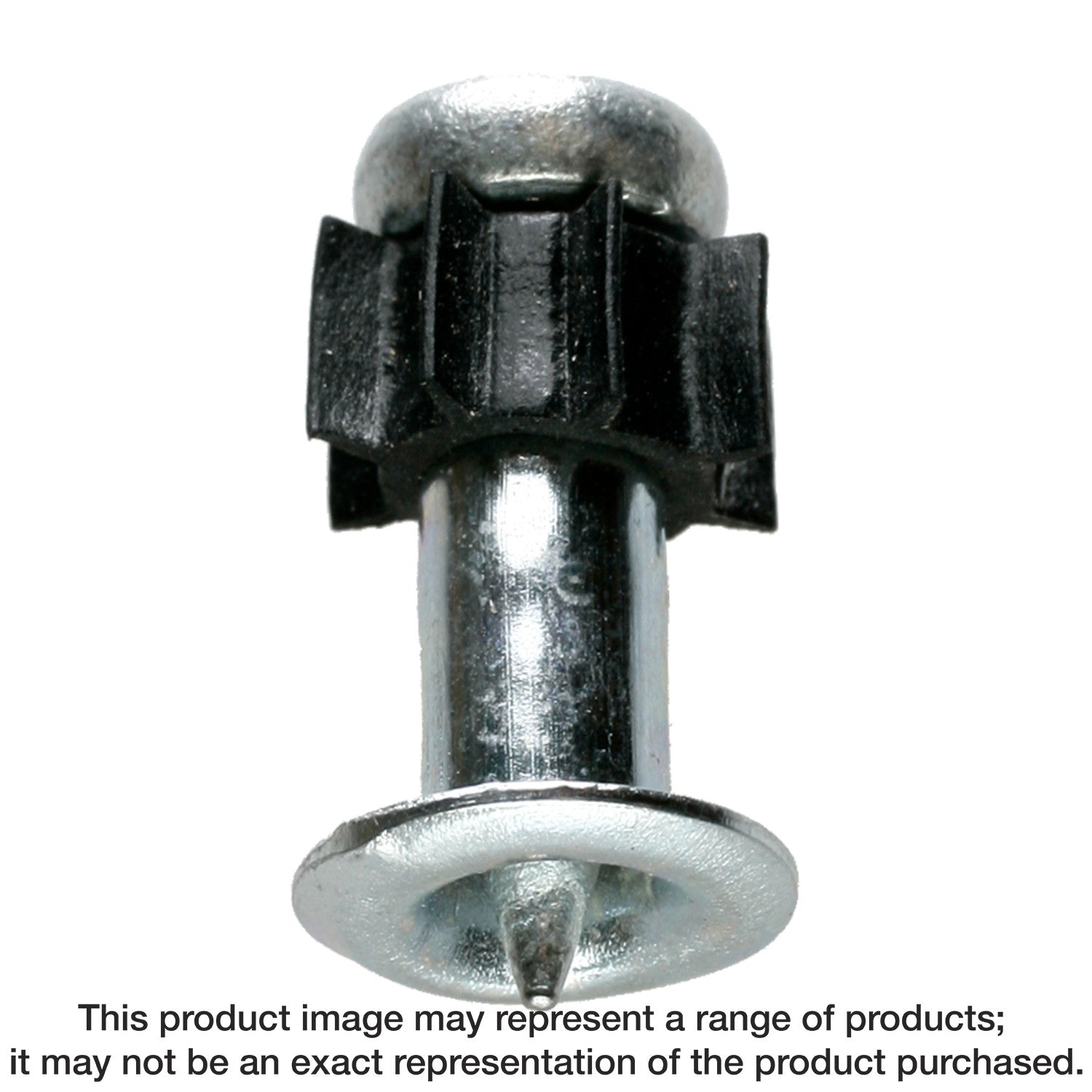

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort in most applications. The PDPAT is a hardened-steel, powder-actuated top-hat pin designed to fasten building components to concrete, steel and CMU. The PDPAT fastener has a 0.300-in. diameter head with a 0.157-in. diameter shank and a steel top-hat assembly for fast loading and centering of the pin in the nosepiece of the tool.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
• Head diameter: 0.300 in.
• Shank diameter: 0.157 in.
• Length: 1/2 in. knurled
• Quantity: 100

Specifications

• ERP Part Number: PDPAT-50K
• UPC: 707392610632
• GTIN: 707392610632
• Feature 01: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Feature 03: Designed for use with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools
• Feature 04: Head diameter: 0.300 in.
• Feature 05: Shank diameter: 0.157 in.
• Feature 06: Length: 1/2 in. knurled
• Feature 07: Quantity: 100
• Assembled Depth - Imperial: 0.375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.569
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: PDPAT_Pin
• Base Product Name: PDPAT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Mechanically Galvanized
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• EAN category: UC
• Finish: Mechanically Galvanized
• GUID: 6943599863316517345629590028976204963
• Head Diameter (in.): 0.300
• Length (in.): 1/2 knurled
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 2.625
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.625
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.250
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.157
• Shipping Weight: 0.6
• Short Product Name: 1/2IN KNURL, TOPHAT
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/pdpat_pin/p/pdpat
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392133664
