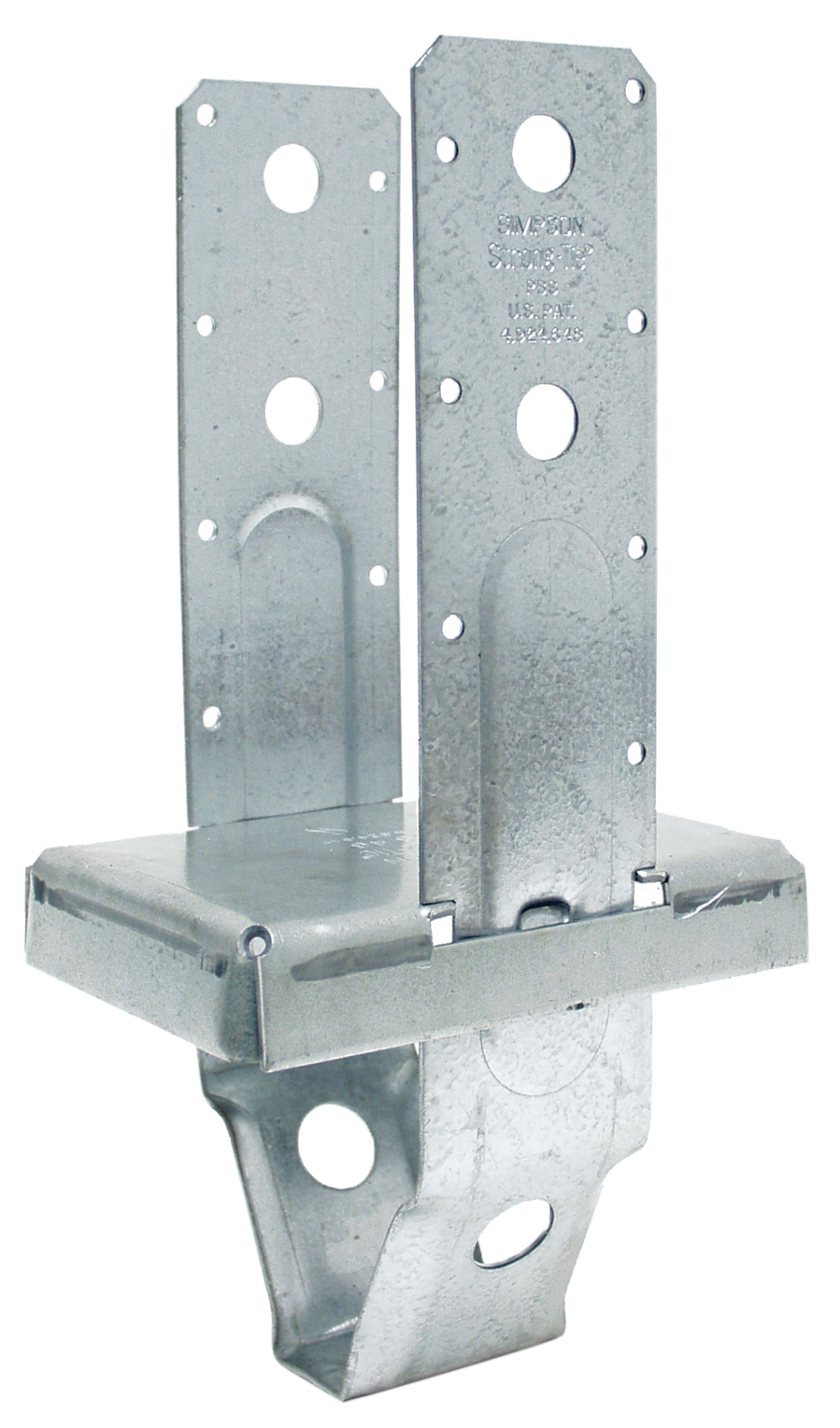

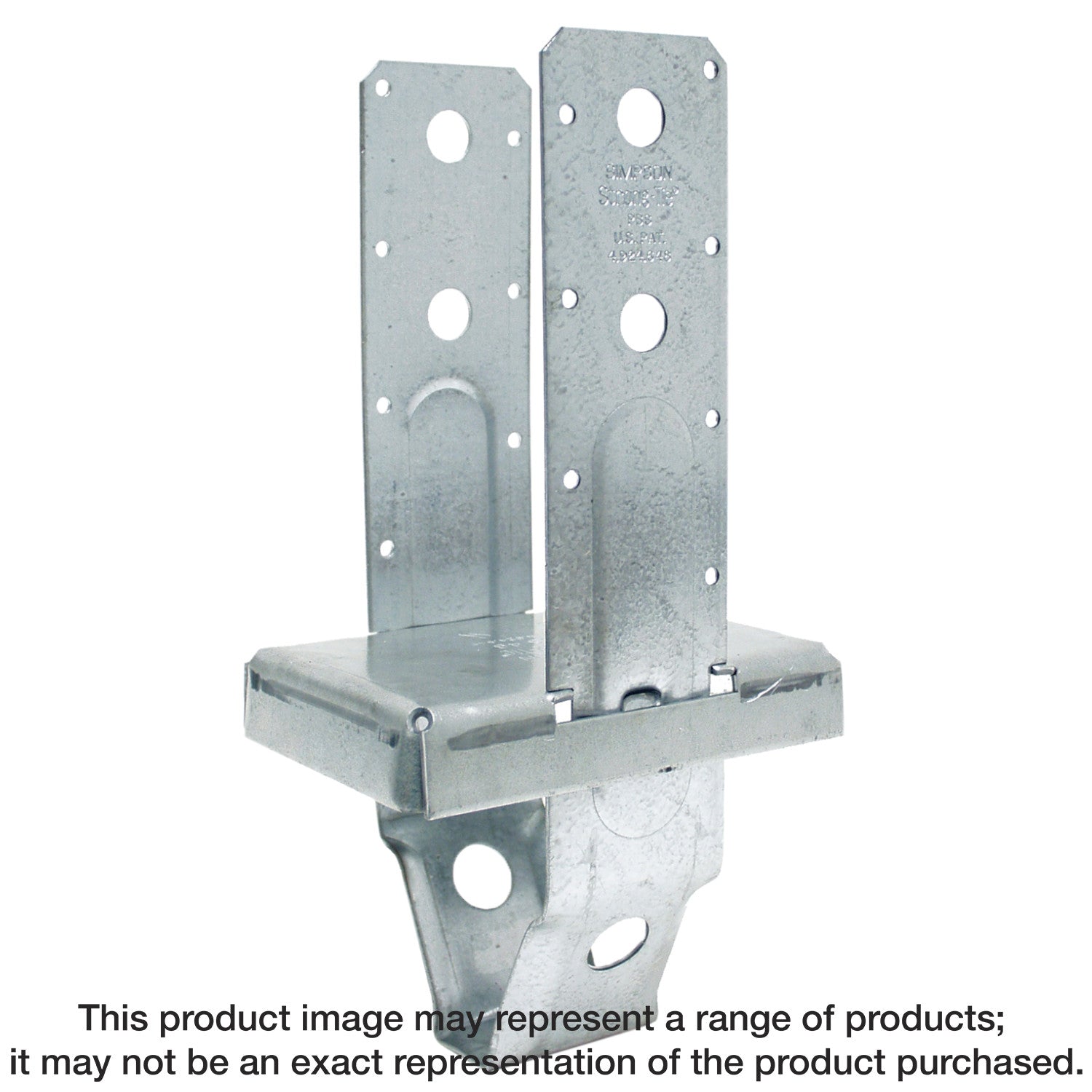

Simpson Strong-Tie PBS46 PBS Galvanized Standoff Post Base for 4x6

Simpson Strong-Tie PBS46 PBS Galvanized Standoff Post Base for 4x6

Simpson Strong-Tie® post bases connect the bottom of wood posts or columns to a concrete foundation. The PBS is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 in. to avoid contact of the wood post with standing water to help prevent rot at the post end.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a 1-in. standoff between post and concrete that meets code requirements
• Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
• Embossment in the vertical straps provides increased strength
• Optional fastening with either nails or bolts
• Nominal post size: 4x6
• Base 12-ga. steel; Strap 14-ga. steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: PBS46
• UPC: 44315064968
• GTIN: 44315064968
• Feature 01: Provides a 1-in. standoff between post and concrete that meets code requirements
• Feature 02: Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
• Feature 03: Embossment in the vertical straps provides increased strength
• Feature 04: Optional fastening with either nails or bolts
• Feature 05: Nominal post size: 4x6
• Feature 06: Base 12-ga. steel; Strap 14-ga. steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Install With: (14) 0.162 in. x 3-1/2 in. nails or (2) 1/2 in. diameter bolts
• Assembled Depth - Imperial: 5.4375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.72625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: PBS_Base
• Base Product Name: PBS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: Base 12; strap 14
• GUID: 65874714983353265852529283377496712138
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Base
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.12
• Short Product Name: 4 X 6 STANDOFF POST BASE
• Strongtie.com URL: https://www.strongtie.com/standoffpostbases_castinplacepostbases/pbs_base/p/pbs
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20044315064962
• PAL Reference: 60044315064960
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
