Simpson Strong-Tie PAB5H-24 PAB™ 5/8 in. x 24 in. High-Strength Pre-Assembled Anchor Bolt w/ Washer

Simpson Strong-Tie PAB5H-24 PAB™ 5/8 in. x 24 in. High-Strength Pre-Assembled Anchor Bolt w/ Washer

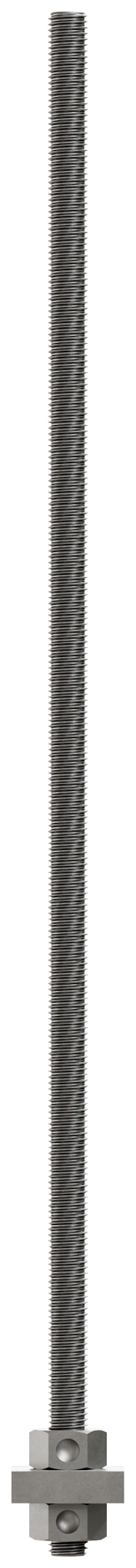

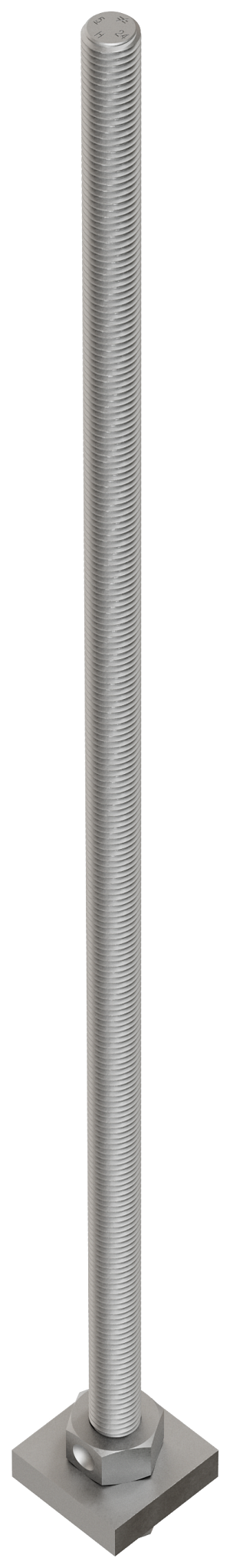

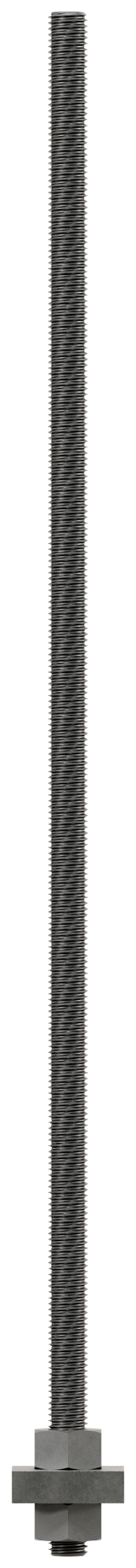

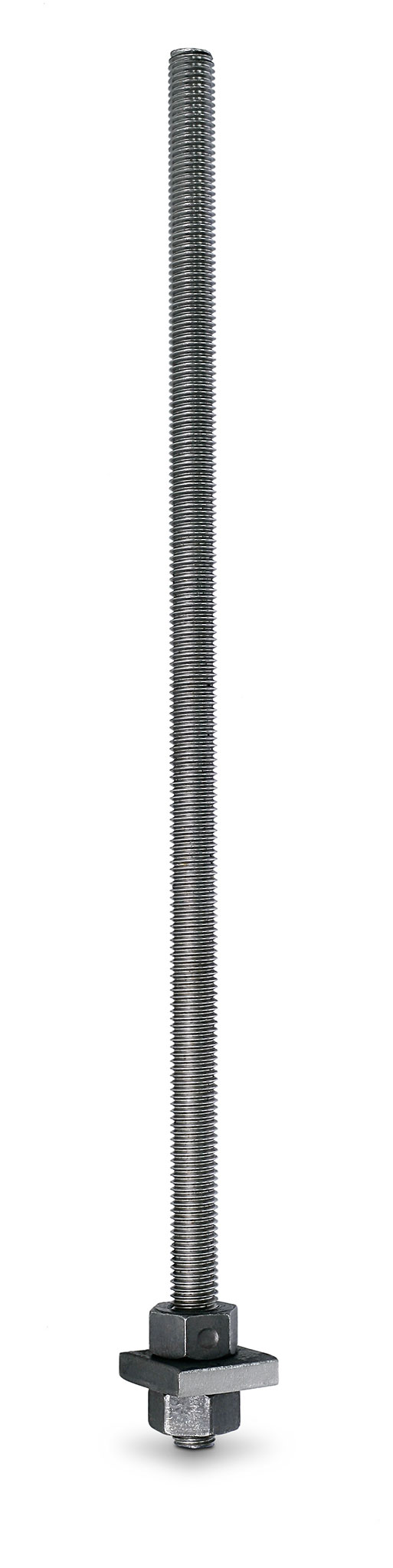

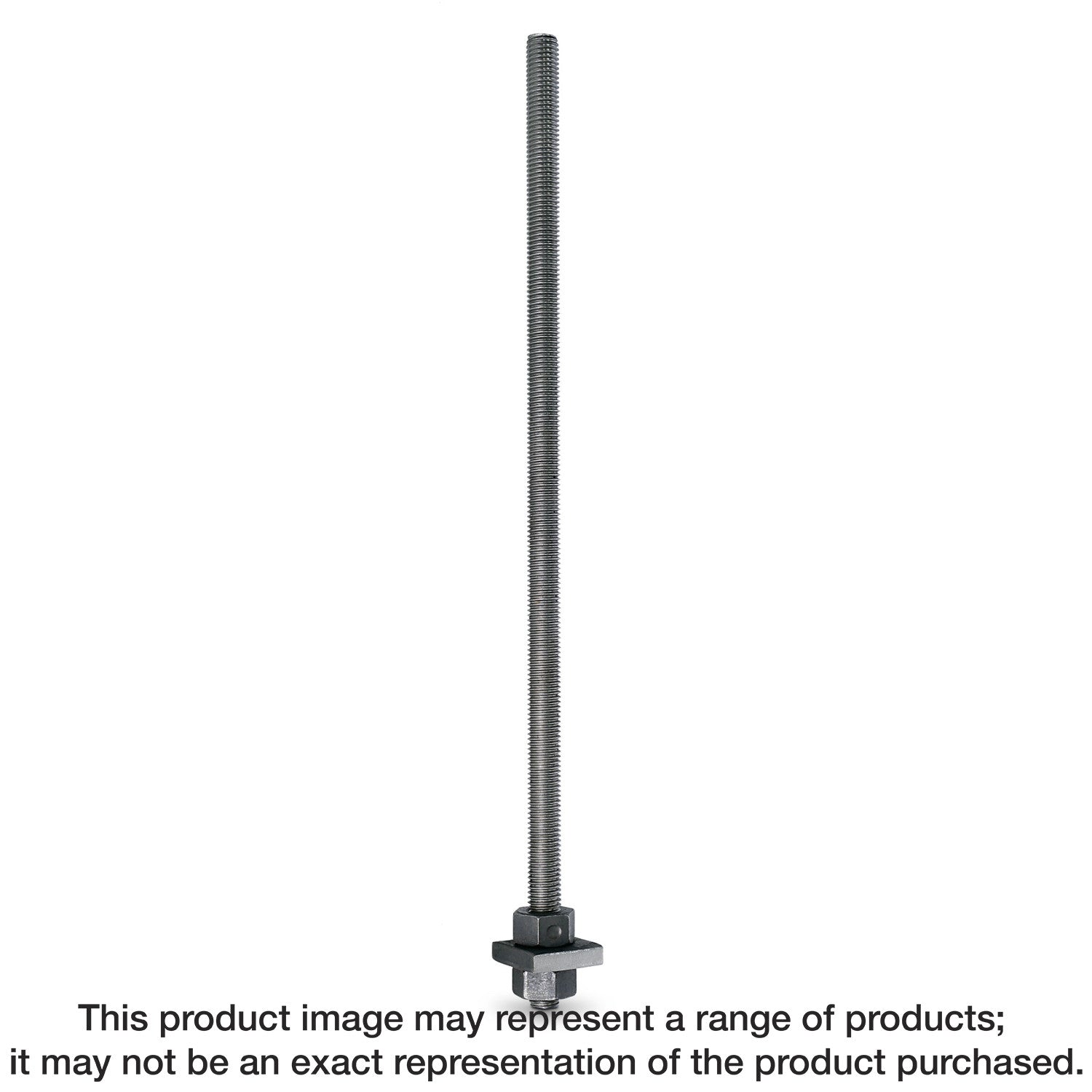

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal® sign, diameter designation and an "H" on high-strength rods
• High-strength rod
• Rod diameter: 5/8 in.
• Rod length: 24 in.
• Material: Steel — ASTM A449; Fu = 120 ksi

Specifications

• ERP Part Number: PAB5H-24
• UPC: 707392341208
• GTIN: 707392341208
• Feature 01: Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6 in. increments)
• Feature 02: Head stamp contains the Simpson Strong-Tie No Equal® sign, diameter designation and an "H" on high-strength rods
• Feature 03: High-strength rod
• Feature 04: Rod diameter: 5/8 in.
• Feature 05: Rod length: 24 in.
• Feature 06: Material: Steel — ASTM A449; Fu = 120 ksi
• Assembled Depth - Imperial: 1.75
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 24
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: PAB_Bolt
• Base Product Name: PAB™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Anchor Bolts > Anchor Bolt
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Uncoated Steel
• GUID: 655297524231510136393127798409568103
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Uncoated Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt
• Product Includes: Includes (1) anchor bolt, (1) plate washer and (2) hex nuts
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.16
• Short Product Name: 5/8 X 24IN ATR W/1-3/4x1-3/4x1/2IN WASH
• Strongtie.com URL: https://www.strongtie.com/bolts_anchorbolts/pab_bolt/p/pab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Anchor Bolts
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
