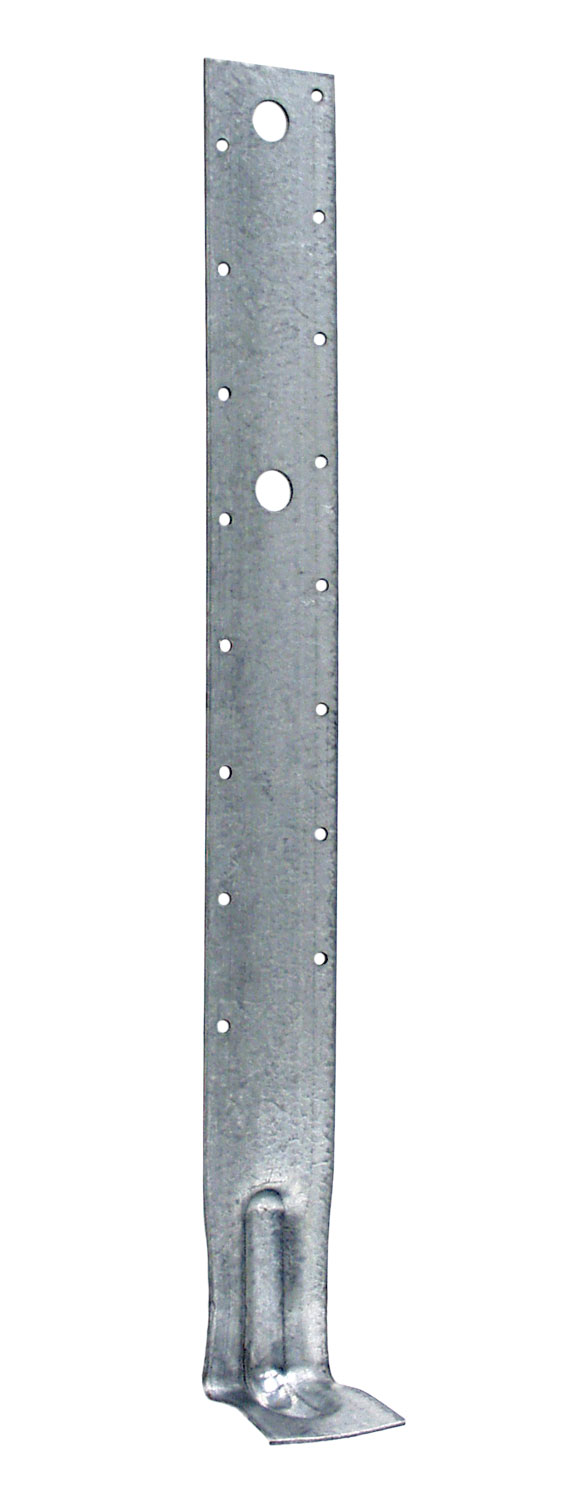

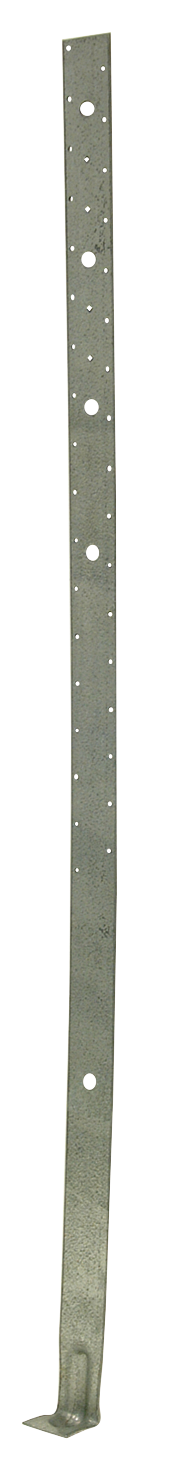

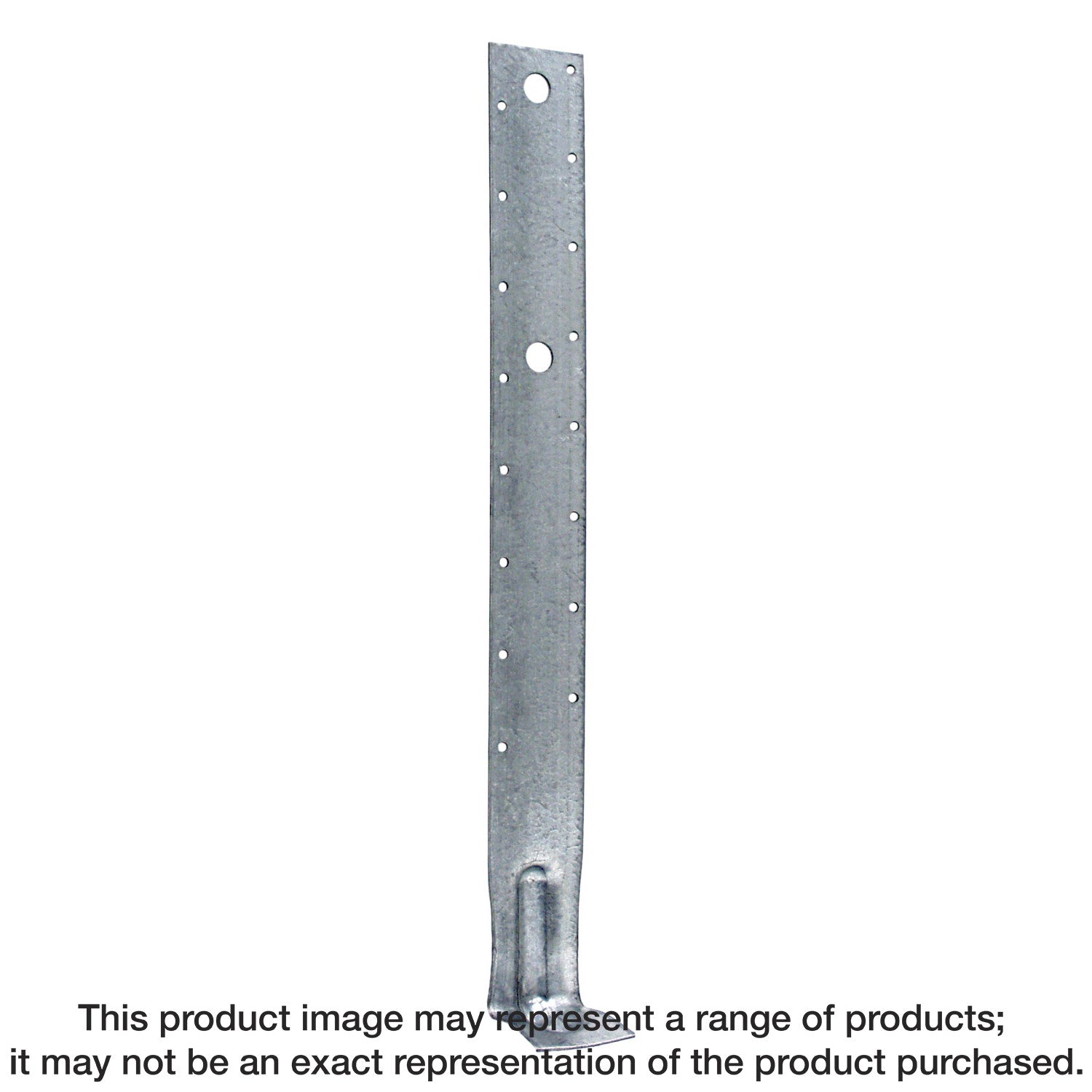

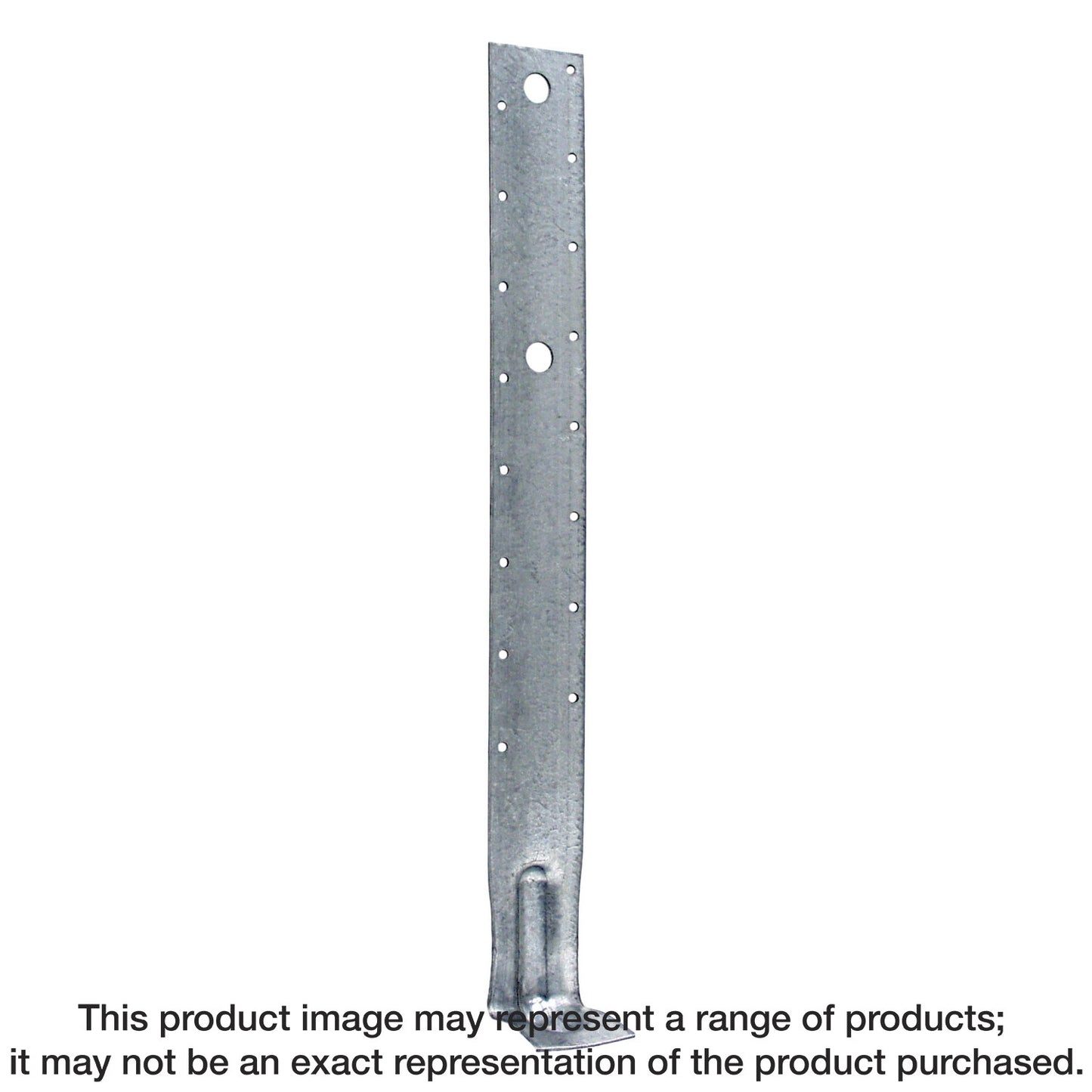

Simpson Strong-Tie PA51Z PA 51 in. 12-Gauge ZMAX® Galvanized Purlin Anchor (Pack of 300)

Simpson Strong-Tie PA51Z PA 51 in. 12-Gauge ZMAX® Galvanized Purlin Anchor (Pack of 300)

The PA is a solution for wood-to-concrete and concrete-block connections. To support code requirements, the PA is designed to connect roof purlins to a masonry exterior wall. This purlin anchor features a dual-embedment line that allows for installation in concrete or concrete block (GFCMU).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Minimum embedment line indicators for both concrete and concrete block installations
• Nailing pattern optimized for narrow face of nominal 2x wood member
• Low design profile minimizes visibility
• Length: 51 in.
• For additional length, an MST strap can be attached using 1/2" bolts through existing holes
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PA51Z
• UPC: 50044315192505
• GTIN: 50044315192505
• Feature 01: Minimum embedment line indicators for both concrete and concrete block installations
• Feature 02: Nailing pattern optimized for narrow face of nominal 2x wood member
• Feature 03: Low design profile minimizes visibility
• Feature 04: Length: 51 in.
• Feature 05: For additional length, an MST strap can be attached using 1/2" bolts through existing holes
• Feature 06: Made from 12-gauge steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 2.476
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 51.476
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PA_Anchor
• Base Product Name: PA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Purlin Anchor
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 339777828953805009015849848977976532746
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Purlin Anchor
• Prop 65 Warning: No
• Quantity: 300
• Shipping Weight: 945
• Short Product Name: 51IN STRAP TIE HOLDOWN
• Strongtie.com URL: https://www.strongtie.com/purlinanchors_holdownsandtensionties/pa_anchor/p/pa
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315192507
• EA Reference: 44315192500
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
