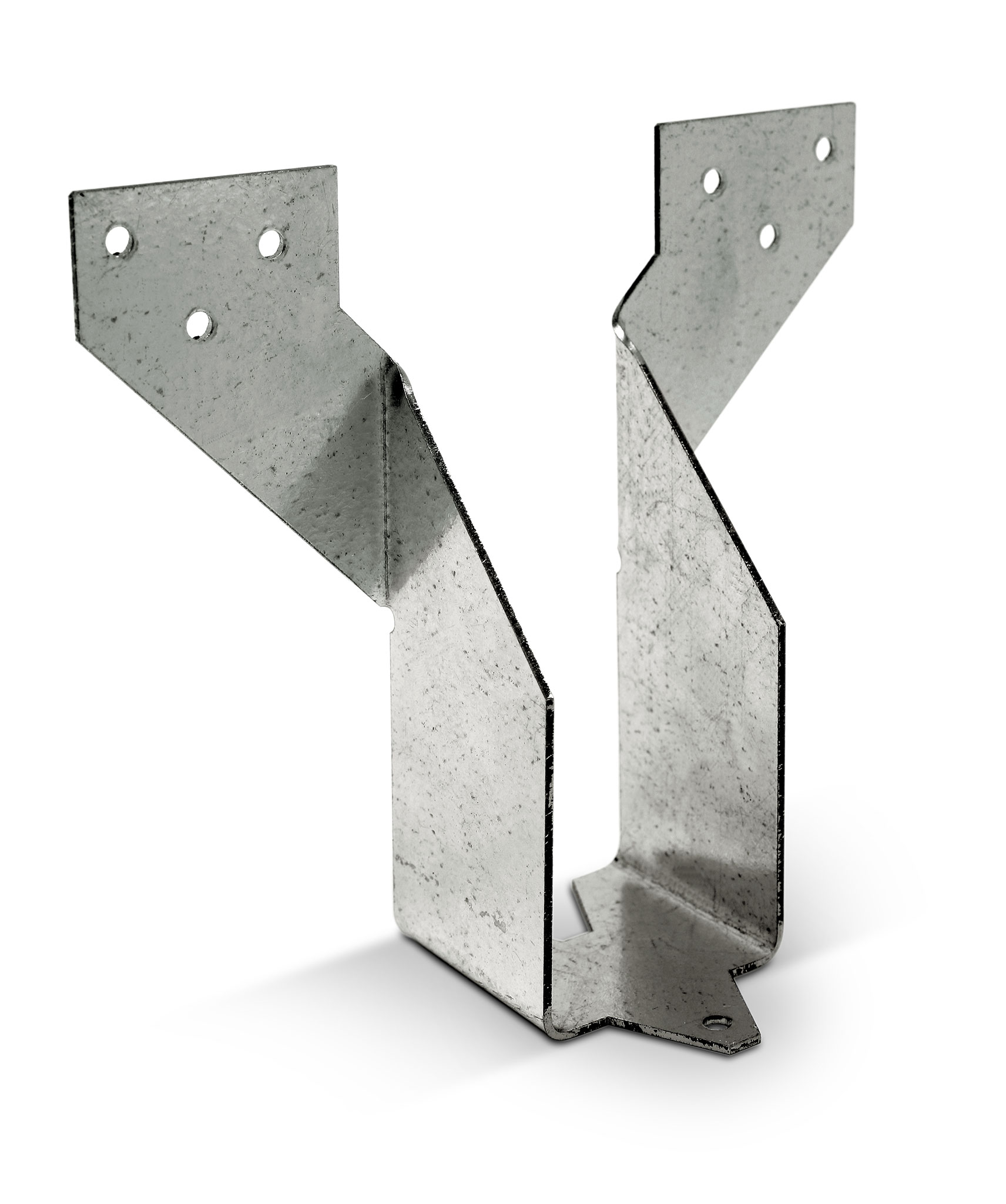

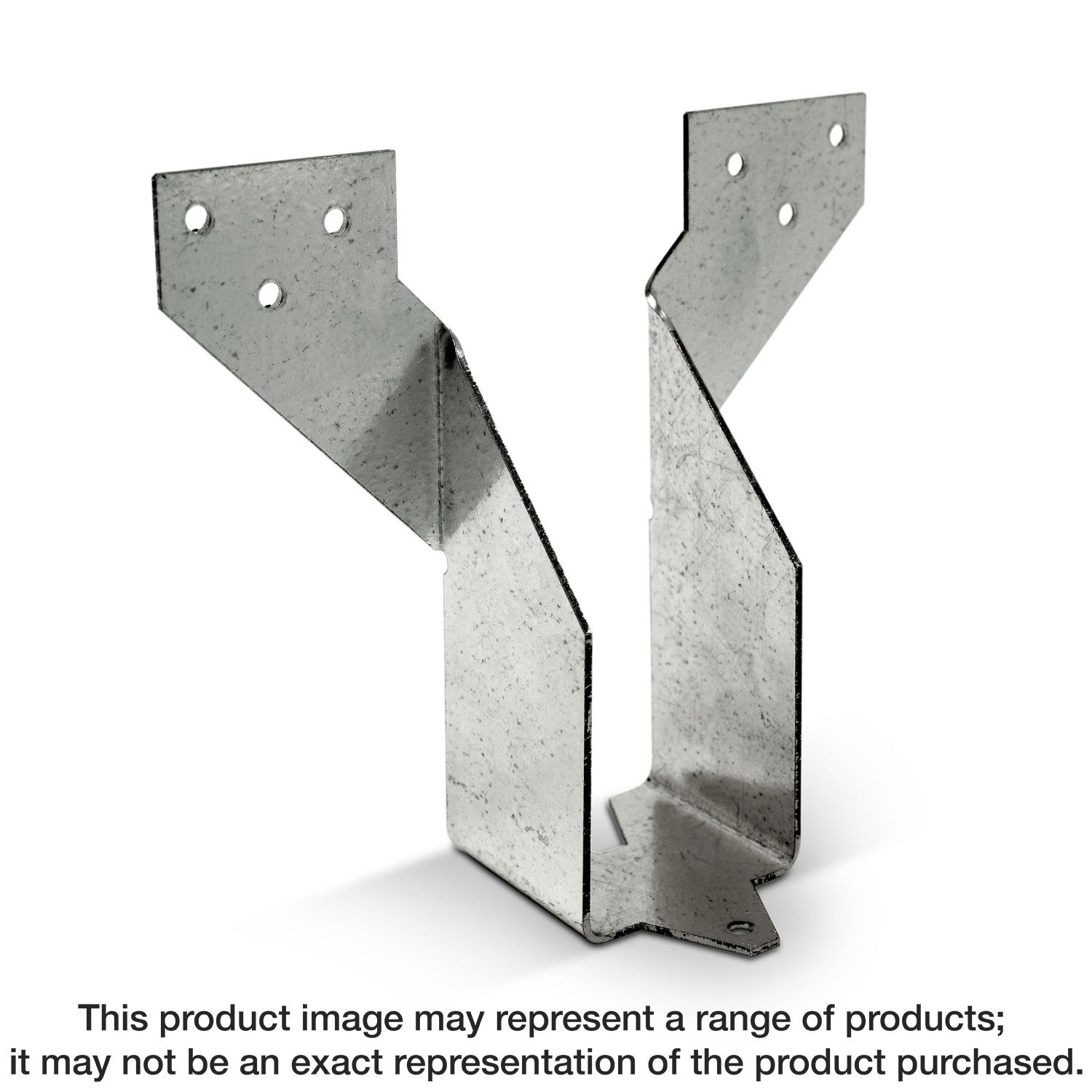

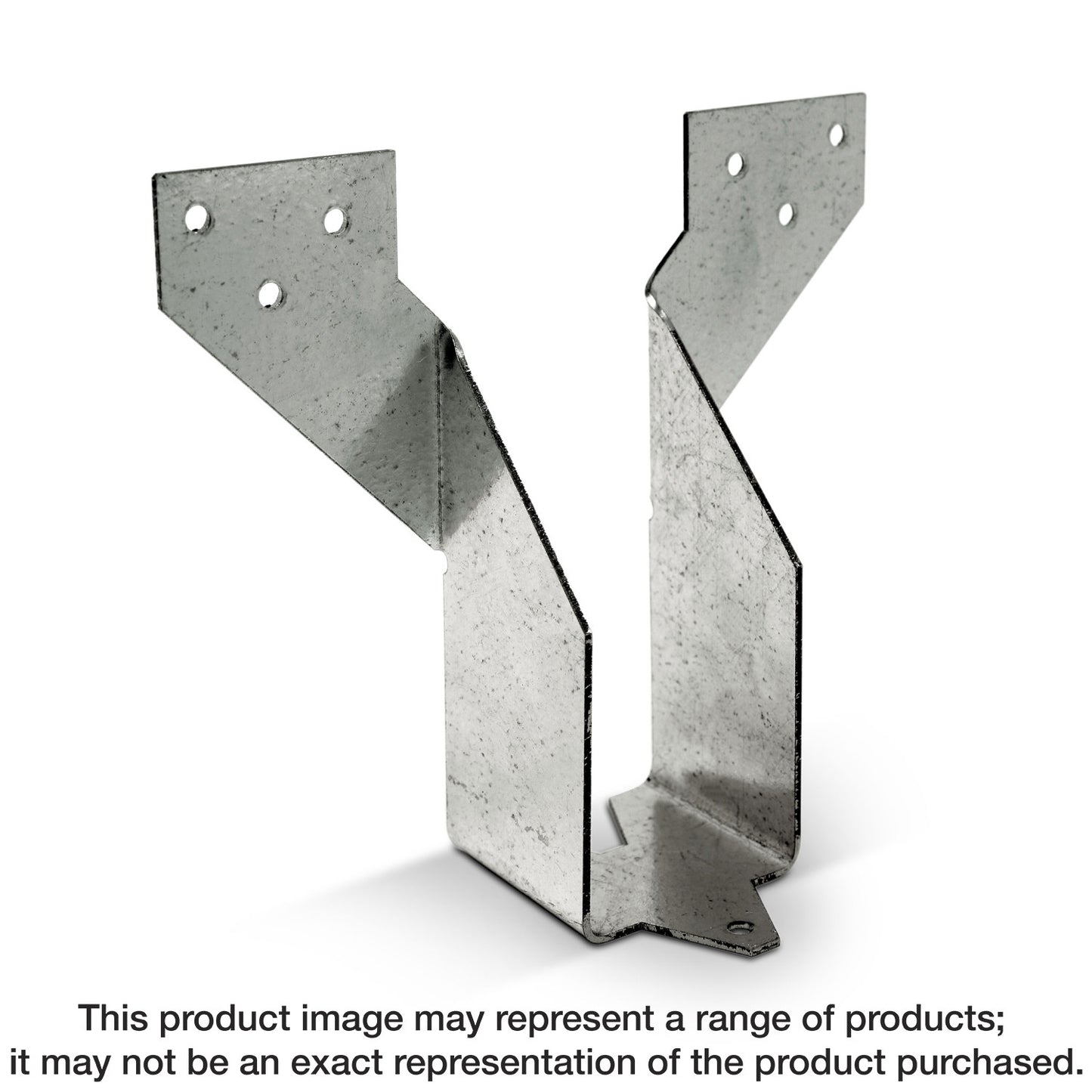

Simpson Strong-Tie NRU36Z NRUZ ZMAX® Galvanized Retrofit Hanger for 3x6

Simpson Strong-Tie NRU36Z NRUZ ZMAX® Galvanized Retrofit Hanger for 3x6

The NRUZ series of retrofit hangers is designed for use on nailers on steel trusses. It is designed specifically to fit around existing Simpson Strong-Tie® panelized roof hangers such as the F or HFN series. In some cases, existing panelized roof hangers may need replacement due to excessive gapping, damage incurred during field erection or corrosion from roof leaks or condensation. The NRUZ allows you to quickly and effectively match the capacity of these hangers without having to remove the original connectors or disassemble the roof.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• When installed with no more than a 1/8-in. gap between the original hanger and the purlin, the NRUZ series provides equal or greater capacity than Simpson's F, HF and HFN series hangers
• Nominal joist size: 3x6
• Seat width: 2-3/4 inches
• Height: 5-1/4 inches
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: NRU36Z
• UPC: 707392497806
• GTIN: 707392497806
• Feature 01: When installed with no more than a 1/8-in. gap between the original hanger and the purlin, the NRUZ series provides equal or greater capacity than Simpson's F, HF and HFN series hangers
• Feature 02: Nominal joist size: 3x6
• Feature 03: Seat width: 2-3/4 inches
• Feature 04: Height: 5-1/4 inches
• Feature 05: Made from 16-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with (6) 0.148-in. x 2-1/8-in. nails in the face and (1) 0.148-in. x 2-1/8-in. nail in the seat
• Assembled Depth - Imperial: 2.559
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.34025
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.0555
• Assembled Width UOM - Imperial: in.
• Base Product ID: NRUZ_Hanger
• Base Product Name: NRUZ
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: ZMAX®
• Gauge: 16
• GUID: 107519661844768866452749069119397826095
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 3x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.37
• Short Product Name: RETRO-FIT JOIST HANGER FOR NAILER Z-MAX
• Strongtie.com URL: https://www.strongtie.com/panelizedsubpurlinhangers_solidsawnlumberconnectors/nruz_hanger/p/nruz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
