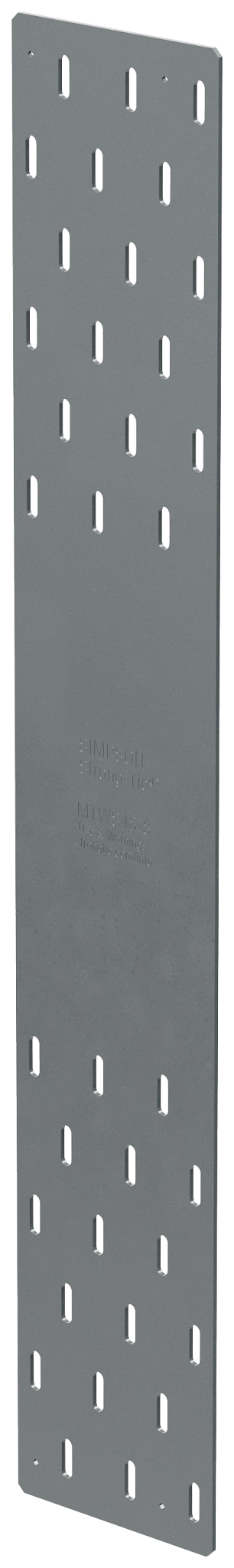

Simpson Strong-Tie MTWS48-8 MTWS® 8-1/16 in. x 47-5/8 in. 7-Gauge Mass Timber Washer Strap

Simpson Strong-Tie MTWS48-8 MTWS® 8-1/16 in. x 47-5/8 in. 7-Gauge Mass Timber Washer Strap

Simpson Strong-Tie® tested and load-rated tension straps and fasteners are designed to minimize cost and maximize speed and precision — while providing the strength, versatility and reliability you depend on. The MTWS48 strap utilizes MTW45-8 washers and Strong-Drive® SDCF Timber-CF (SDCF) fully-threaded countersunk-head screws. The combination provides a tension strap with high strength and stiffness that can be used in a variety of CLT diaphragm and wall applications. The MTWS48 is a 7-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint. The MTWS48 can also be used to attach CLT panels to steel attachment points when paired with a welded connection (designed by others).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• High capacity reduces the need for expensive shop-fabricated steel plates
• Use of inclined SDCF screws and MTW45-8 washers reduces the number of fasteners needed to achieve the load
• Strap can be used for either CLT panel-to-panel connection or CLT panel-to-steel connection
• Full straps may be used to connect CLT panels together
• Full straps may be cut into half straps; these half straps may be used to connect CLT panels to steel attachment points (designed by others)
• Width: 8-1/16 in.
• Length: 47-5/8 in.
• 7-gauge steel (ASTM A653 Grade 33)
• Galvanized (G90) for extra corrosion resistance

Application

• Engineered Wood
• New Construction
• Steel-to-Wood/Engineered Wood
• Mass Timber / Cross-Laminated Timber

Specifications

• ERP Part Number: MTWS48-8
• UPC: 707392019206
• GTIN: 707392019206
• Feature 01: High capacity reduces the need for expensive shop-fabricated steel plates
• Feature 02: Use of inclined SDCF screws and MTW45-8 washers reduces the number of fasteners needed to achieve the load
• Feature 03: Strap can be used for either CLT panel-to-panel connection or CLT panel-to-steel connection
• Feature 04: Full straps may be used to connect CLT panels together
• Feature 05: Full straps may be cut into half straps; these half straps may be used to connect CLT panels to steel attachment points (designed by others)
• Feature 06: Width: 8-1/16 in.
• Feature 07: Length: 47-5/8 in.
• Feature 08: 7-gauge steel (ASTM A653 Grade 33)
• Feature 09: Galvanized (G90) for extra corrosion resistance
• Install With: Install with (36) SDCF22512 screws and (36) MTW45-8 mass timber angled washers or (36) SDCF22858 screws and (36) MTW45-8 mass timber angled washers
• Applications List: Engineered Wood
• Applications List.1: New Construction
• Applications List.2: Steel-to-Wood/Engineered Wood
• Applications List.3: Mass Timber / Cross-Laminated Timber
• Assembled Depth - Imperial: 0.1875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 47.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: MTWS_Strap
• Base Product Name: MTWS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Strap
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 7
• GUID: 274622673815800656188105312167418096859
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Strap
• Quantity: 1
• Shipping Weight: 18.2
• Short Product Name: MTW TENSION STRAP 8 1/16 X 47 5/8 X 7 GA
• Strongtie.com URL: https://www.strongtie.com/straightstraps_strapsandties/mtws_strap/p/mtws
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
