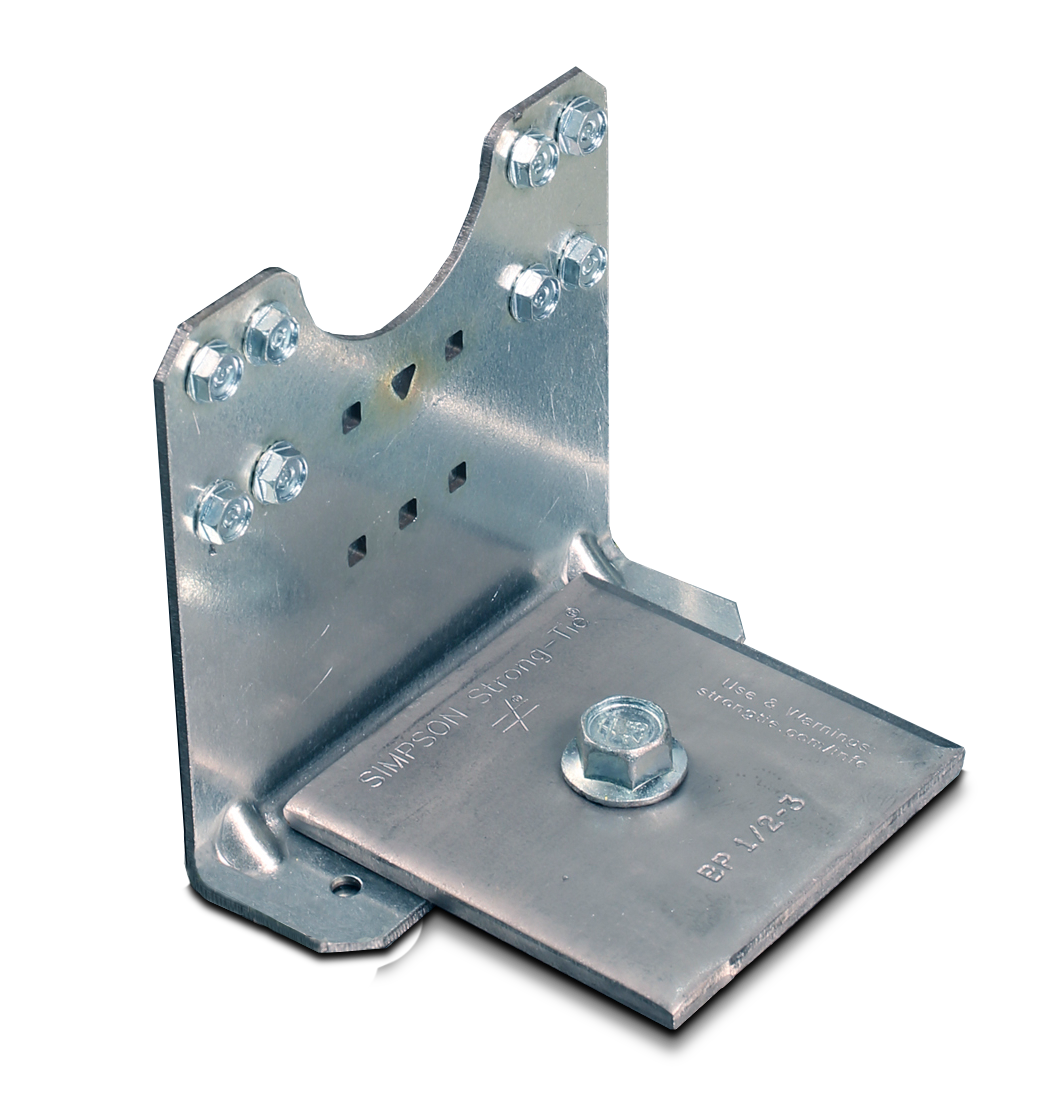

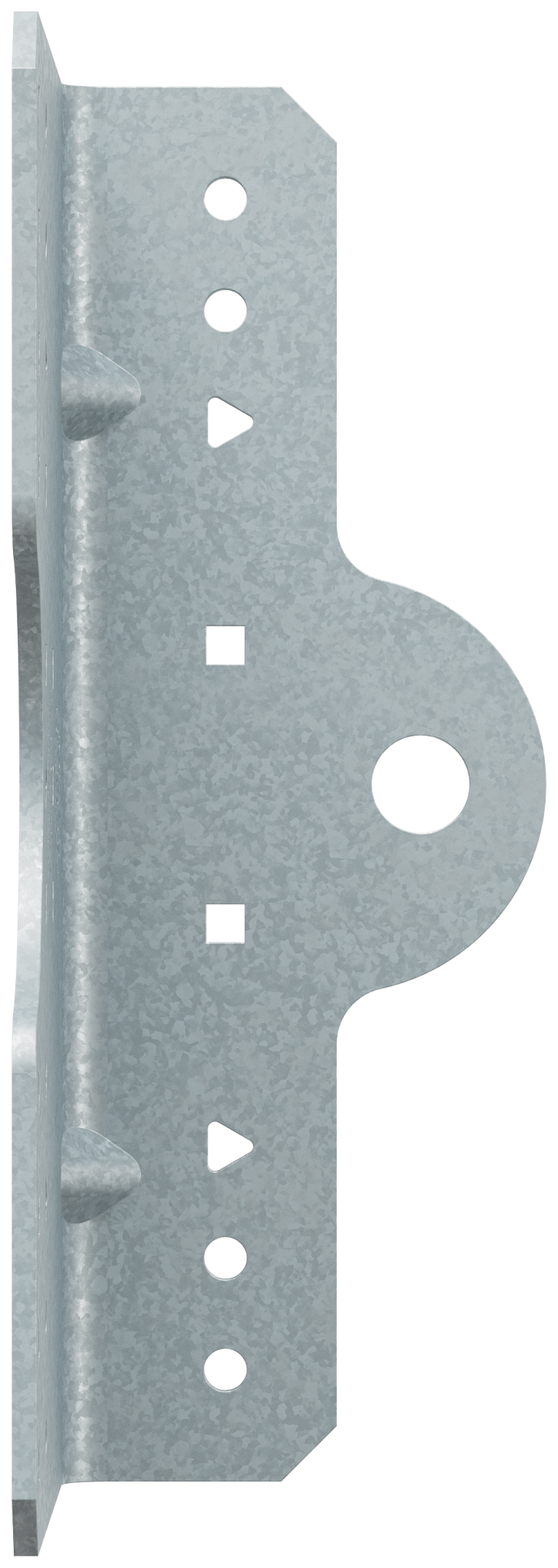

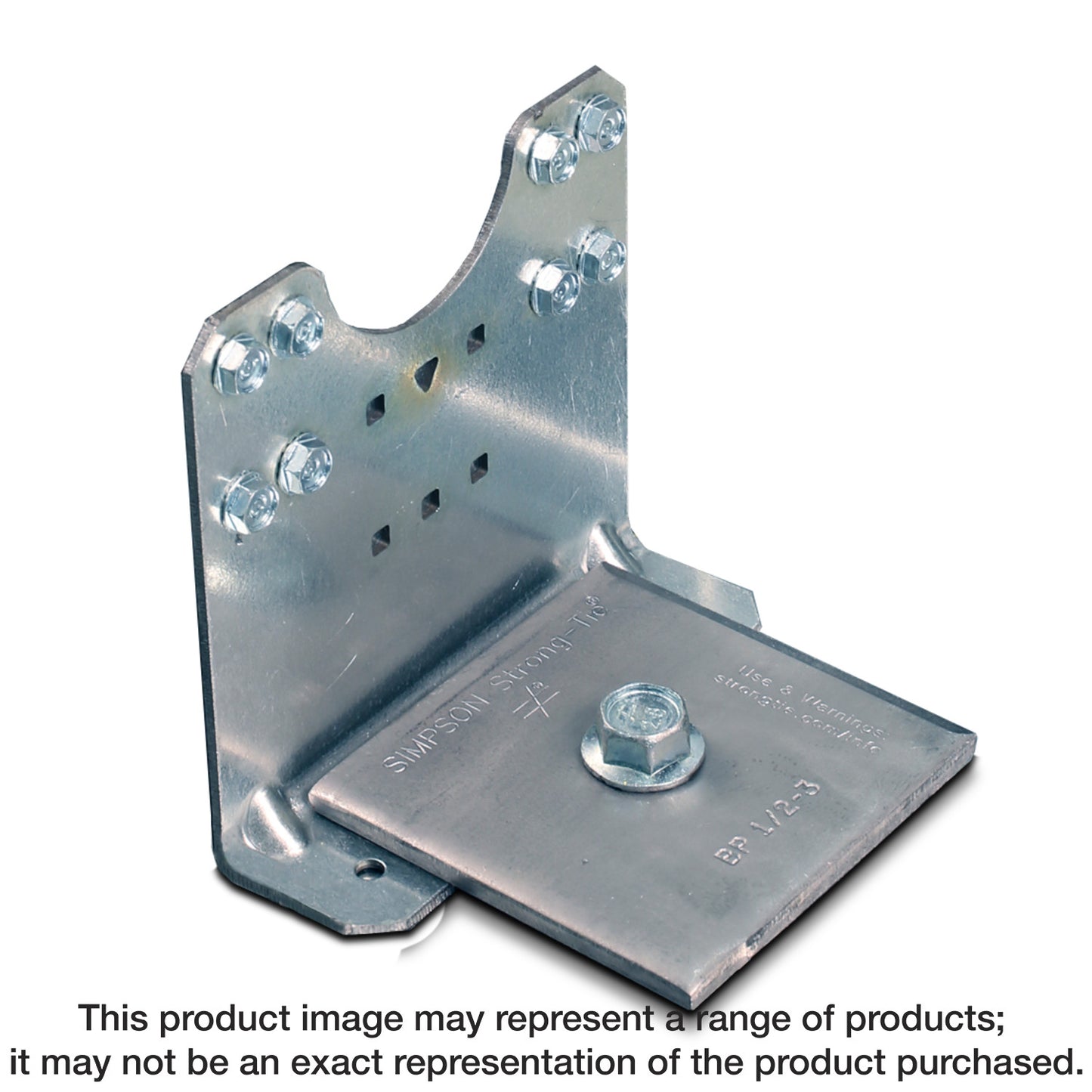

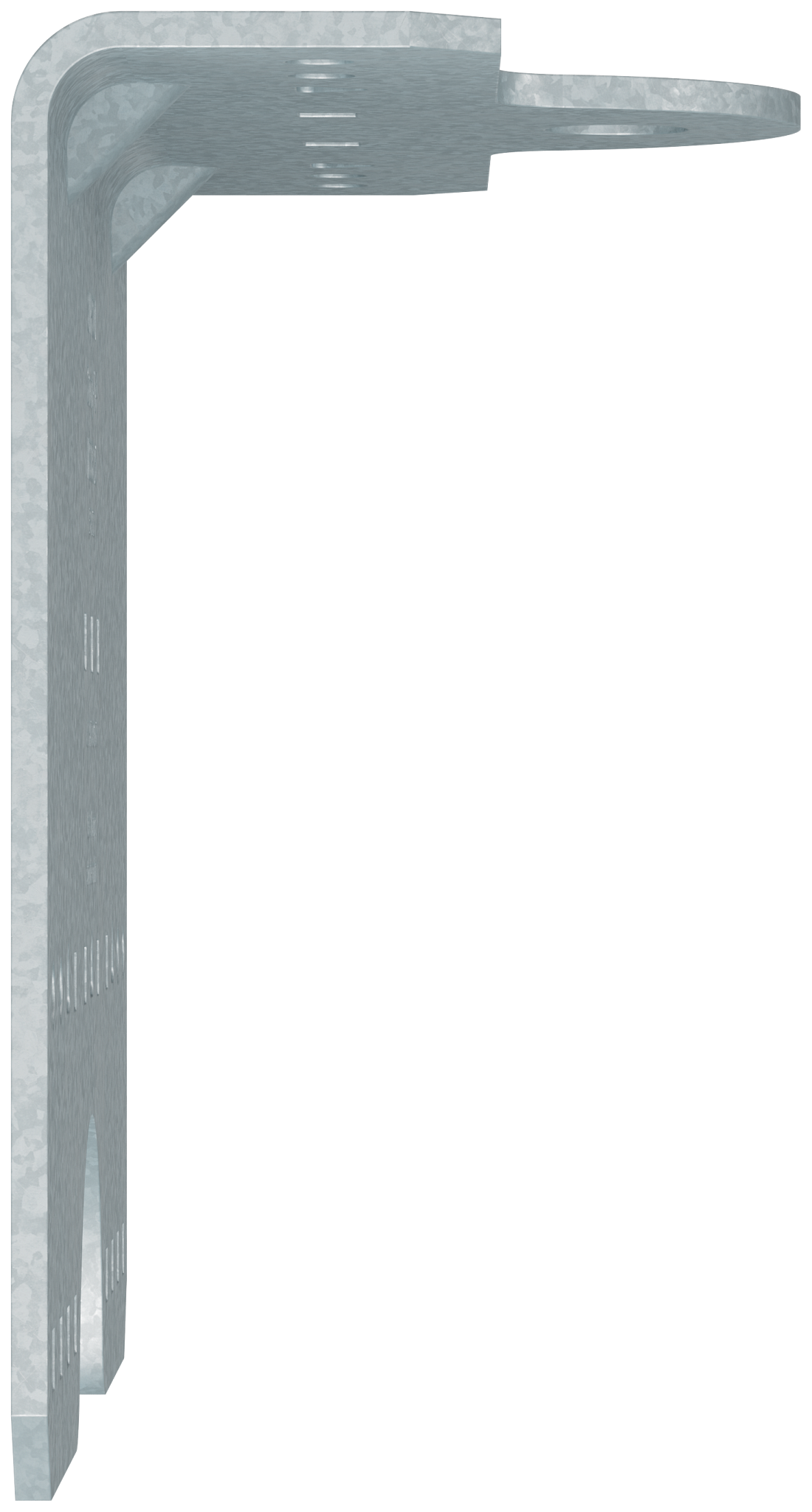

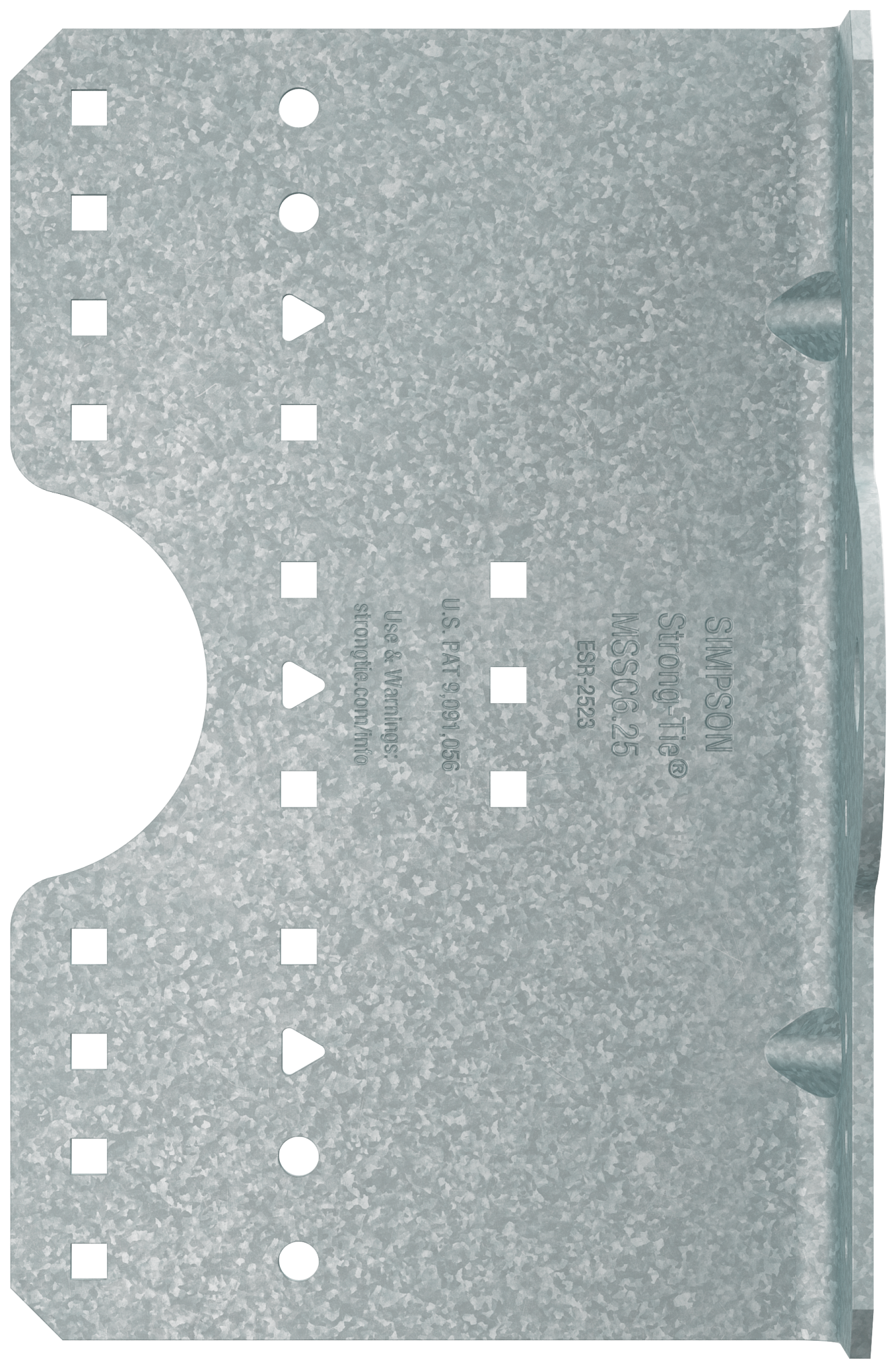

Simpson Strong-Tie MSSC6.25KW-KT20 MSSC 6-1/4 in. Kneewall Connector for 8 in. Framing Member w/ Bearing Plate (Qty-20) (Pack of 36)

Simpson Strong-Tie MSSC6.25KW-KT20 MSSC 6-1/4 in. Kneewall Connector for 8 in. Framing Member w/ Bearing Plate (Qty-20) (Pack of 36)

Simpson Strong-Tie® rigid connectors for cold-formed steel (CFS) construction deliver the increased load capacity needed for steel applications. Rigid connectors include options from skewable angles and steel header hangers to bypass framing and kneewall connectors. These steel connectors are ideal to use in all projects to support load-bearing walls. MSSC connectors are designed to work in tandem with Simpson Strong-Tie BP 1/2-3 bearing plates to provide solutions for moment-resisting kneewall lighter-duty applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• One simple custom hole pattern for each stud size simplifies specification and installation
• 3/8 in. diameter anchor bolt location enables easy tool access
• BP 1/2-3 bearing plates included
• MSSC made from 97 mil (12 ga.) steel (50 ksi); BP made from 229 mil (3 ga.) steel (33 ksi)
• 6-1/4 in. kneewall connector compatible with 8 in. deep steel framing member
• MSSC zinc galvanized (G90) finish; BP uncoated steel
• Quantity: 20 connectors and plates per package

Specifications

• ERP Part Number: MSSC6.25KW-KT20
• UPC: 50707392369276
• GTIN: 50707392369276
• Feature 01: One simple custom hole pattern for each stud size simplifies specification and installation
• Feature 02: 3/8 in. diameter anchor bolt location enables easy tool access
• Feature 03: BP 1/2-3 bearing plates included
• Feature 04: MSSC made from 97 mil (12 ga.) steel (50 ksi); BP made from 229 mil (3 ga.) steel (33 ksi)
• Feature 05: 6-1/4 in. kneewall connector compatible with 8 in. deep steel framing member
• Feature 06: MSSC zinc galvanized (G90) finish; BP uncoated steel
• Feature 07: Quantity: 20 connectors and plates per package
• Assembled Depth - Imperial: 2.25575
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.0365
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.25
• Assembled Width UOM - Imperial: in.
• Base Product ID: MSSCKW_Connect
• Base Product Name: MSSC-KW
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Kneewall Connector
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 328724221645558465399007435630444352575
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Kneewall Connector
• Prop 65 Warning: No
• Quantity: 36
• Shipping Weight: 1075.32
• Short Product Name: 8IN KNEEWALL CLIP W/BRG PLATE 20PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/mssckw_connect/p/mssc-kw
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 9,091,056
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392369271
