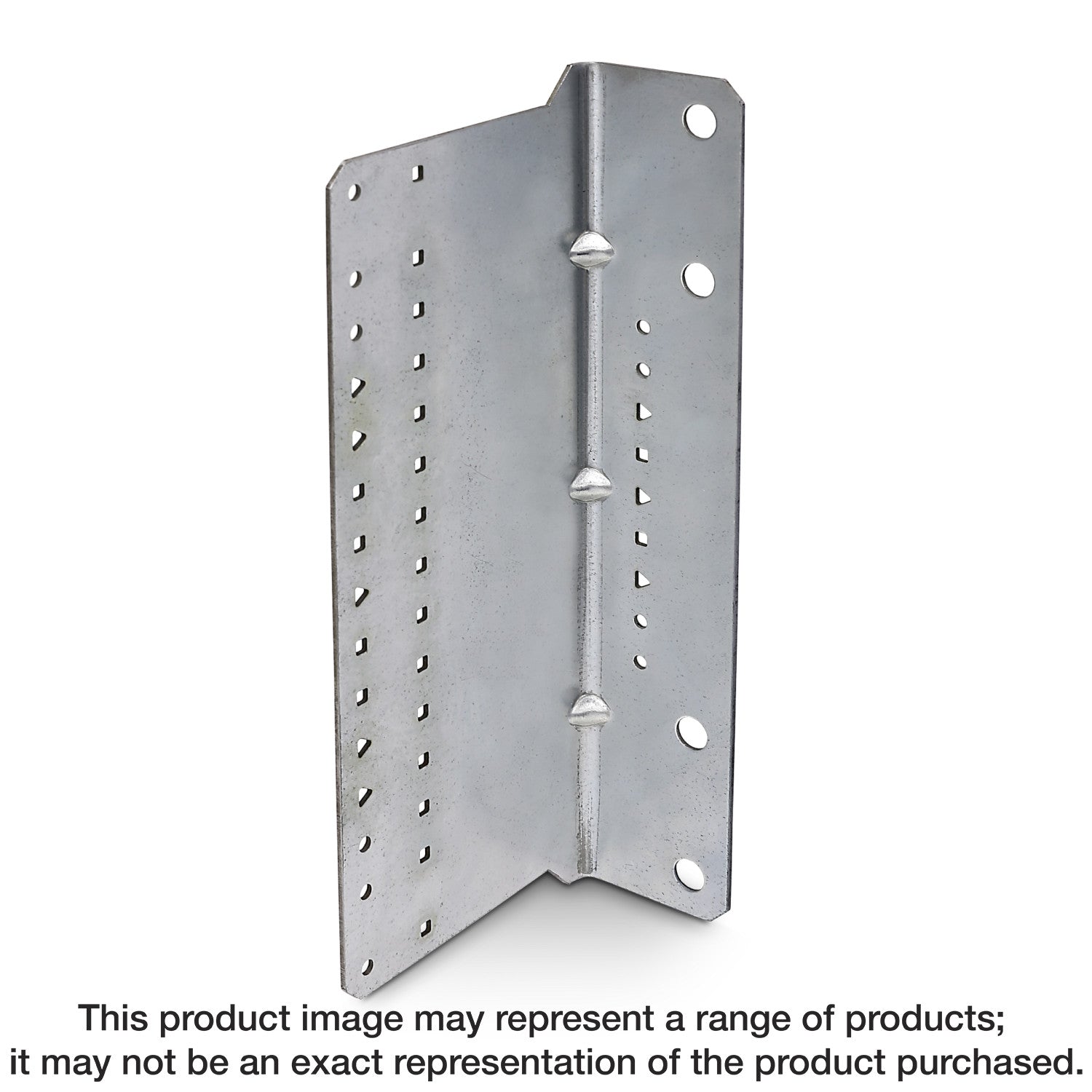

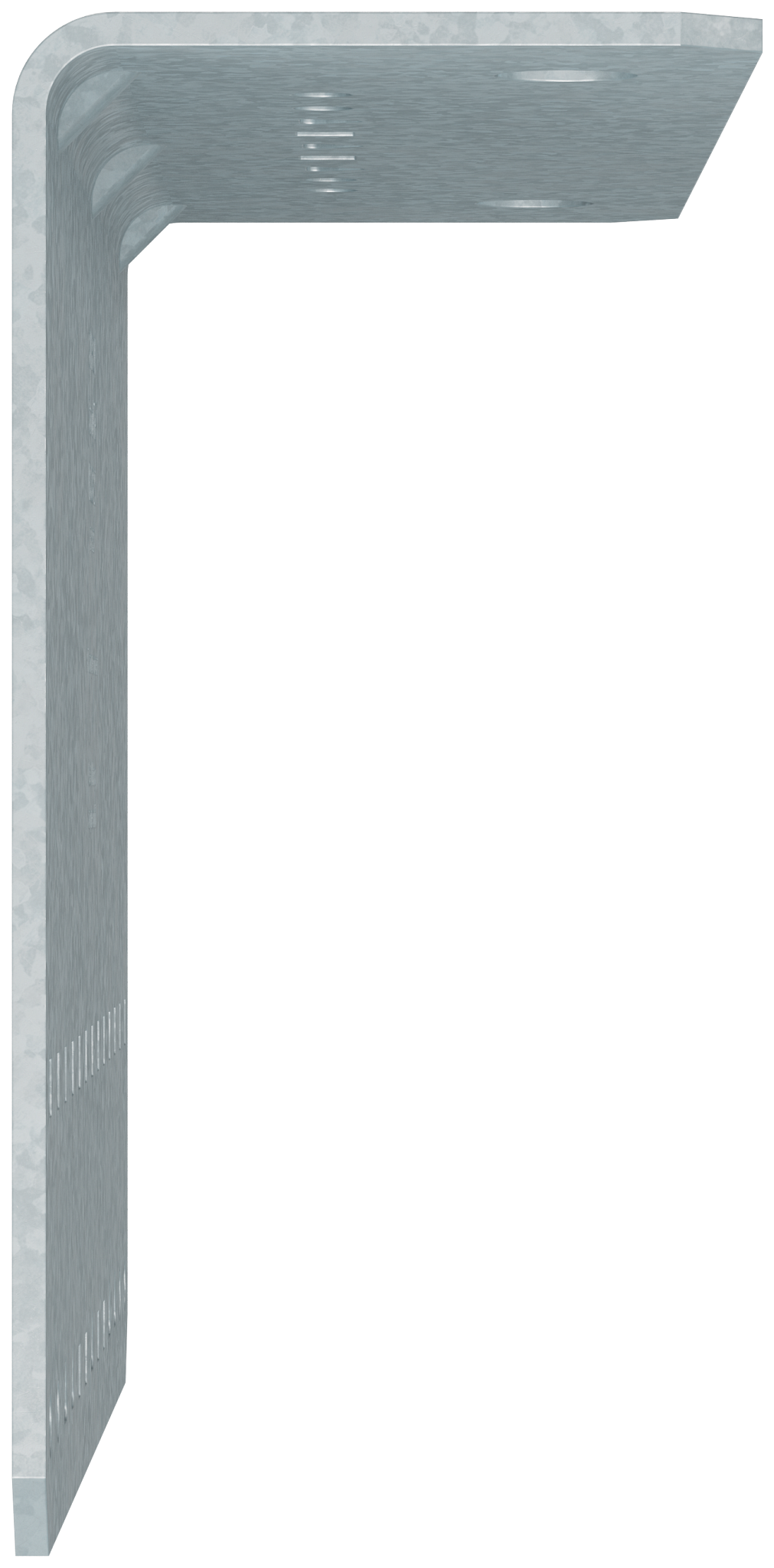

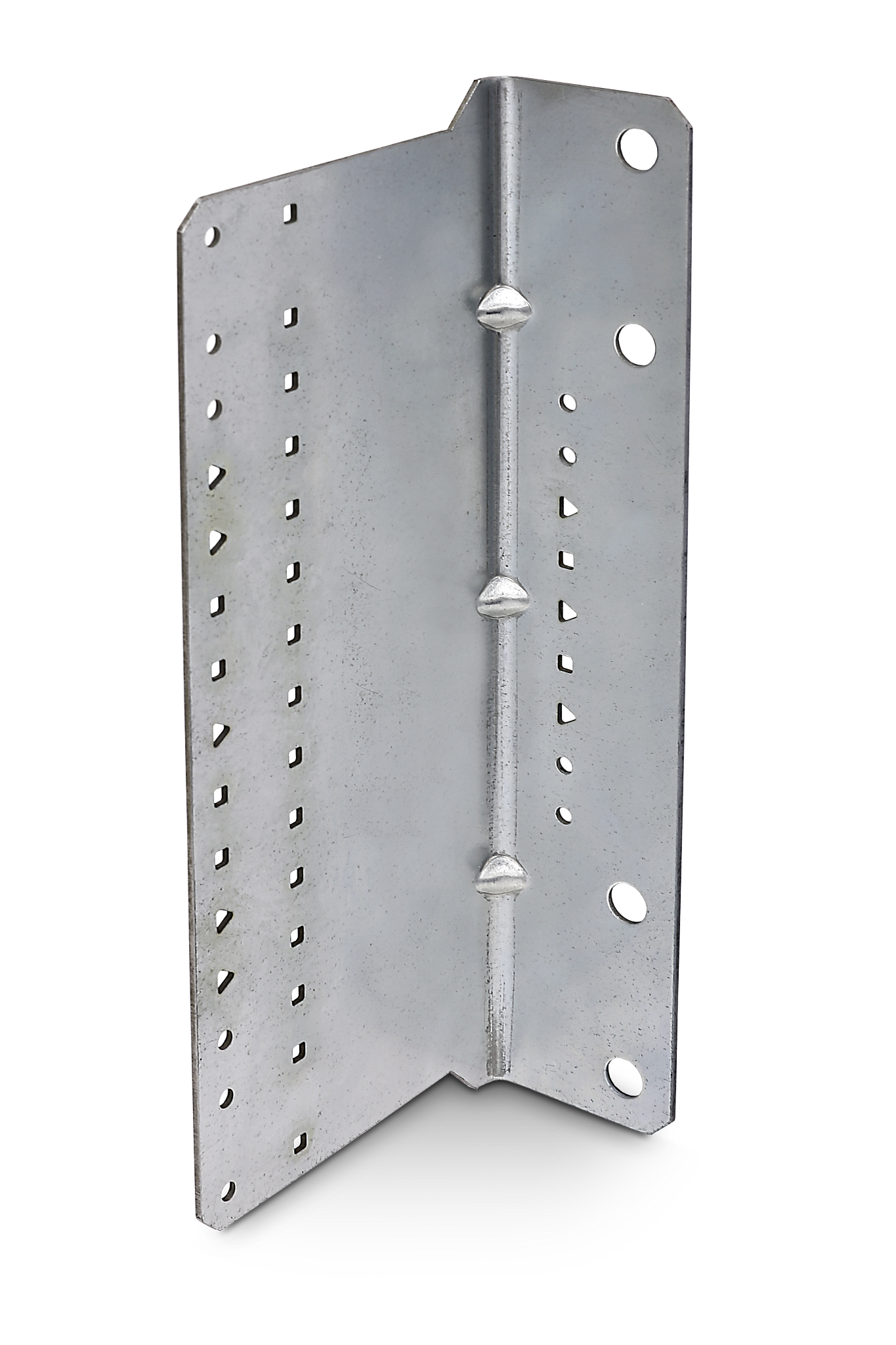

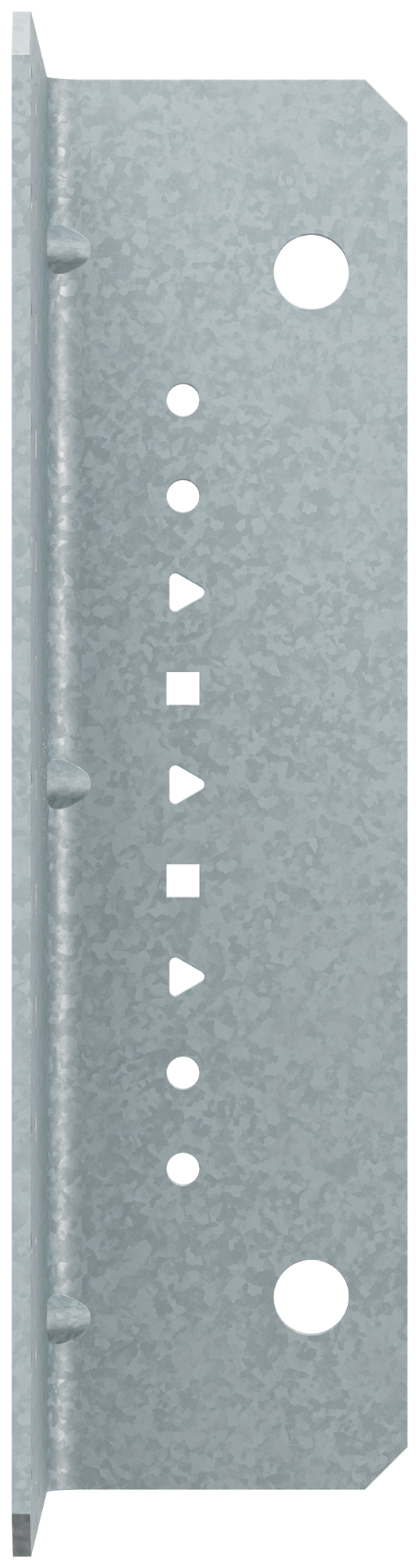

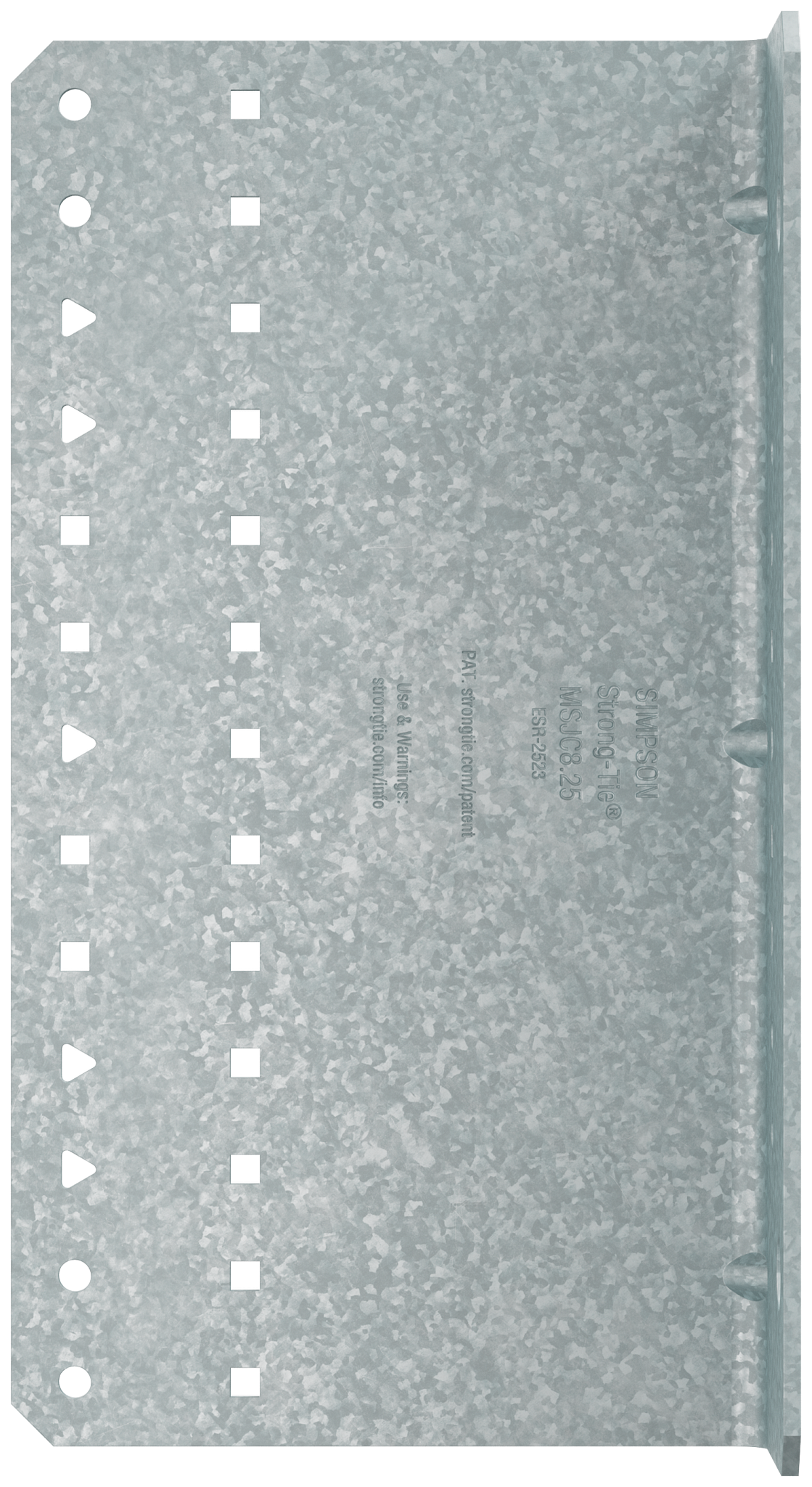

Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty)

Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty)

Simpson Strong-Tie® SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Prepunched holes reduce installation cost by eliminating predrilling
• Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
• 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
• Also accommodates kicker-to-metal-deck applications
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for extra corrosion resistance
• Size: 2 in. x 4-1/2 in. x 8-1/4 in.
• Quantity: 15

Specifications

• ERP Part Number: MSJC8.25-R15
• UPC: 707392514350
• GTIN: 707392514350
• Feature 01: Prepunched holes reduce installation cost by eliminating predrilling
• Feature 02: Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Feature 03: Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
• Feature 04: 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
• Feature 05: Also accommodates kicker-to-metal-deck applications
• Feature 06: Made from 12-gauge (97 mil) steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Feature 08: Size: 2 in. x 4-1/2 in. x 8-1/4 in.
• Feature 09: Quantity: 15
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
• Assembled Depth - Imperial: 4.5365
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.19275
• Assembled Width UOM - Imperial: in.
• Base Product ID: SJC_Connect
• Base Product Name: SJC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 127694096919081217706422631240157162852
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 15
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 22.12
• Short Product Name: CFS CLIP 2 X 4.5 X 8.25 12GA 15PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/sjc_connect/p/sjc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: D730,545
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392514355
