Simpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6

Simpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6

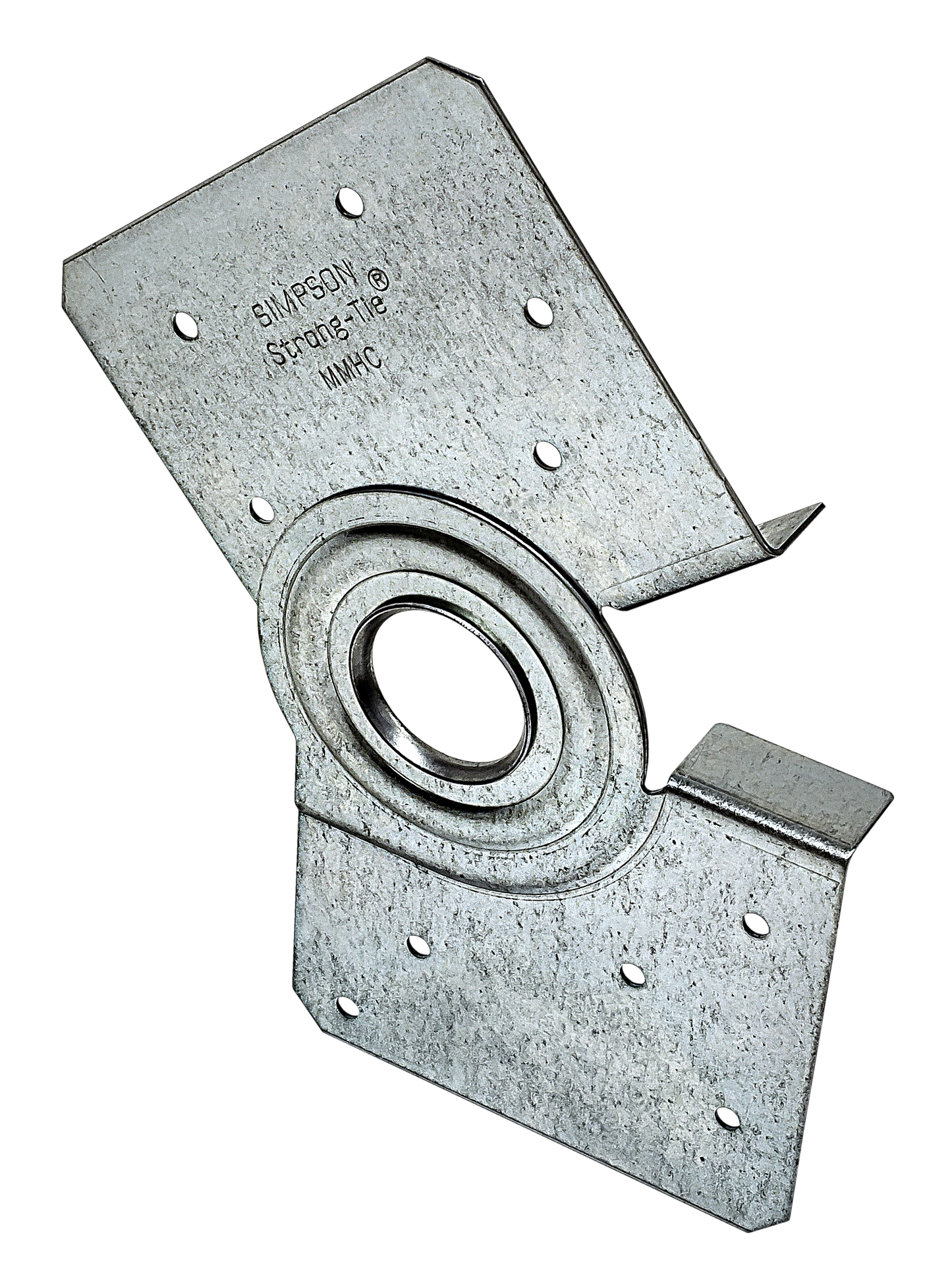

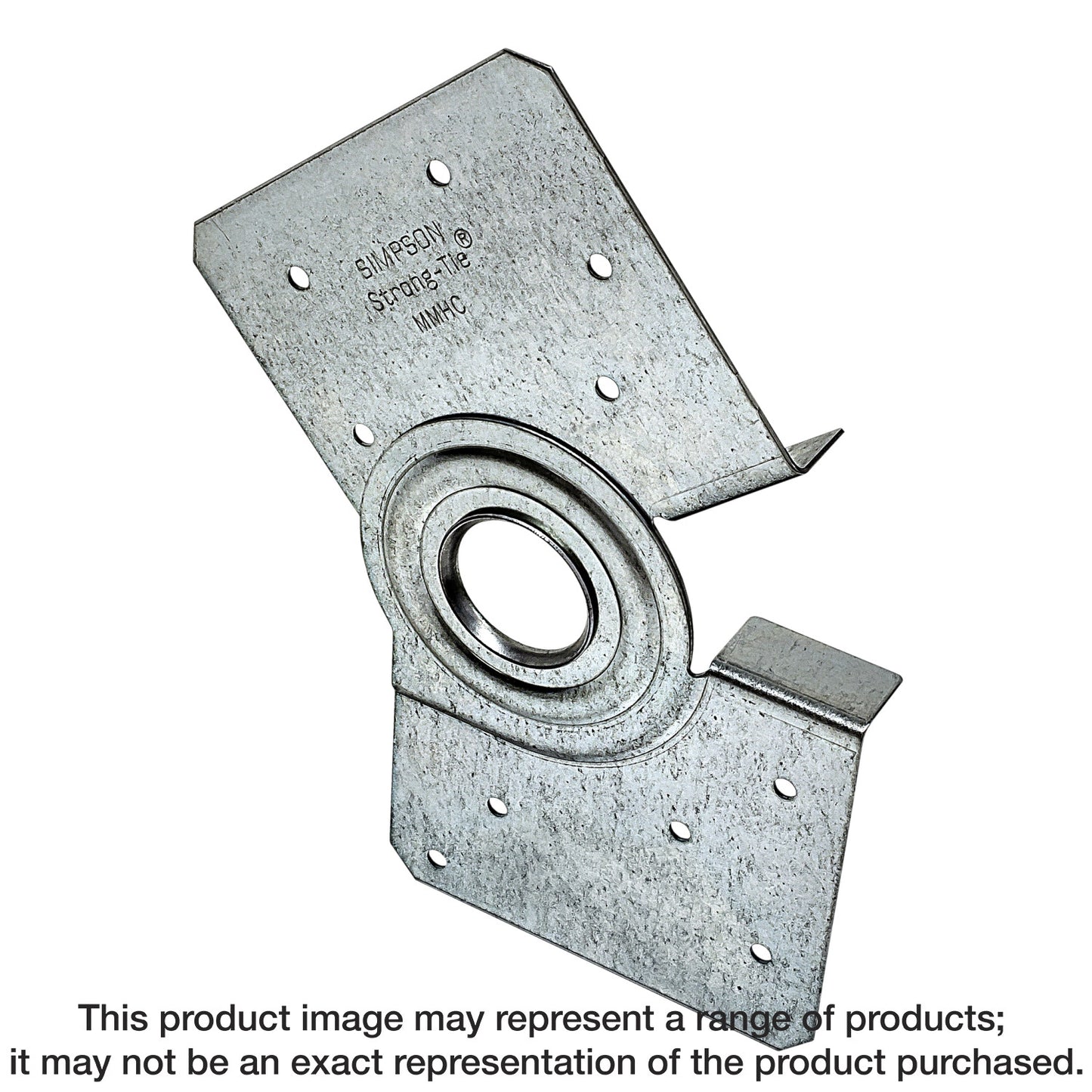

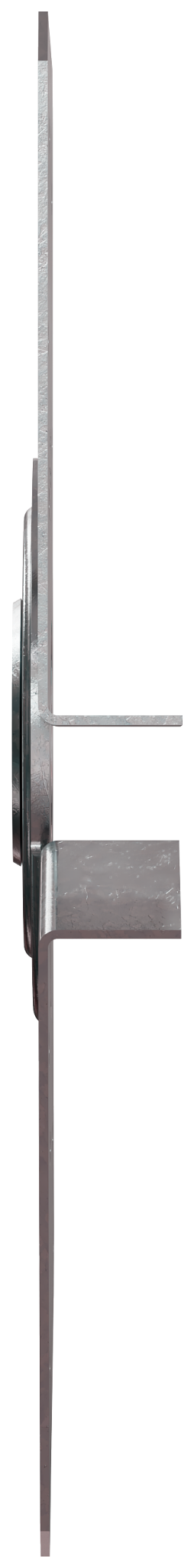

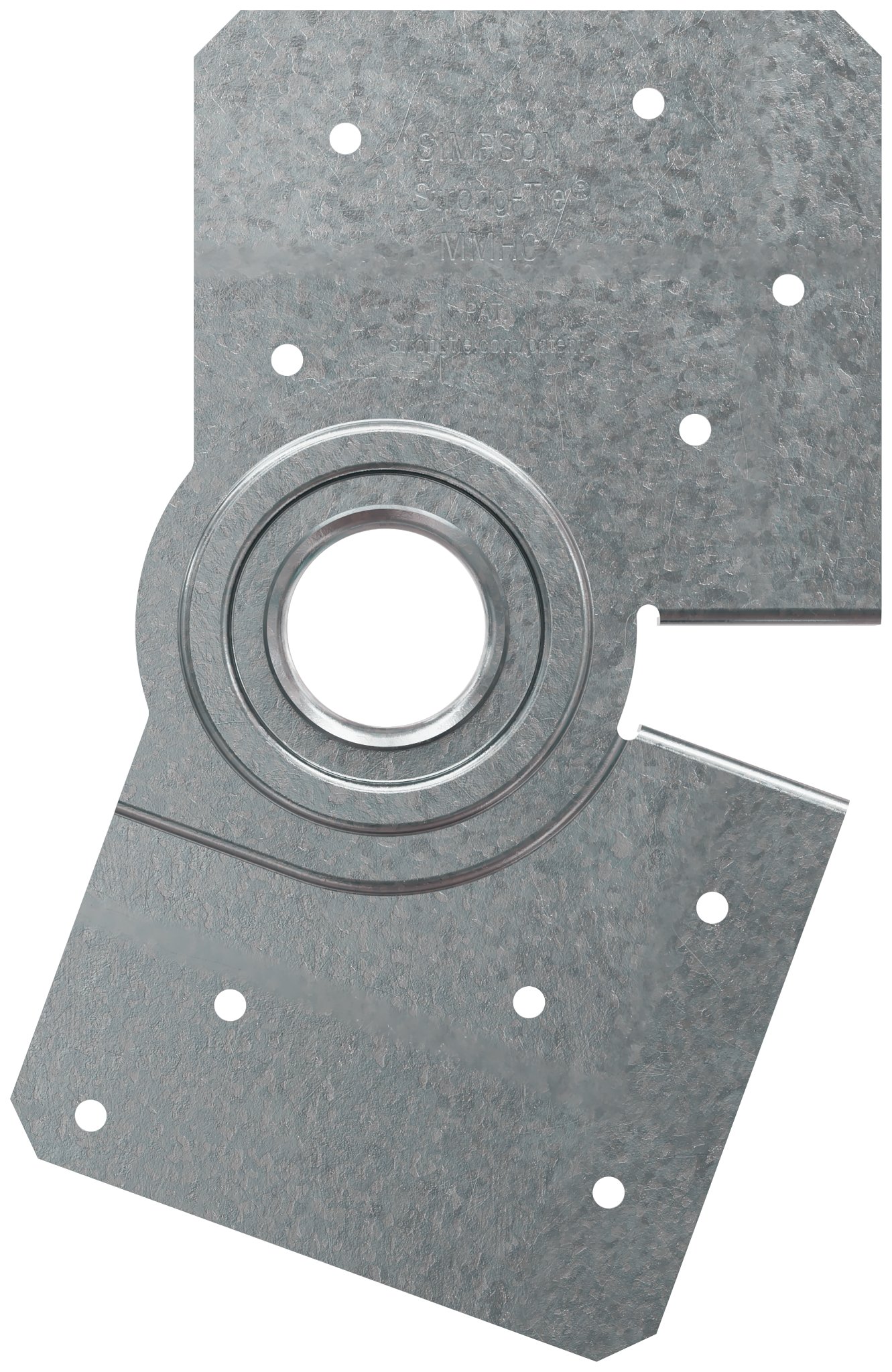

The innovative Simpson Strong-Tie® MMHC® hinged roof connector makes it easy to build a stick-frame roof in the factory that can fold flat during shipping. This connector has been tested and load rated in multiple directions. It can be installed on one or both sides of the roof rafter assembly.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Innovative hinge rotates easily from open position to folded
• The offset nail pattern allows for installation on both sides
• Connector tabs make it intuitive to position before nailing
• Nails in place for easy installation; no bolts required
• No measuring or predrilling saves installers time
• Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 knee wall stud
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: MMHC
• UPC: 707392922445
• GTIN: 707392922445
• Feature 01: Innovative hinge rotates easily from open position to folded
• Feature 02: The offset nail pattern allows for installation on both sides
• Feature 03: Connector tabs make it intuitive to position before nailing
• Feature 04: Nails in place for easy installation; no bolts required
• Feature 05: No measuring or predrilling saves installers time
• Feature 06: Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 knee wall stud
• Feature 07: Made from 18-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: Install with 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 0.81
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4
• Assembled Width UOM - Imperial: in.
• Base Product ID: MMHC_Connect
• Base Product Name: MMHC®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Hinge Connectors > Rafter Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 211607752641664115678903981582803859812
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 knee wall stud
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Rafter Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.408
• Short Product Name: MODULAR MANUFACTURING HINGE CONNECTOR
• Strongtie.com URL: https://www.strongtie.com/rafterties_factorybuiltstructures/mmhc_connect/p/mmhc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Hinge Connectors
• US Patents: 11,131,088
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392922442
• PAL Reference: 50707392922440
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
