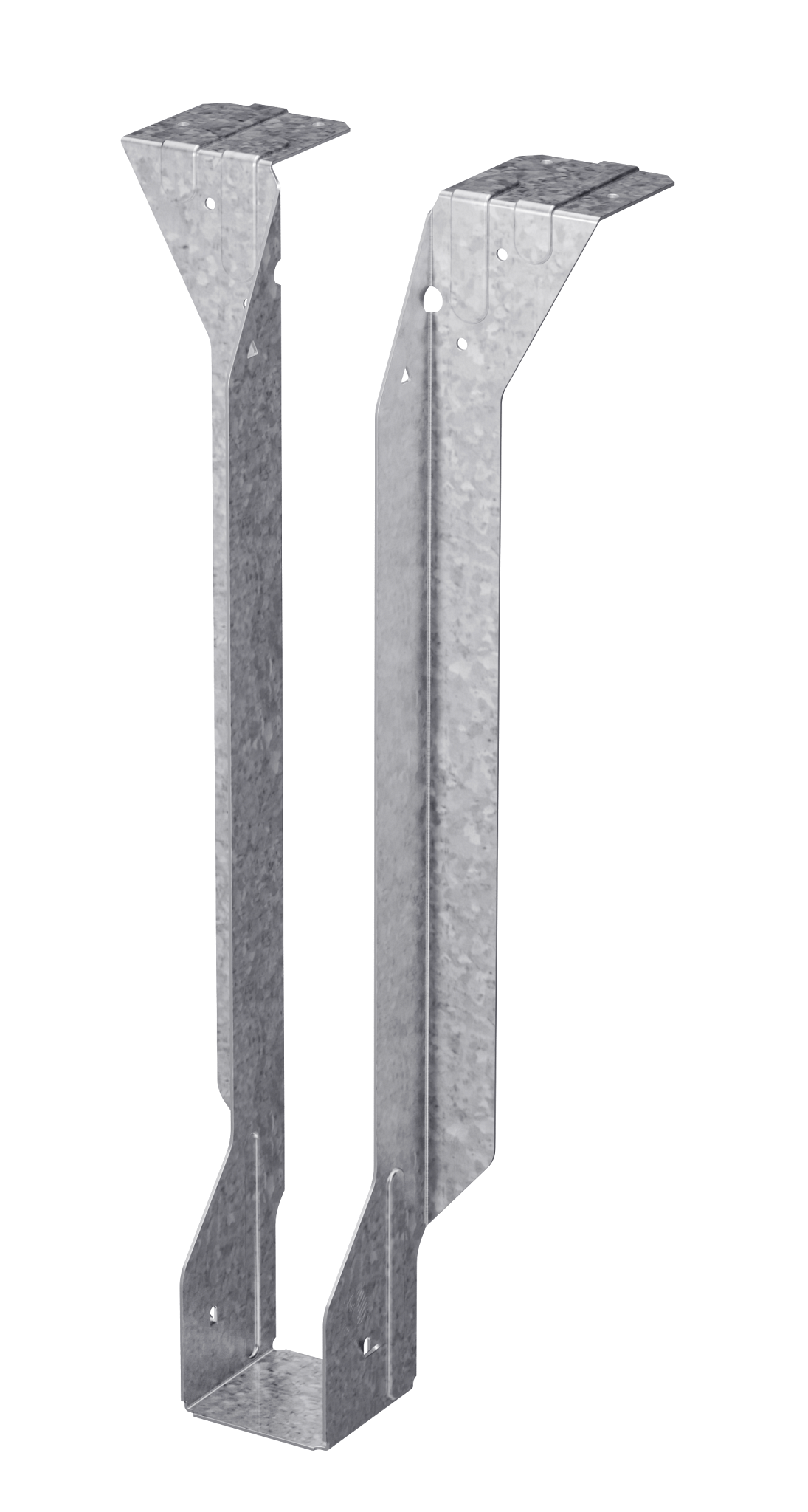

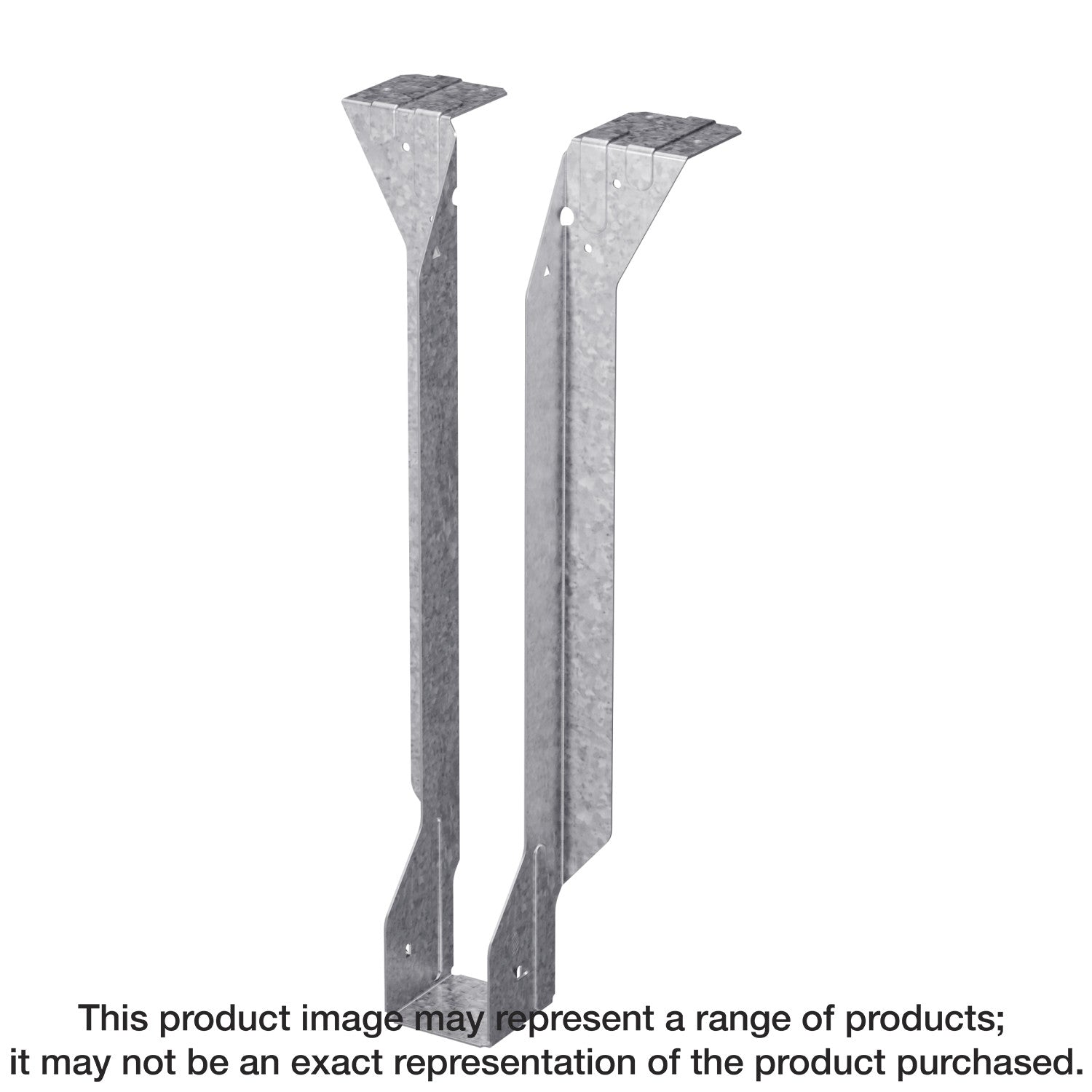

Simpson Strong-Tie MIT3518 MIT Galvanized Top-Flange Joist Hanger for 2-5/16 in. x 18 in. Engineered Wood
Top-flange hangers for engineered wood are an integral component for providing maximum down loads that require a minimum amount of fasteners. These metal connectors are created to be installed before the joist is in place. The Simpson Strong-Tie® MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange™ design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
- With positive-angle nailing, the nail hole material is not removed
- Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
- Cost-effective solution for standard 90° connections in comparison to welded hangers
- Features optional fastening with PAT for steel applications/header
- Actual joist size: 2-5/16 in. x 18 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- ERP Part Number: MIT3518
- UPC: 44315706202
- GTIN: 44315706202
- Feature 01: Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
- Feature 02: With positive-angle nailing, the nail hole material is not removed
- Feature 03: Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
- Feature 04: Cost-effective solution for standard 90° connections in comparison to welded hangers
- Feature 05: Features optional fastening with PAT for steel applications/header
- Feature 06: Actual joist size: 2-5/16 in. x 18 in.
- Feature 07: Made from 16-gauge steel
- Feature 08: Galvanized (G90) for extra corrosion resistance
- Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
- Assembled Depth - Imperial: 5.15625
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 18.15625
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 7.75
- Assembled Width UOM - Imperial: in.
- Base Product ID: MIT_Hanger
- Base Product Name: MIT
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
- Coating: Zinc Galvanized, G90
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Fasteners Included: No
- Finish: Zinc Galvanized, G90
- Gauge: 16
- GUID: 162910823685436052240043327874644493100
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- Member Size: 2-5/16 x 18
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 1
- Packaging Type: Unpacked
- Product Class: Hanger
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 1.84
- Short Product Name: 2-5/16 X 18 TOP FLANGE I-JOIST HANGER
- Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/mit_hanger/p/mit
- Subcategory: Wood Construction Connectors
- Subcategory 2: Joist Hangers for Engineered Wood
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10044315706209
- PAL Reference: 50044315706207
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
