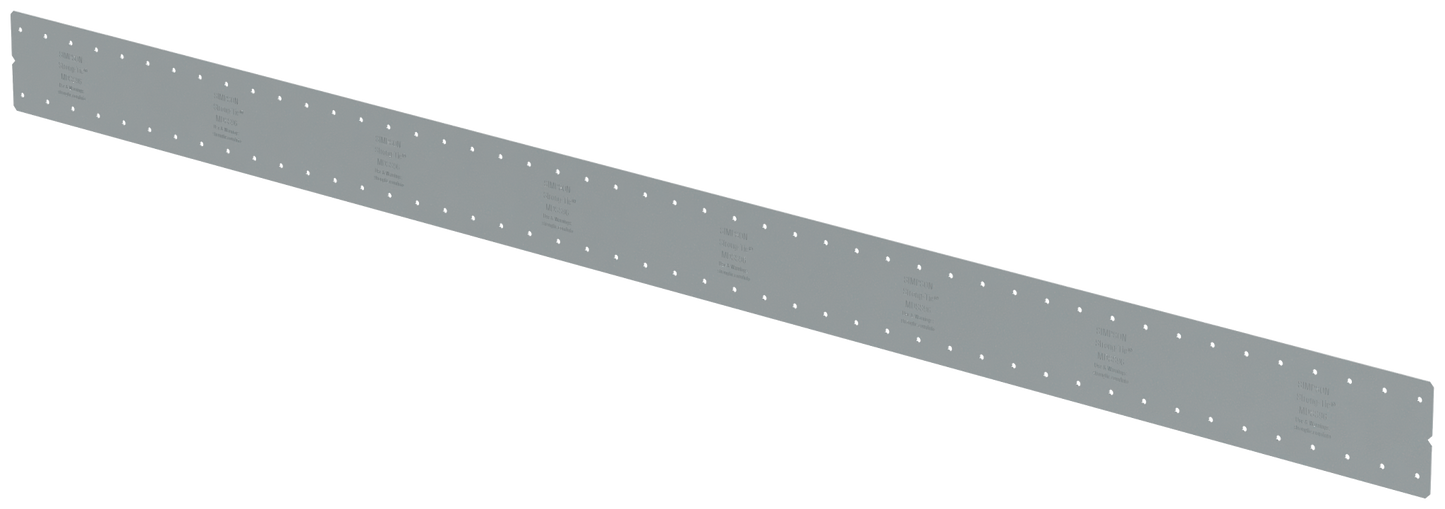

Simpson Strong-Tie MDSS96 MDSS 5-3/4 in. x 95-1/2 in. Galvanized Diaphragm Spline Strap

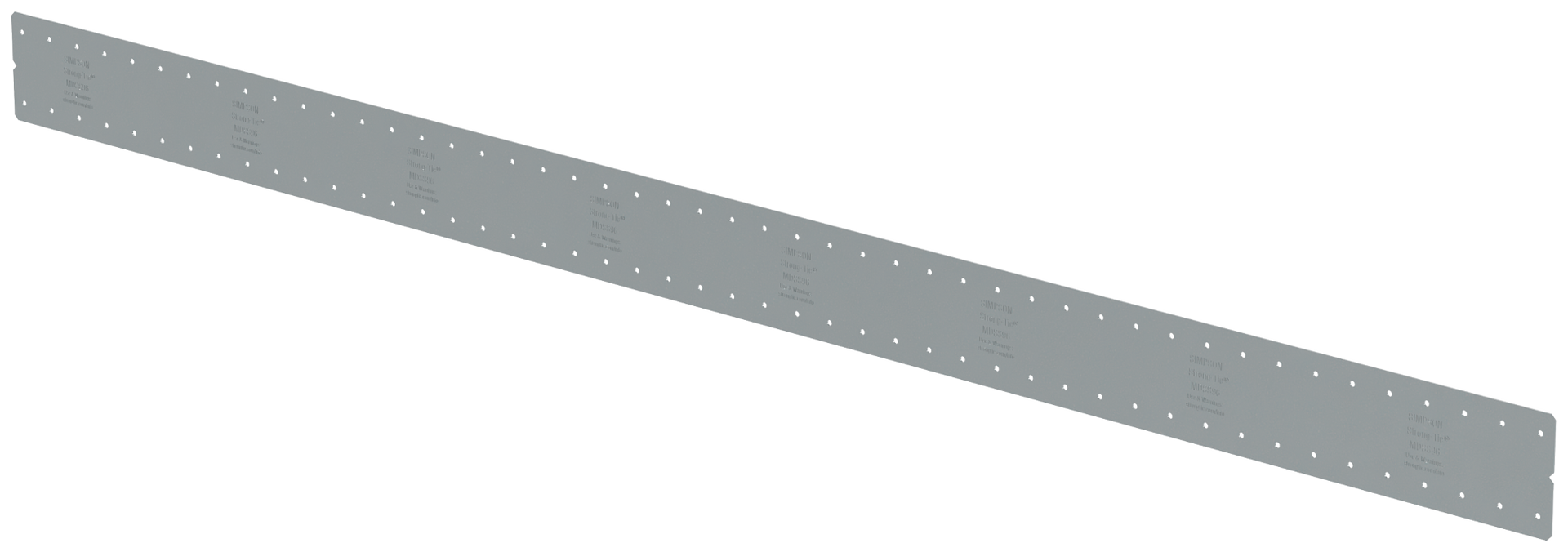

Simpson Strong-Tie MDSS96 MDSS 5-3/4 in. x 95-1/2 in. Galvanized Diaphragm Spline Strap

The MDSS96 surface spline is 95-1/2 in. long, is attached with Strong-Drive® SDS Heavy-Duty Connector screws and is an ideal solution for CLT diaphragms. For CLT manufacturers, it reduces costs by eliminating or reducing time for milling at panel edges. And since our tabulated values are based on tests, not just calculations, Designers can value-engineer a solution using fewer screws than calculated solutions would allow.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Pre-punched screw holes speed fastener installation
• Tested loads allow for value-engineered solutions using fewer screws than calculated solutions would allow
• Reduces or eliminates the need for edge-milling of CLT panels
• Width: 5-3/4 in.
• Length: 95-1/2 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Application

• Mass Timber / Cross-Laminated Timber

Specifications

• ERP Part Number: MDSS96
• UPC: 707392001812
• GTIN: 707392001812
• Feature 01: Pre-punched screw holes speed fastener installation
• Feature 02: Tested loads allow for value-engineered solutions using fewer screws than calculated solutions would allow
• Feature 03: Reduces or eliminates the need for edge-milling of CLT panels
• Feature 04: Width: 5-3/4 in.
• Feature 05: Length: 95-1/2 in.
• Feature 06: Made from 14-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 1/4 in. x 3-1/2 in. Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for 3-ply CLT layup or 1/4 in. x 6 in. SDS screws for 5- and 7-ply CLT layup
• Applications List: Mass Timber / Cross-Laminated Timber
• Assembled Depth - Imperial: 0.07
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 95.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: MDSS_Strap
• Base Product Name: MDSS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Strap
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 106527796760930911987367372033987239083
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Strap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 11.3
• Short Product Name: DIAPHRAGM SPLINE STRAP 5.75 X 96 X 14 GA
• Strongtie.com URL: https://www.strongtie.com/straightstraps_strapsandties/mdss_strap/p/mdss
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392001817
