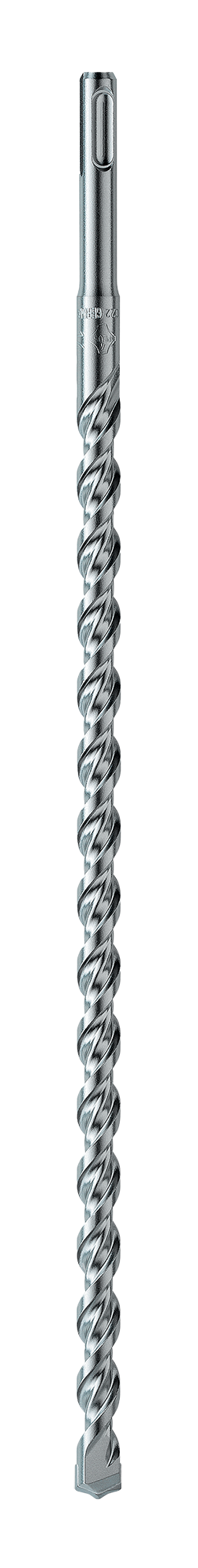

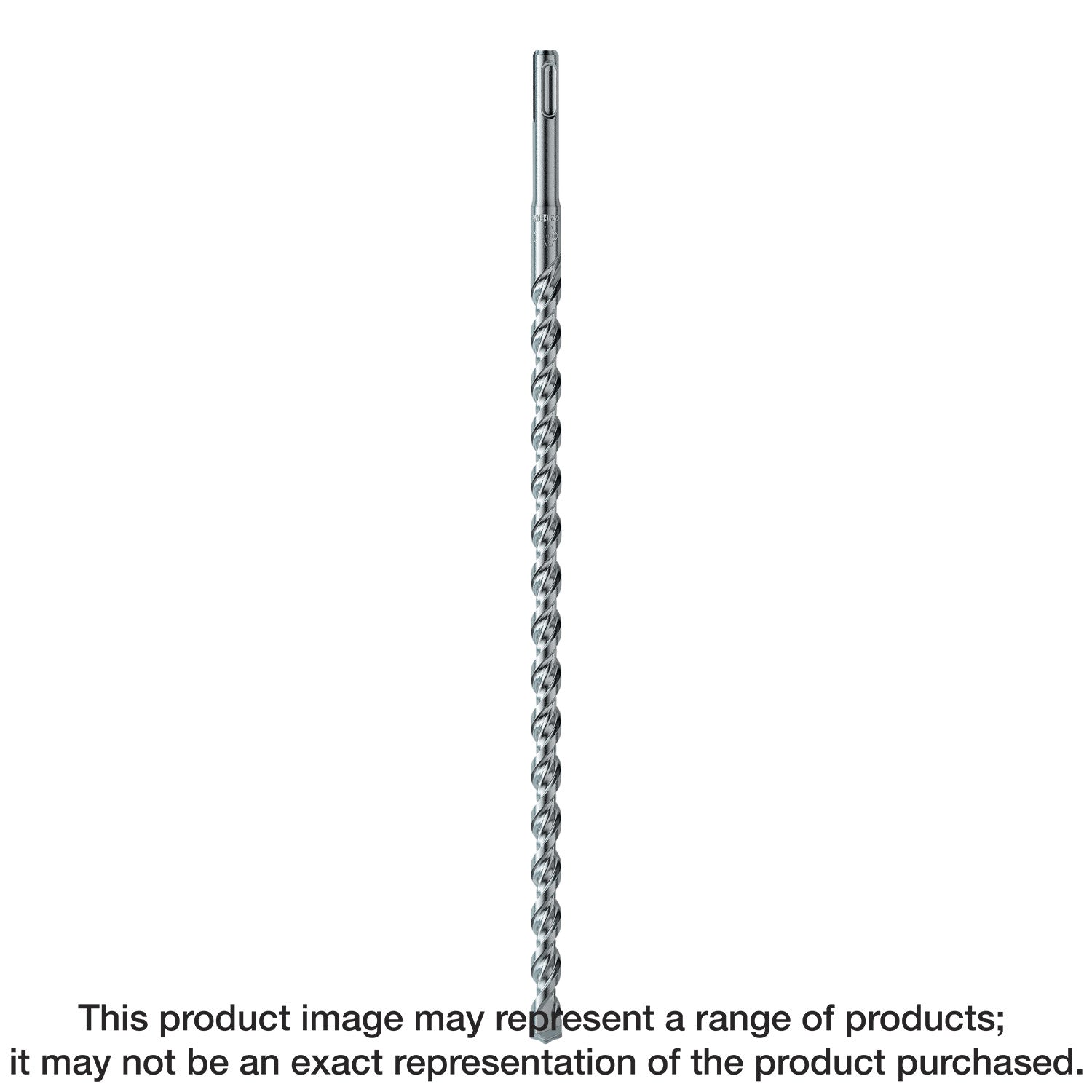

Simpson Strong-Tie MDPL05010 1/2 in. x 10-1/4 in. SDS-plus® Shank Drill Bit

Simpson Strong-Tie MDPL05010 1/2 in. x 10-1/4 in. SDS-plus® Shank Drill Bit

Simpson Strong-Tie offers a complete line of premium-quality drill bits, core bits and chisels to handle any drilling and demolition need. These carbide-tipped drill bits are premium quality, professional-grade tools manufactured in Germany to the highest industry standards for Simpson Strong-Tie. They are designed to meet precise tolerance requirements and incorporate proprietary features that enhance durability and drilling speed, while improving ease of use. Regular and Quad Head bit tip, solid-tipped and Titen® screw hex-bit configurations are available.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Uniformly brazed carbide inserts result in longer bit life
• Most bits contain a centering tip that facilitates easy spot drilling
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bits conform to ANSI Standard B212.15
• Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Diameter: 1/2 in.
• Drilling depth: 8 in.
• Overall length: 10-1/4 in.

Specifications

• ERP Part Number: MDPL05010
• UPC: 707392357704
• GTIN: 707392357704
• Feature 01: Uniformly brazed carbide inserts result in longer bit life
• Feature 02: Most bits contain a centering tip that facilitates easy spot drilling
• Feature 03: Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Feature 04: Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Feature 05: Drill bits conform to ANSI Standard B212.15
• Feature 06: Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• Feature 07: High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• Feature 08: Diameter: 1/2 in.
• Feature 09: Drilling depth: 8 in.
• Feature 10: Overall length: 10-1/4 in.
• Assembled Depth - Imperial: 0.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: MDPL_DrillBits
• Base Product Name: SDS-plus® Drill Bits
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Carbide Drill Bits for Concrete and Masonry > > Drill Bit
• Country of Origin: DE
• Customer Unit: Yes
• Diameter (in.): 1/2
• Display Unit/Measure: EA
• Drilling Depth (in.): 8
• EAN category: UC
• GUID: 284928346879427346016802885582509980822
• Head Type: 2-Cutter Head
• Length (in.): 10 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Hardened Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 0.75
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 14
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 2
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Hang Tab
• Product Class: Drill Bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Type: SDS-plus® Shank
• Shipping Weight: 0.35
• Short Product Name: SDS PLUS BIT 1/2X10-1/4
• Strongtie.com URL: https://www.strongtie.com/carbidedrillbits_anchoringsystems/mdpl_drillbits/p/sds-plus-drill-bits
• Subcategory: Carbide Drill Bits for Concrete and Masonry
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392357701
